Danfoss (Drives) 106-1102-006

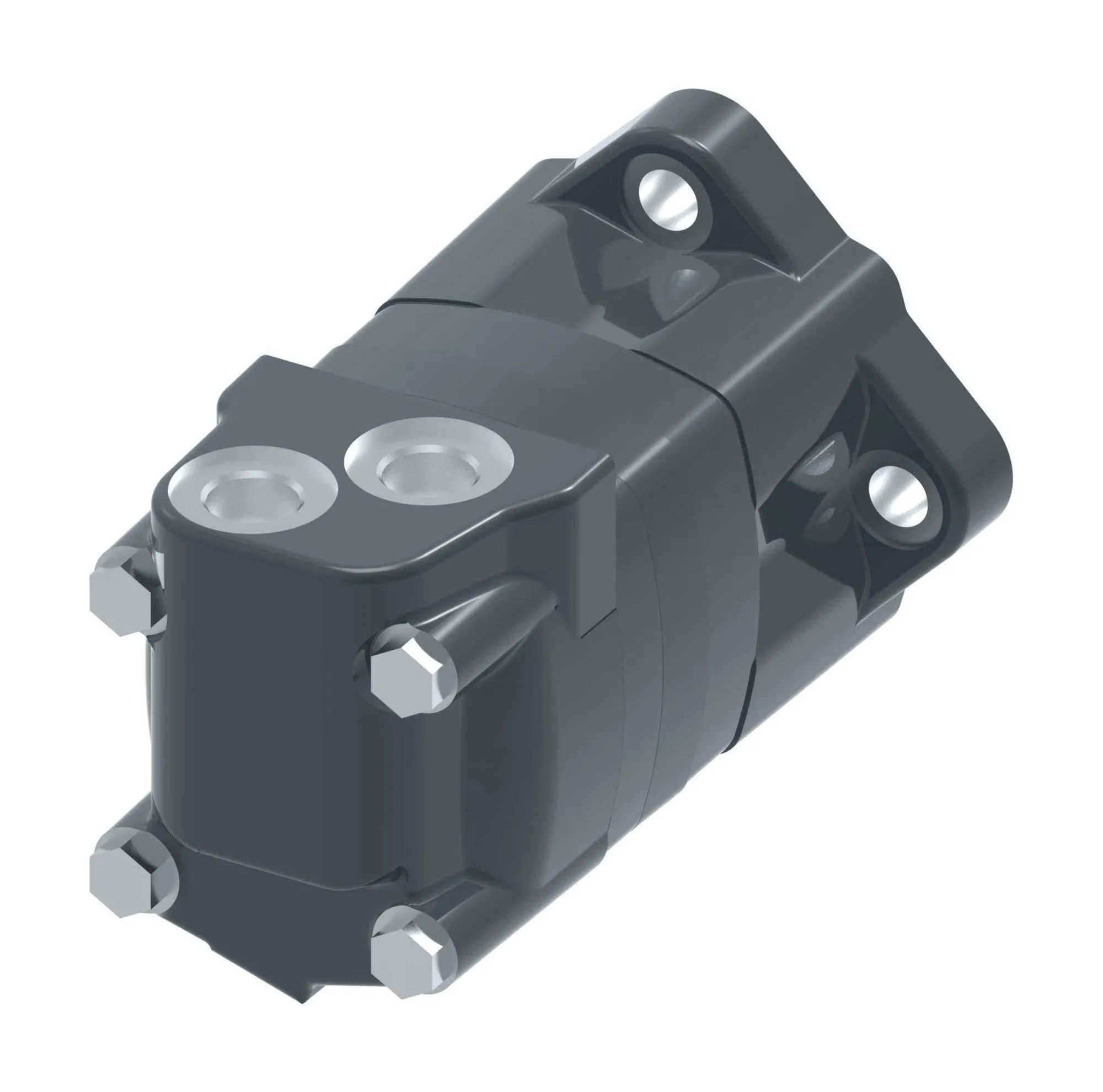

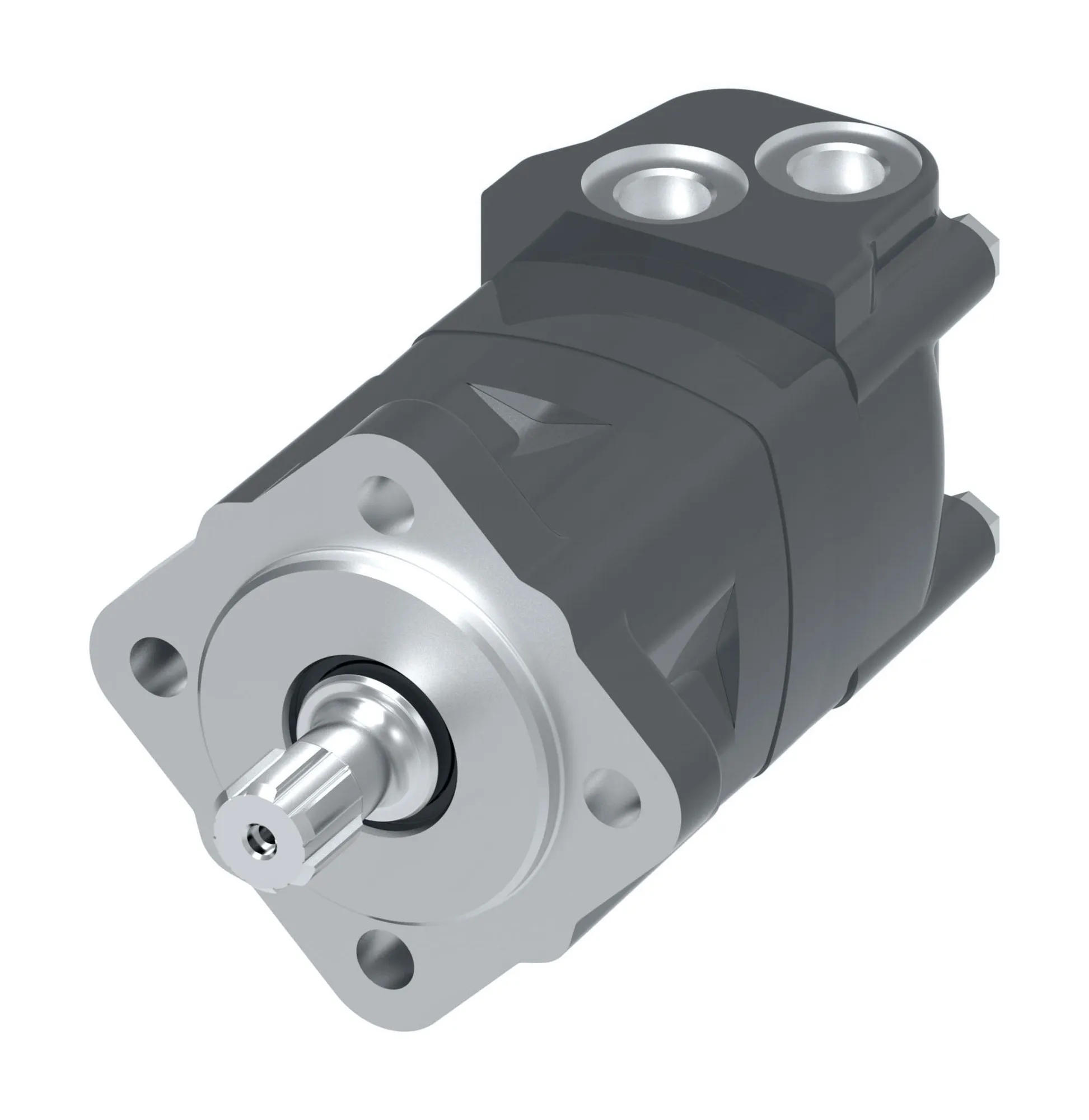

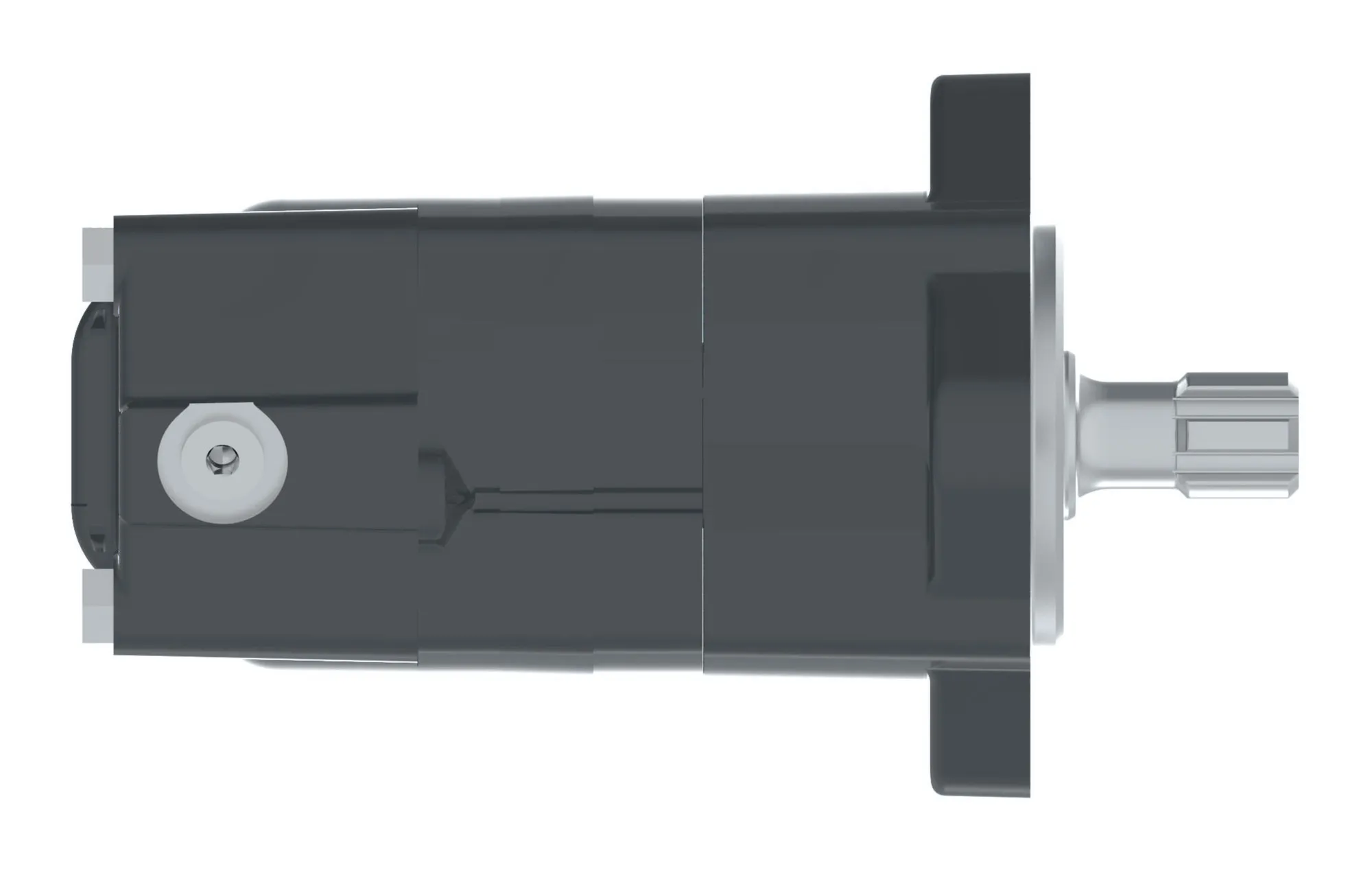

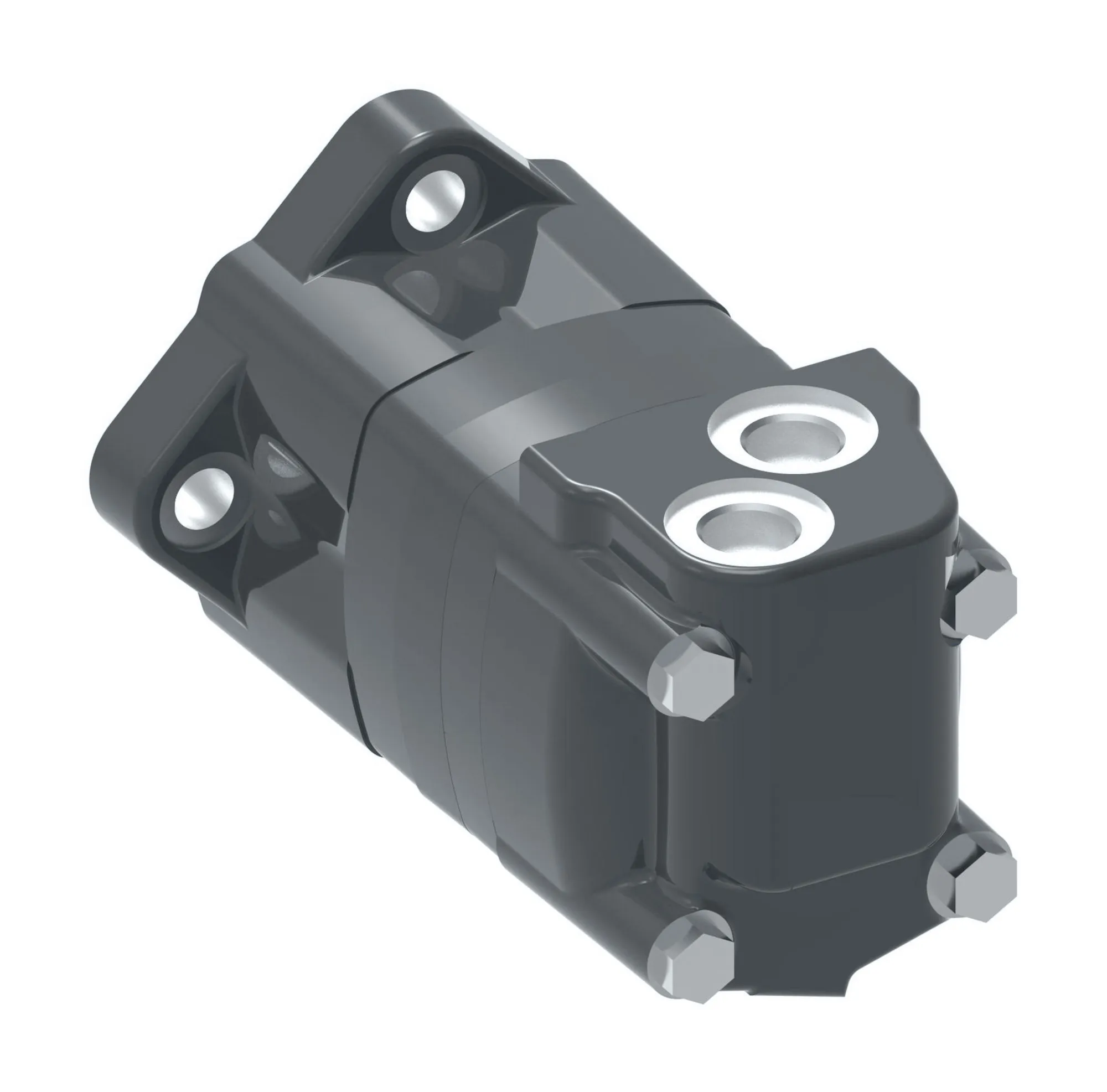

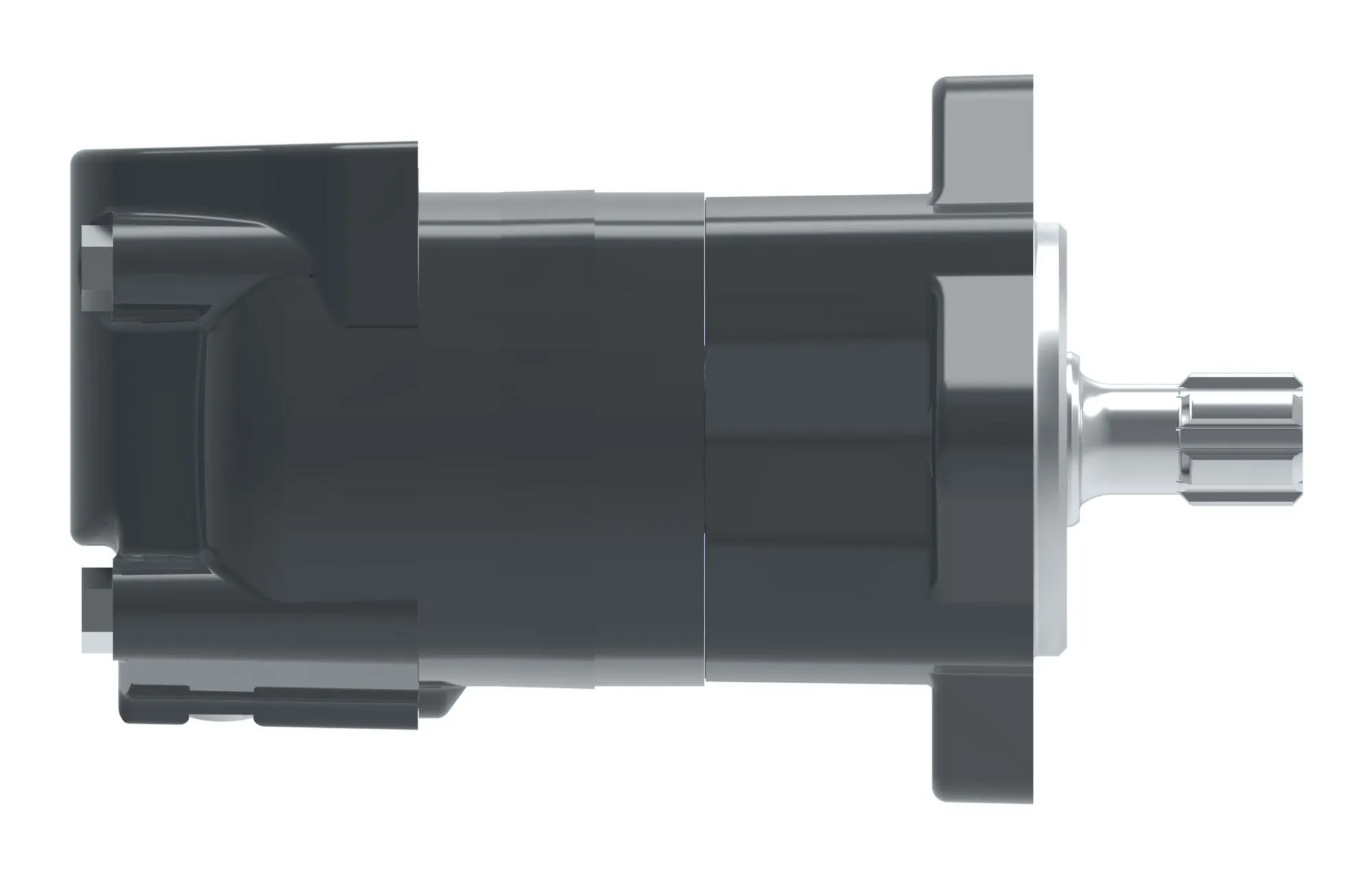

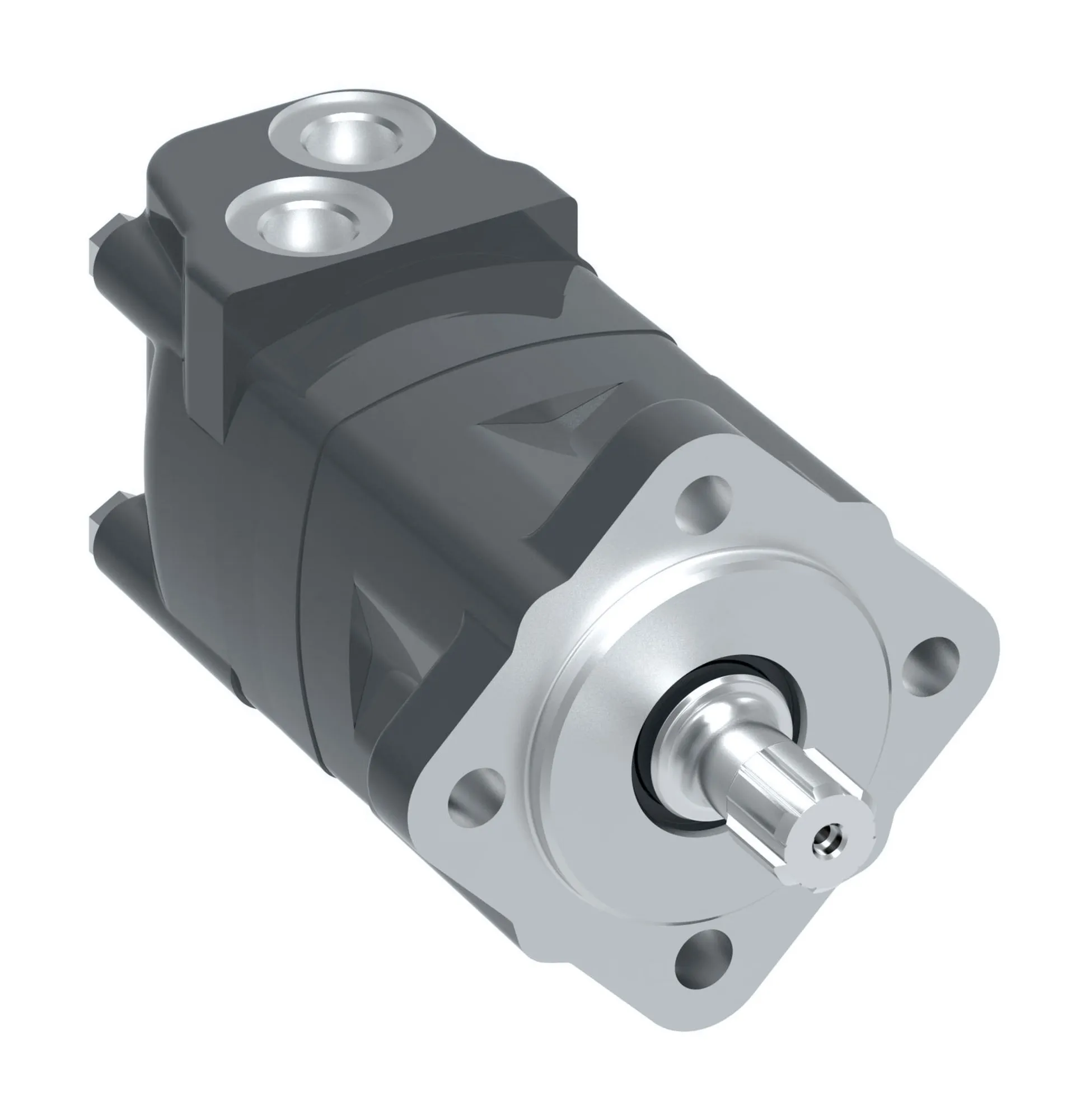

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187BN39AG0200010000000ABAAF – 106-1102-006
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187BN39AG0200010000000ABAAF – 106-1102-006
Specification
| Model Code | M02187BN39AG0200010000000ABAAF |
|---|---|
| Motor Series | 2000 Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Motor Size | 305 |
| Geometric Displacement [Cm3/R [In3/R]] | 306.6 [18.71] |
| Motor Type | Short |
| Motor Function | Standard |
| Mounting Flange Type | 4 Bolt – Short |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 100.0 x 6.1, 125.0, 11.0 [3.94 x 0.24, 4.92, 0.43] – Spec. Component |
| Shaft Type | None |
| Shaft Dimension | n/a |
| Shaft Key | n/a |
| Main Port Thread Type | BSP |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | G 1/2 |
| Drain Port Dimension | G 1/4 |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint Information | Primer, Black, Low gloss |
| Special Features Assembly | Standard |
| Dust Seal | n/a |
| Shaft Seal | n/a |
| Seal Kit | 9900681-000 |
| Front Bearing Type | n/a |
| Rear Bearing Type | n/a |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | Yes |
| Hydraulic Valve Function | None |
| Sensor | None |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Design Code | 06 |
| Brand | Danfoss |
| Sub Brand | Char-Lynn |
