Danfoss (Drives) 10513-52-20Z

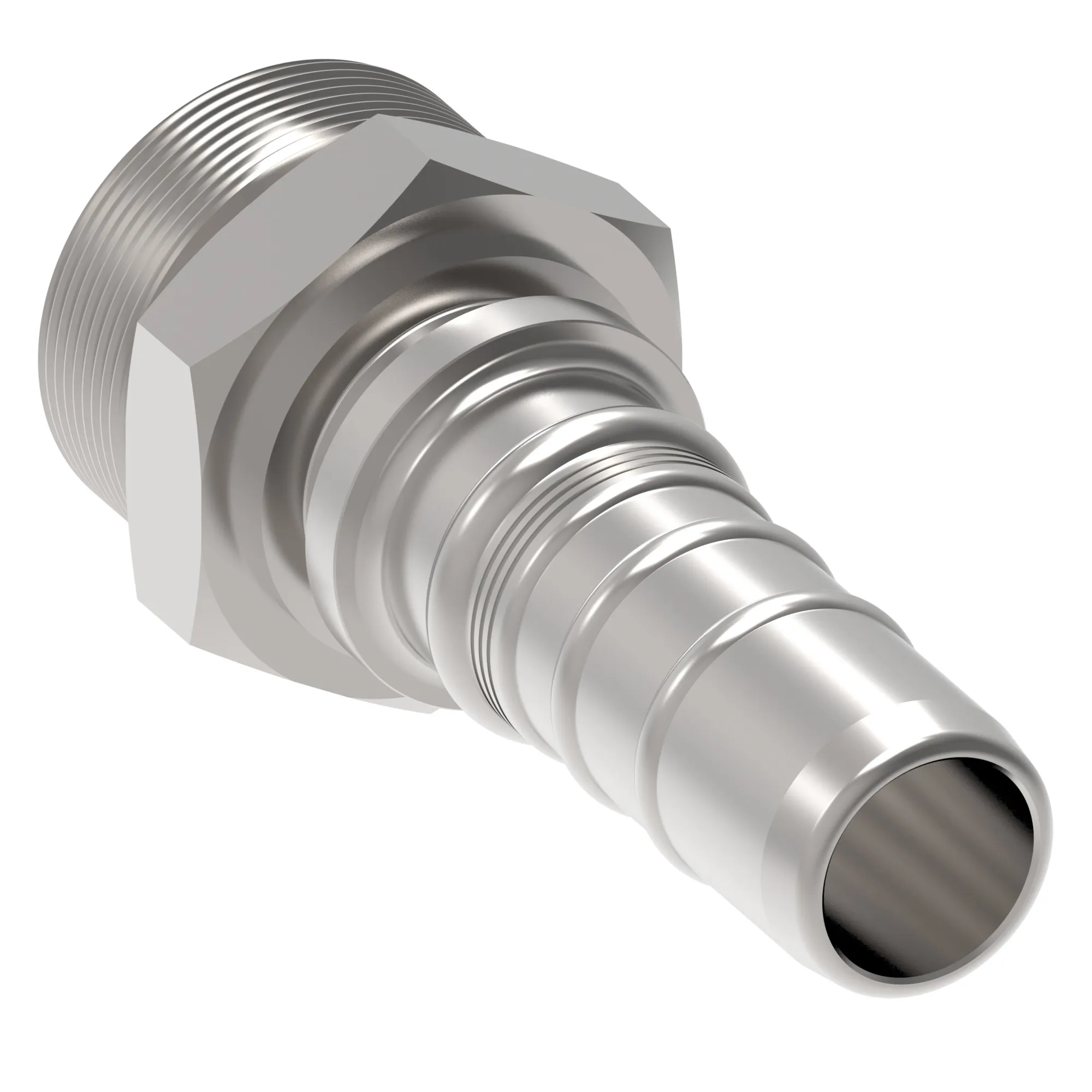

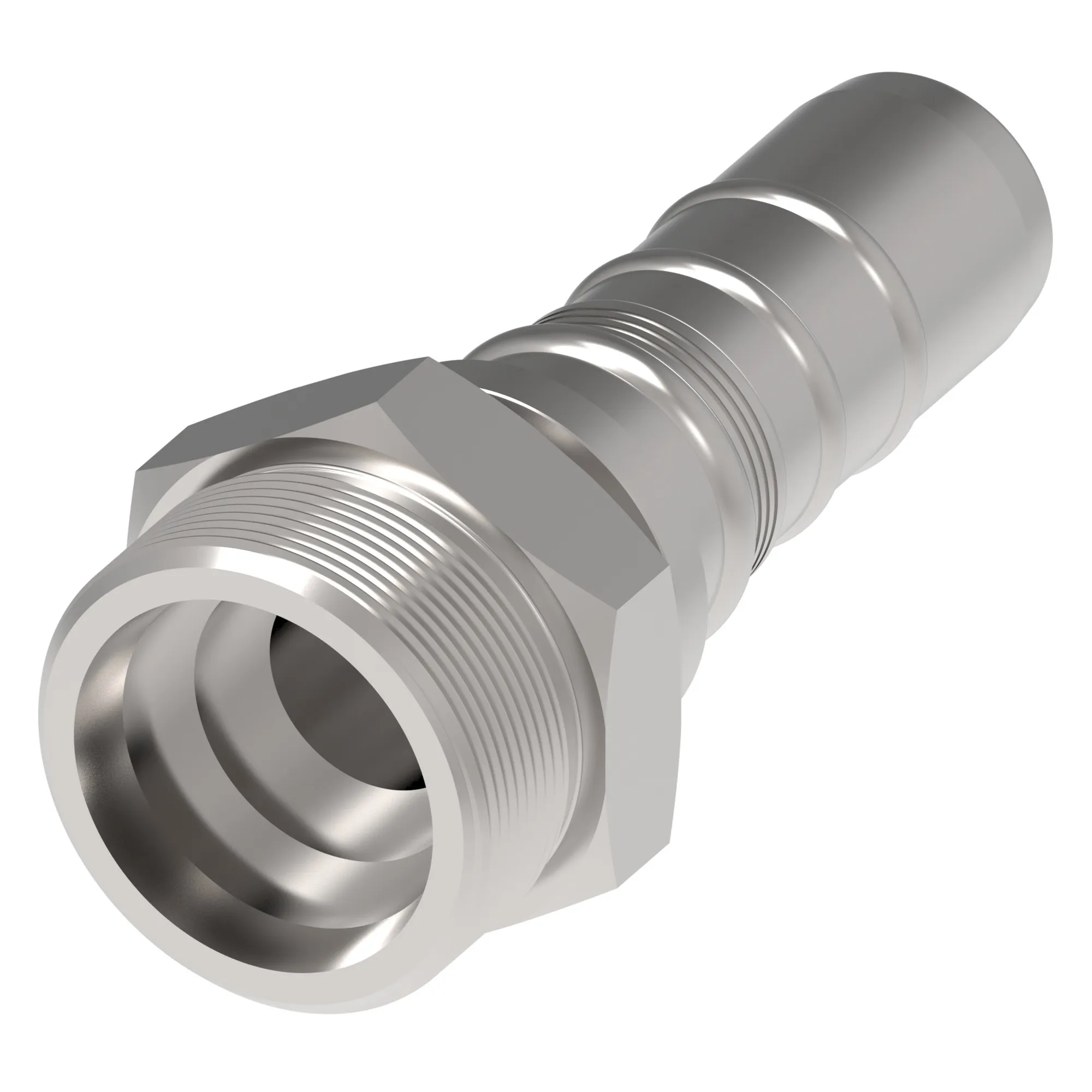

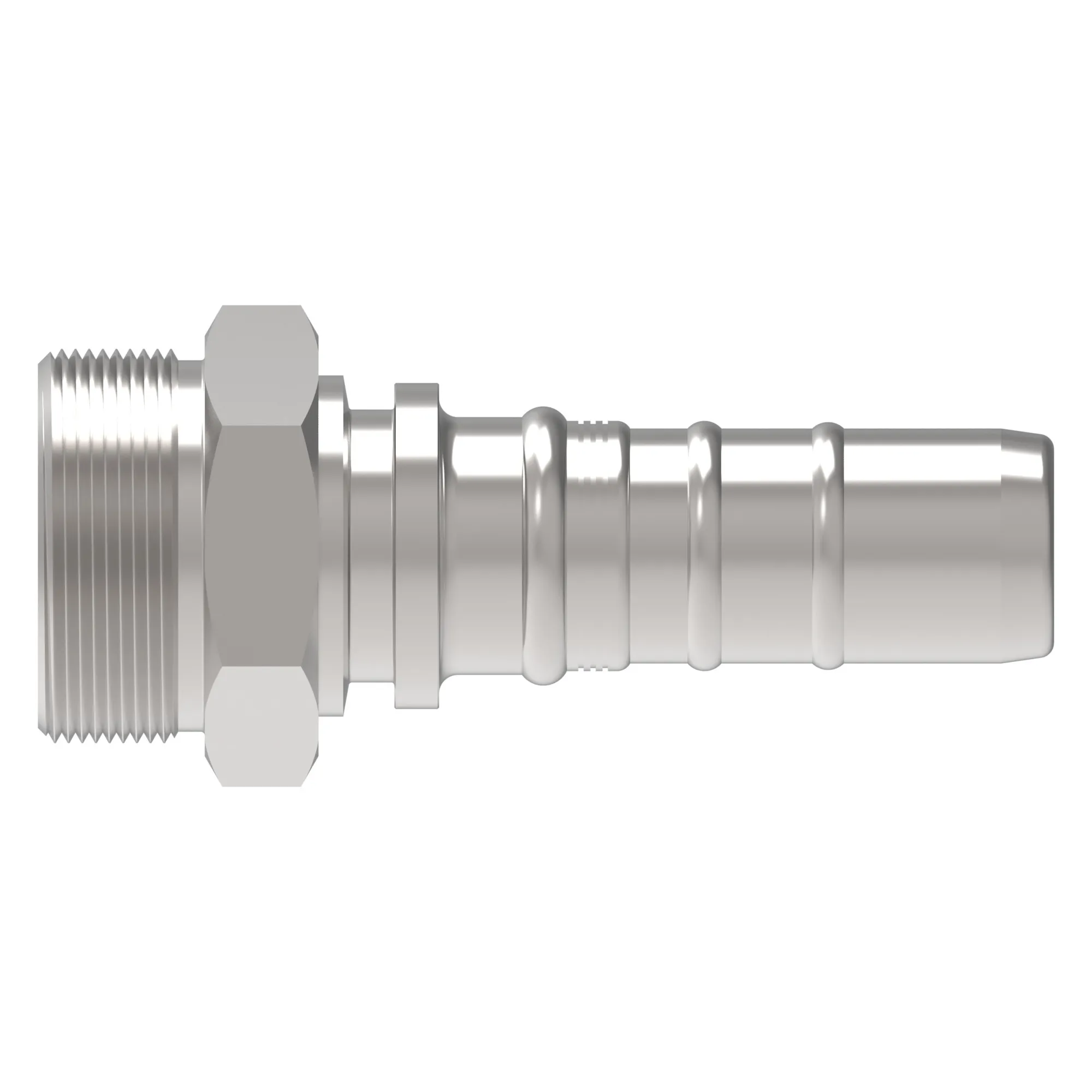

HOSE NIPPLE ASSY, 2P/20, EK/52, CS, STR – 10513-52-20Z
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE ASSY, 2P/20, EK/52, CS, STR – 10513-52-20Z
Specification
| A Dimension In | 5.270 |
|---|---|
| A Dimension Mm | 134.000 |
| Angle Shape | Straight |
| Application | General industrial use, Hydraulic systems, Petroleum based fluids, Water based fluids |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 1.250 |
| Compatible Hose Id Mm | 31.800 |
| Construction Style | Crimp |
| End Connection Torque | 245-258 lb-ft(334-352 Nm) |
| End Type 1 | 24 deg. tube port heavy duty |
| End Type 2 | Line/hose/tube |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 2.165 |
| Hex Size 1 Mm | 55.000 |
| Hose Cut Off Factor In | 2.070 |
| Hose Cut Off Factor Mm | 52.800 |
| Hose Size | -20 |
| Inside Diameter In | 0.9400 |
| Inside Diameter Mm | 24.0000 |
| Product Height In | 2.500 |
| Product Height Mm | 63.500 |
| Product Length In | 5.276 |
| Product Length Mm | 134.000 |
| Product Material | Carbon steel |
| Product Width In | 2.165 |
| Product Width Mm | 55.000 mm |
| Series | Winner 2-Piece |
| Thread Sealant | No |
| Thread Size 1 | M52x2 |
