Danfoss (Drives) 10512Y-30-10Z

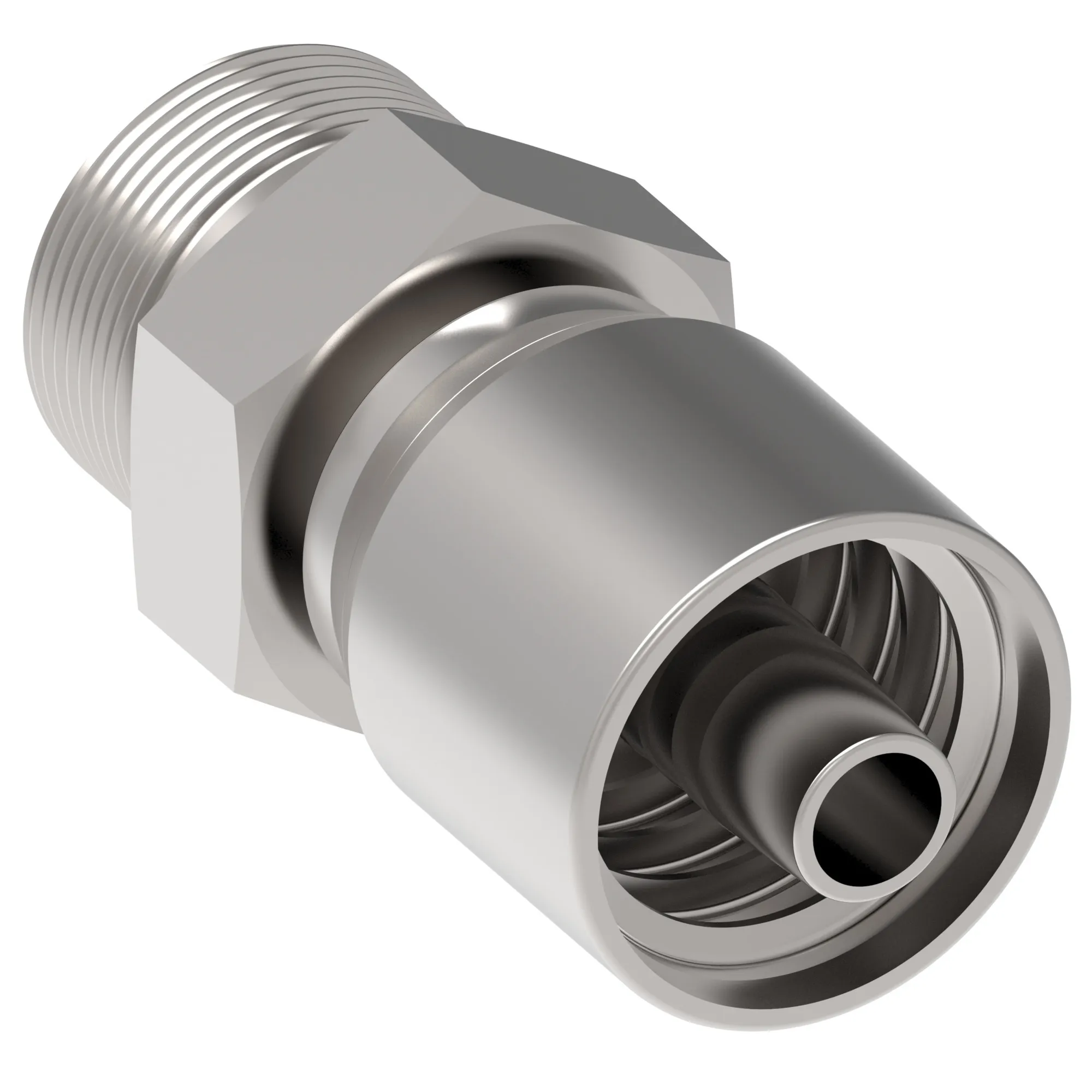

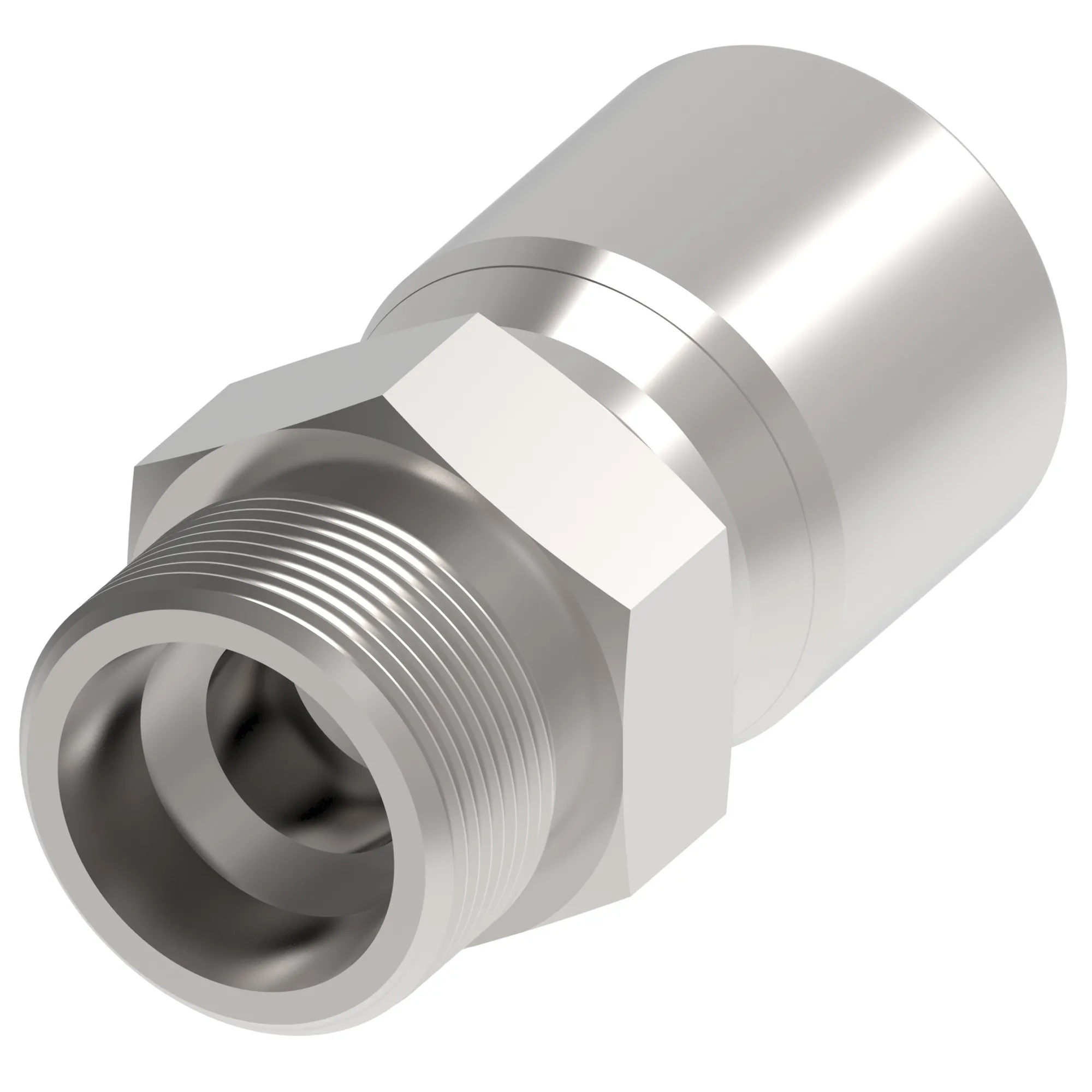

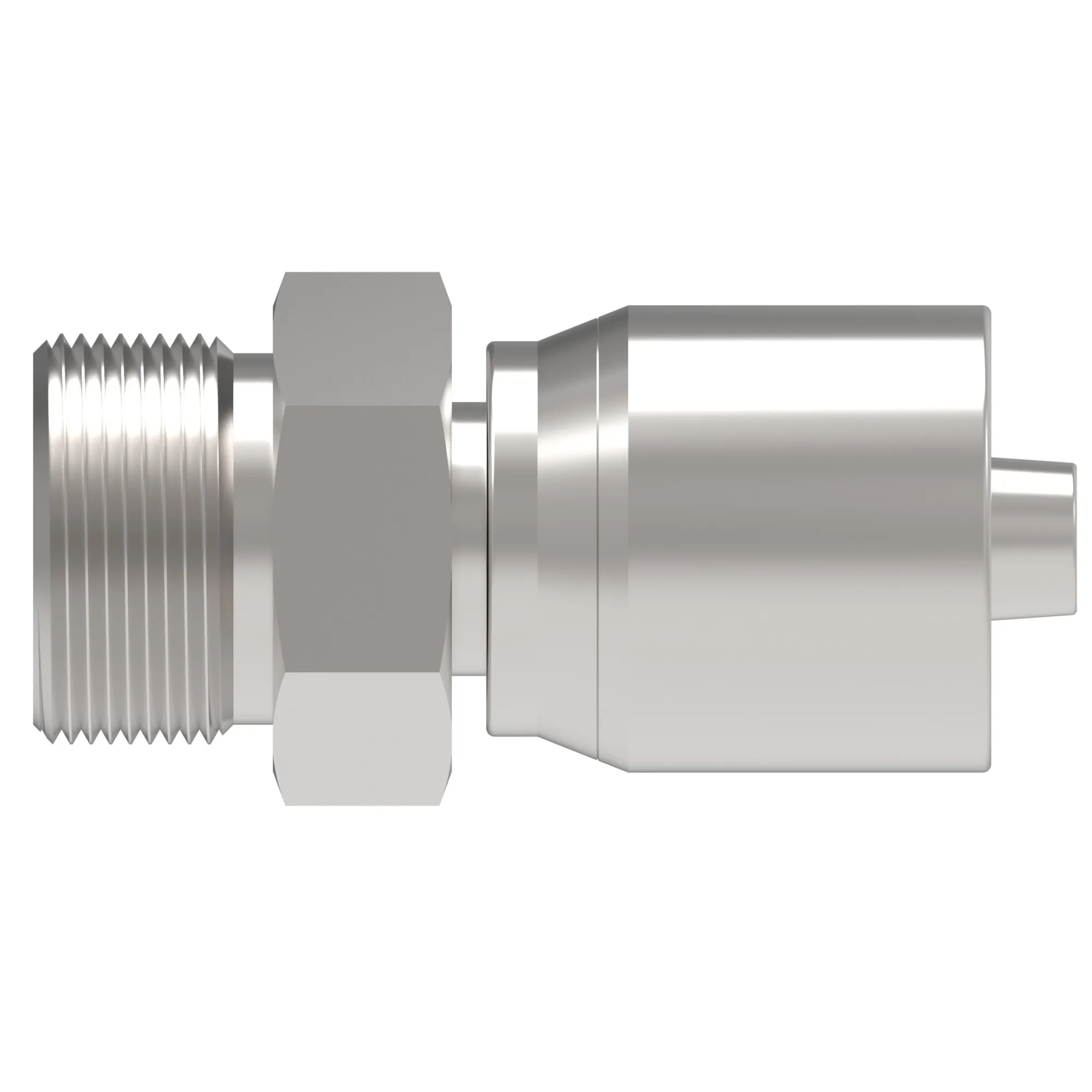

HOSE FTG, 1P/10, DKOH-B/30, CS, STR – 10512Y-30-10Z
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE FTG, 1P/10, DKOH-B/30, CS, STR – 10512Y-30-10Z
Specification
| A Dimension In | 3.050 |
|---|---|
| A Dimension Mm | 77.500 |
| Angle Shape | Straight |
| Application | General industrial use, Hydraulic systems, Petroleum based fluids, Water based fluids |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 0.620 |
| Compatible Hose Id Mm | 15.900 |
| Construction Style | Crimp |
| End Size 2 | -12 |
| End Type 1 | 24 deg. DKO swivel heavy duty |
| End Type 2 | Line/hose/tube |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 1.260 |
| Hex Size 1 Mm | 32.000 |
| Hose Cut Off Factor In | 1.470 |
| Hose Cut Off Factor Mm | 37.500 |
| Hose Size | -10 |
| Inside Diameter In | 0.4700 |
| Inside Diameter Mm | 12.0000 |
| Product Height In | 1.453 |
| Product Height Mm | 36.900 |
| Product Length In | 3.051 |
| Product Length Mm | 77.500 |
| Product Material | Carbon steel |
| Product Width In | 1.338 |
| Product Width Mm | 34.000 mm |
| Thread Sealant | No |
| Thread Size 1 | M30x2 |
