Danfoss (Drives) 10512B-108-BG

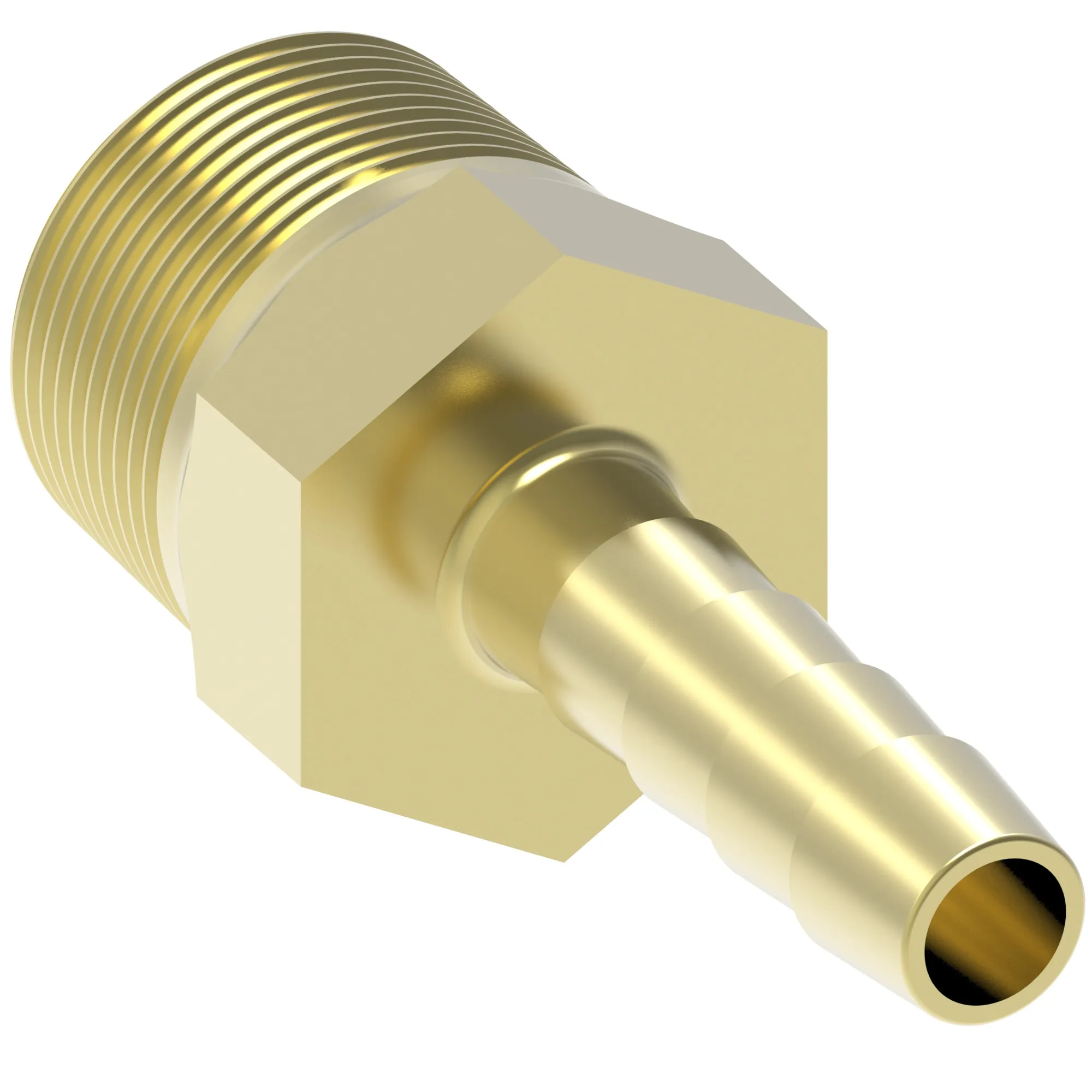

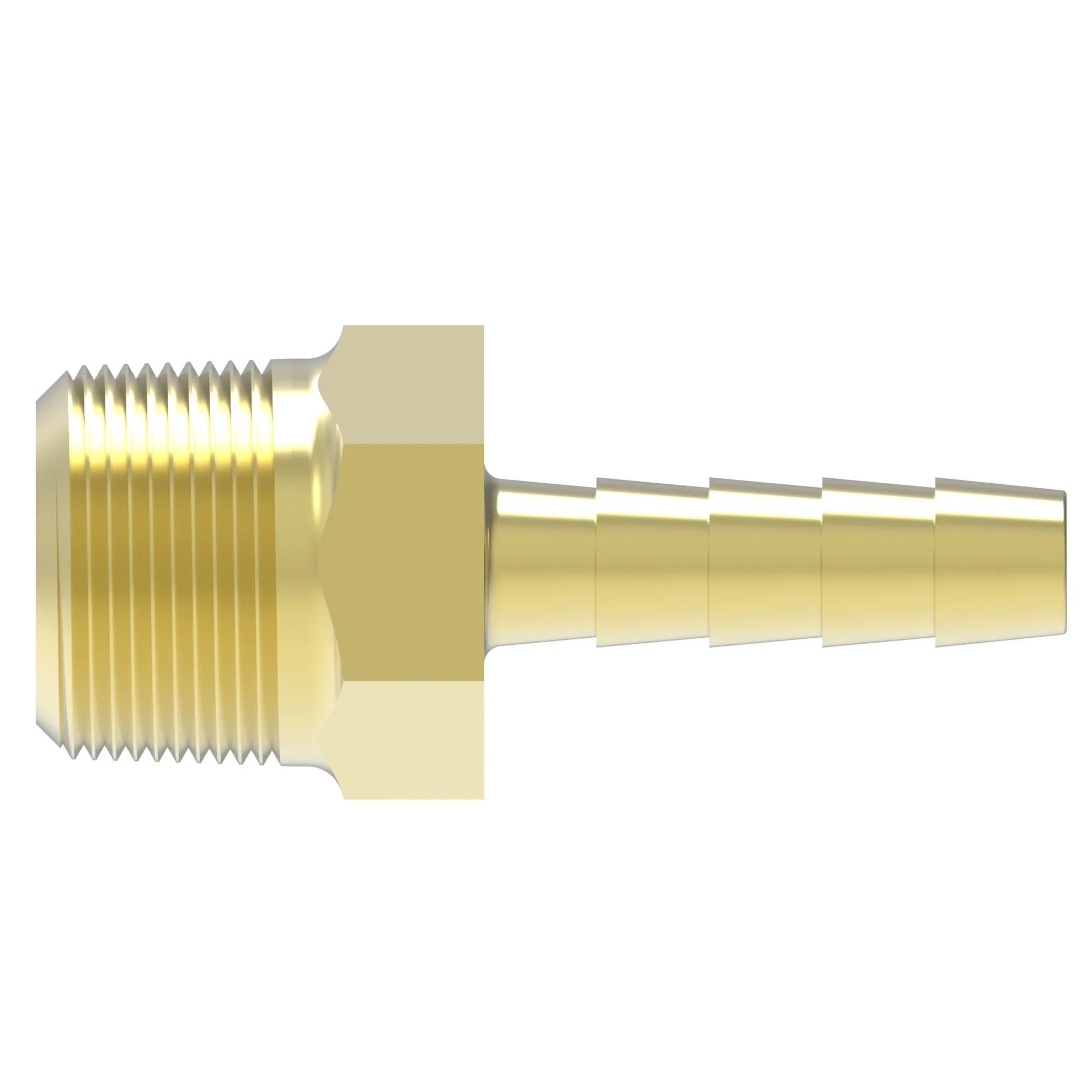

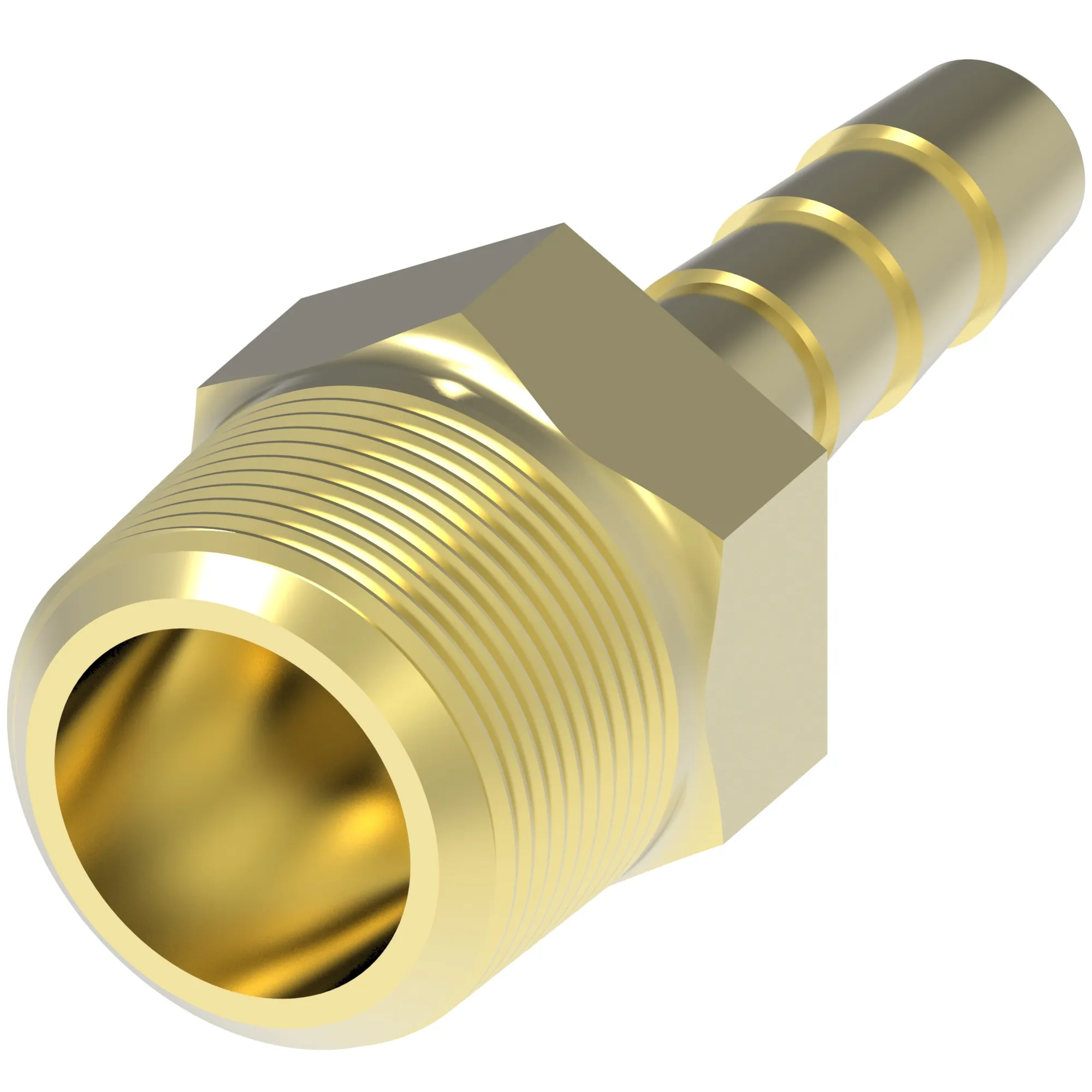

HOSE INSERT, B1/12, NPTF-M/08, B, STR – 10512B-108-BG
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE INSERT, B1/12, NPTF-M/08, B, STR – 10512B-108-BG
Specification
| A Dimension In | 1.860 |
|---|---|
| A Dimension Mm | 47.370 |
| Angle Shape | Straight |
| Construction Style | Crimp |
| End Type 1 | 24 deg. tube port heavy duty |
| Hex Size 1 In | 0.866 |
| Hex Size 1 Mm | 22.0 |
| Hex Size 2 In | 0.000 |
| Hose Cut Off Factor In | 0.890 |
| Hose Cut Off Factor Mm | 22.600 |
| Hose Size | -8 |
| Inside Diameter In | 0.700 |
| Inside Diameter Mm | 18.000 |
| Product Height In | 0.880 |
| Product Height Mm | 22.352 |
| Product Length In | 1.860 |
| Product Length Mm | 47.244 |
| Product Material | Brass |
| Product Width In | 0.880 |
| Product Width Mm | 22.352 mm |
| Series | 105 B |
| Thread Size 1 | 1/2-14 NPTF |
| Working Temperature Max C | 150 |
| Working Temperature Max F | 302 |
| Working Temperature Min C | -40 |
| Working Temperature Min F | -40 |
