Danfoss (Drives) 10511-24-08Z

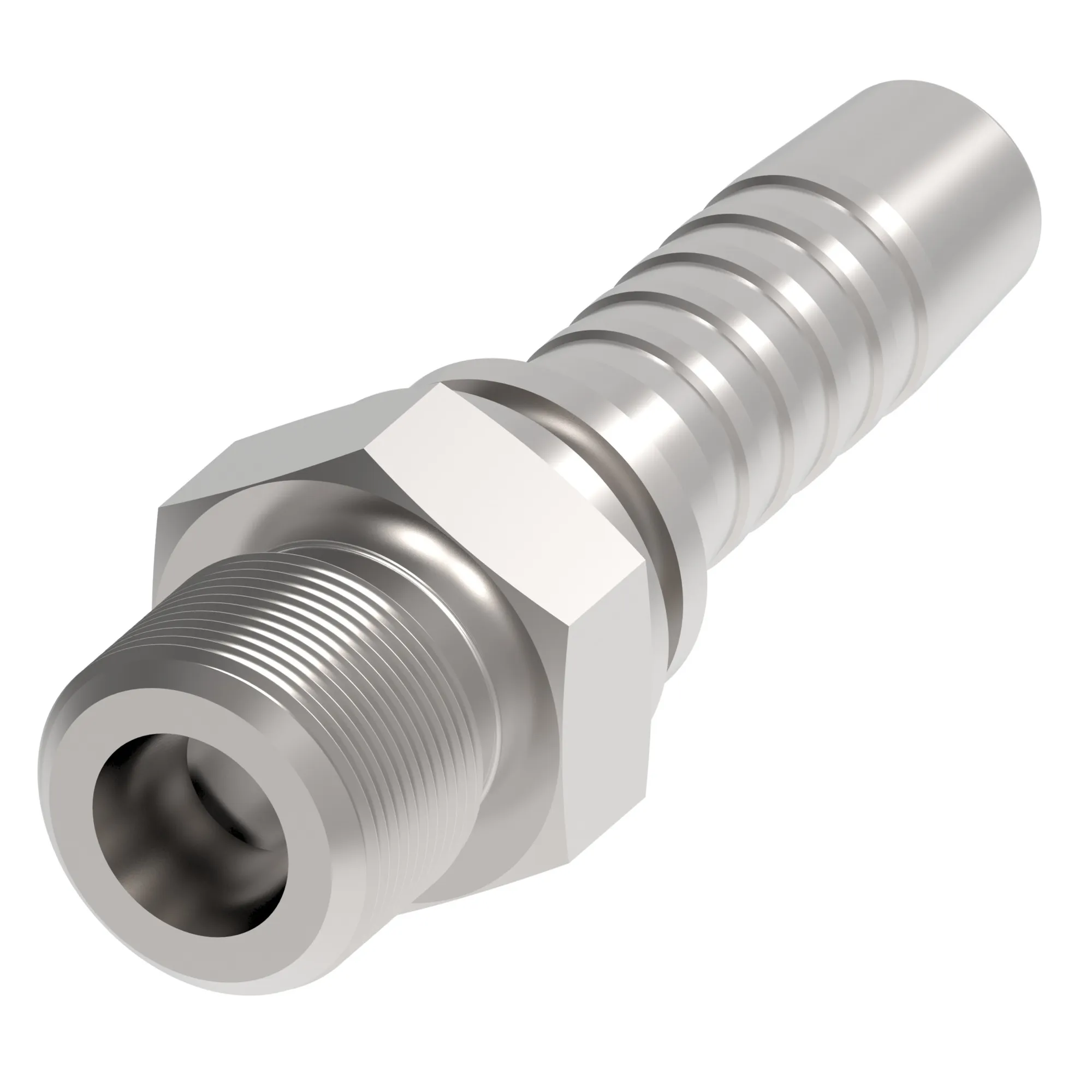

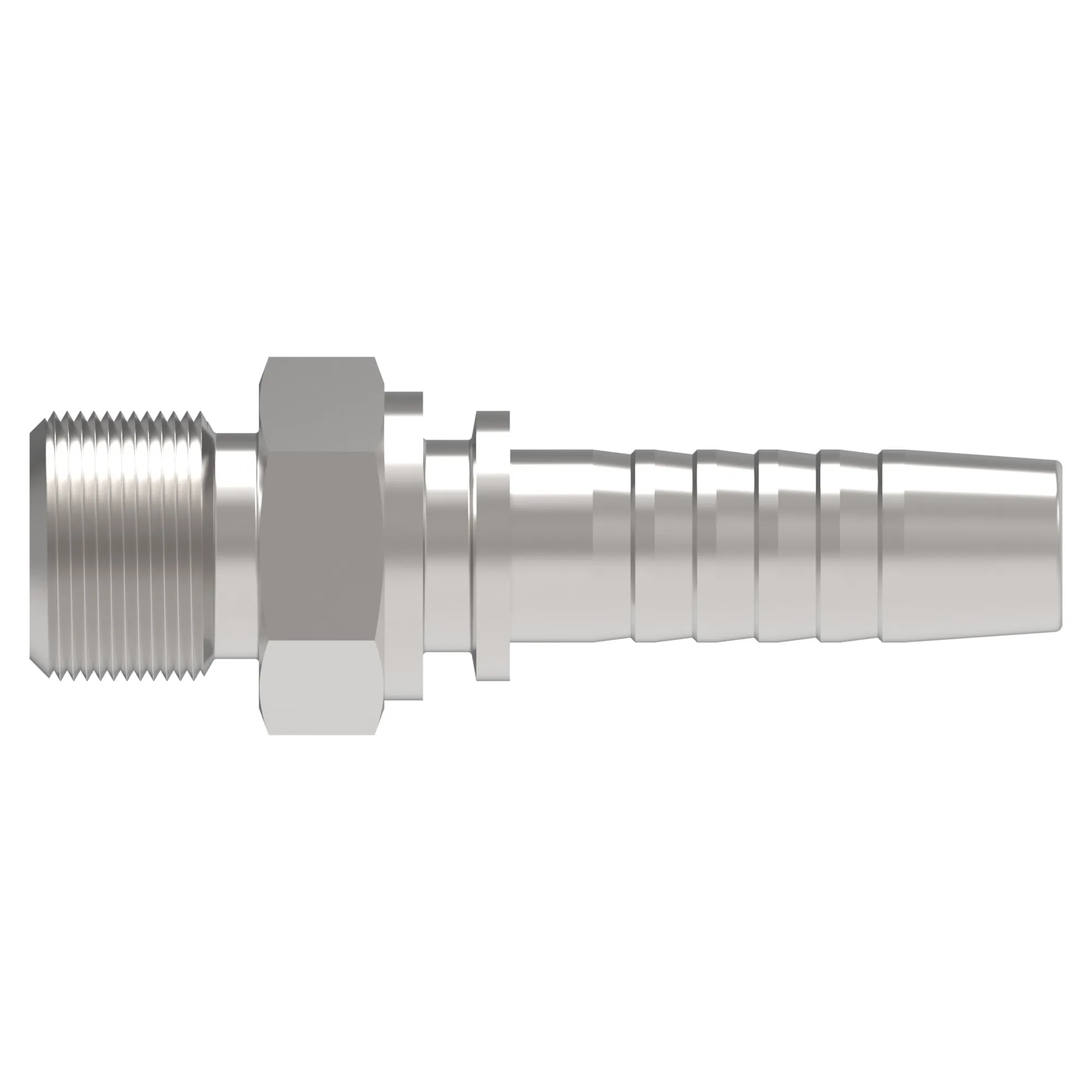

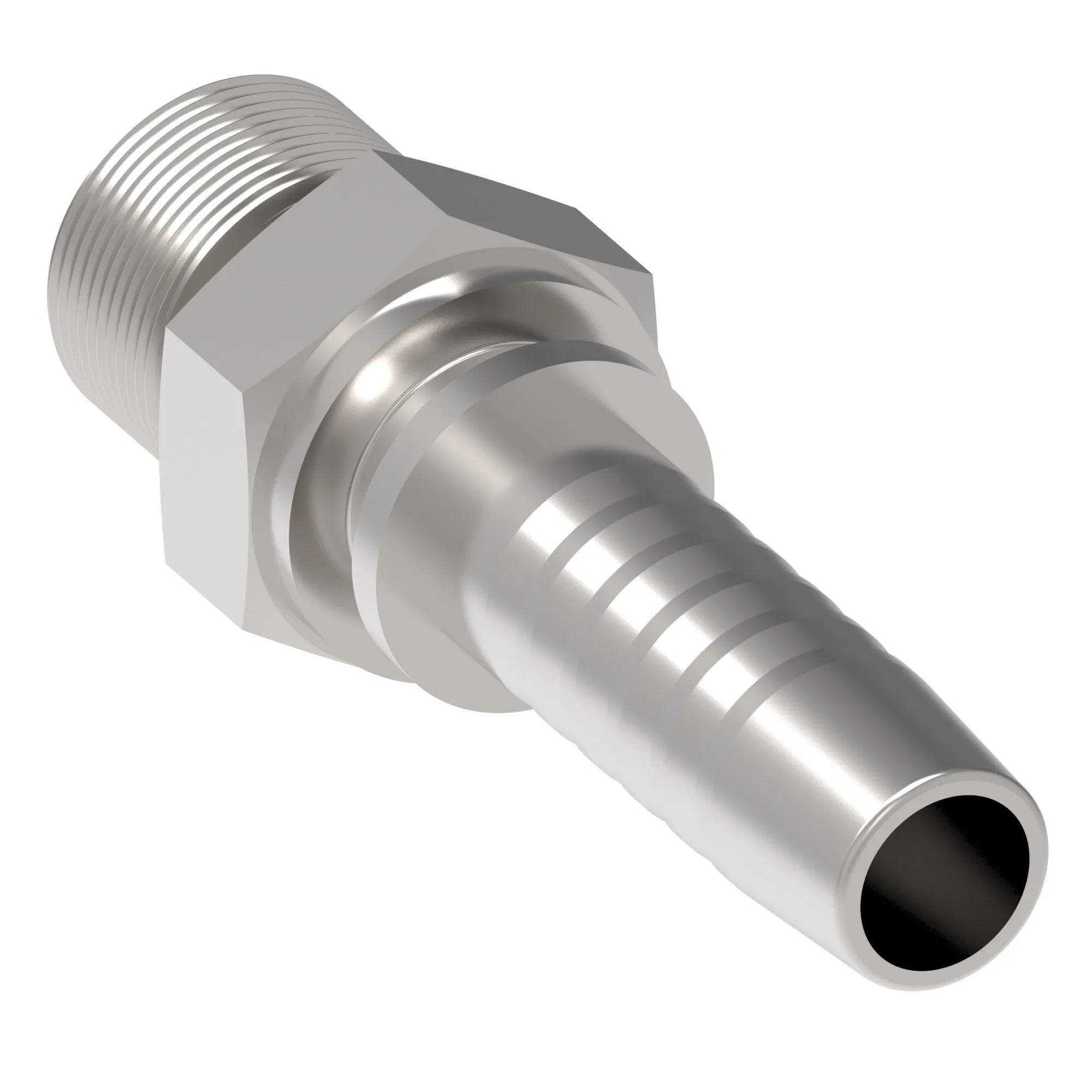

HOSE NIPPLE ASSY,2P/08,DKOH-B/24,CS,STR – 10511-24-08Z
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE ASSY,2P/08,DKOH-B/24,CS,STR – 10511-24-08Z
Specification
| A Dimension In | 2.480 |
|---|---|
| A Dimension Mm | 63.000 |
| Angle Shape | Straight |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 0.500 |
| Compatible Hose Id Mm | 12.700 |
| Construction Style | Crimp |
| End Size 1 | -24 |
| End Type 1 | 24 deg. DKO swivel heavy duty |
| Finish Plating | Zinc plating |
| Hose Cut Off Factor In | 1.240 |
| Hose Cut Off Factor Mm | 31.500 |
| Hose Size | -8 |
| Inside Diameter In | 0.3900 |
| Inside Diameter Mm | 10.0000 |
| Product Height In | 1.227 |
| Product Height Mm | 31.170 |
| Product Length In | 2.480 |
| Product Length Mm | 63.000 |
| Product Material | Carbon steel |
| Product Width In | 1.063 |
| Product Width Mm | 27.000 mm |
| Proposition 65 | Cancer and Reproductive Harm |
| Series | Winner 2-Piece |
| Thread Size 1 | M24X1.5 |
| Working Pressure Max Bar | 172 |
| Working Pressure Max Psi | 2500 |
