Danfoss (Drives) 10506B-108
HOSE INSERT ASSY,B1/06,NPTF-M/08,B,STR – 10506B-108
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

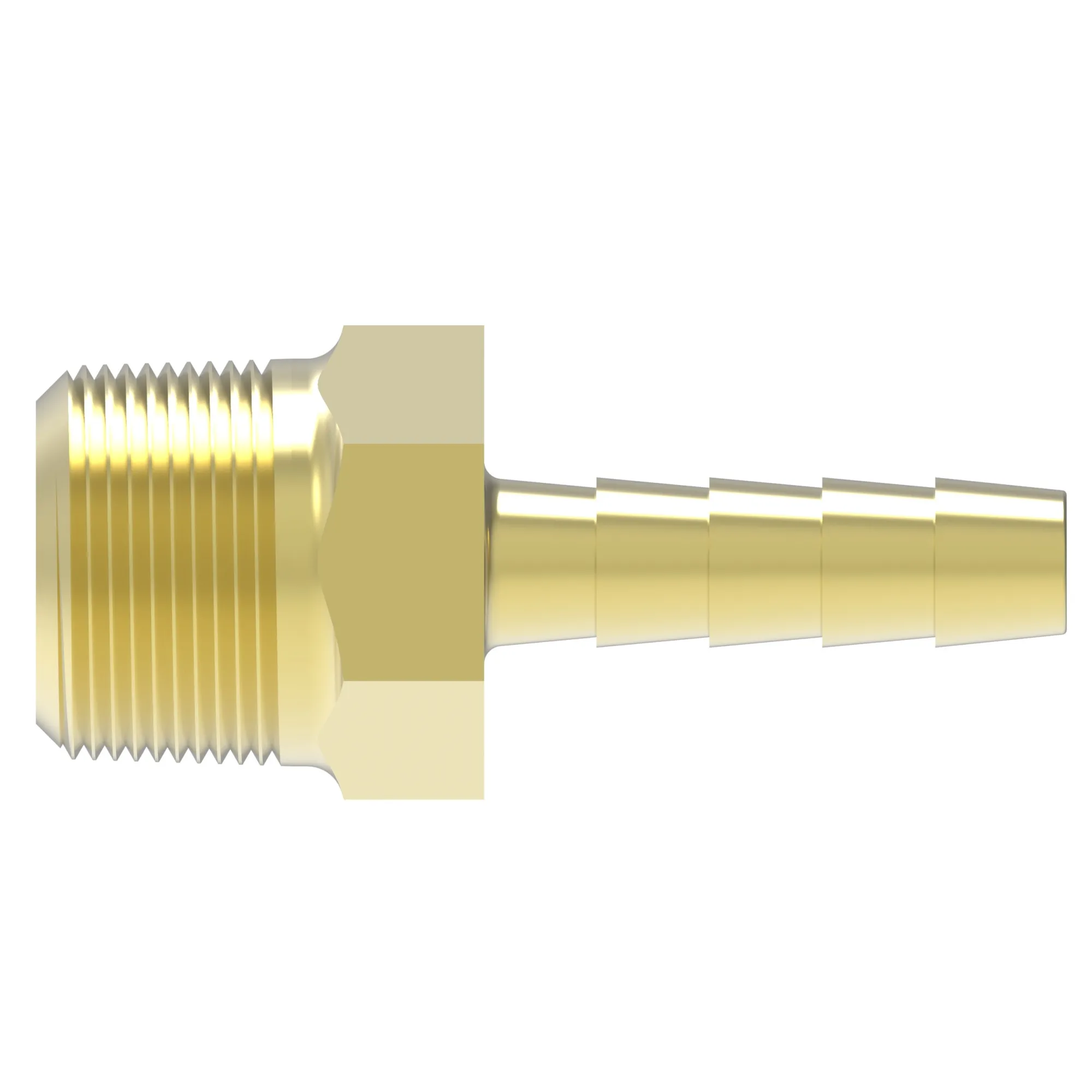

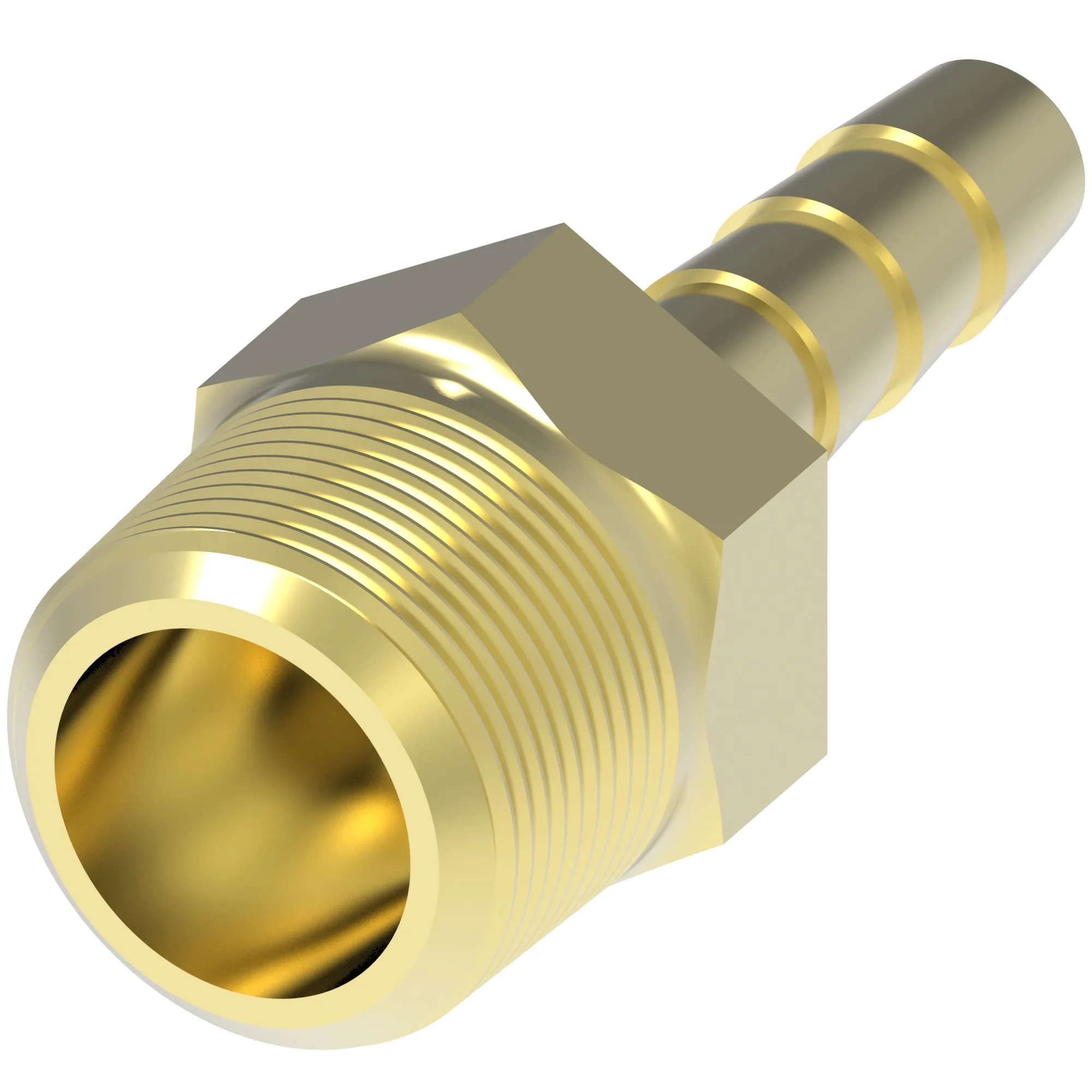

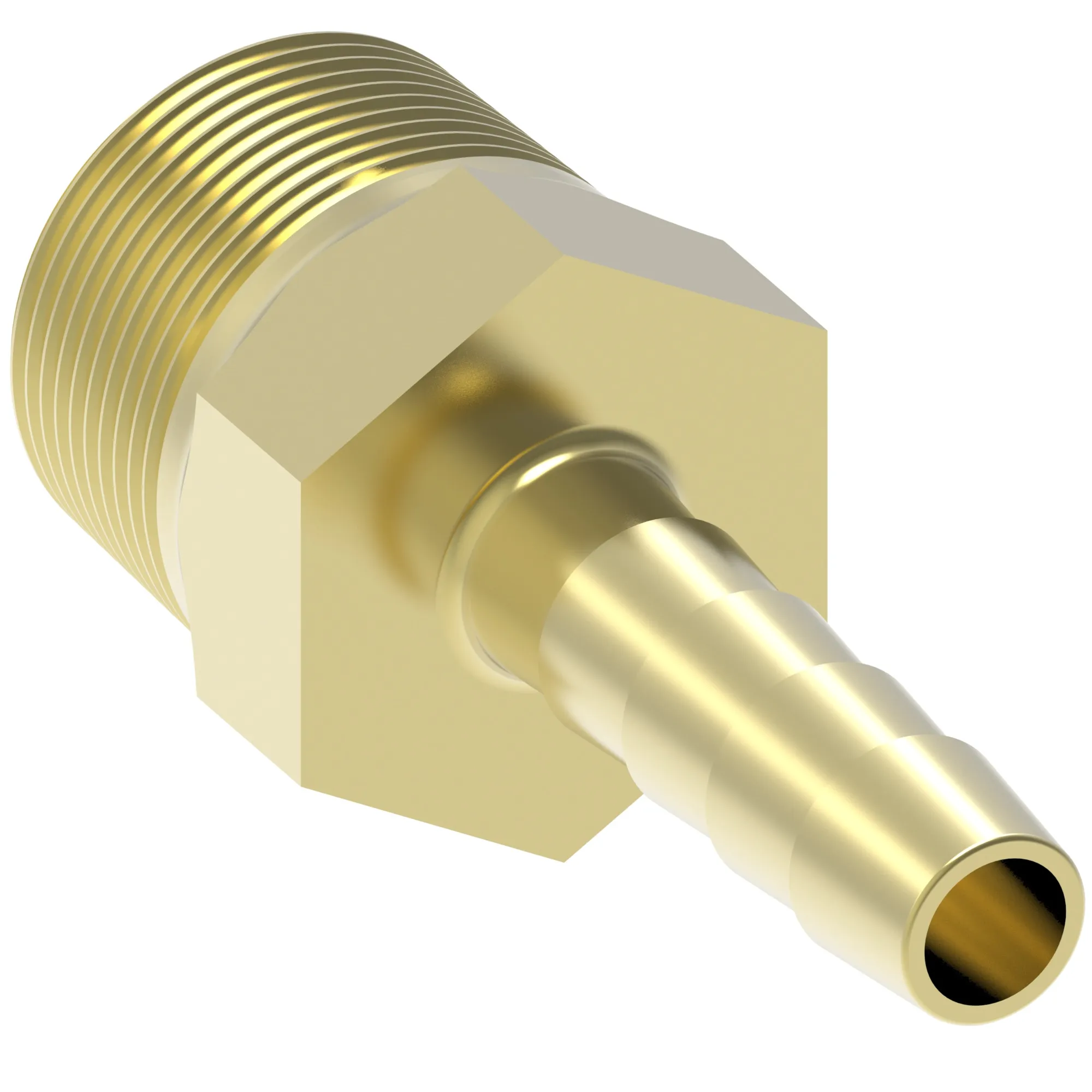

HOSE INSERT ASSY,B1/06,NPTF-M/08,B,STR – 10506B-108
Specification
| E A N/ U P C | 725975714249 |
|---|---|
| A Dimension In | 1.950 |
| A Dimension Mm | 49.530 |
| Angle Shape | Straight |
| Construction Style | Reusable |
| End Type 1 | Male pipe (NPTF) |
| Hose Cut Off Factor In | 0.970 |
| Hose Cut Off Factor Mm | 24.790 |
| Hose Size | -8 |
| Inside Diameter In | 0.270 |
| Inside Diameter Mm | 7.230 |
| Product Height In | 0.880 |
| Product Height Mm | 22.352 |
| Product Length In | 1.950 |
| Product Length Mm | 49.530 |
| Product Material | Brass |
| Product Width In | 0.880 |
| Product Width Mm | 22.352 mm |
| Series | 105 B |
| Thread Size 1 | 1/2-14 NPTF |
| Working Temperature Max C | 150 |
| Working Temperature Max F | 302 |
| Working Temperature Min C | -40 |
| Working Temperature Min F | -40 |
