Description

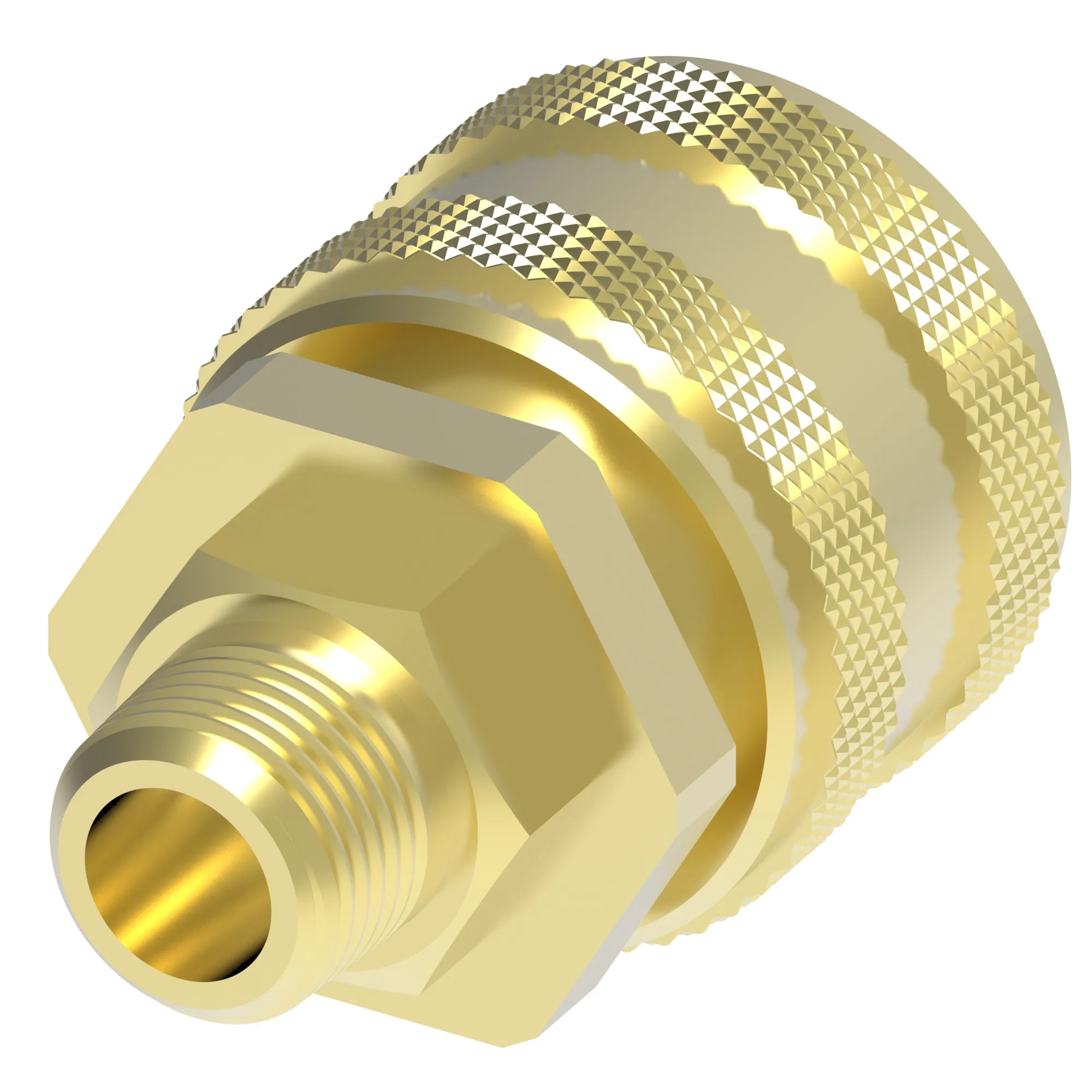

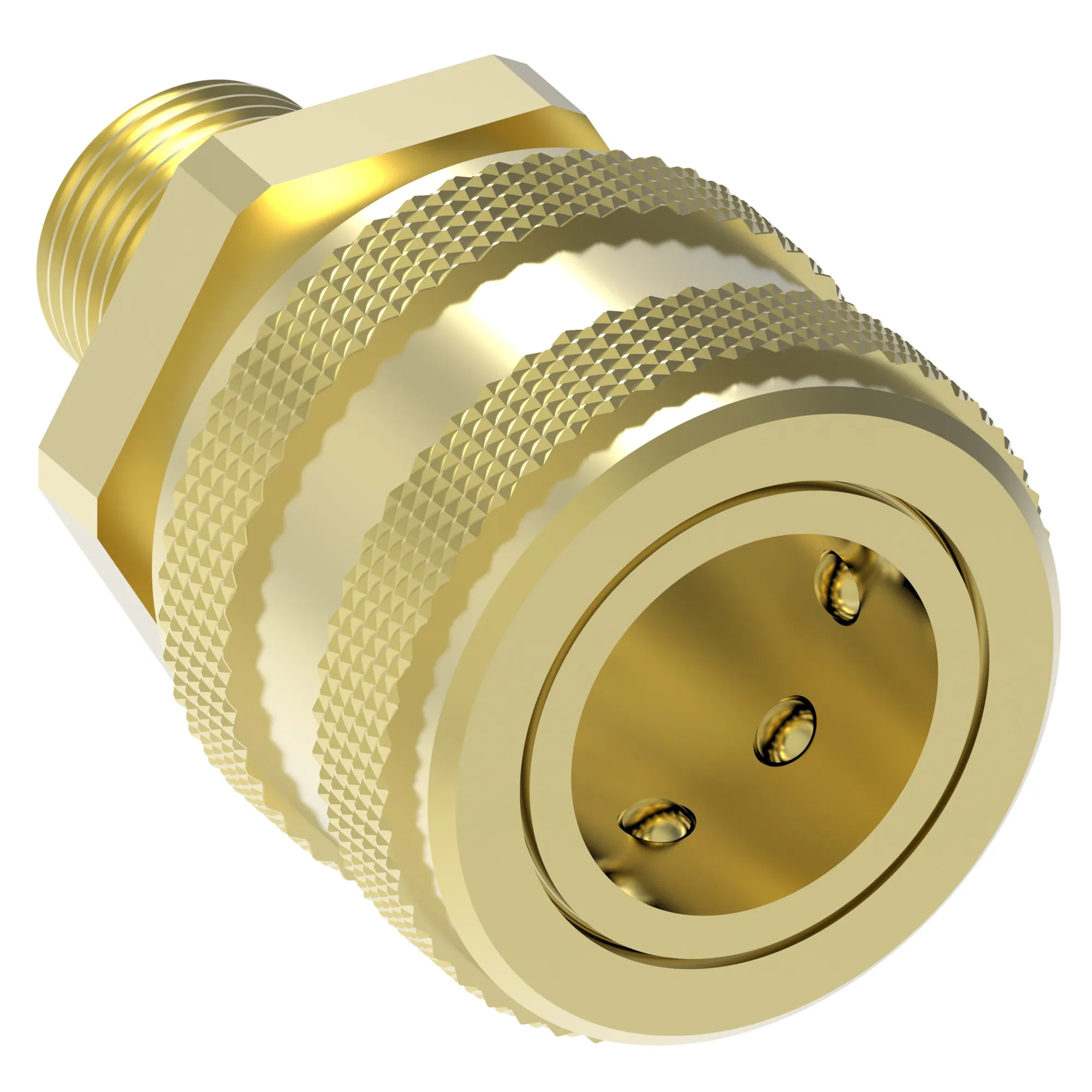

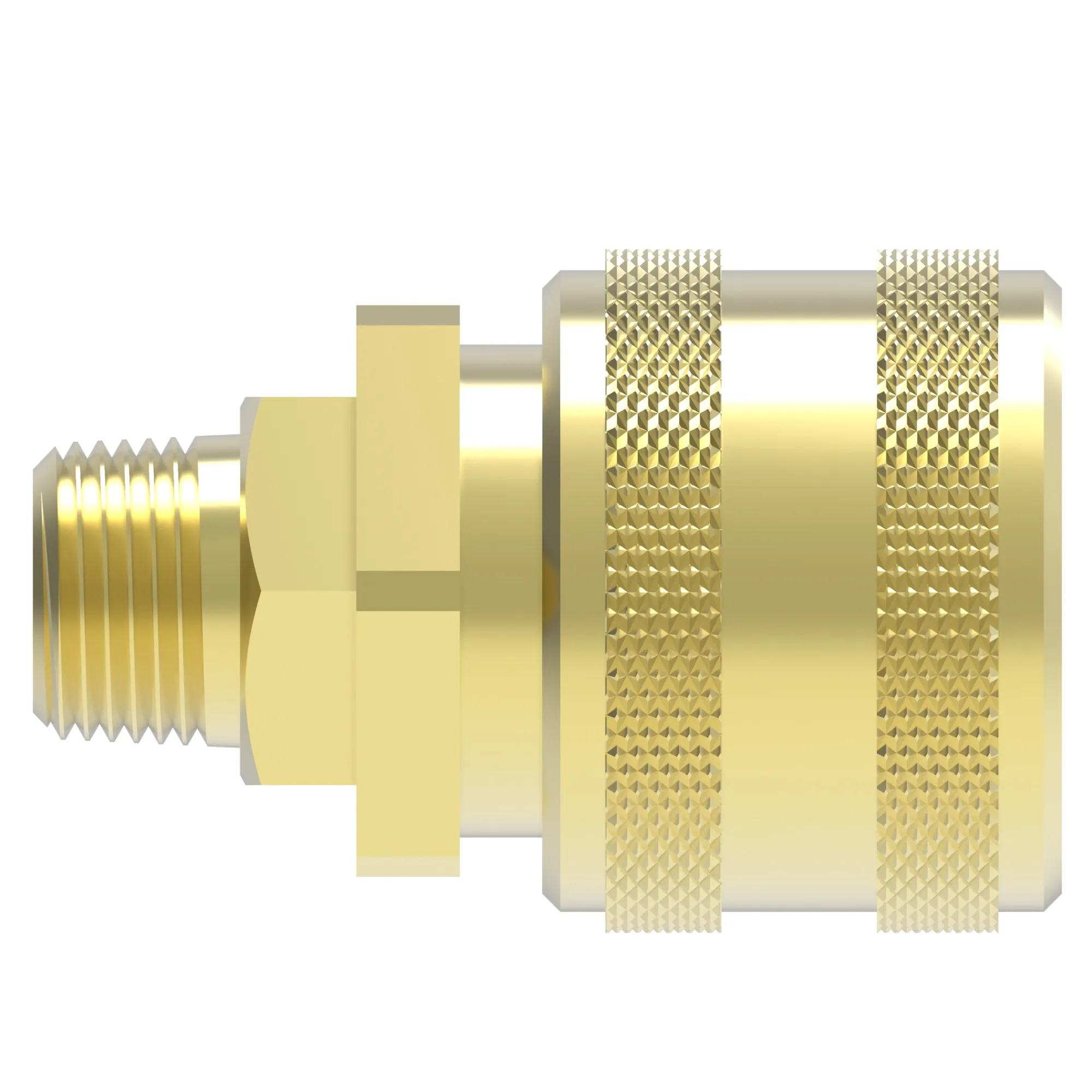

CPLG100Series F Half Brass 4BodyX6MP – 105
Specification
| E A N/ U P C | 678146195852 |
|---|---|
| Angle Shape | Straight |
| Body Size | 1/4 |
| Brand | Danfoss |
| Burst Pressure Min Bar | 193 |
| Burst Pressure Min Psi | 2800 |
| Connection Style | Manual connect |
| End Size 2 | -6 |
| End Type 1 | Female Push to Connect |
| End Type 2 | Male pipe (NPTF) |
| Finish Plating | Nickel |
| Flow Rate Gpm | 149.52 |
| Flow Rate Lpm | 566.00 |
| Fluid Compatibility | Compressed air and other gases |
| Hex Size 1 In | 0.690 |
| Hex Size 1 Mm | 17.526 |
| Item Type | Female half |
| Latch Type | Push/pull |
| Product Height In | 1.000 |
| Product Height Mm | 25.400 |
| Product Length In | 2.010 |
| Product Length Mm | 53.086 |
| Product Material | Brass |
| Product Width In | 1.000 |
| Product Width Mm | 25.400 mm |
| Safety Locking Mechanism | Sleeve lock |
| Seal Material | Nitrile (NBR) |
| Sub Brand | Hansen |
| Valve Type | 2 way |
| Working Pressure Max Psi | 350 |
| Working Pressure Max Bar | 24 |
| Working Temperature Max C | 121 |
| Working Temperature Max F | 250 |
| Working Temperature Min C | -40 |
| Working Temperature Min F | -40 |
