Danfoss (Drives) 105-1625-006

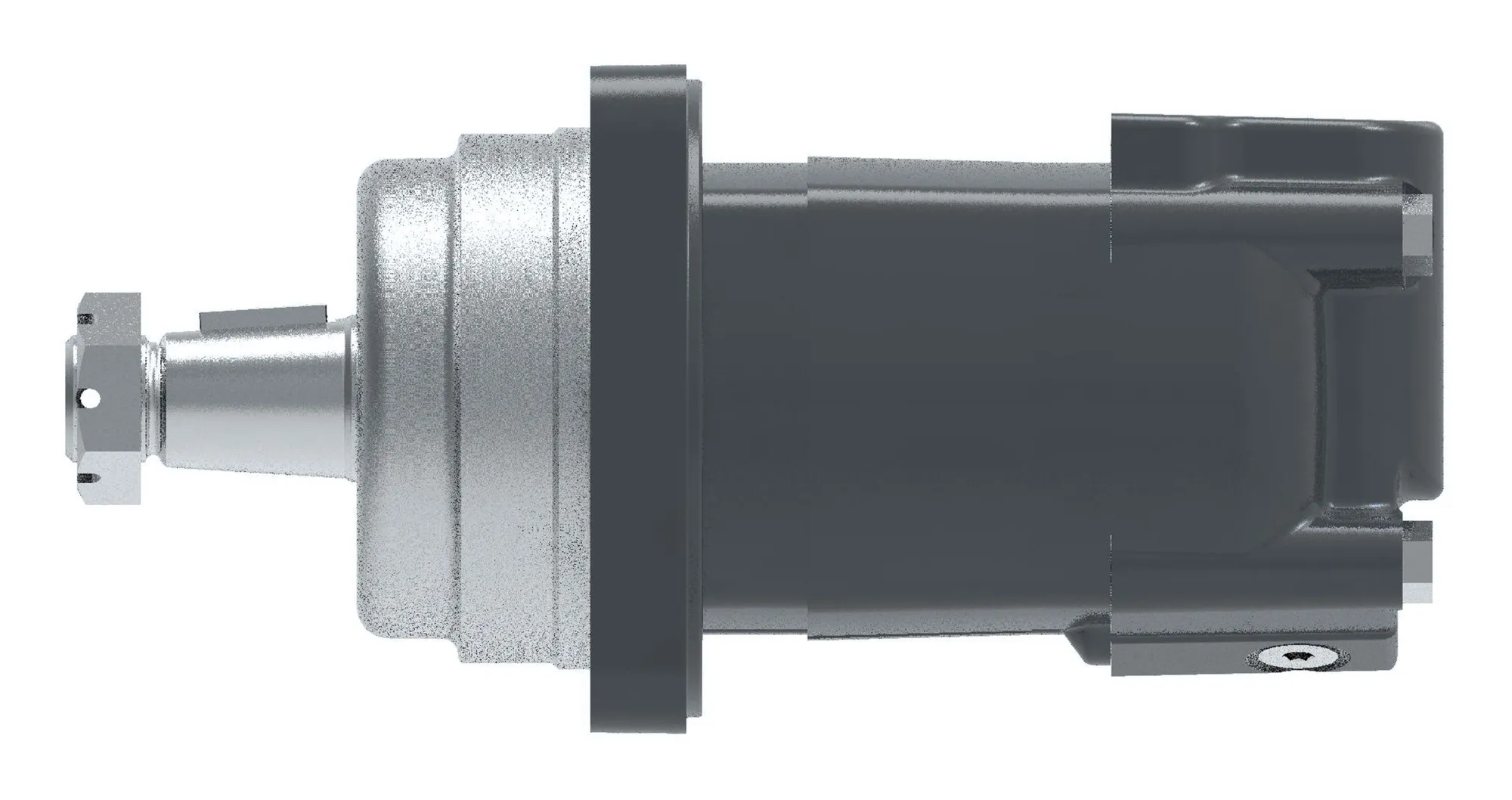

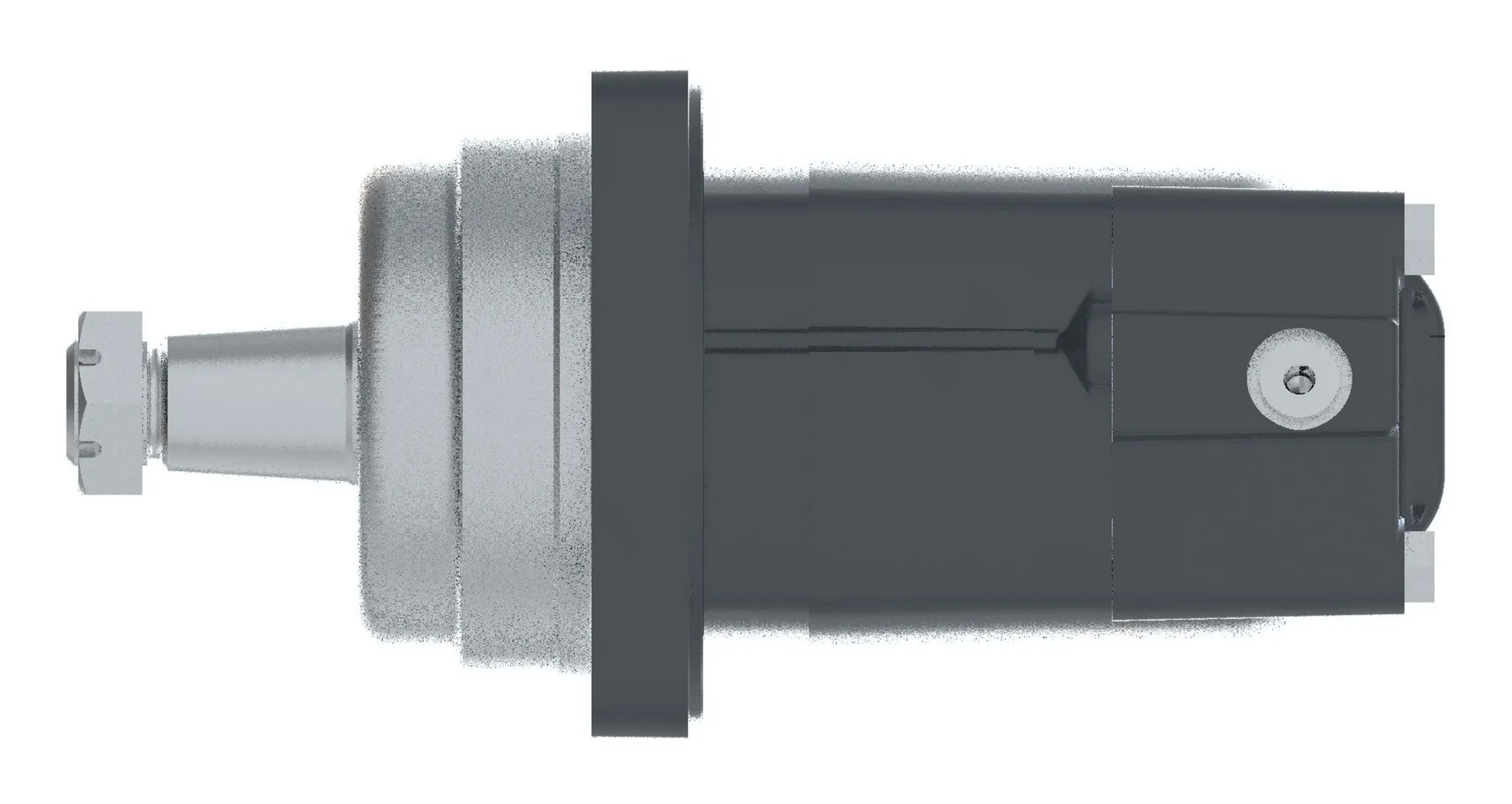

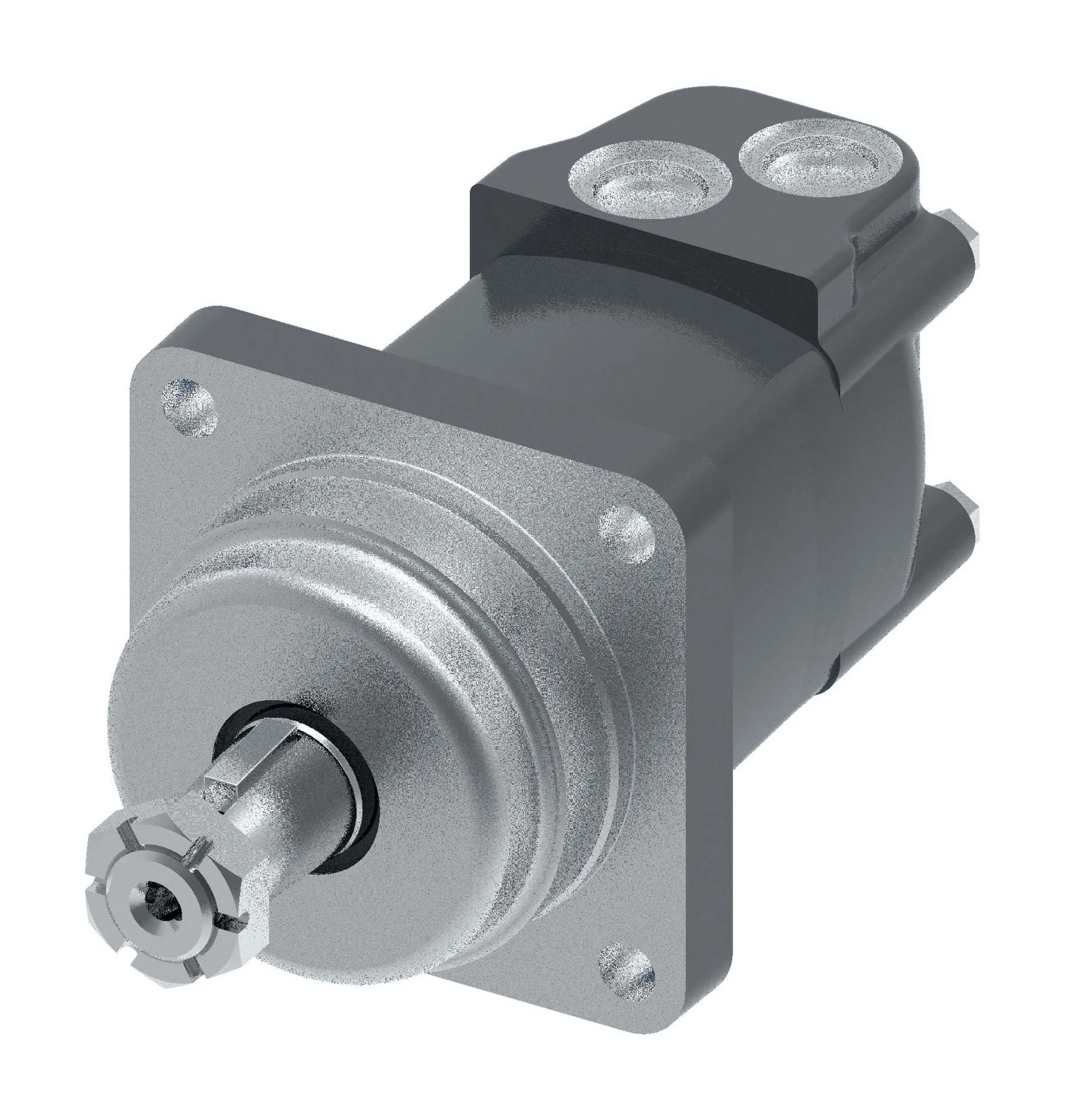

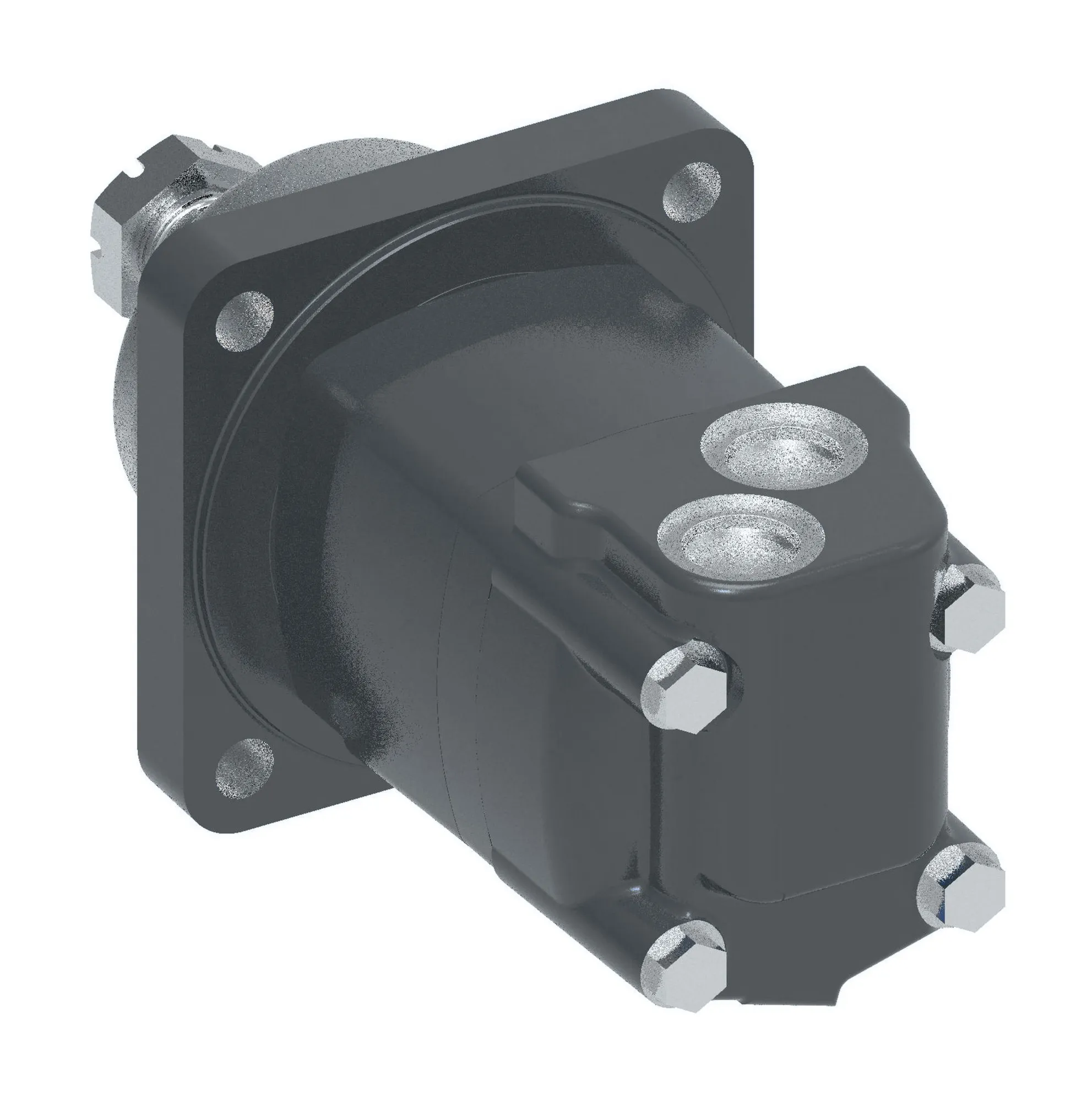

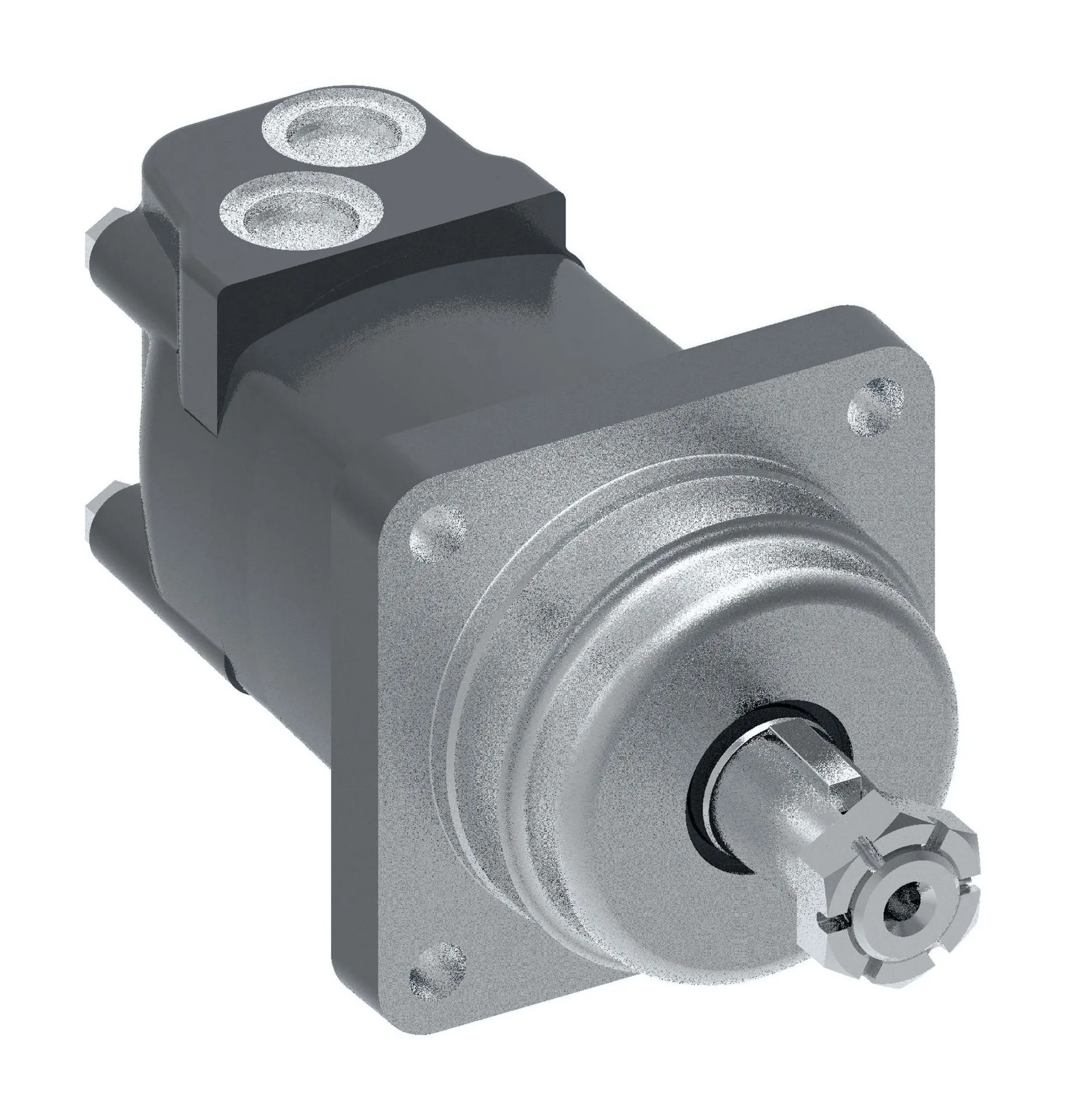

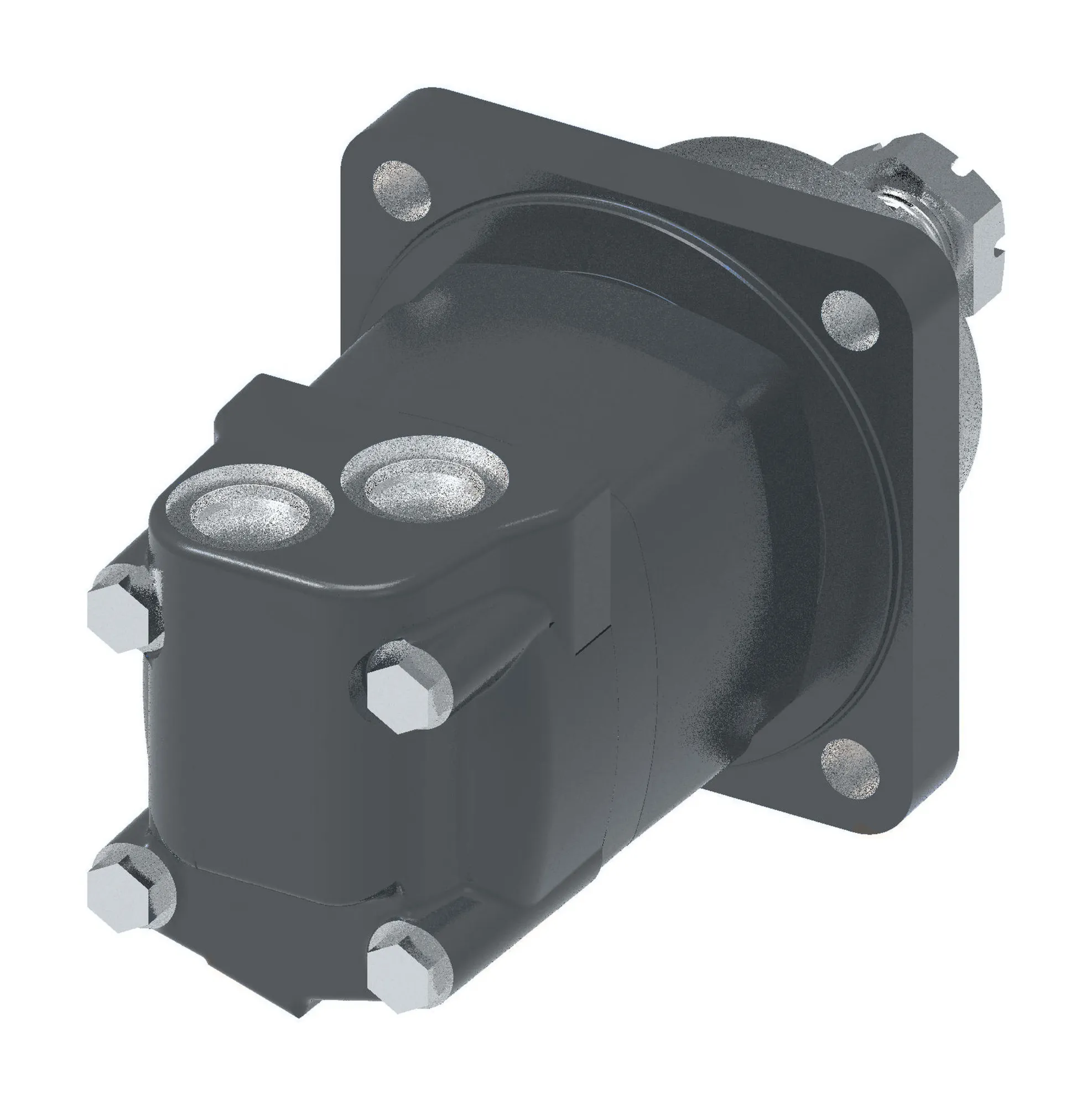

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AB03AA01049190000ABBEAAF – 105-1625-006
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AB03AA01049190000ABBEAAF – 105-1625-006
Specification
| Model Code | M02119AB03AA01049190000ABBEAAF |
|---|---|
| Motor Series | 2000 Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Motor Size | 195 |
| Geometric Displacement [Cm3/R [In3/R]] | 194.8 [11.89] |
| Motor Type | Wheel |
| Motor Function | Standard |
| Mounting Flange Type | 4 Bolt – Wheel |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 108.0 x 6.4, 147.6, 13.6 [4.25 x 0.25, 5.81, 0.54] Rear: 127.0 x 3.3, 147.6, 13.6 [5.00 x 0.13, 5.81, 0.54] |
| Shaft Dimension | Dia. 1 1/4 inch, 1:8 SAE J501, 1 – 20 UNEF-2A thread in shaft end |
| Shaft Key | Square key, 5/16 x 1 inch |
| Main Port Thread Type | UN / UNF |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | 7/8 – 14 UNF-2B SAE O-Ring port |
| Drain Port Dimension | 7/16 – 20 UNF-2B SAE O-Ring port |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint Information | Primer, Black, Low gloss – Spec. Component |
| Special Features Assembly | Direction of rotation |
| Dust Seal | Extreme duty seal guard |
| Shaft Seal | FPM viton – Standard |
| Seal Kit | 9900857-000 |
| Front Bearing Type | Tapered roller bearing |
| Rear Bearing Type | Tapered roller bearing |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | Yes |
| Hydraulic Valve Function | Check valve Port B @ 1.4 bar [20 psi] & Port A with cavity plug – Spec. Component |
| Sensor | None |
| Packaging | Bulk box |
| Name Tag | Danfoss name tag |
| Design Code | 06 |
| Brand | Danfoss |
| Sub Brand | Char-Lynn |
