Danfoss (Drives) 10412F-36-16Z

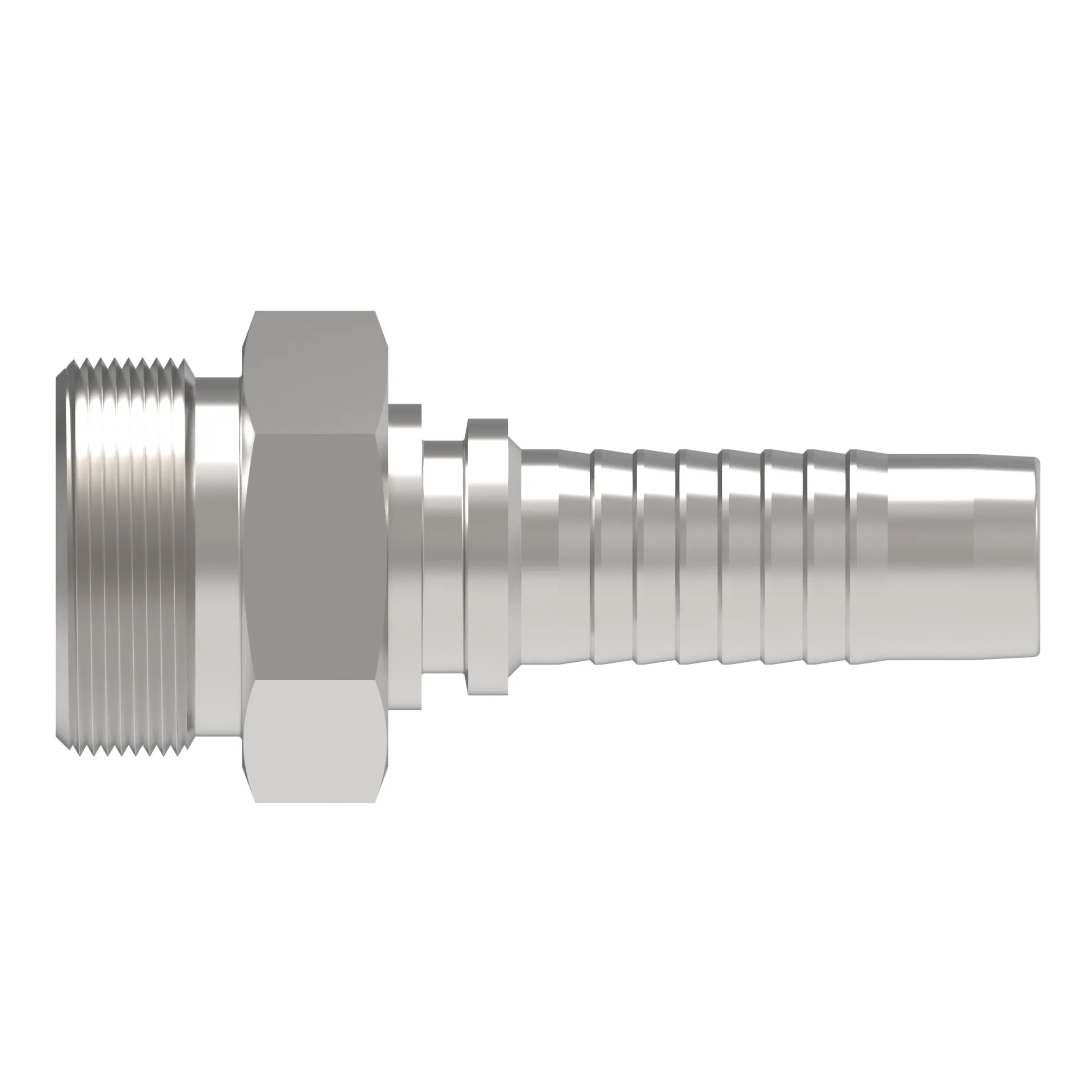

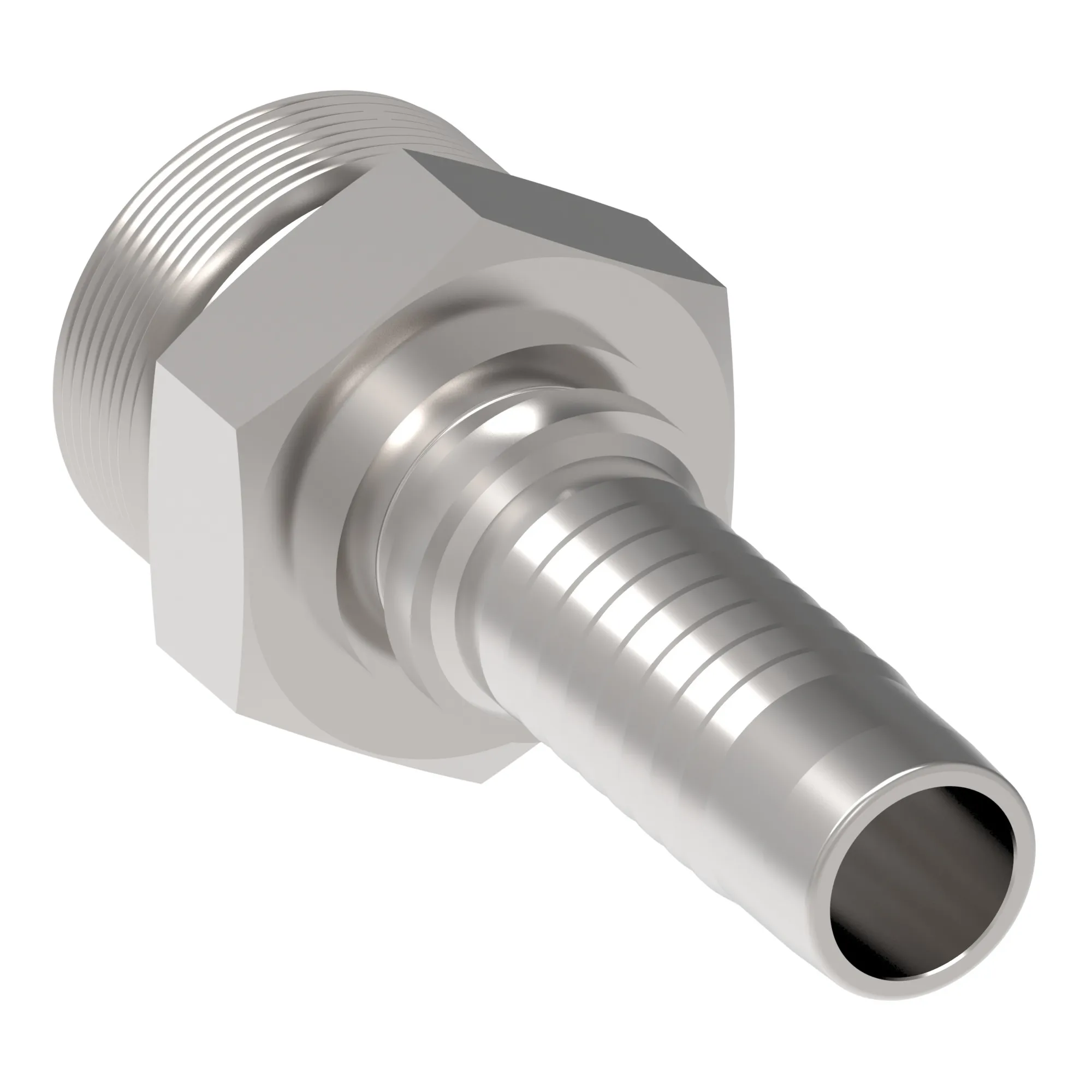

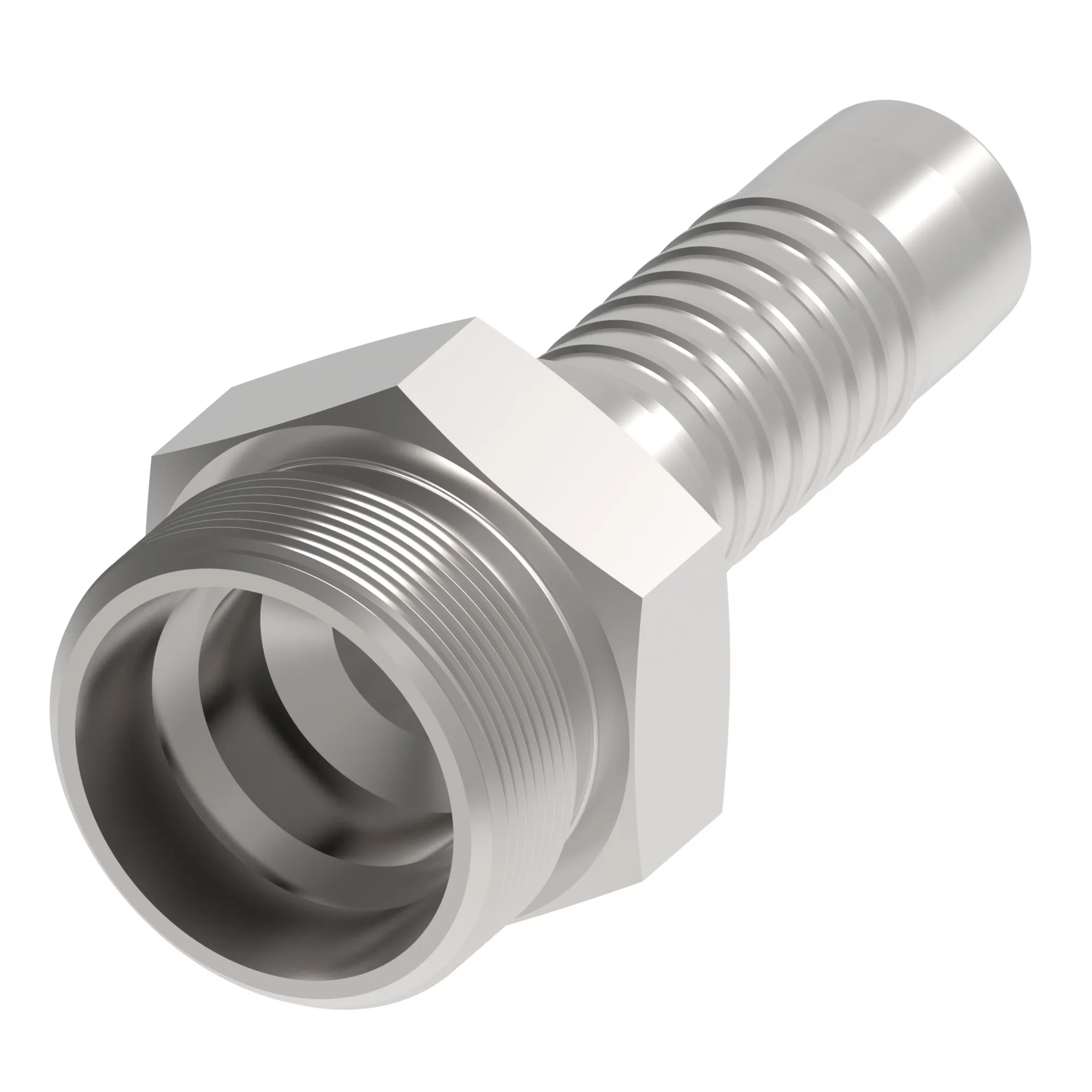

HOSE NIPPLE ASSY,2P/16,DKOL/36,CS,STR – 10412F-36-16Z
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE ASSY,2P/16,DKOL/36,CS,STR – 10412F-36-16Z
Specification
| A Dimension In | 3.680 |
|---|---|
| A Dimension Mm | 93.500 |
| Angle Shape | Straight |
| Application | General industrial use, Hydraulic systems, Petroleum based fluids, Water based fluids |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 1.000 |
| Compatible Hose Id Mm | 25.400 |
| Construction Style | Crimp |
| End Connection Torque | 125-140 lb-ft(170-190 Nm) |
| End Type 1 | 24 deg. DKO swivel light duty |
| End Type 2 | Line/hose/tube |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 1.614 |
| Hex Size 1 Mm | 41.000 |
| Hose Cut Off Factor In | 1.470 |
| Hose Cut Off Factor Mm | 37.500 |
| Hose Size | -16 |
| Inside Diameter In | 0.7800 |
| Inside Diameter Mm | 20.0000 |
| Product Height In | 1.862 |
| Product Height Mm | 47.300 |
| Product Length In | 3.681 |
| Product Length Mm | 93.500 |
| Product Material | Carbon steel |
| Product Width In | 1.614 |
| Product Width Mm | 41.000 mm |
| Series | Winner 2-Piece |
| Thread Sealant | No |
| Thread Size 1 | M36x1.5 |
