Danfoss (Drives) 10411-26-12Z

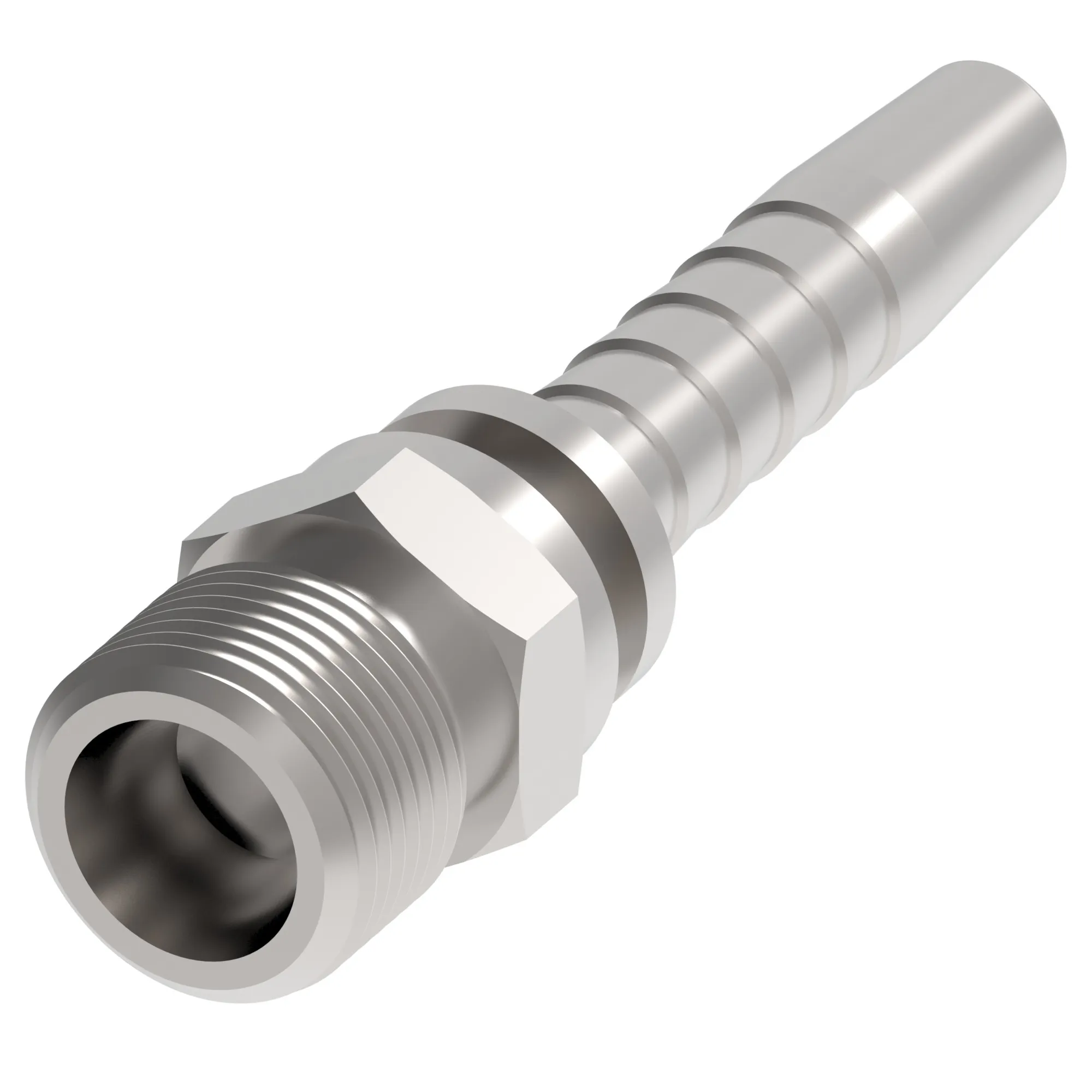

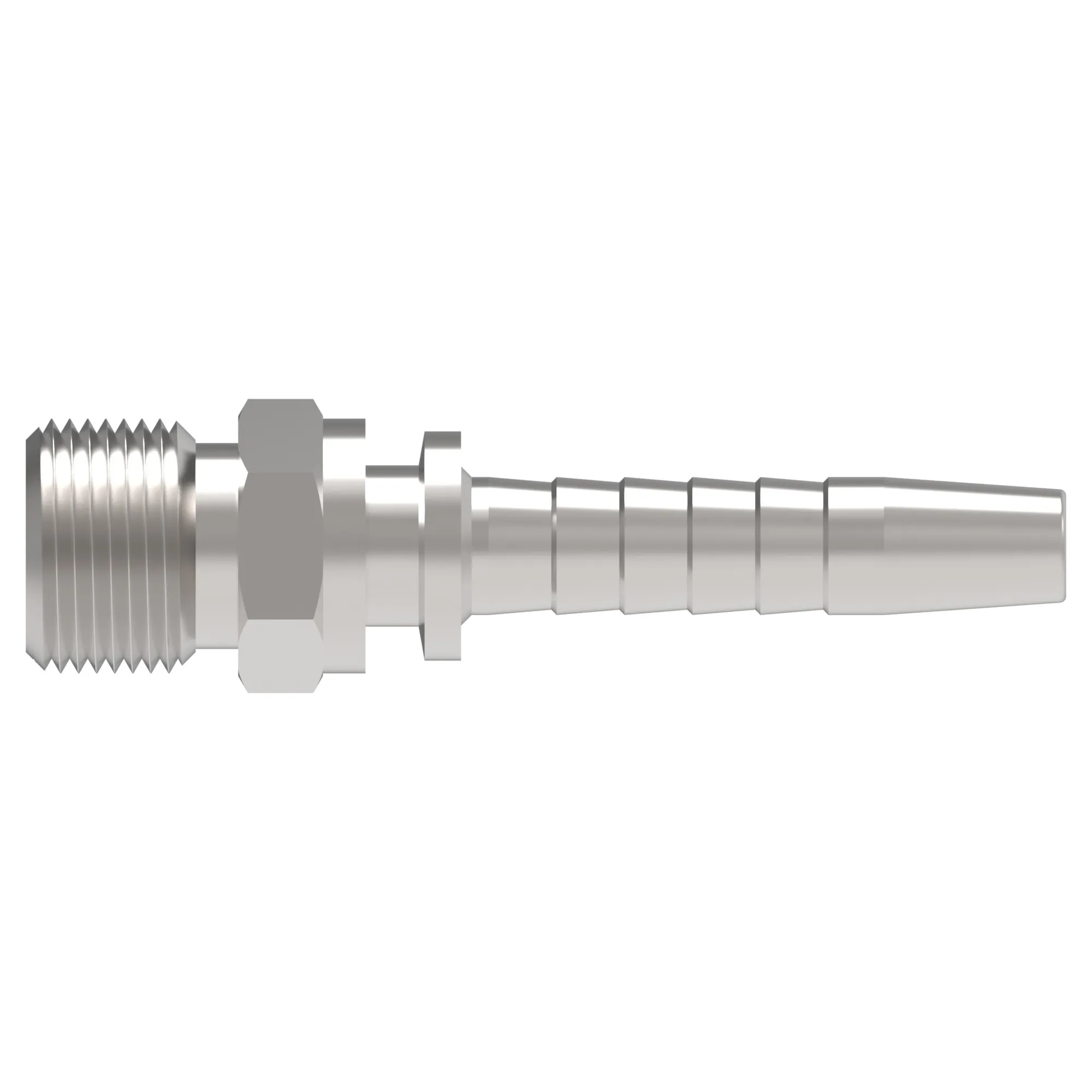

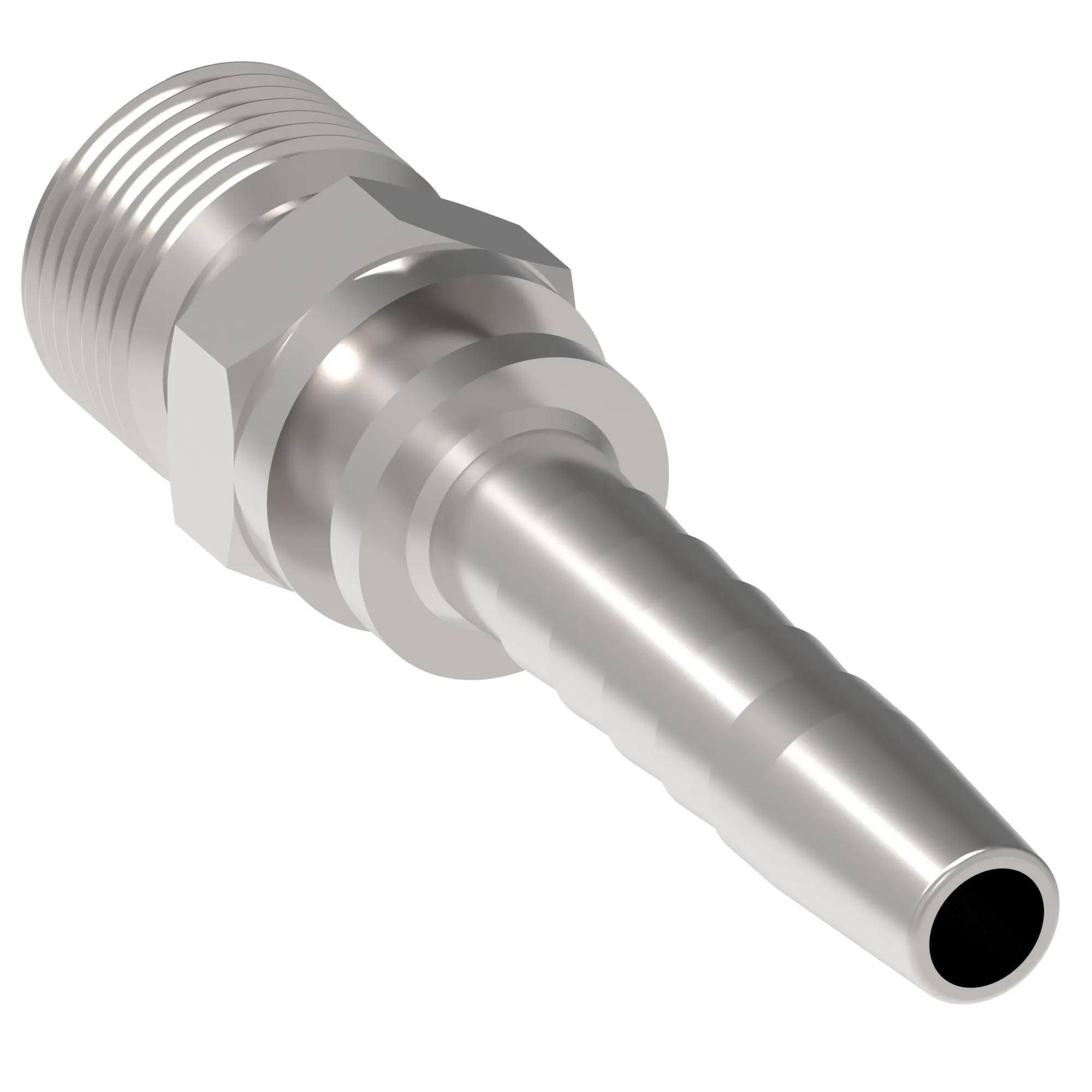

HOSE NIPPLE ASSY,2P/12,DKOL/26,CS,STR – 10411-26-12Z
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE ASSY,2P/12,DKOL/26,CS,STR – 10411-26-12Z
Specification
| A Dimension In | 2.610 |
|---|---|
| A Dimension Mm | 66.500 |
| Angle Shape | Straight |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 0.750 |
| Compatible Hose Id Mm | 19.000 |
| Construction Style | Crimp |
| End Type 1 | 24 deg. DKO swivel light duty |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 1.060 |
| Hex Size 1 Mm | 26.924 |
| Hose Cut Off Factor In | 1.100 |
| Hose Cut Off Factor Mm | 28.000 |
| Hose Size | -12 |
| Inside Diameter In | 0.5900 |
| Inside Diameter Mm | 15.0000 |
| Product Height In | 1.220 |
| Product Height Mm | 30.988 |
| Product Length In | 2.610 |
| Product Length Mm | 66.294 |
| Product Material | Carbon steel |
| Product Width In | 1.060 |
| Product Width Mm | 26.924 mm |
| Series | Winner 2-Piece |
| Thread Sealant | No |
| Thread Size 1 | M26x1.5 |
