Danfoss (Drives) 10411-18-04Z

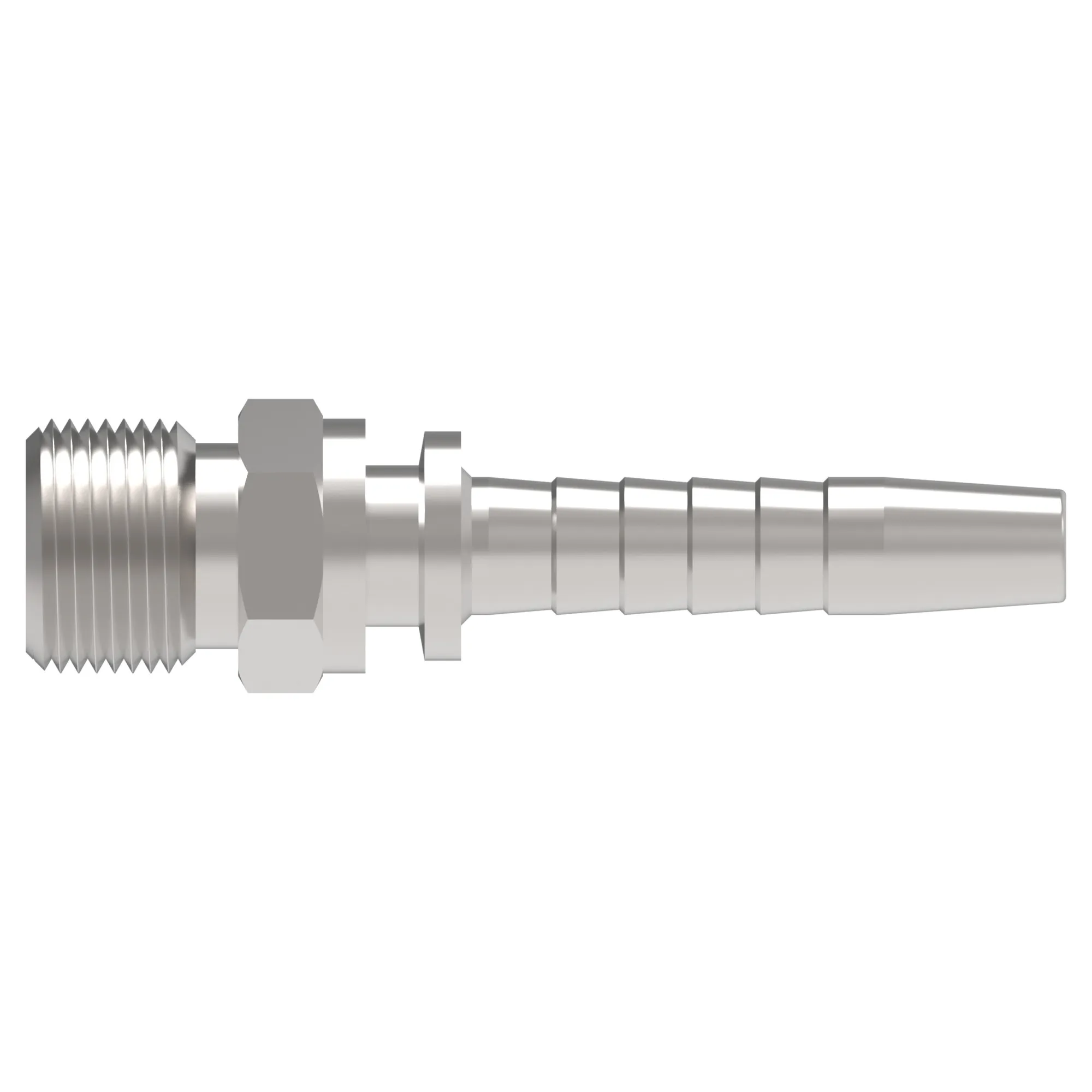

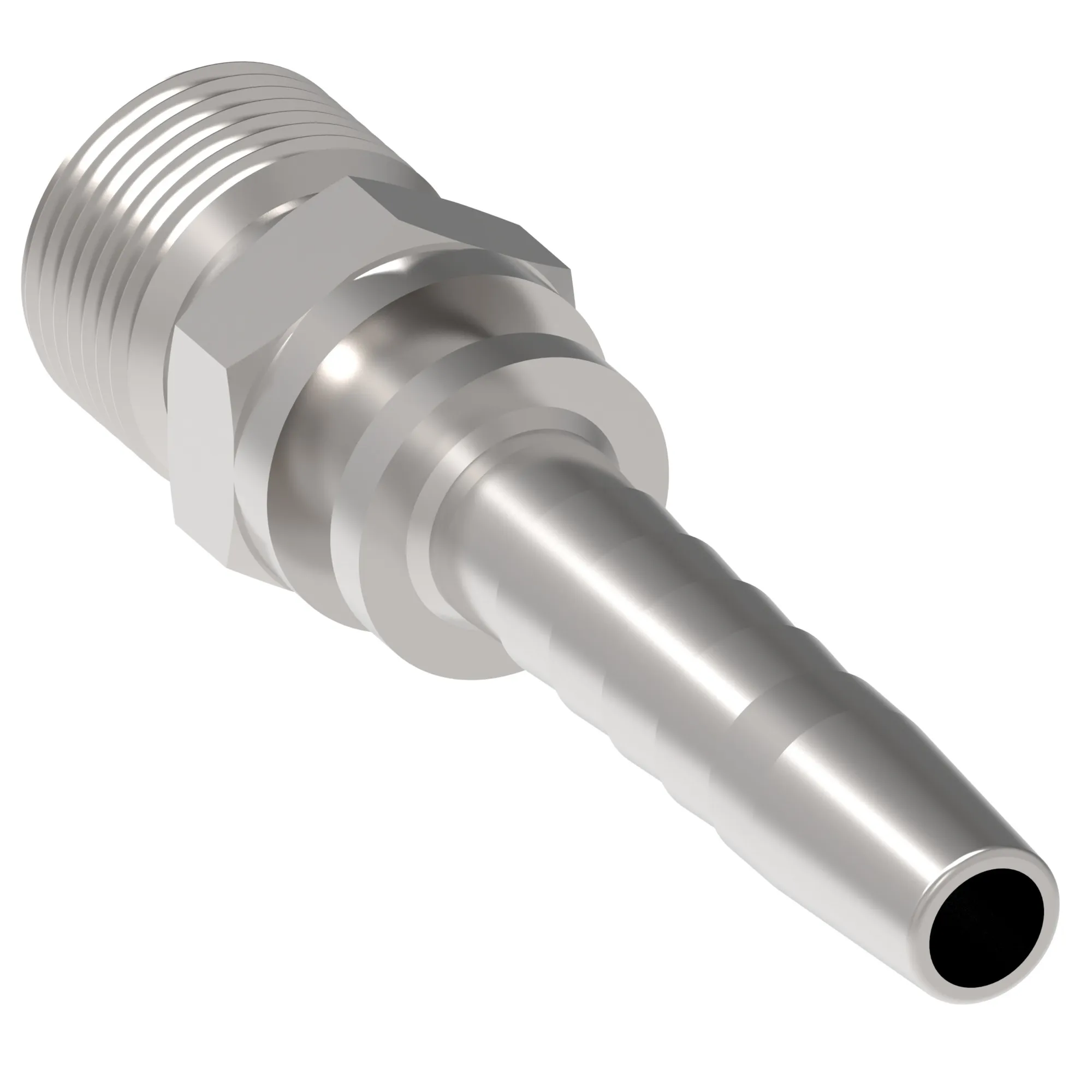

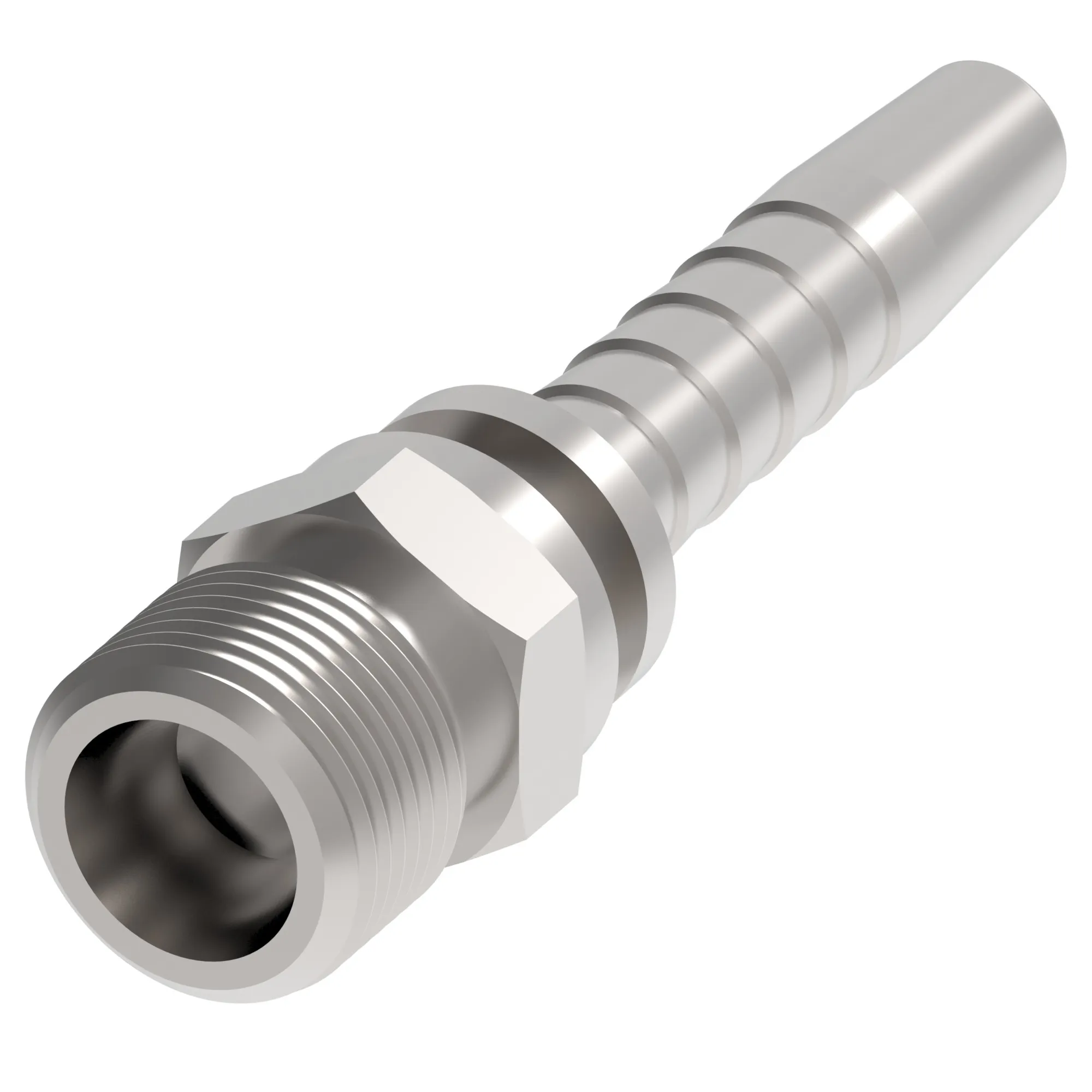

HOSE NIPPLE ASSY,2P/04,DKOL/18,CS,STR – 10411-18-04Z
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE ASSY,2P/04,DKOL/18,CS,STR – 10411-18-04Z
Specification
| A Dimension In | 2.030 |
|---|---|
| A Dimension Mm | 51.500 |
| Angle Shape | Straight |
| Application | General industrial use, Hydraulic systems, Petroleum based fluids, Water based fluids |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 0.250 |
| Compatible Hose Id Mm | 6.400 |
| Construction Style | Crimp |
| End Connection Torque | 37-44 lb-ft(50-60 Nm) |
| End Type 1 | 24 deg. DKO swivel light duty |
| End Type 2 | Line/hose/tube |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 0.748 |
| Hex Size 1 Mm | 19.000 |
| Hose Cut Off Factor In | 0.930 |
| Hose Cut Off Factor Mm | 23.500 |
| Hose Size | -4 |
| Inside Diameter In | 0.1600 |
| Inside Diameter Mm | 4.0000 |
| Product Height In | 0.862 |
| Product Height Mm | 21.900 |
| Product Length In | 2.028 |
| Product Length Mm | 51.501 |
| Product Material | Carbon steel |
| Product Width In | 0.748 |
| Product Width Mm | 18.999 mm |
| Proposition 65 | Cancer and Reproductive Harm |
| Series | Winner 2-Piece |
| Thread Sealant | No |
| Thread Size 1 | M18x1.5 |
