Danfoss (Drives) 10411-16-05ZF

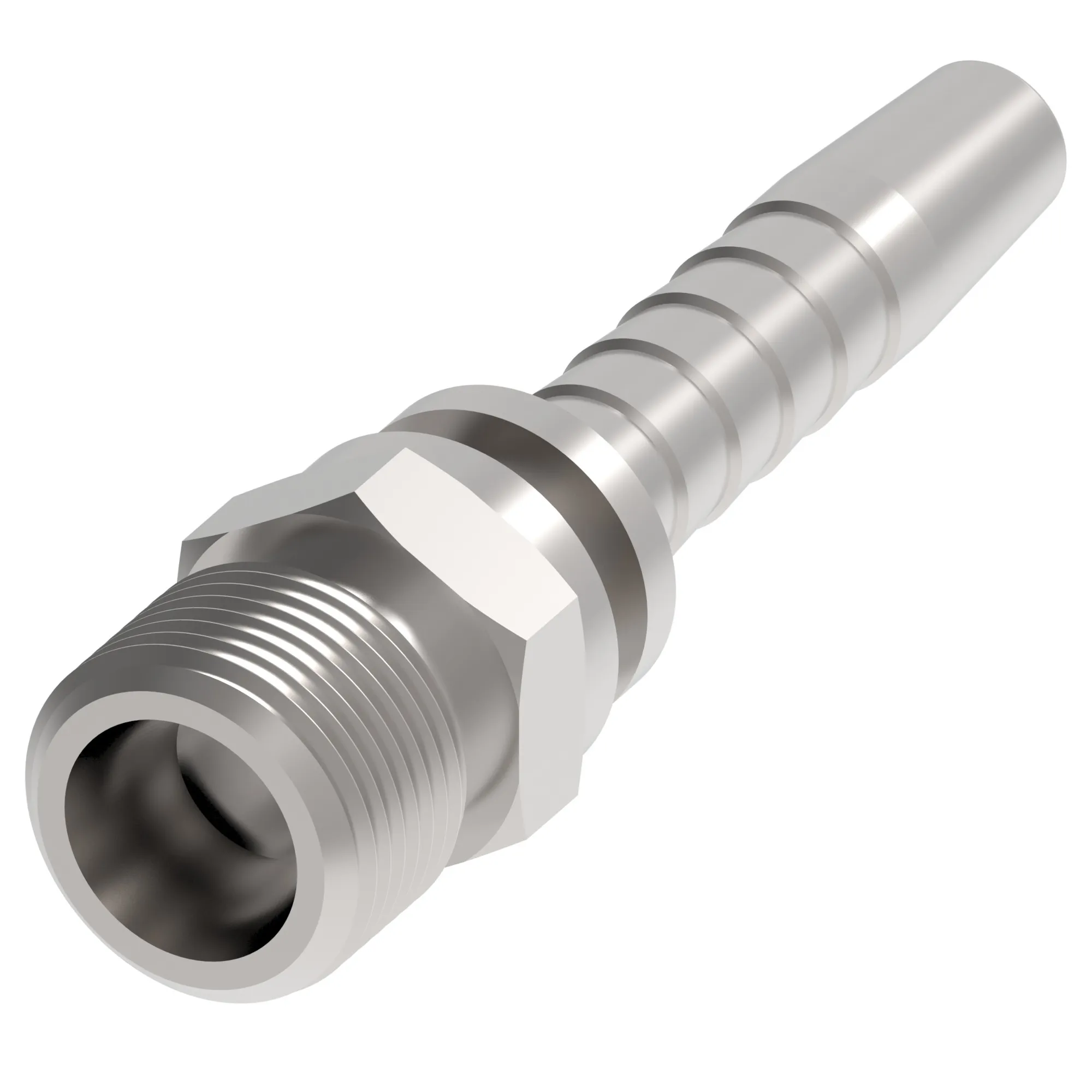

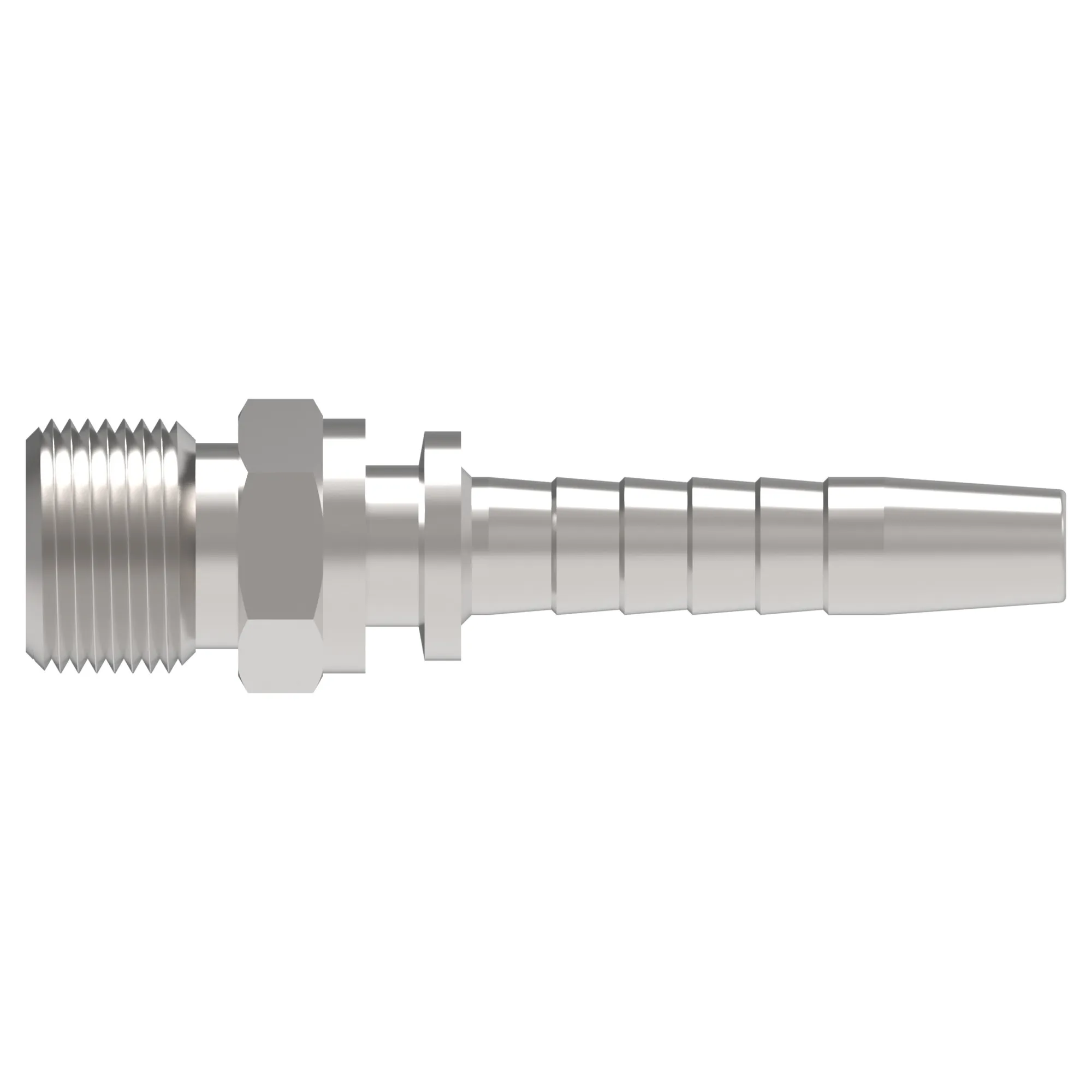

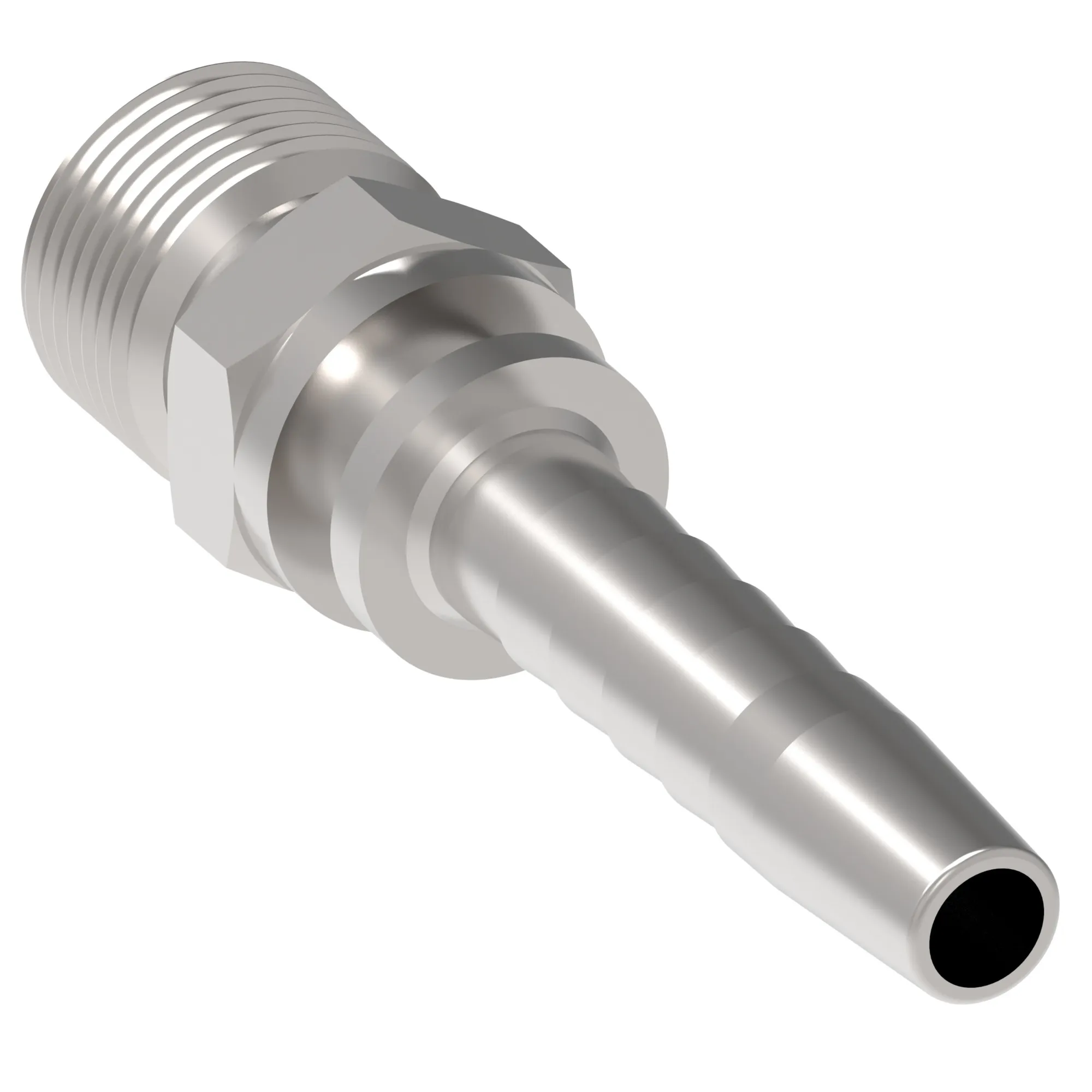

HOSE NIPPLE ASSY,2P/05,DKOL/16,CS,STR – 10411-16-05ZF
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE ASSY,2P/05,DKOL/16,CS,STR – 10411-16-05ZF
Specification
| A Dimension In | 1.980 |
|---|---|
| A Dimension Mm | 50.500 |
| Angle Shape | Straight |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 0.310 |
| Compatible Hose Id Mm | 7.900 |
| Construction Style | Crimp |
| End Size 1 | -16 |
| End Type 1 | 24 deg. DKO swivel light duty |
| Finish Plating | Zinc plating |
| Hose Cut Off Factor In | 0.880 |
| Hose Cut Off Factor Mm | 22.500 |
| Hose Size | -5 |
| Inside Diameter In | 0.2700 |
| Inside Diameter Mm | 7.0000 |
| Product Height In | 0.770 |
| Product Height Mm | 19.558 |
| Product Length In | 1.990 |
| Product Length Mm | 50.546 |
| Product Material | Carbon steel |
| Product Width In | 0.670 |
| Product Width Mm | 17.018 mm |
| Series | Winner 2-Piece |
| Thread Size 1 | M16X1.5 |
| Working Pressure Max Bar | 165 |
| Working Pressure Max Psi | 2400 |
