Danfoss (Drives) 104-4786-006

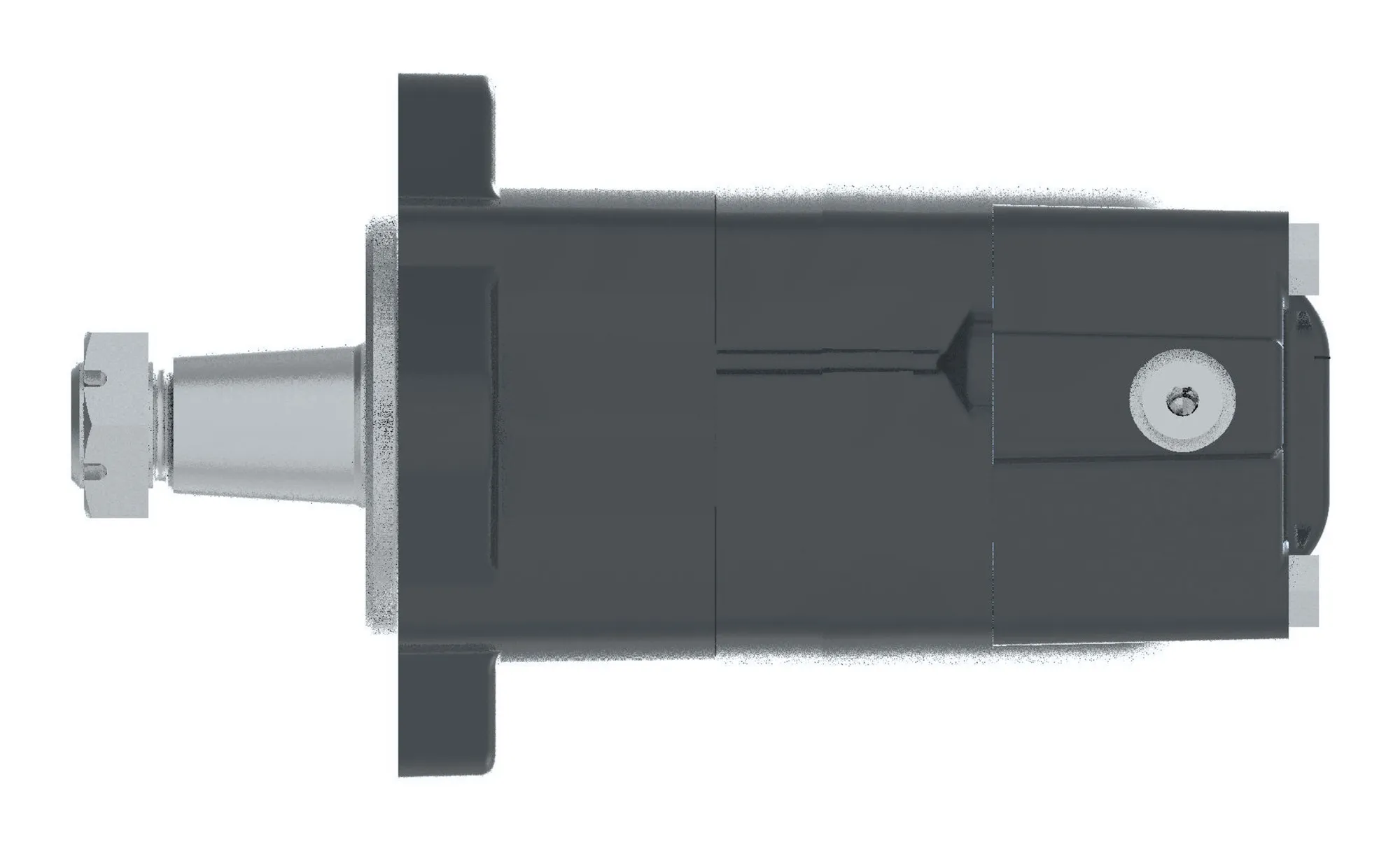

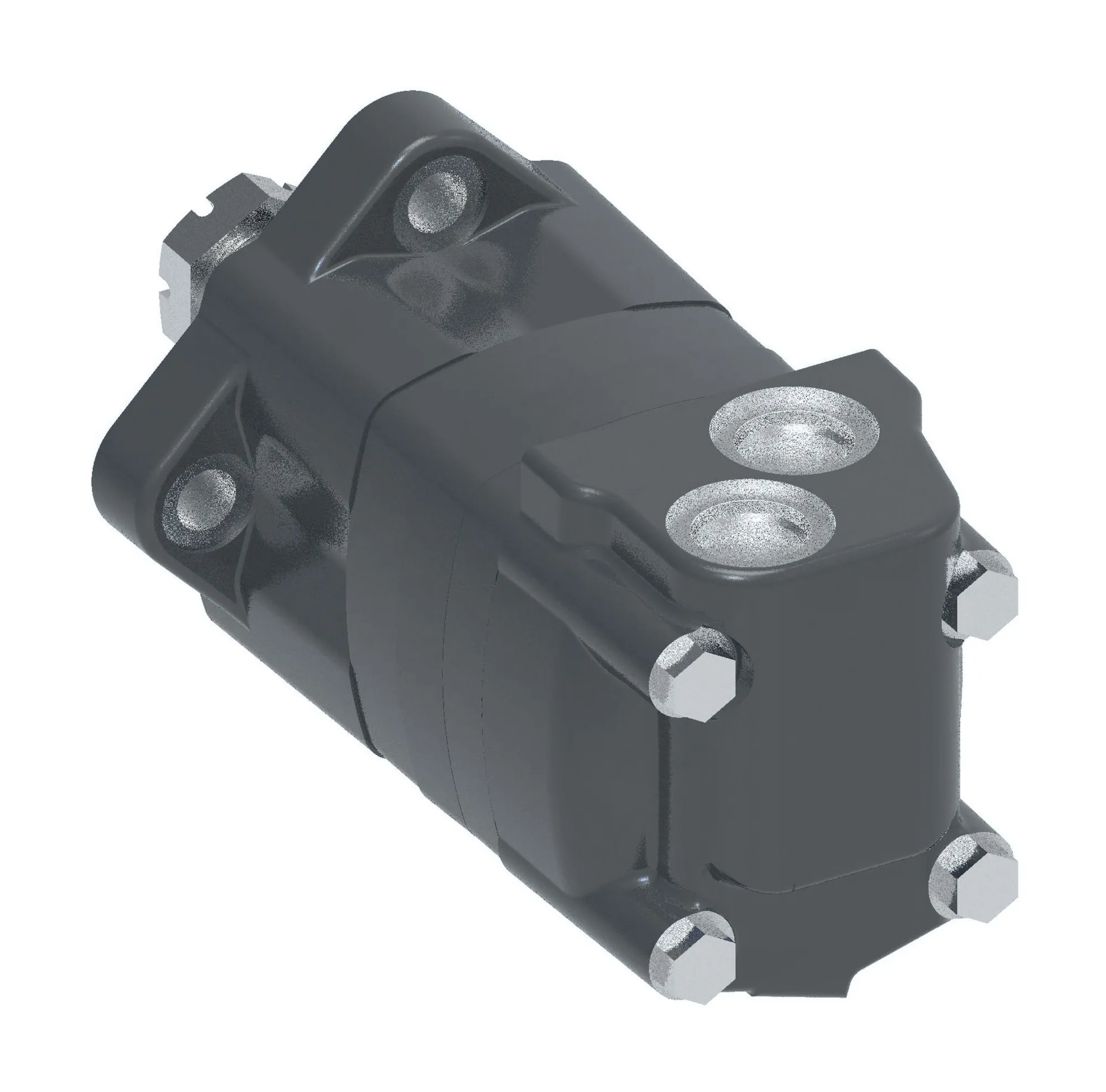

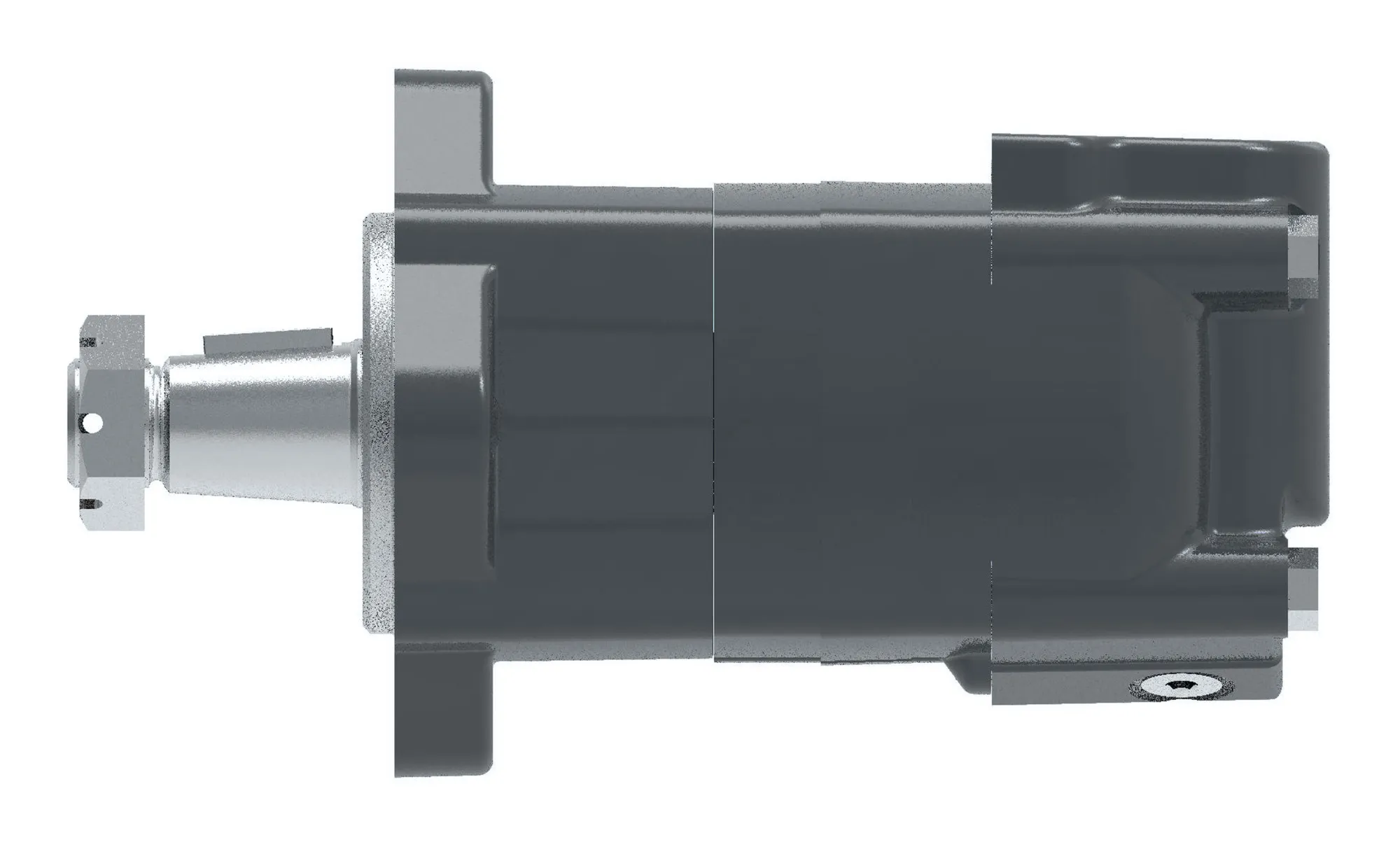

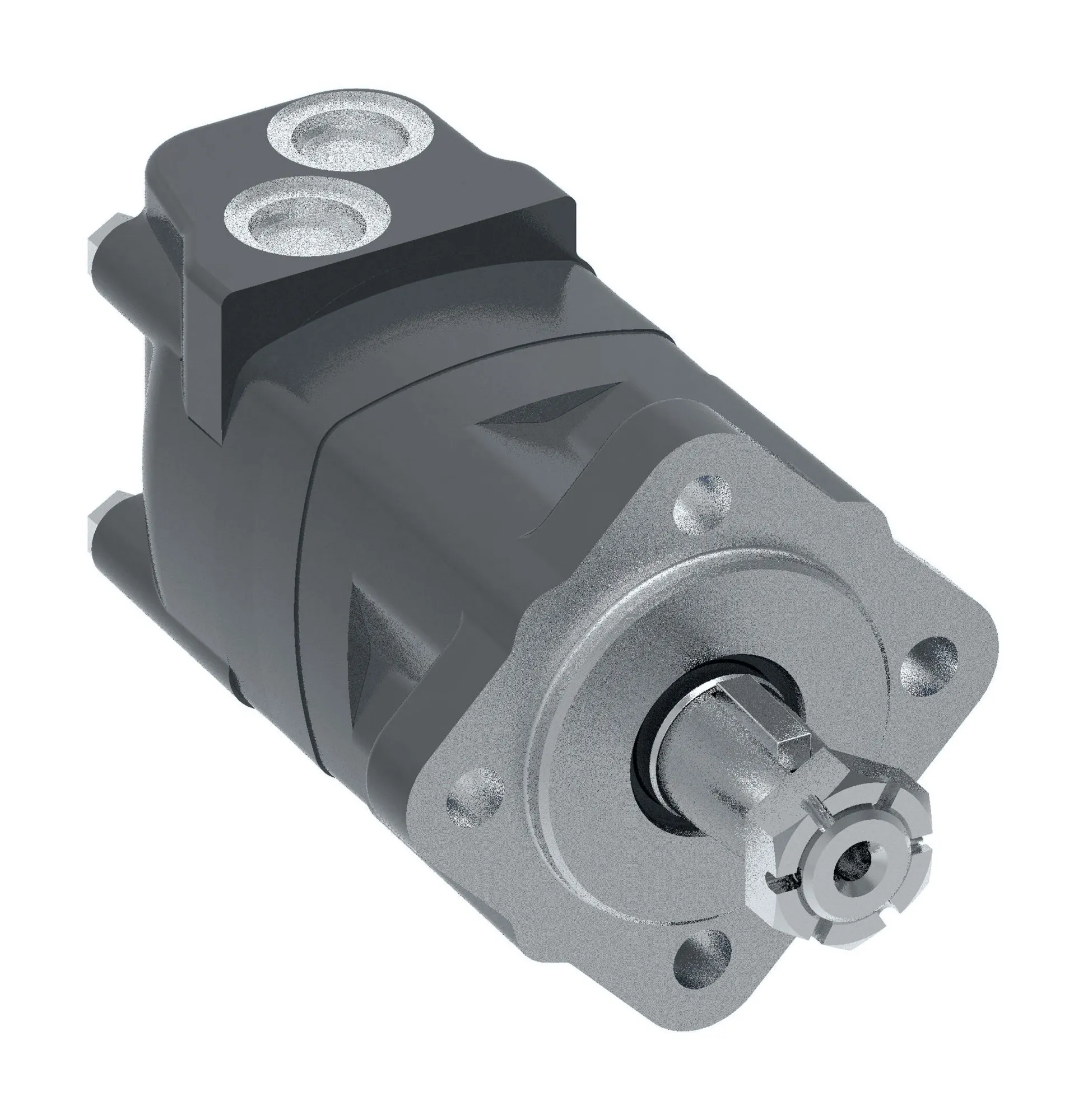

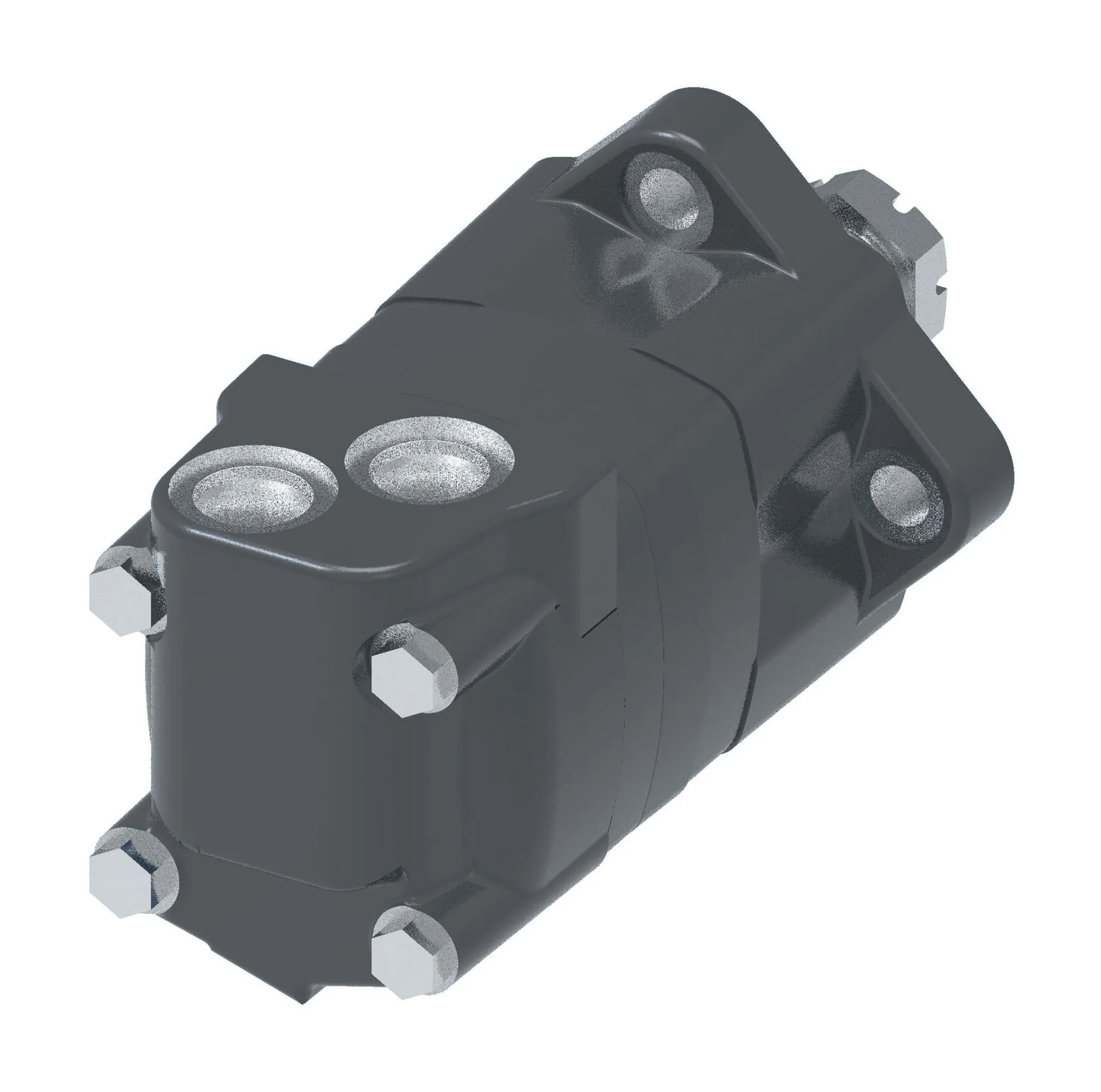

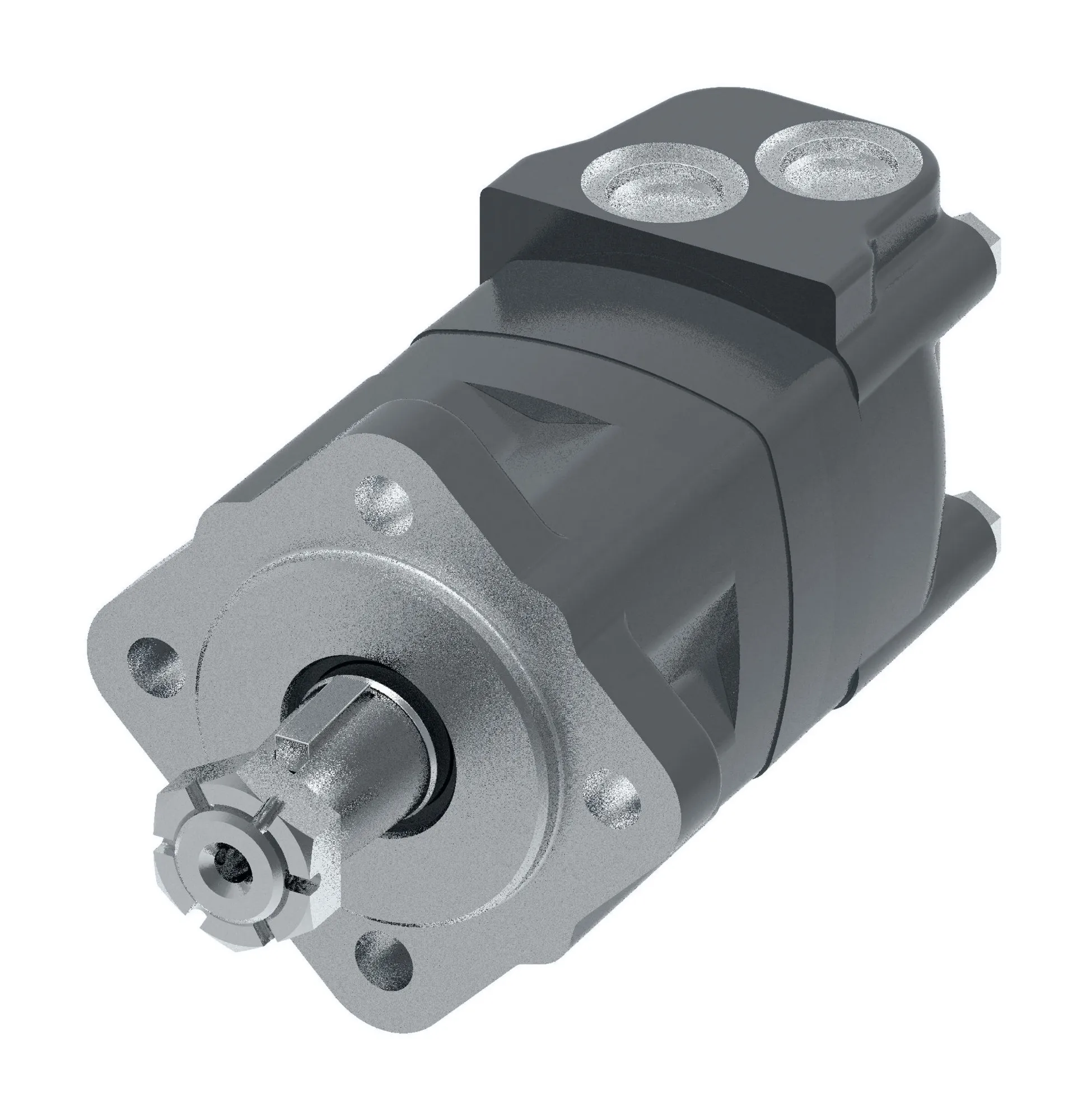

MOTOR-ORBITAL,2000 SERIES 90 [5.5], M02055AH19BE15000150000ABABAUF – 104-4786-006
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,2000 SERIES 90 [5.5], M02055AH19BE15000150000ABABAUF – 104-4786-006
Specification
| Model Code | M02055AH19BE15000150000ABABAUF |
|---|---|
| Motor Series | 2000 Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Motor Size | 90 |
| Geometric Displacement [Cm3/R [In3/R]] | 90.6 [5.53] |
| Motor Type | Standard |
| Motor Function | Standard |
| Mounting Flange Type | 4 Bolt – Square |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 82.6 x 6.4, 106.4, 13.6 [3.25 x 0.25, 4.19, 0.54] |
| Shaft Type | Straight |
| Shaft Dimension | Dia. 25 mm, M8 x 1.25-6H thread in shaft end |
| Shaft Key | Rectangular key, 8 x 7 x 32 mm |
| Main Port Thread Type | Metric |
| Main Port Style | Sideport – 180 deg to each other |
| Main Port Dimension | M22 x 1.5-6H O-Ring port |
| Drain Port Dimension | M12 x 1.5-6H O-ring port |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint Information | Primer, Black, Low gloss |
| Special Features Assembly | Direction of rotation |
| Dust Seal | Extreme duty seal guard |
| Shaft Seal | NBR – Standard |
| Seal Kit | 9900395-000 |
| Front Bearing Type | Tapered roller bearing |
| Rear Bearing Type | Tapered roller bearing |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | Yes |
| Hydraulic Valve Function | None |
| Sensor | None |
| Packaging | Single pack |
| Name Tag | Customized |
| Design Code | 06 |
| Brand | Danfoss |
| Sub Brand | Char-Lynn |
