Danfoss (Drives) 104-4455-006

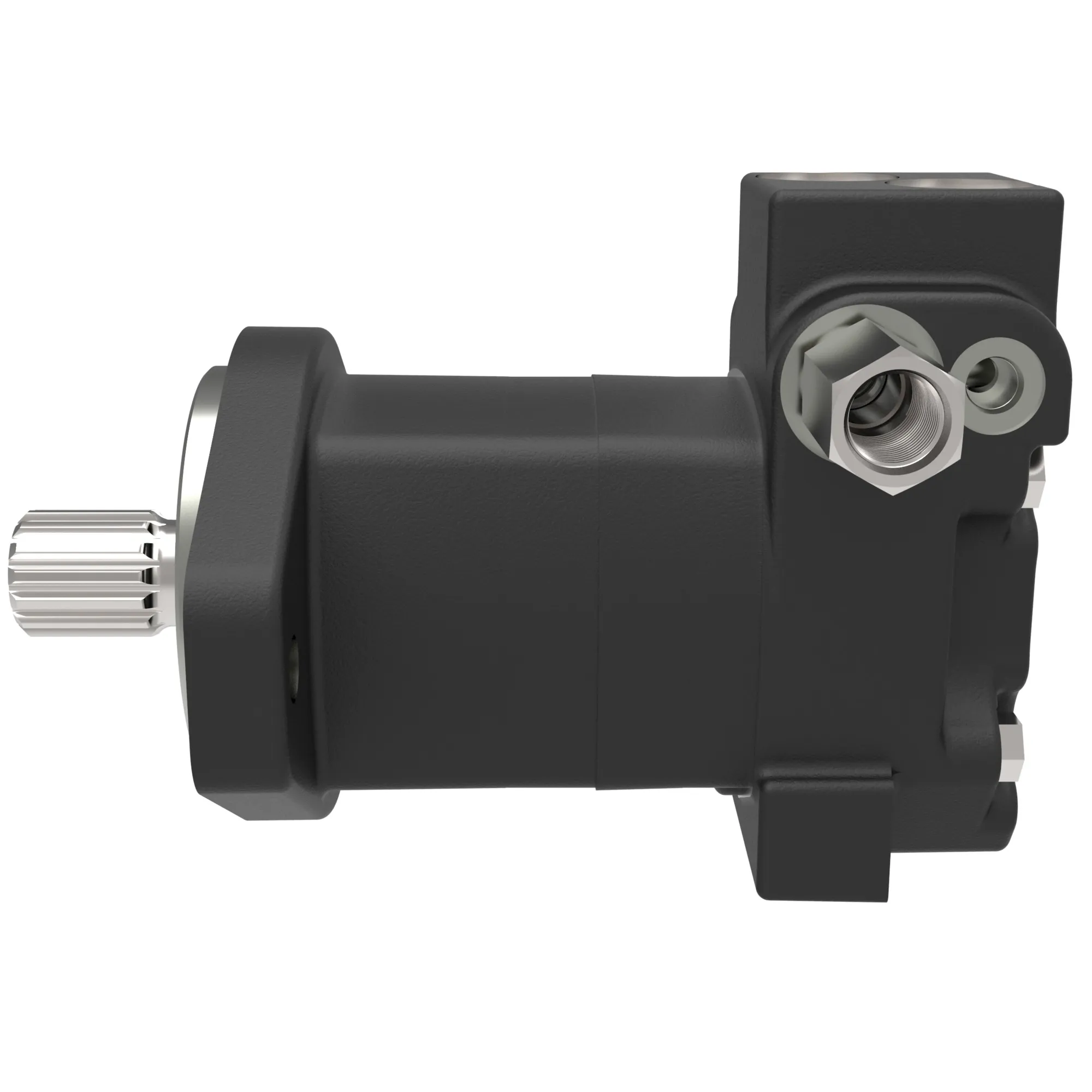

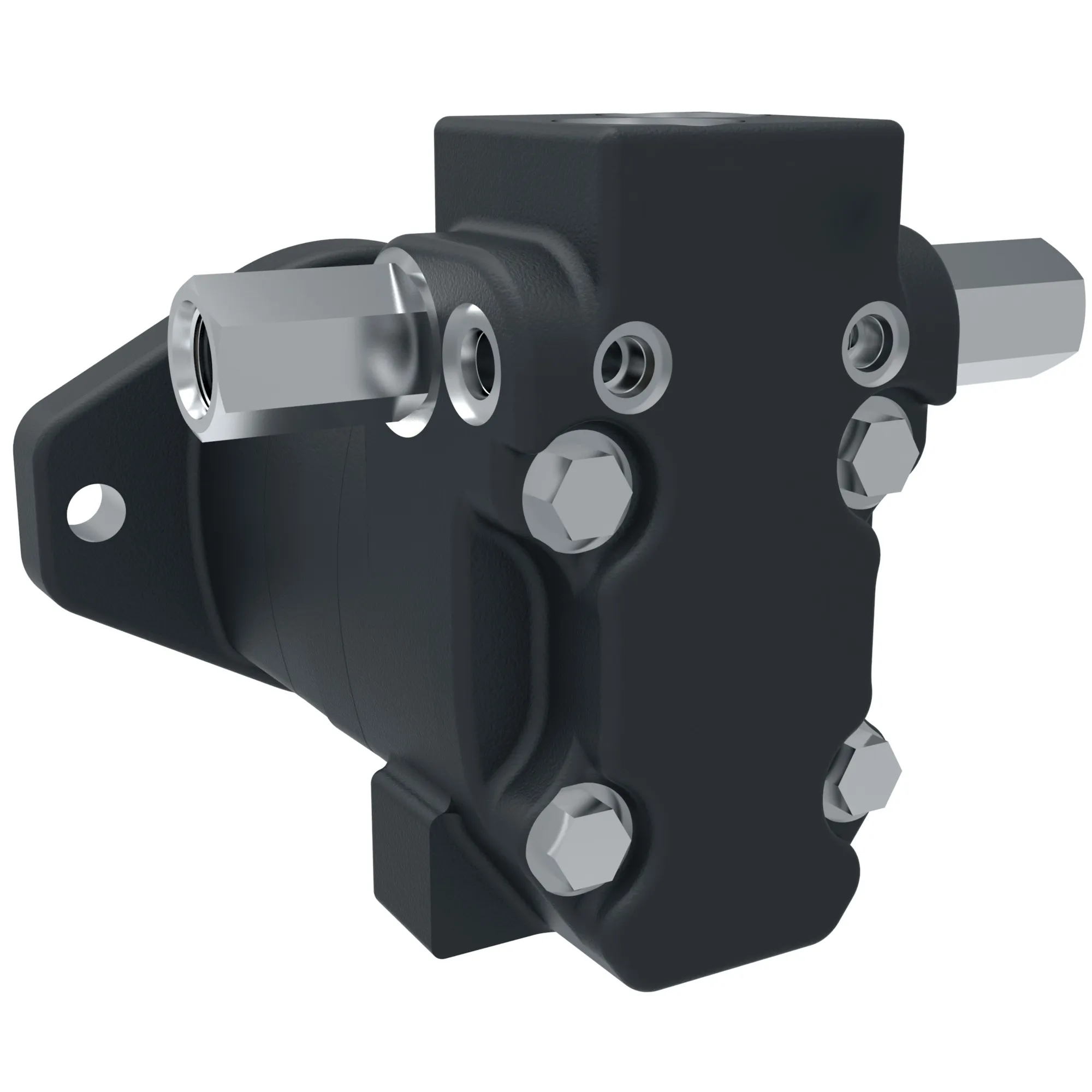

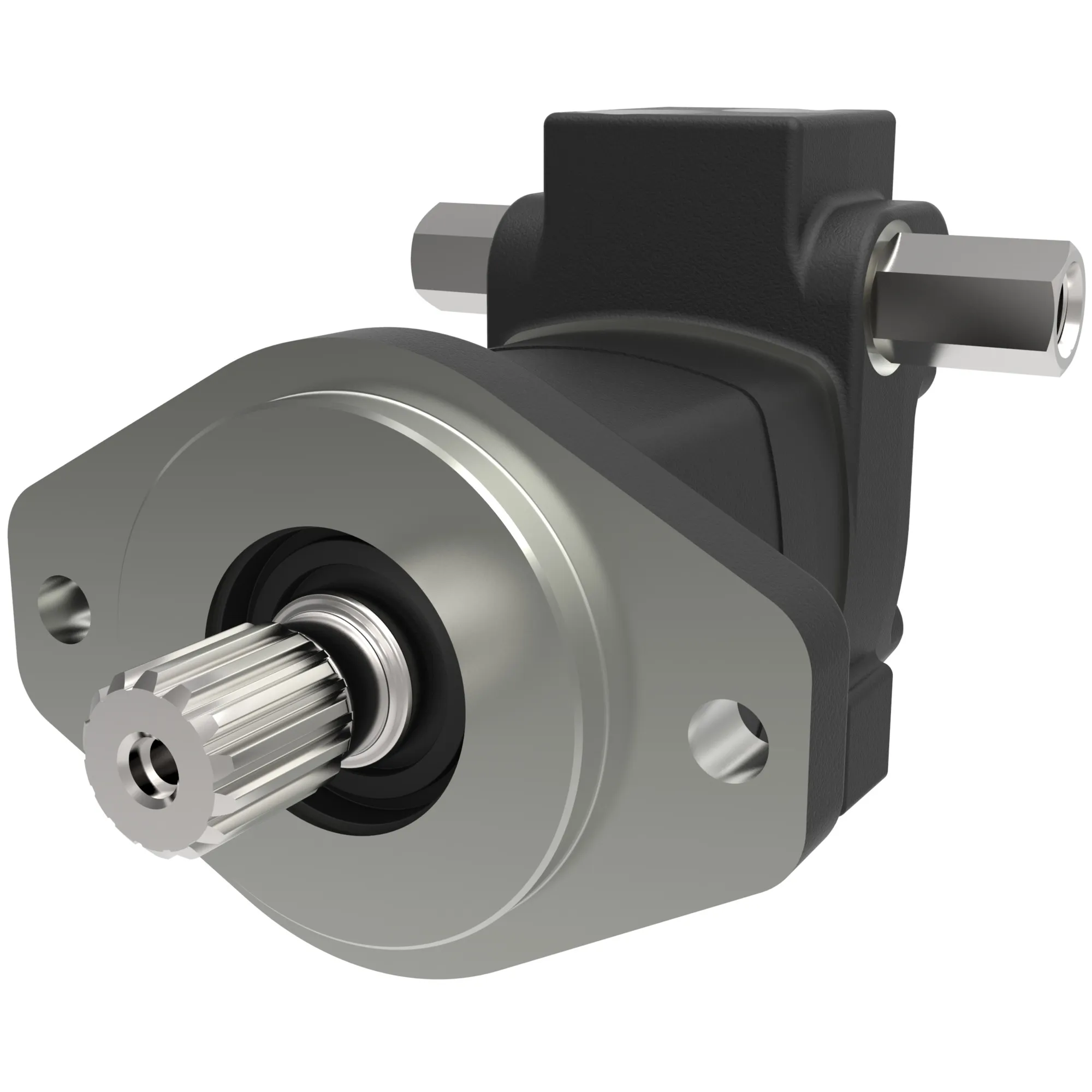

MOTOR-ORBITAL,2000 SERIES 90 [5.5], M02055AF04AA0105823000800ABAAF – 104-4455-006
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,2000 SERIES 90 [5.5], M02055AF04AA0105823000800ABAAF – 104-4455-006
Specification
| Model Code | M02055AF04AA0105823000800ABAAF |
|---|---|
| Motor Series | 2000 Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Mounting Type | 2 s p102 b146 h14 |
| Motor Size | 90 |
| Geometric Displacement [Cm3/R [In3/R]] | 90.6 [5.53] |
| Motor Type | Standard |
| Motor Function | Noise optimized |
| Mounting Flange Type | 2 Bolt – B |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 101.6 x 9.4, 146.0, 14.4 [4.00 x 0.37, 5.75, 0.57] SAE B |
| Shaft Type | Splined |
| Shaft Dimension | Dia. 1 1/4 inch, 14T, 3/8 – 16 UNC-2B thread in shaft end |
| Shaft Key | n/a |
| Main Port Thread Type | UN / UNF |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | 7/8 – 14 UNF-2B SAE O-Ring port |
| Drain Port Dimension | 7/16 – 20 UNF-2B SAE O-Ring port |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint Information | Primer, Black, Low gloss |
| Special Features Assembly | Standard |
| Dust Seal | Standard |
| Shaft Seal | NBR – High pressure |
| Seal Kit | 9900716-000 |
| Front Bearing Type | Tapered roller bearing |
| Rear Bearing Type | Tapered roller bearing |
| Orbital Gearwheel Set | Free running |
| Check Valve Function | Yes |
| Hydraulic Valve Function | Cross over relief valve @ 172.4 bar [2500 psi] – Spec. Component |
| Sensor | None |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Design Code | 06 |
| Brand | Danfoss |
| Low Pressure Relief | None |
| Output Shaft Type | SPL 14T 12/24 3/8-16 |
| Seal Options | HP SHAFT SEAL |
| Series | 2000 series |
| Sub Brand | Char-Lynn |
