Danfoss (Drives) 104-3490-006

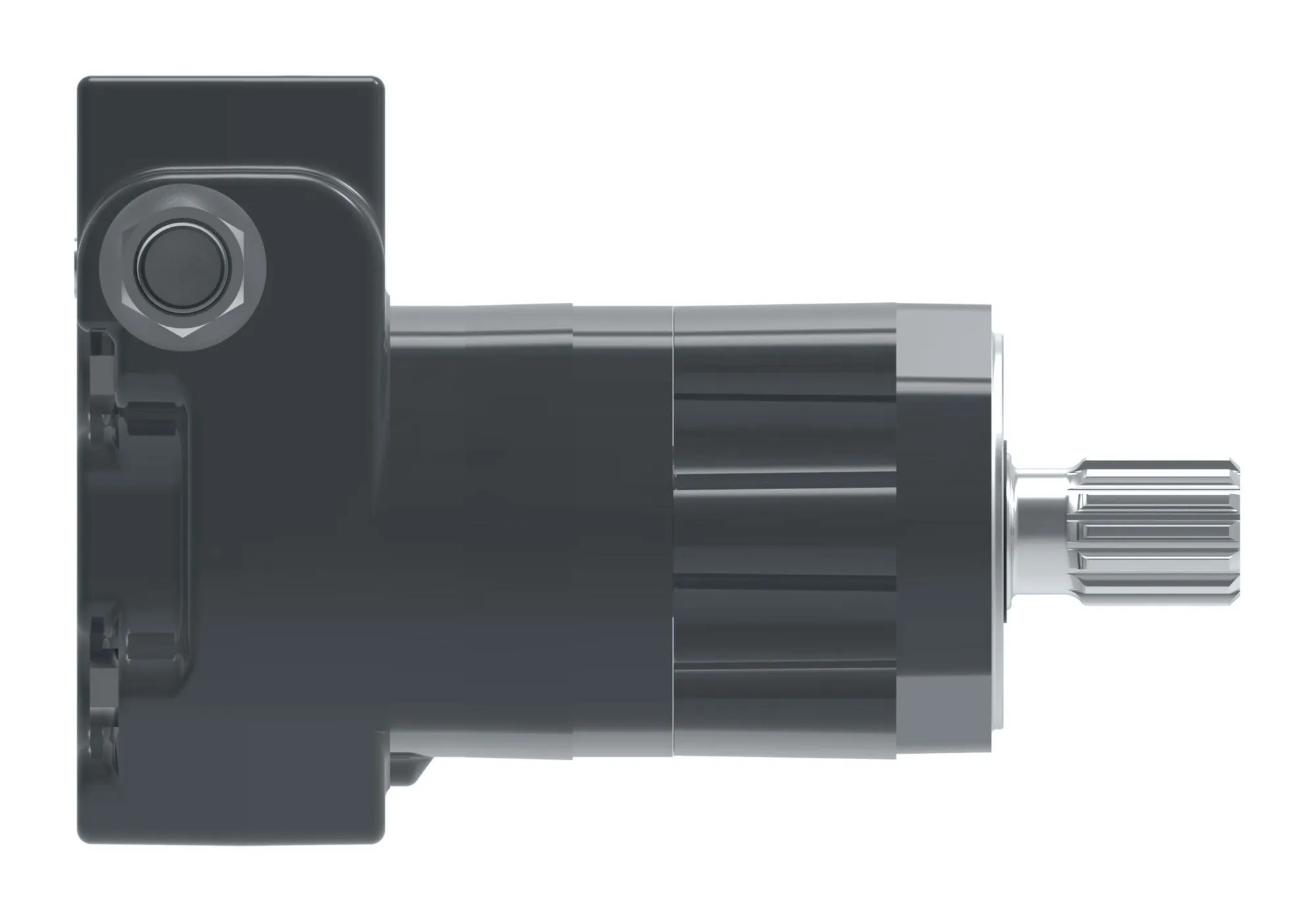

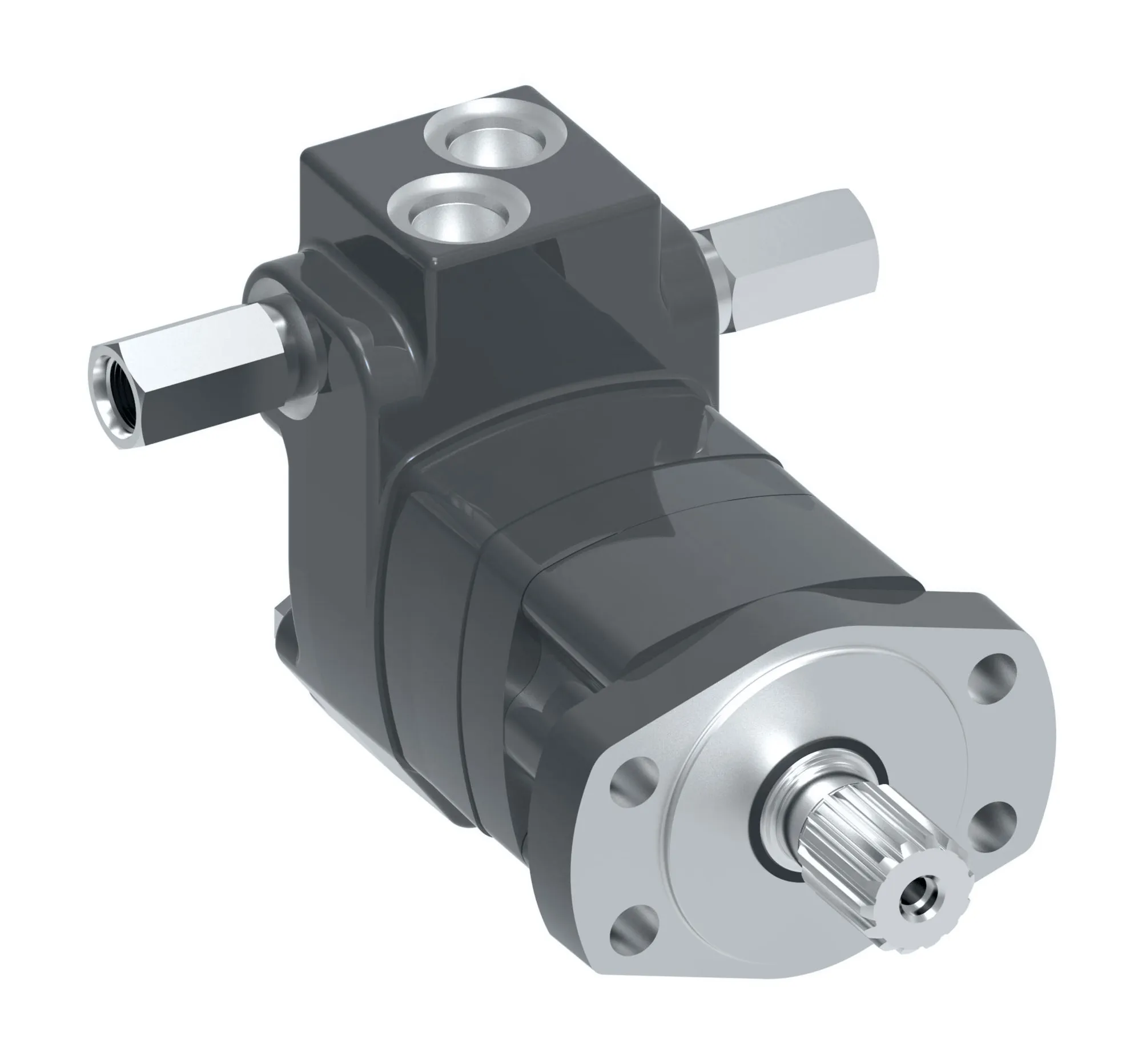

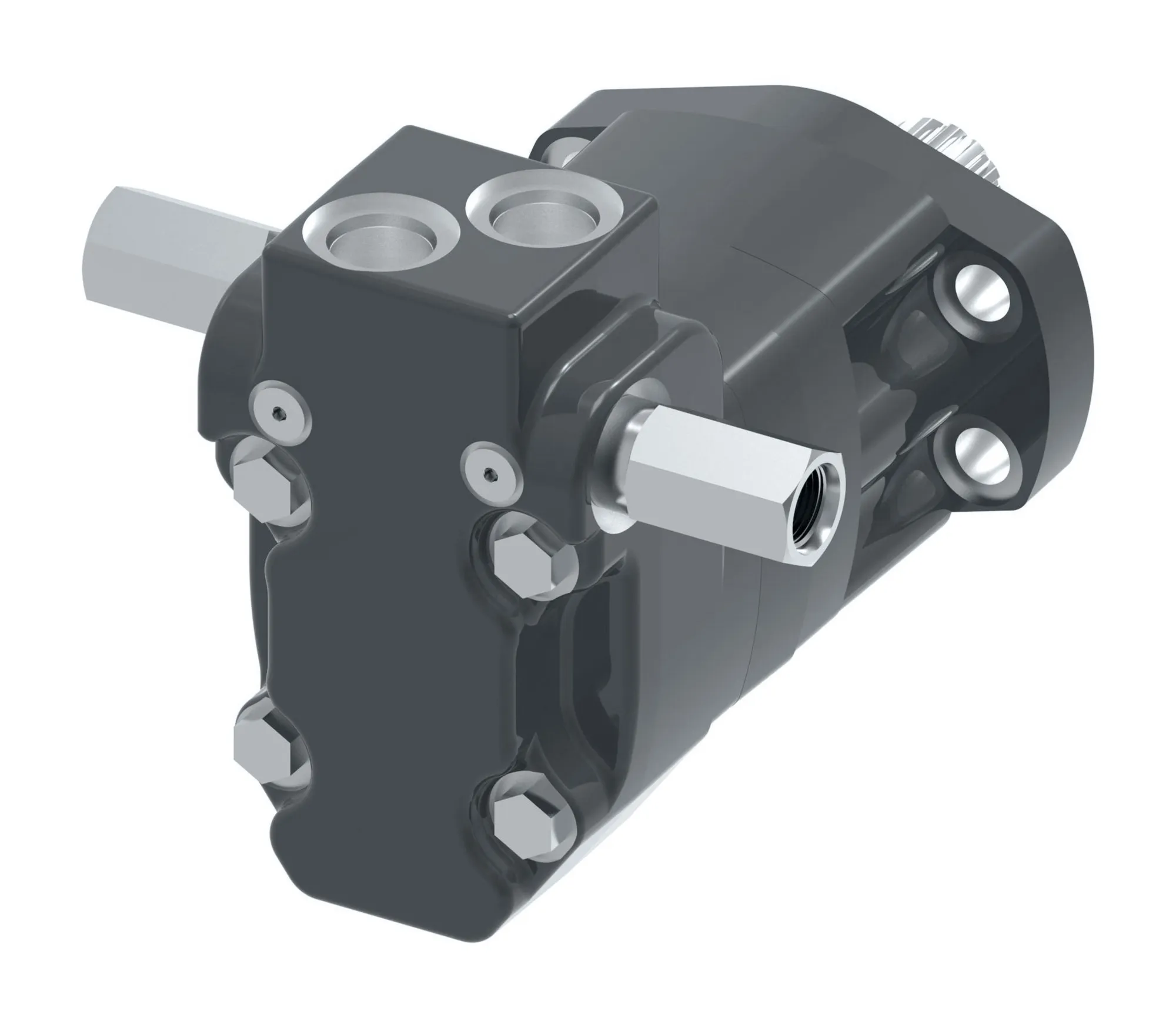

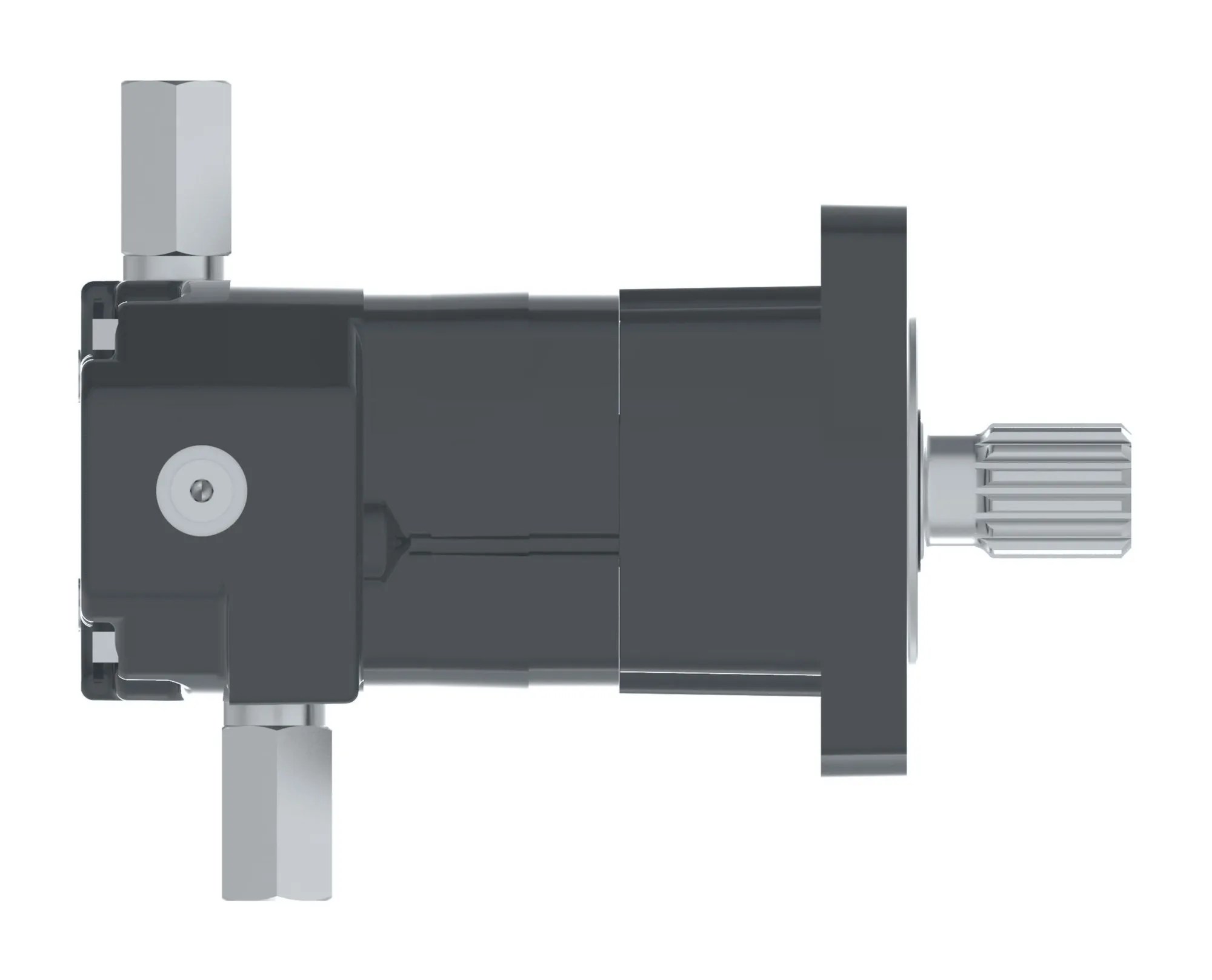

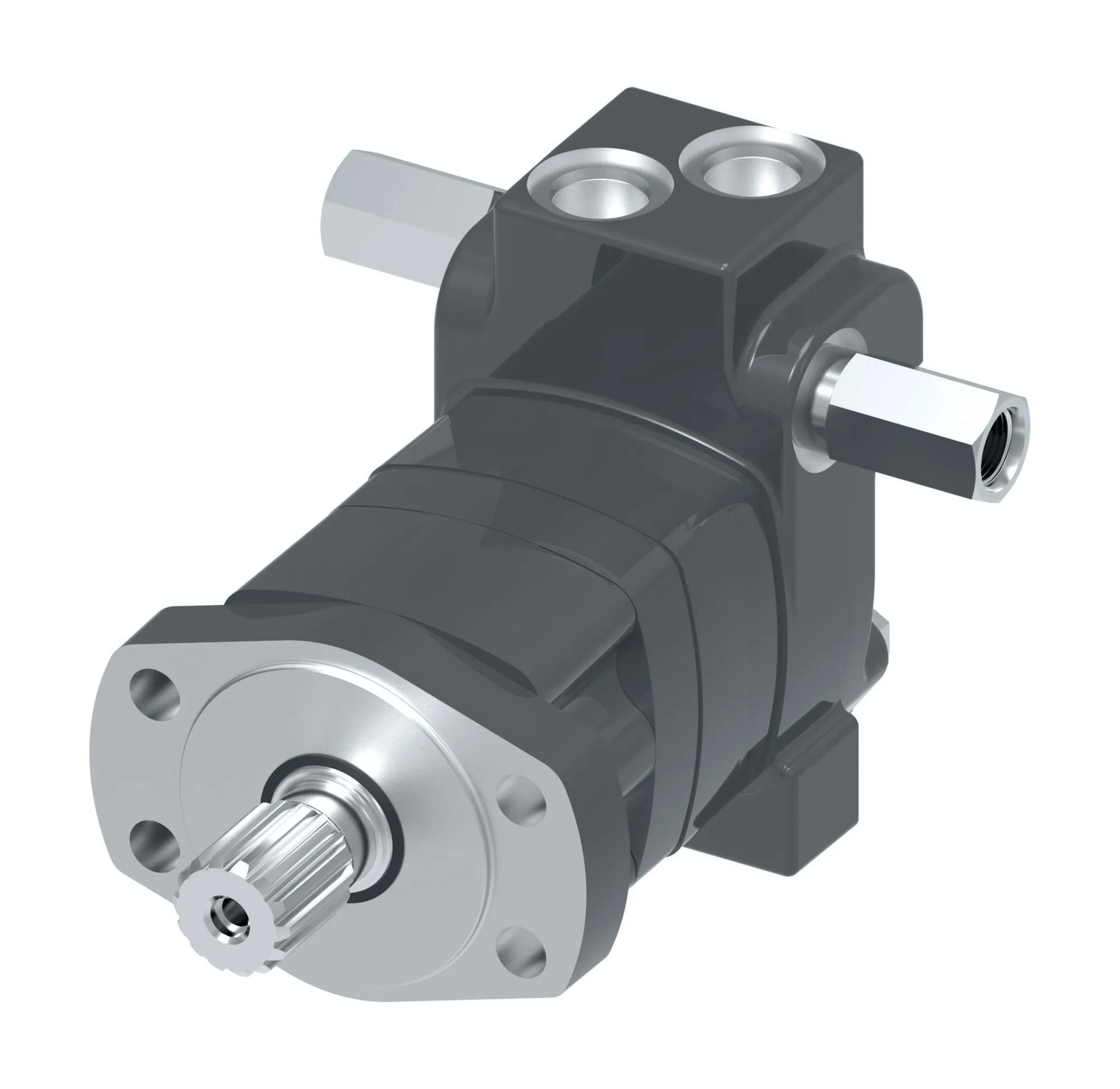

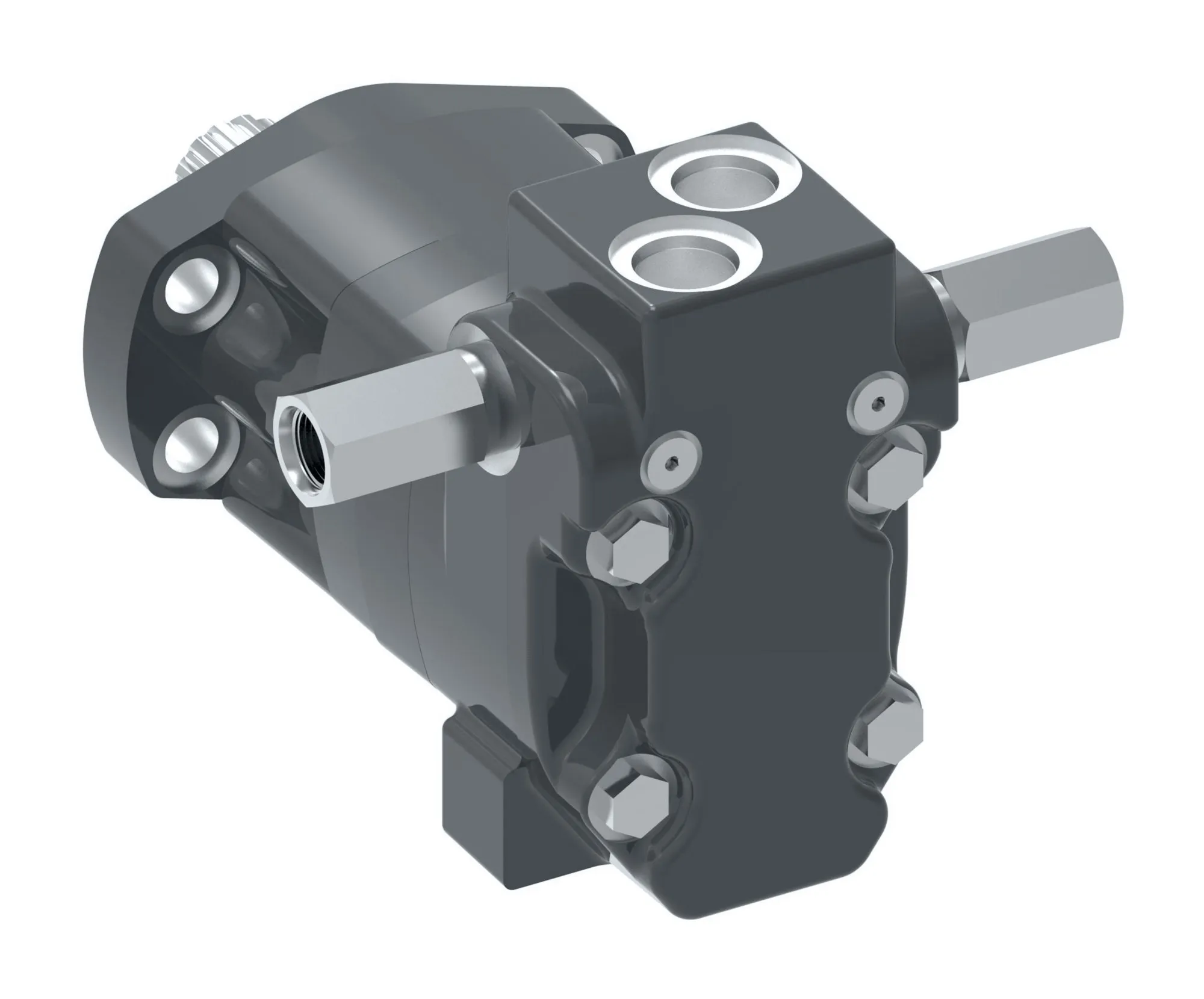

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AJ04AA0103610000000ABAAF – 104-3490-006
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AJ04AA0103610000000ABAAF – 104-3490-006
Specification
| Model Code | M02062AJ04AA0103610000000ABAAF |
|---|---|
| Motor Series | 2000 Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Mounting Type | 4 m p83 b106 h14 pl3 |
| Motor Size | 100 |
| Geometric Displacement [Cm3/R [In3/R]] | 101.6 [6.20] |
| Motor Type | Standard |
| Motor Function | Standard |
| Mounting Flange Type | 4 Bolt – Magneto |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 82.6 x 2.8, 106.4, 13.6 [3.25 x 0.11, 4.19, 0.54] |
| Shaft Type | Splined |
| Shaft Dimension | Dia. 1 1/4 inch, 14T, 3/8 – 16 UNC-2B thread in shaft end |
| Shaft Key | n/a |
| Main Port Thread Type | UN / UNF |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | 7/8 – 14 UNF-2B SAE O-Ring port |
| Drain Port Dimension | 7/16 – 20 UNF-2B SAE O-Ring port |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint Information | Primer, Black, Low gloss |
| Special Features Assembly | Standard |
| Dust Seal | Standard |
| Shaft Seal | NBR – Standard |
| Seal Kit | 9900404-000 |
| Front Bearing Type | Tapered roller bearing |
| Rear Bearing Type | Tapered roller bearing |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | Yes |
| Hydraulic Valve Function | Cross over relief valve @ 206.8 bar [3000 psi] |
| Sensor | None |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Design Code | 06 |
| Brand | Danfoss |
| Low Pressure Relief | None |
| Output Shaft Type | SPL 14T 12/24 3/8-16 |
| Seal Options | Standard |
| Series | 2000 series |
| Sub Brand | Char-Lynn |
