Danfoss (Drives) 104-1956-006

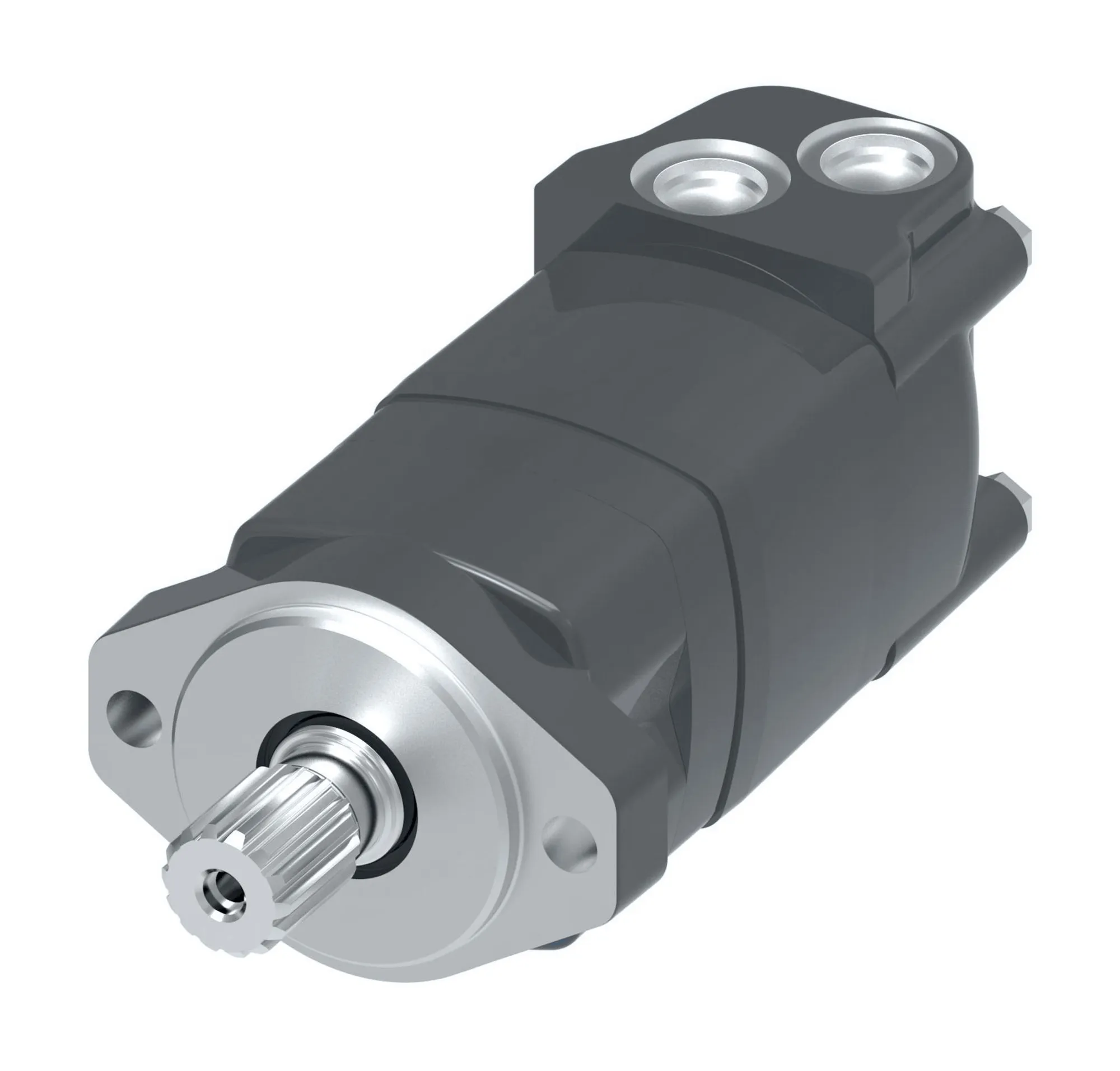

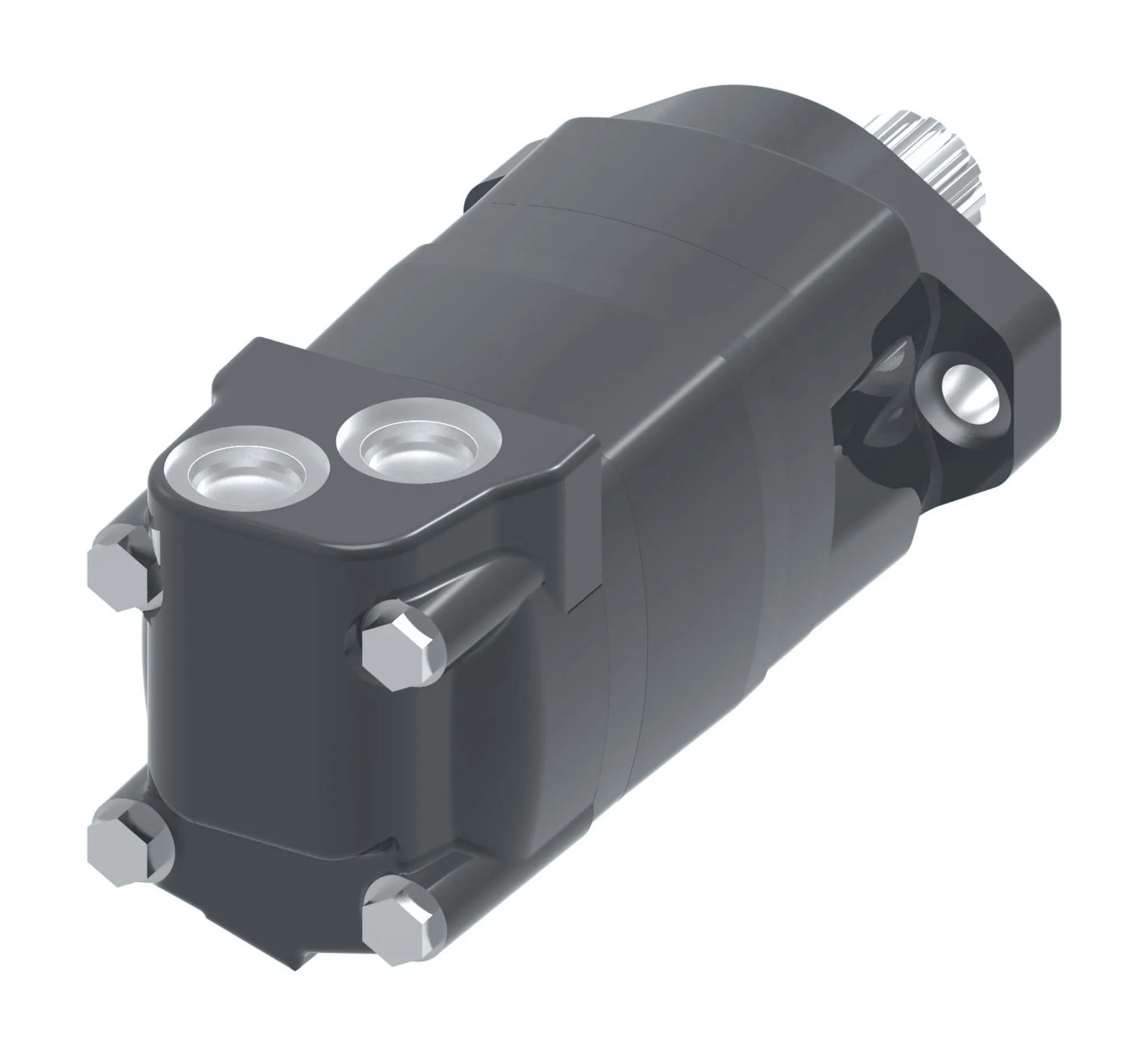

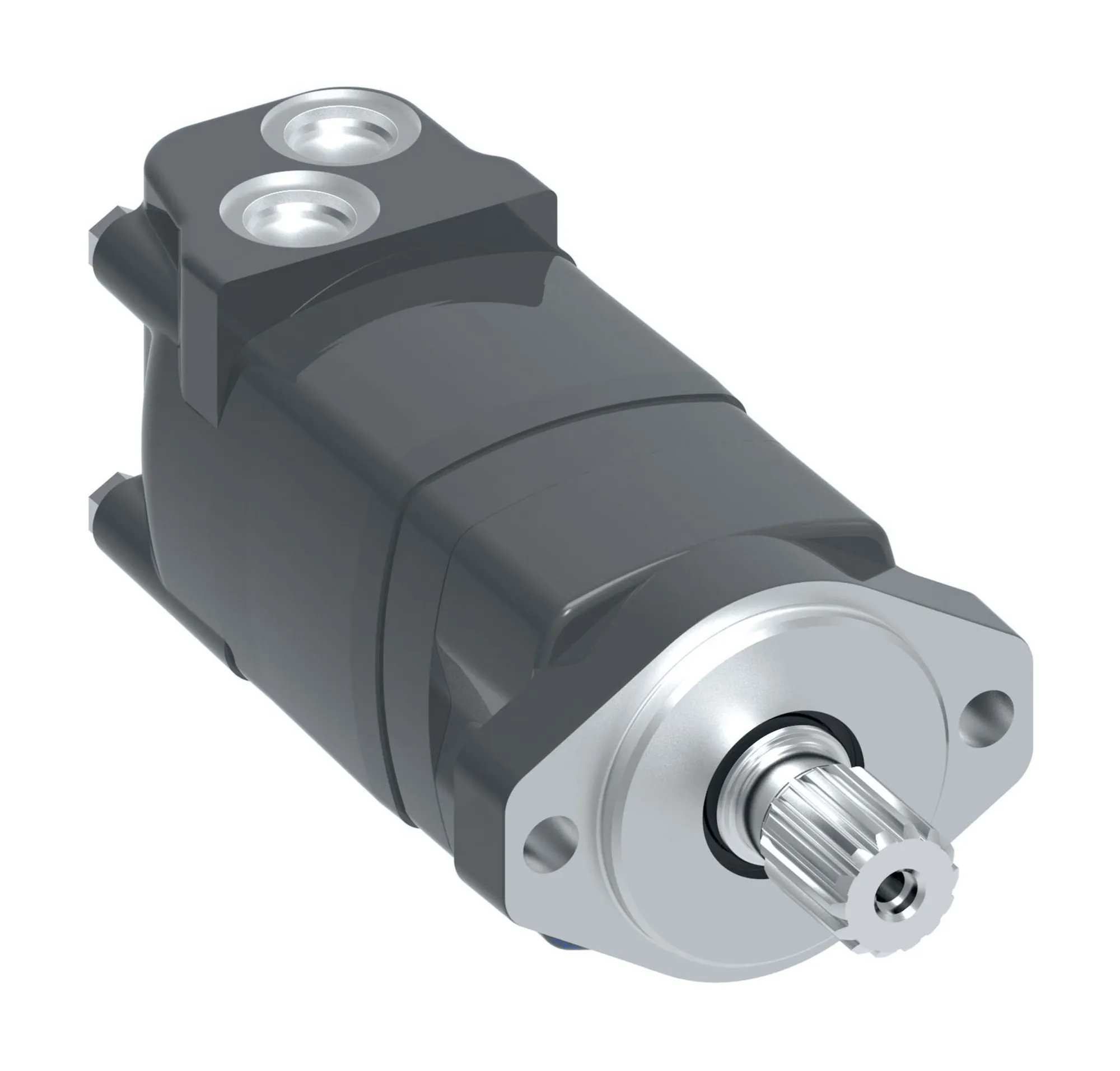

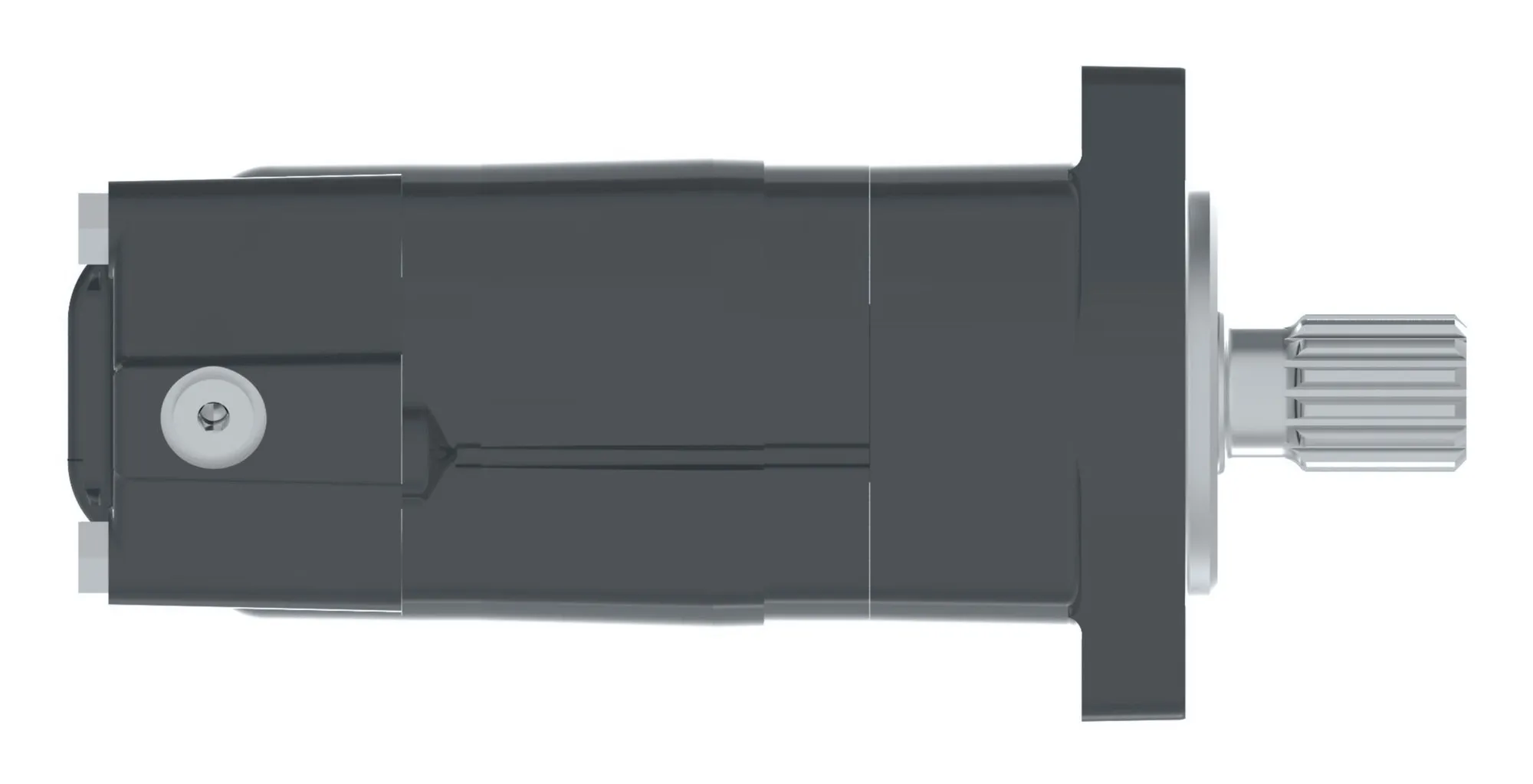

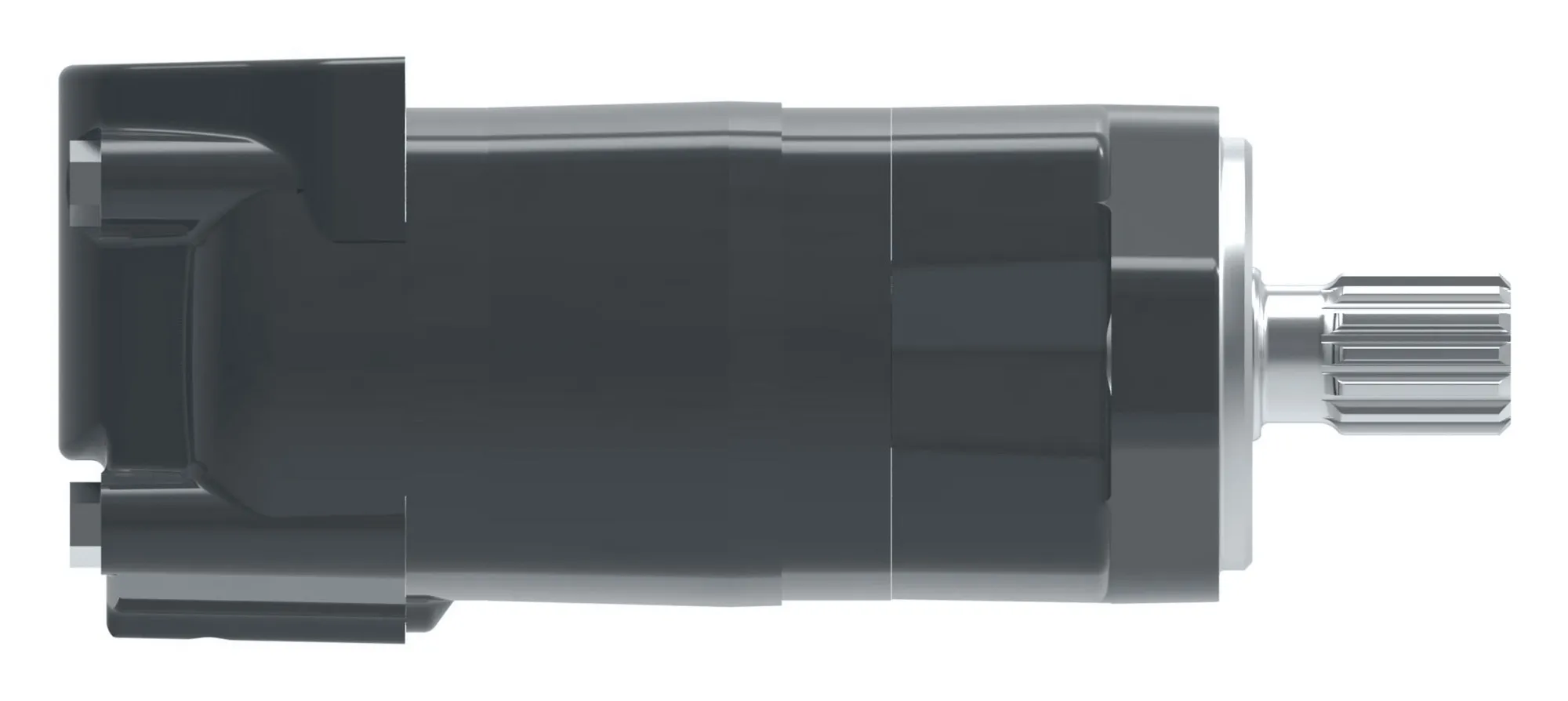

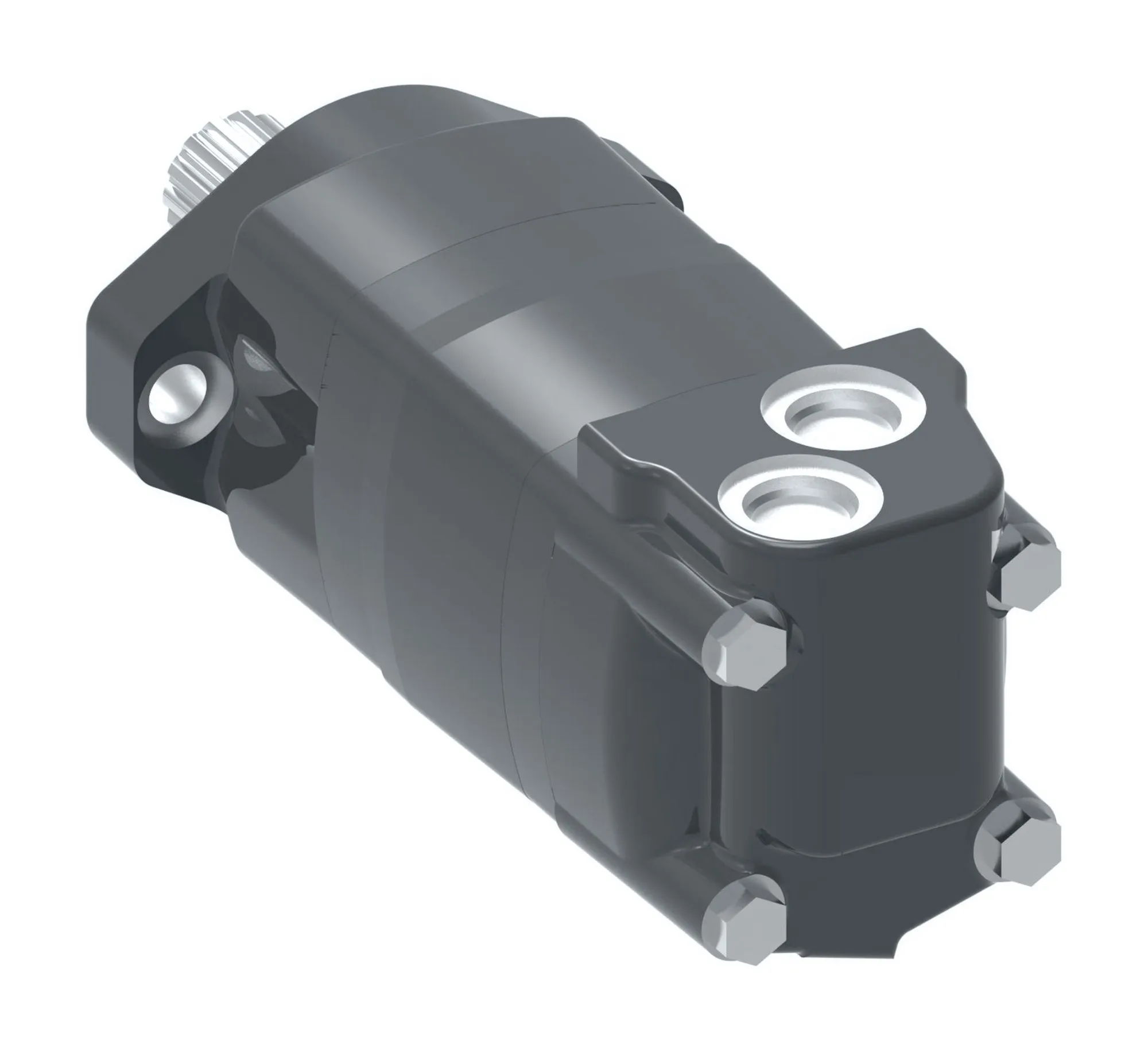

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AH03AS02000300003ABAAALF – 104-1956-006
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AH03AS02000300003ABAAALF – 104-1956-006
Specification
| Model Code | M02149AH03AS02000300003ABAAALF |
|---|---|
| Motor Series | 2000 Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Motor Size | 245 |
| Geometric Displacement [Cm3/R [In3/R]] | 244.3 [14.91] |
| Motor Type | Standard |
| Motor Function | Standard |
| Mounting Flange Type | 4 Bolt – Square |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 82.6 x 6.4, 106.4, 13.6 [3.25 x 0.25, 4.19, 0.54] |
| Shaft Dimension | Dia. 1 1/4 inch, 1:8 SAE J501, 1 – 20 UNEF-2A thread in shaft end |
| Shaft Key | Square key, 5/16 x 1 inch |
| Main Port Thread Type | BSP |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | G 1/2, 2 x M10 x 1.5-6H block mounting threads |
| Drain Port Dimension | G 1/4 |
| Brake Release Port Dimension | n/a |
| Painted | No |
| Paint Information | n/a |
| Special Features Assembly | Direction of rotation |
| Dust Seal | Standard |
| Shaft Seal | NBR – Standard |
| Seal Kit | 9900684-000 |
| Front Bearing Type | Tapered roller bearing |
| Rear Bearing Type | Tapered roller bearing |
| Orbital Gearwheel Set | Tight |
| Check Valve Function | Yes |
| Hydraulic Valve Function | None |
| Sensor | None |
| Packaging | Single pack |
| Name Tag | Customized |
| Design Code | 06 |
| Brand | Danfoss |
| Sub Brand | Char-Lynn |
