Danfoss (Drives) 104-1938-006

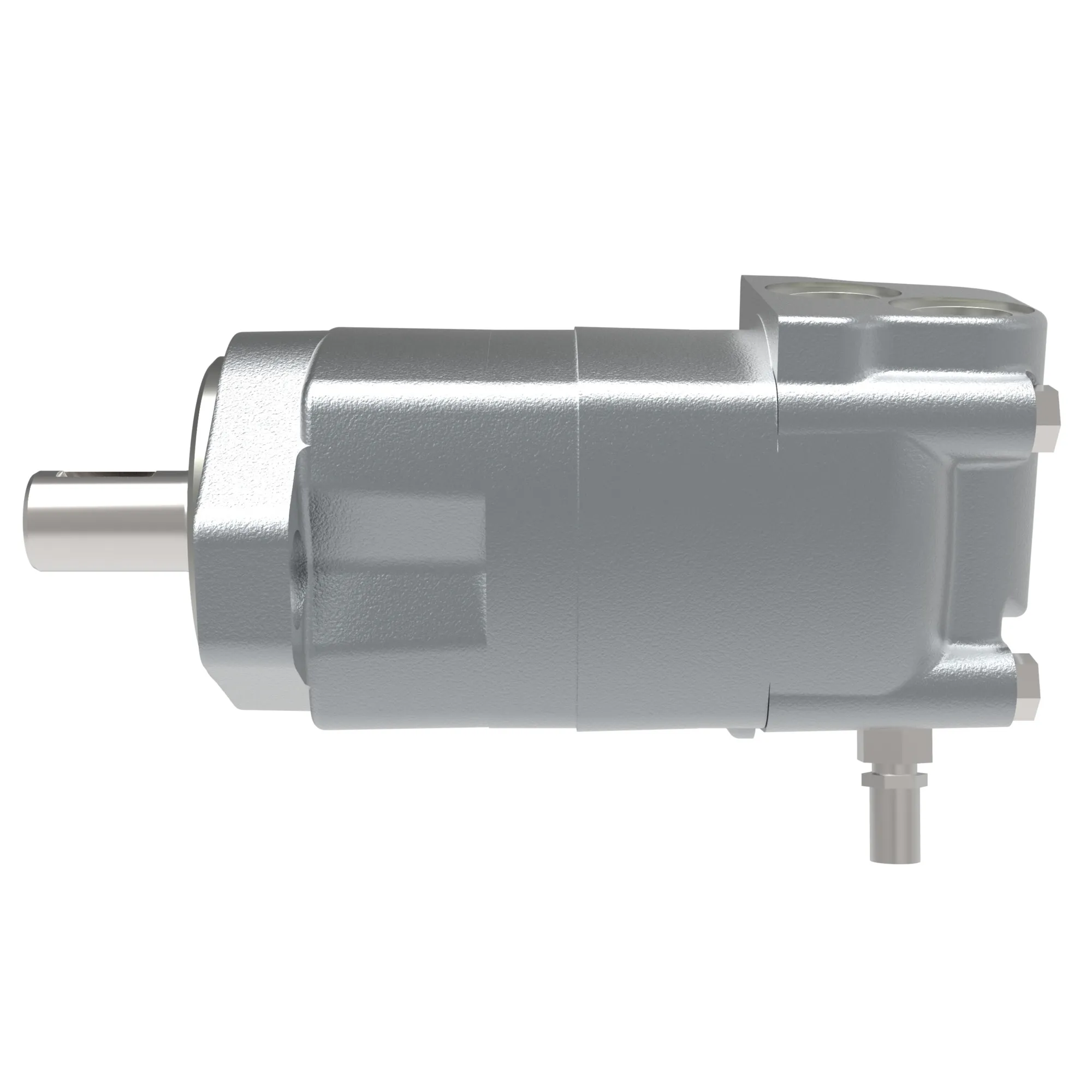

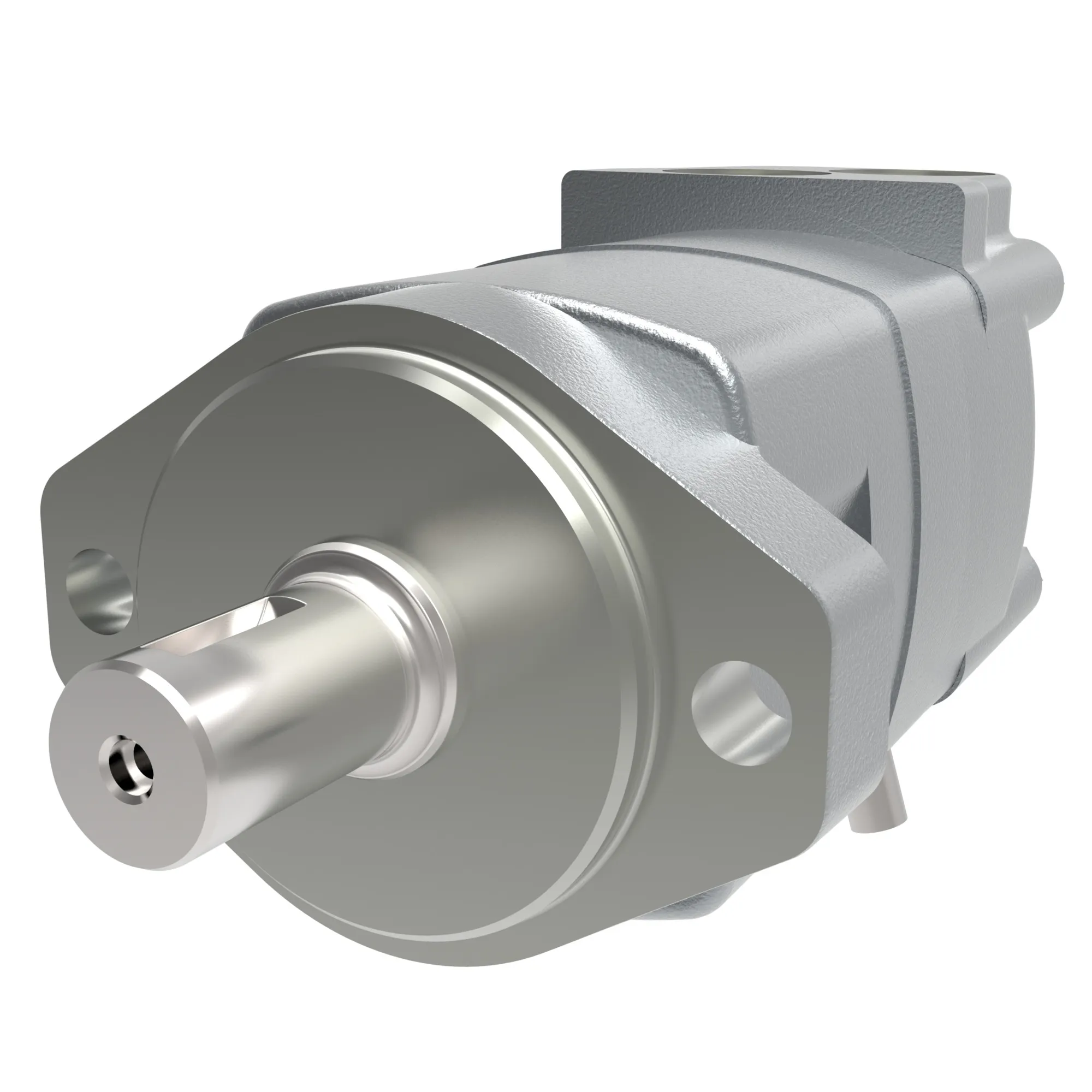

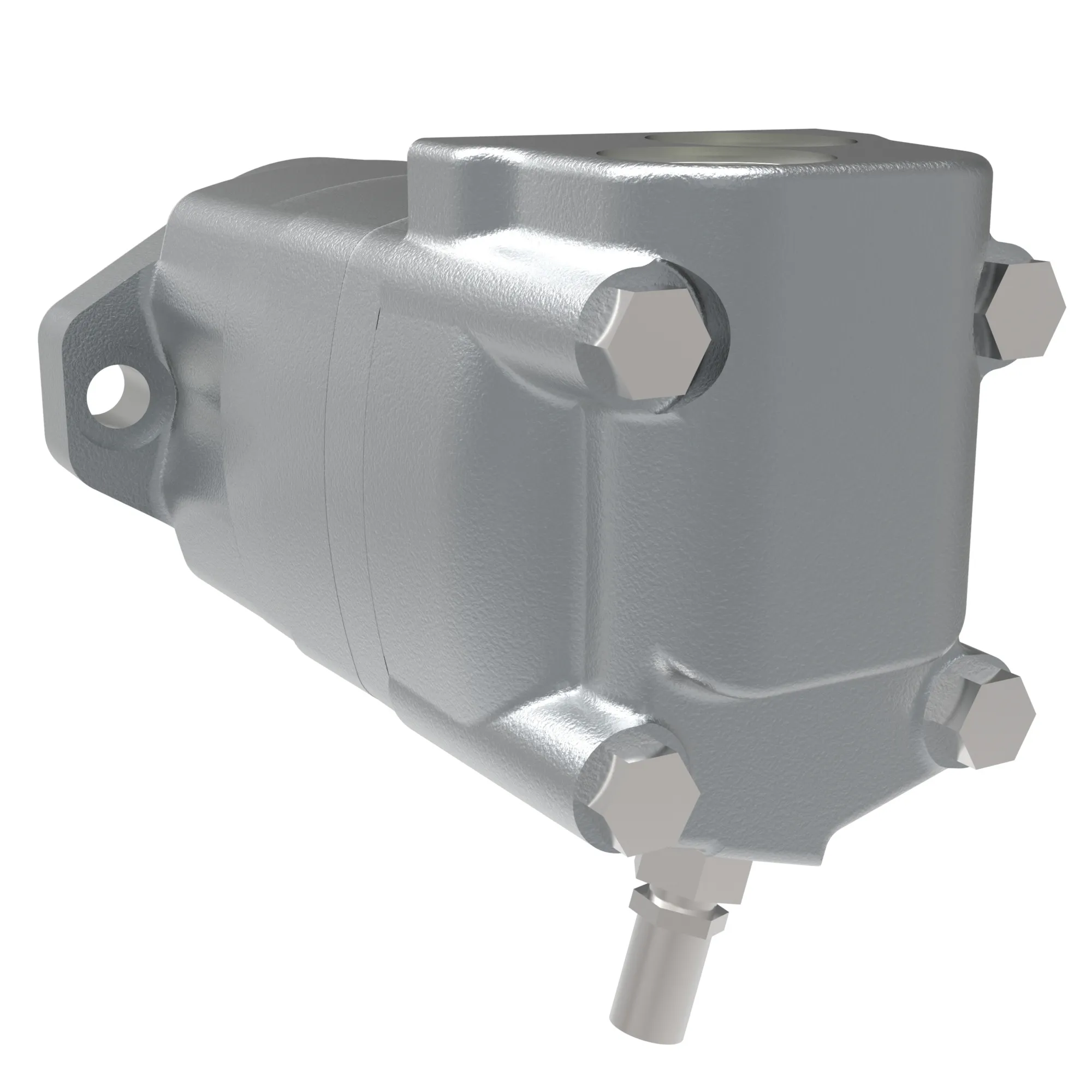

MOTOR-ORBITAL,2000 SERIES 130 [8], M02080AC01AA0100010AA0000AAAAF – 104-1938-006
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,2000 SERIES 130 [8], M02080AC01AA0100010AA0000AAAAF – 104-1938-006
Specification
| Model Code | M02080AC01AA0100010AA0000AAAAF |
|---|---|
| Motor Series | 2000 Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Mounting Type | 2 s p83 b106 h14 |
| Motor Size | 130 |
| Geometric Displacement [Cm3/R [In3/R]] | 130.6 [7.97] |
| Motor Type | Standard |
| Motor Function | Standard |
| Mounting Flange Type | 2 Bolt – A |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 82.6 x 6.4, 106.4, 13.6 [3.25 x 0.25, 4.19, 0.54] SAE A |
| Shaft Type | Straight |
| Shaft Dimension | Dia. 1 inch, 1/4 – 20 UNC-2B thread in shaft end |
| Shaft Key | Woodruff key, 1/4 x 1 inch |
| Main Port Thread Type | UN / UNF |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | 7/8 – 14 UNF-2B SAE O-Ring port |
| Drain Port Dimension | 7/16 – 20 UNF-2B SAE O-Ring port |
| Brake Release Port Dimension | n/a |
| Painted | No |
| Paint Information | n/a |
| Special Features Assembly | Standard |
| Dust Seal | Standard |
| Shaft Seal | NBR – Standard |
| Seal Kit | 61258-000 |
| Front Bearing Type | Tapered roller bearing |
| Rear Bearing Type | Tapered roller bearing |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | Yes |
| Hydraulic Valve Function | None |
| Sensor | Speed, Hall effect, 30 pulses, 127 mm [5.0 inch] wire length, Packard weather pac shroud connector |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Design Code | 06 |
| Brand | Danfoss |
| Low Pressure Relief | None |
| Output Shaft Type | Str 1in 1/4-20 w1in |
| Seal Options | Standard |
| Series | 2000 series |
| Sub Brand | Char-Lynn |
