Danfoss (Drives) 10311-40-16DXZ

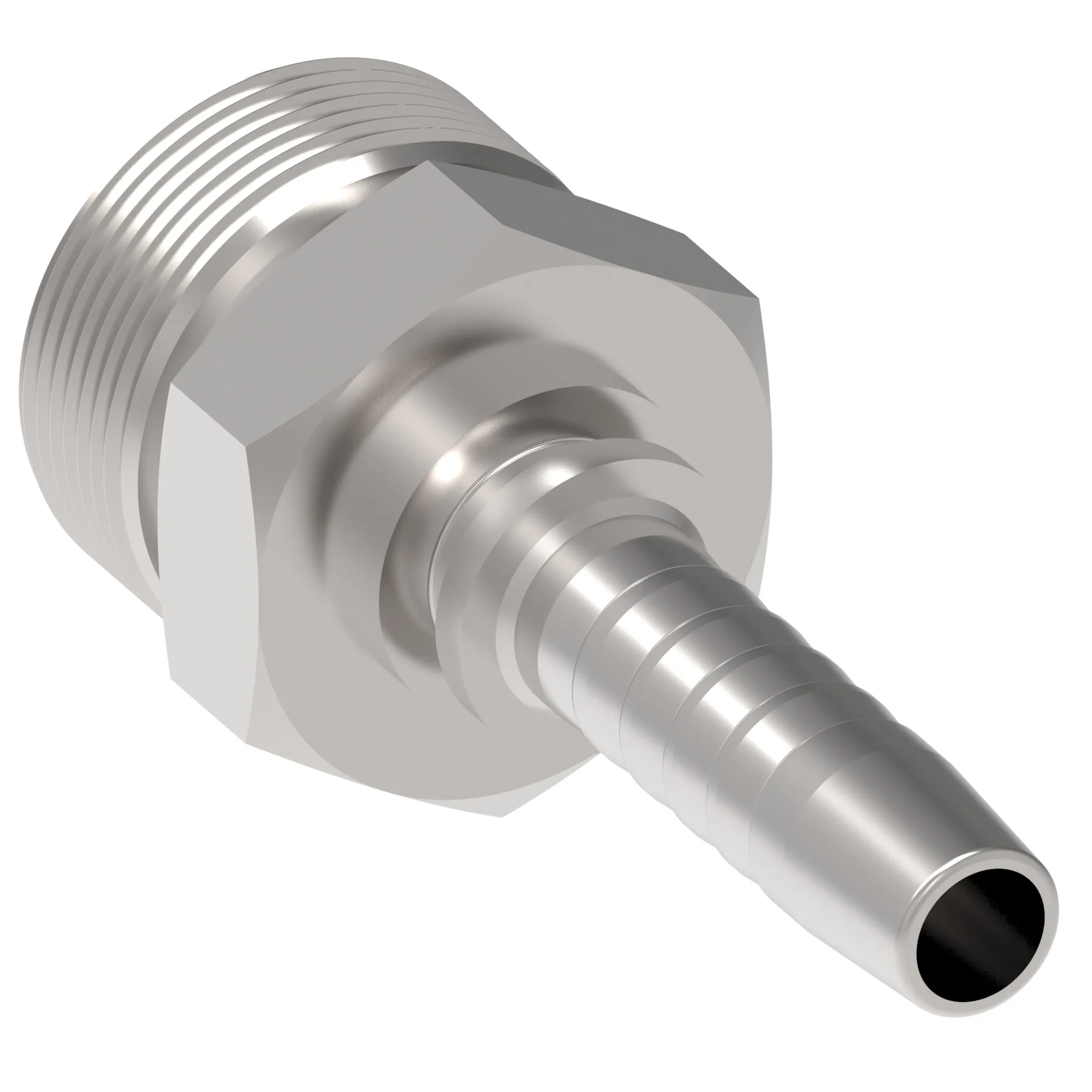

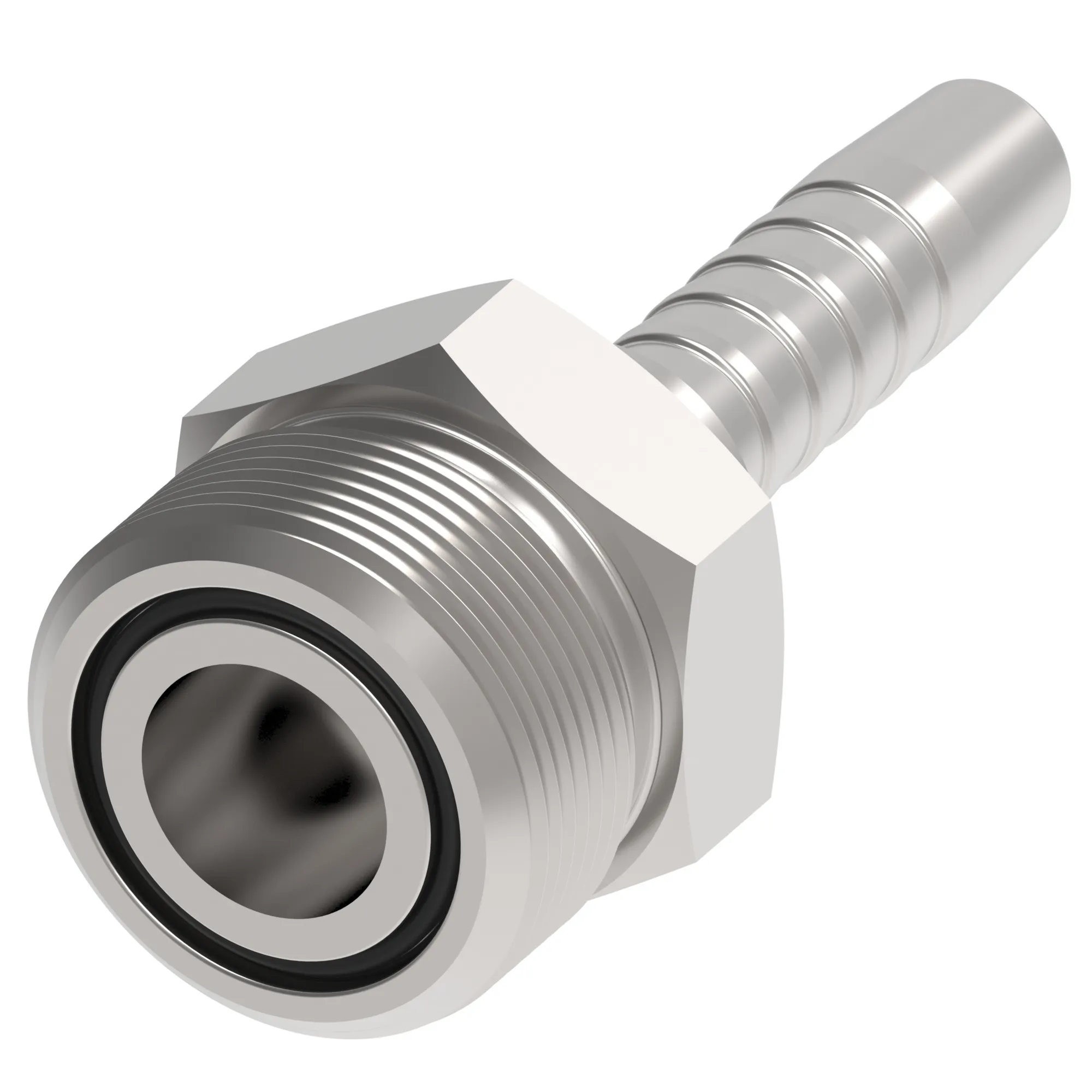

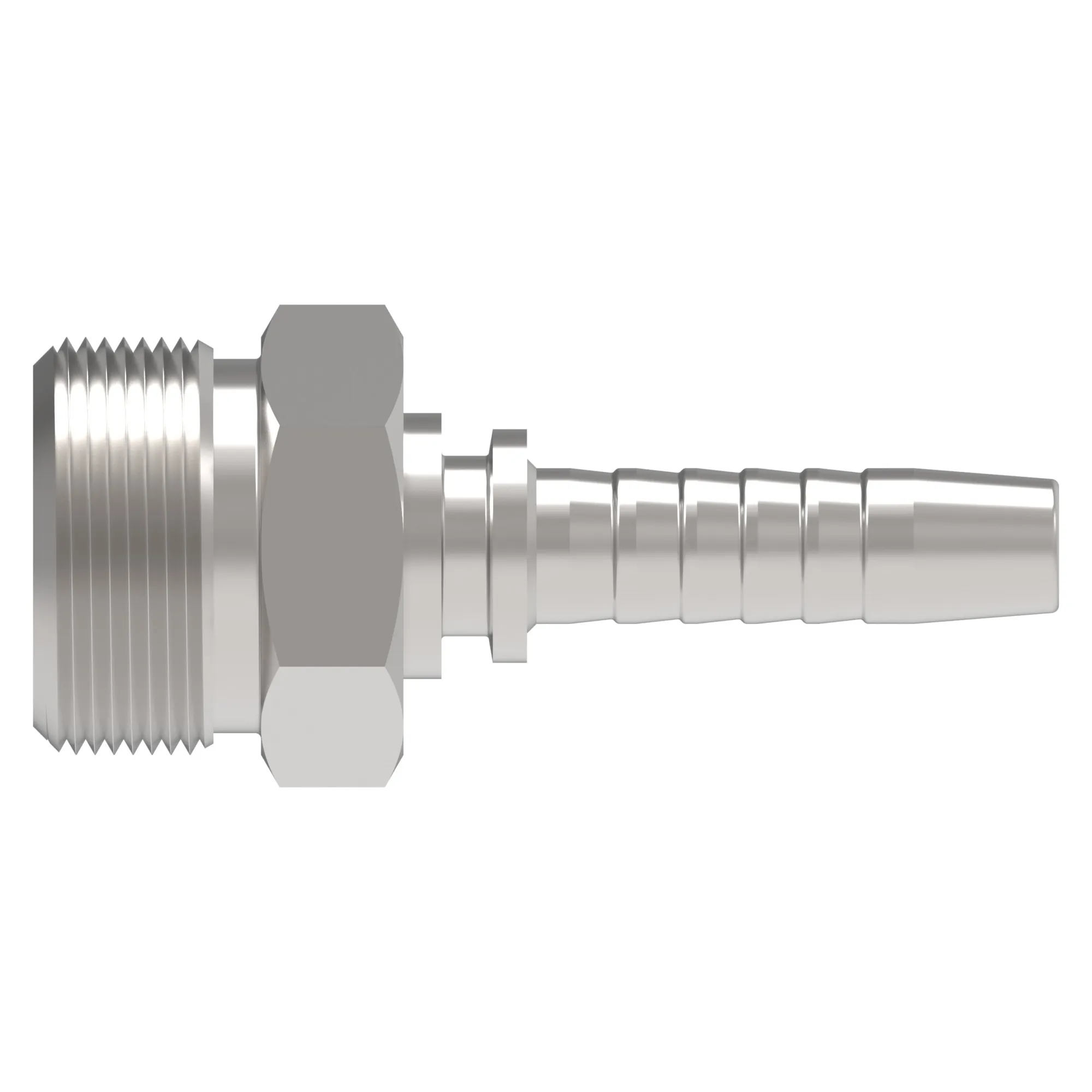

HOSE NIPPLE, 2P/16, MORFS-F/40, CS, STR – 10311-40-16DXZ
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE, 2P/16, MORFS-F/40, CS, STR – 10311-40-16DXZ
Specification
| A Dimension In | 3.620 |
|---|---|
| A Dimension Mm | 92.000 |
| Angle Shape | Straight |
| Application | General industrial use, Hydraulic systems, Petroleum based fluids, Water based fluids |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 1.000 |
| Compatible Hose Id Mm | 25.400 |
| Construction Style | Crimp |
| End Size 1 | -40 |
| End Type 2 | Line/hose/tube |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 1.614 |
| Hex Size 1 Mm | 41.000 |
| Hose Cut Off Factor In | 1.770 |
| Hose Cut Off Factor Mm | 45.000 |
| Hose Size | -16 |
| Inside Diameter In | 0.780 |
| Inside Diameter Mm | 20.000 |
| Product Height In | 1.862 |
| Product Height Mm | 47.300 |
| Product Length In | 3.622 |
| Product Length Mm | 92.001 |
| Product Material | Carbon steel |
| Product Width In | 1.614 |
| Product Width Mm | 41.001 mm |
| Series | Winner 2-Piece |
| Thread Sealant | No |
