Danfoss (Drives) 103-1421-012

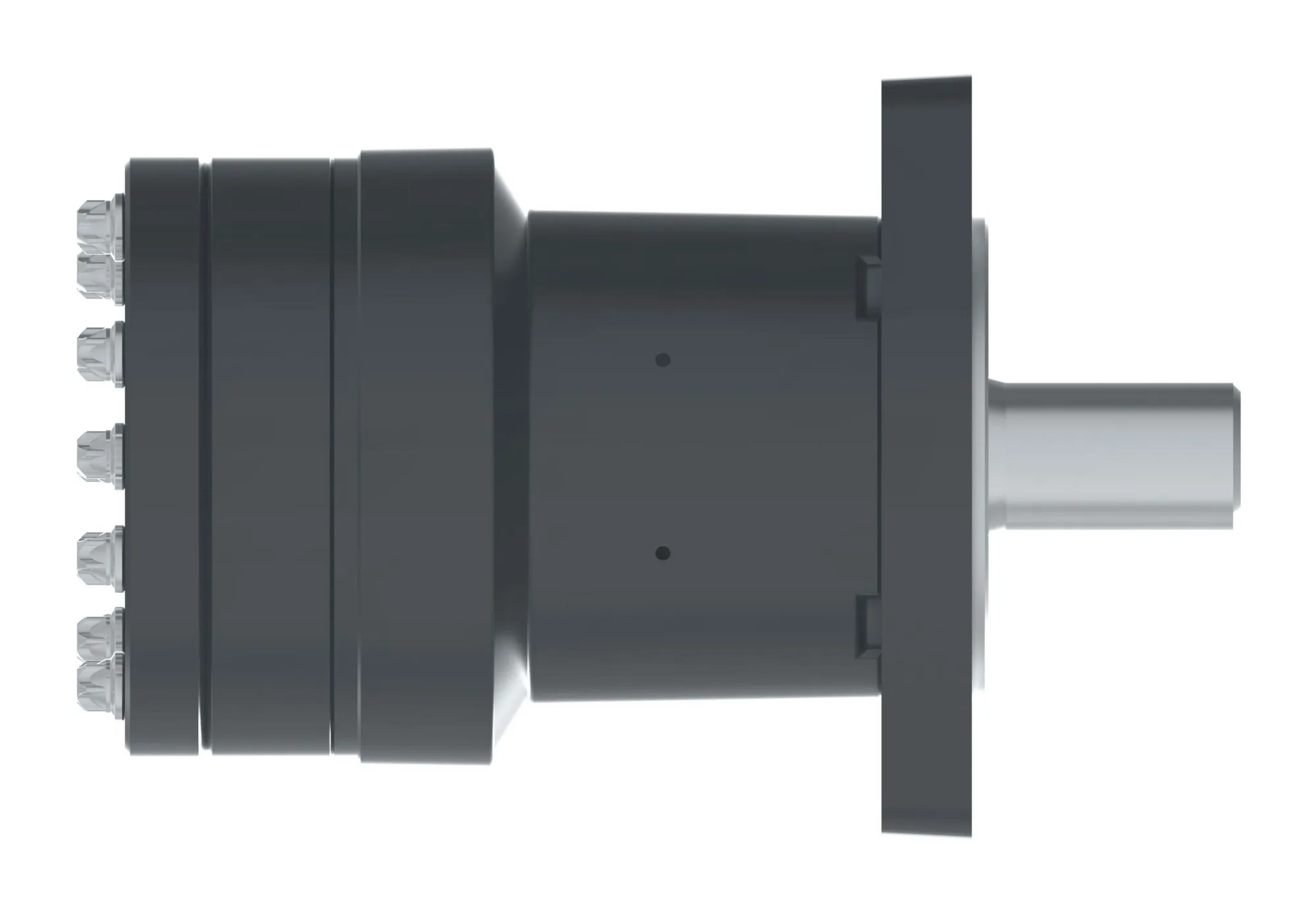

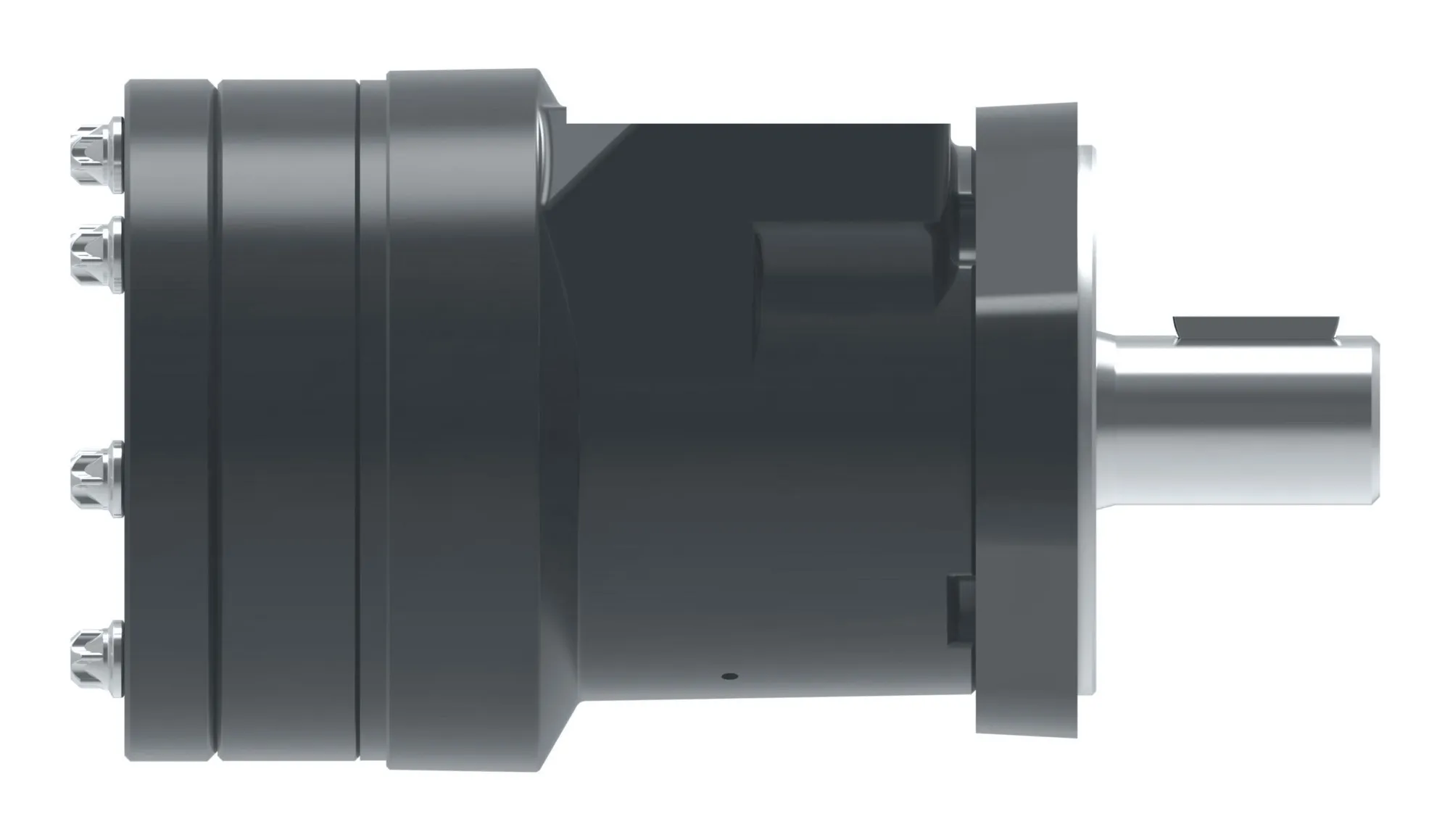

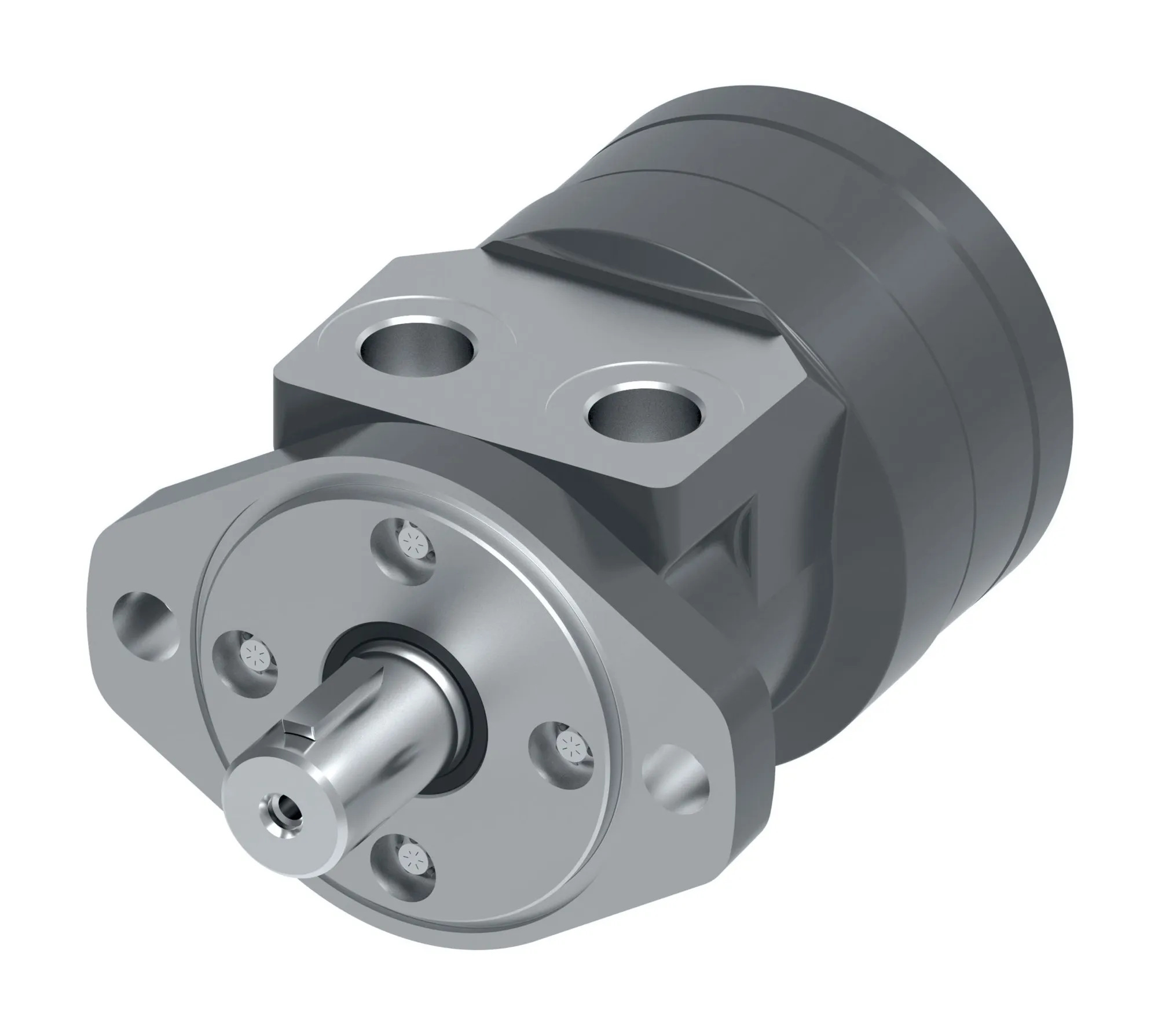

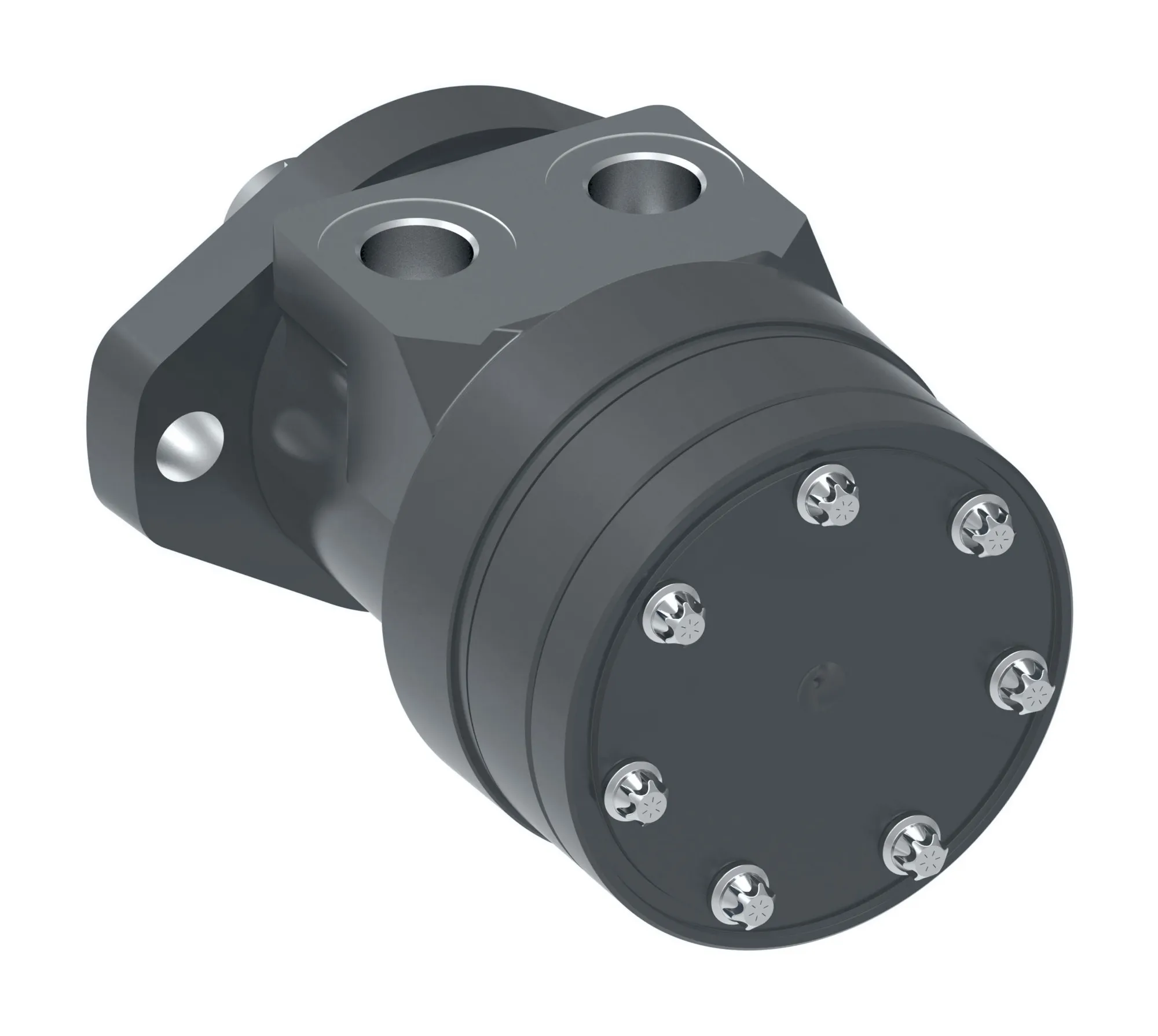

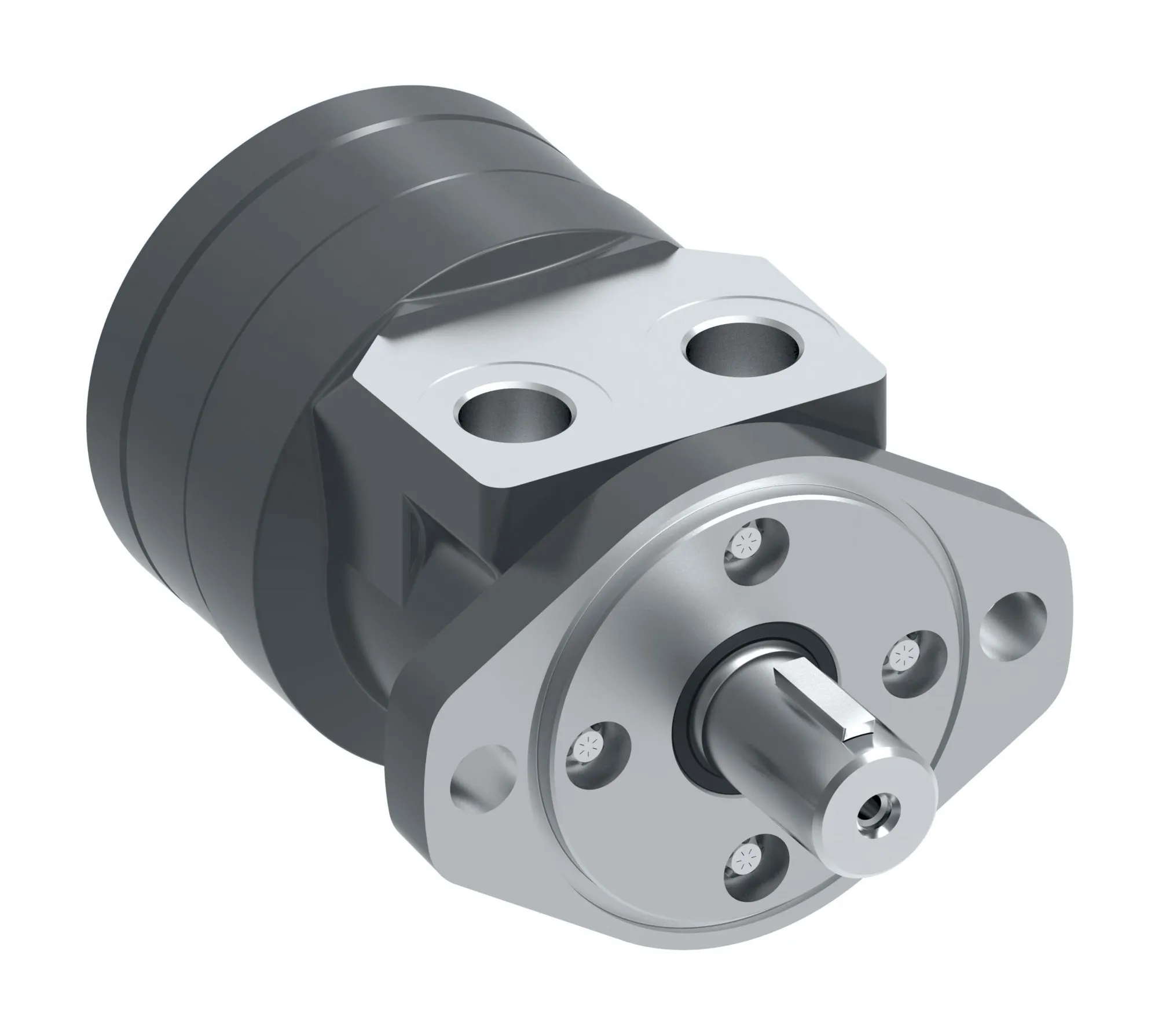

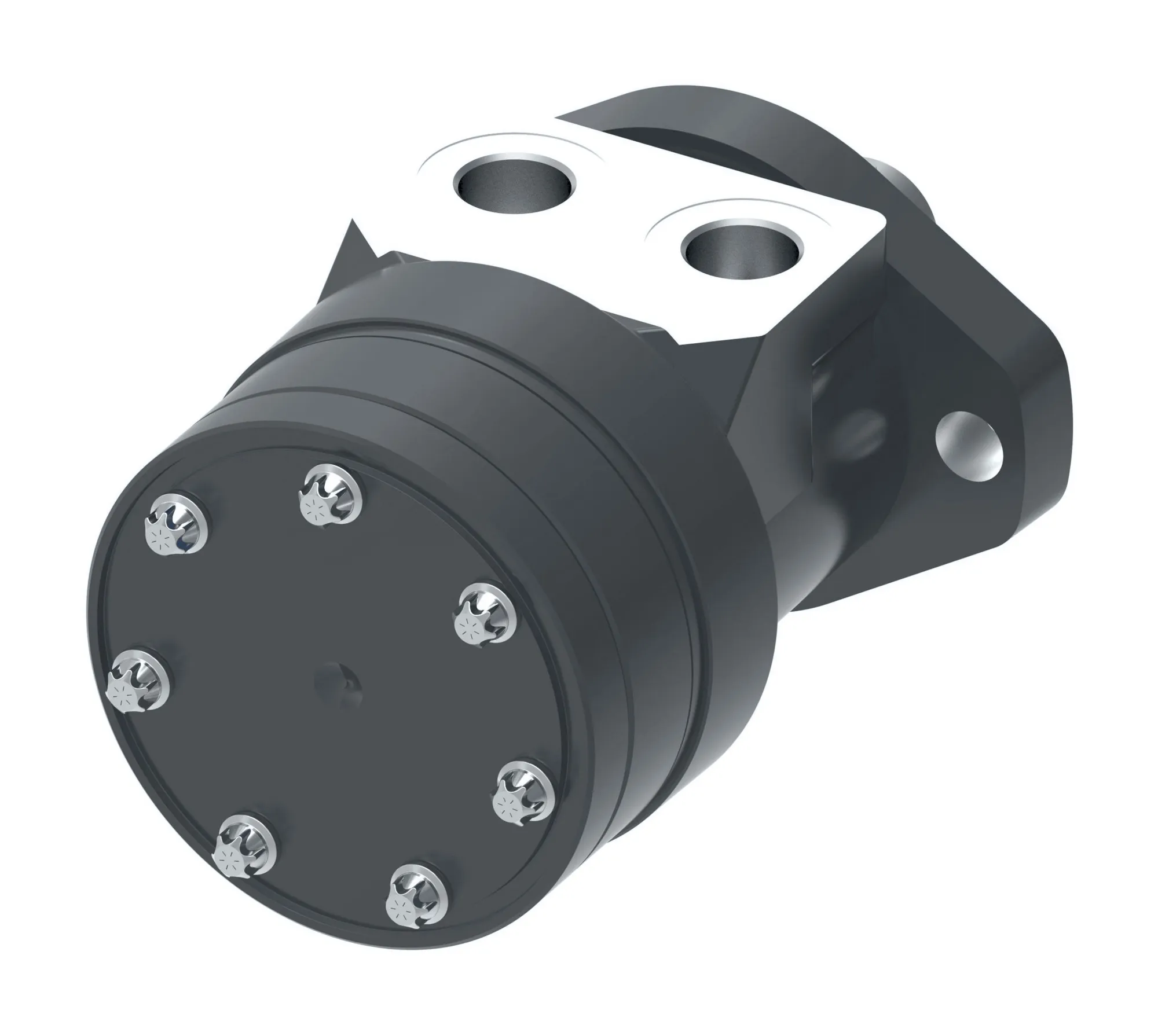

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101AA01AB0000000000AB0AA00M – 103-1421-012
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101AA01AB0000000000AB0AA00M – 103-1421-012
Specification
| Model Code | MS0101AA01AB0000000000AB0AA00M |
|---|---|
| Motor Series | S Series |
| Valve System | Spool valve |
| Orbital Gearwheel Set Type | Geroler |
| Mounting Type | 2 s p83x3 b106 h14 |
| Motor Size | 165 |
| Geometric Displacement [Cm3/R [In3/R]] | 165 [10.1] |
| Motor Type | Standard |
| Motor Function | Higher efficiency and smooth running (Low speed valving) |
| Mounting Flange Type | 2 Bolt – A |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 82.5 x 3.1, 106.4, 13.6 [3.25 x 0.12, 4.19, 0.54] |
| Shaft Type | Straight |
| Shaft Dimension | Dia. 1 inch, 1/4 – 20 UNC-2B thread in shaft end |
| Shaft Key | Woodruff key |
| Main Port Thread Type | NPT / NPTF |
| Main Port Style | Sideport – aligned |
| Main Port Dimension | 1/2 – 14 NPTF |
| Drain Port Dimension | None |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint Information | Primer, Black, Low gloss |
| Special Features Assembly | Standard |
| Dust Seal | Standard |
| Shaft Seal | NBR – Standard |
| Seal Kit | No data available |
| Front Bearing Type | Journal bearing |
| Rear Bearing Type | Journal bearing |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | No |
| Hydraulic Valve Function | None |
| Sensor | None |
| Packaging | No data available |
| Name Tag | Danfoss name tag |
| Design Code | 12 |
| Brand | Danfoss |
| Output Shaft Type | 01 Str 1in |
| Seal Options | Standard seals |
| Series | S series motor |
| Sub Brand | Char-Lynn |
