Danfoss (Drives) 103-1054-012

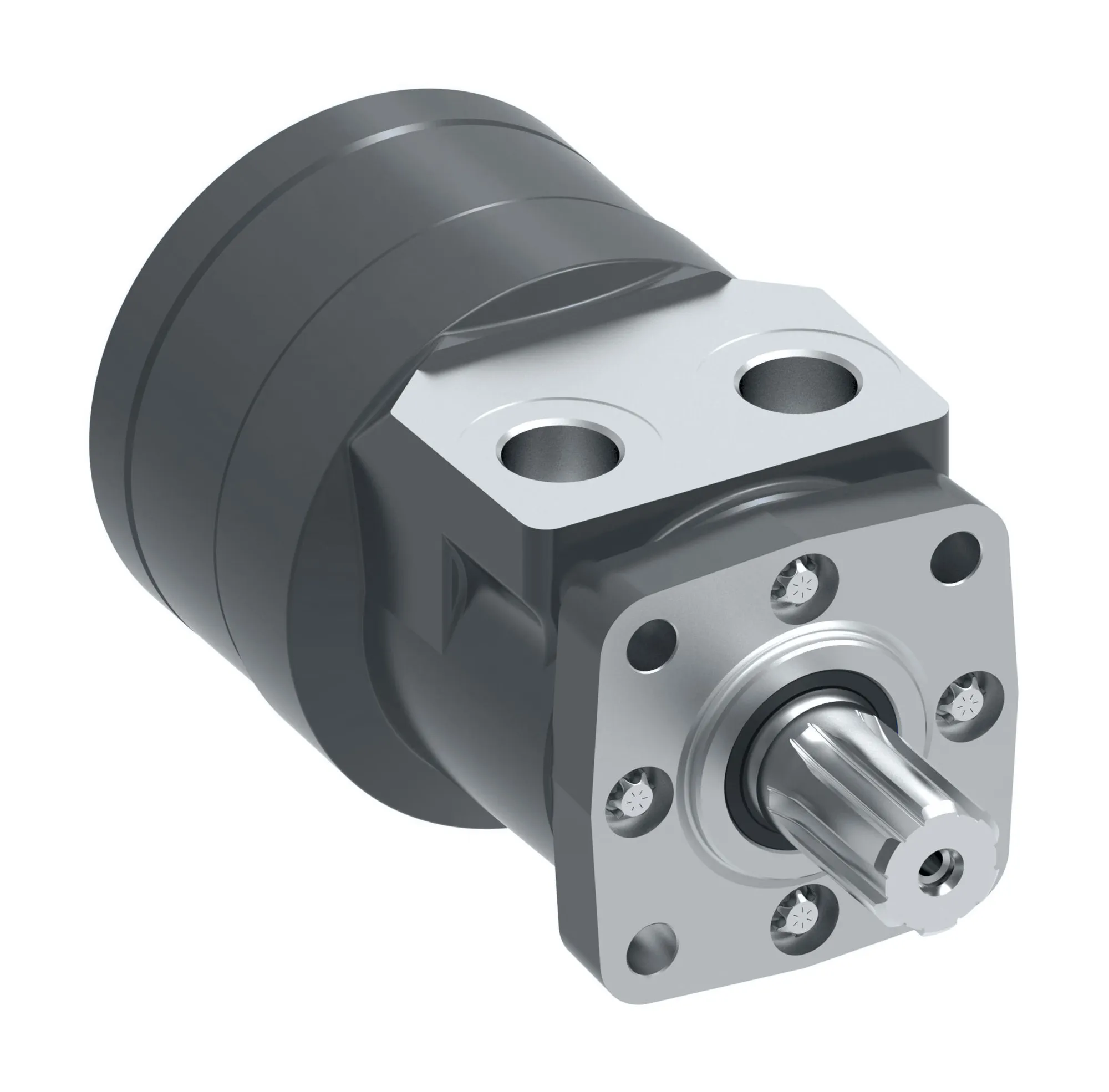

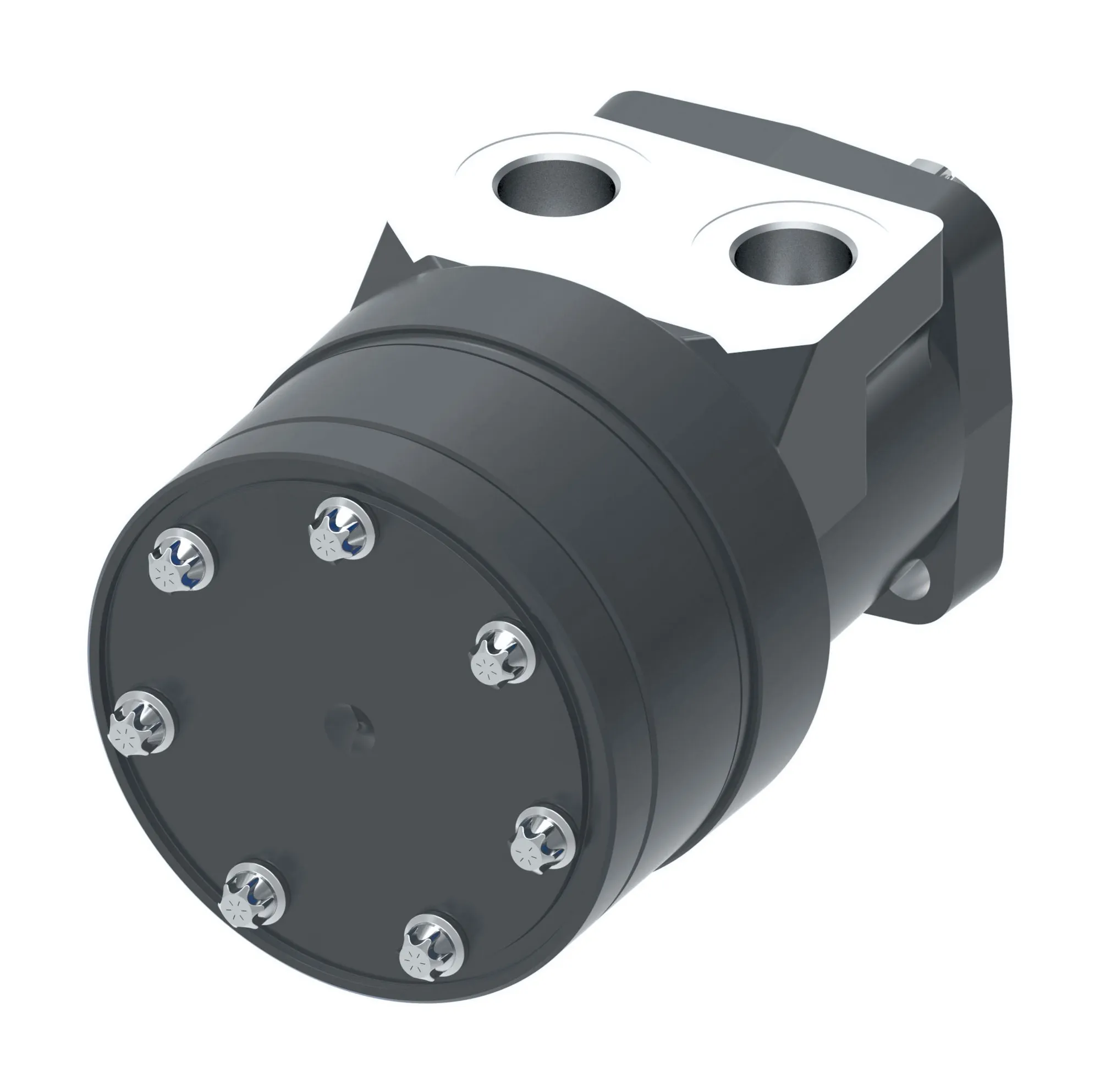

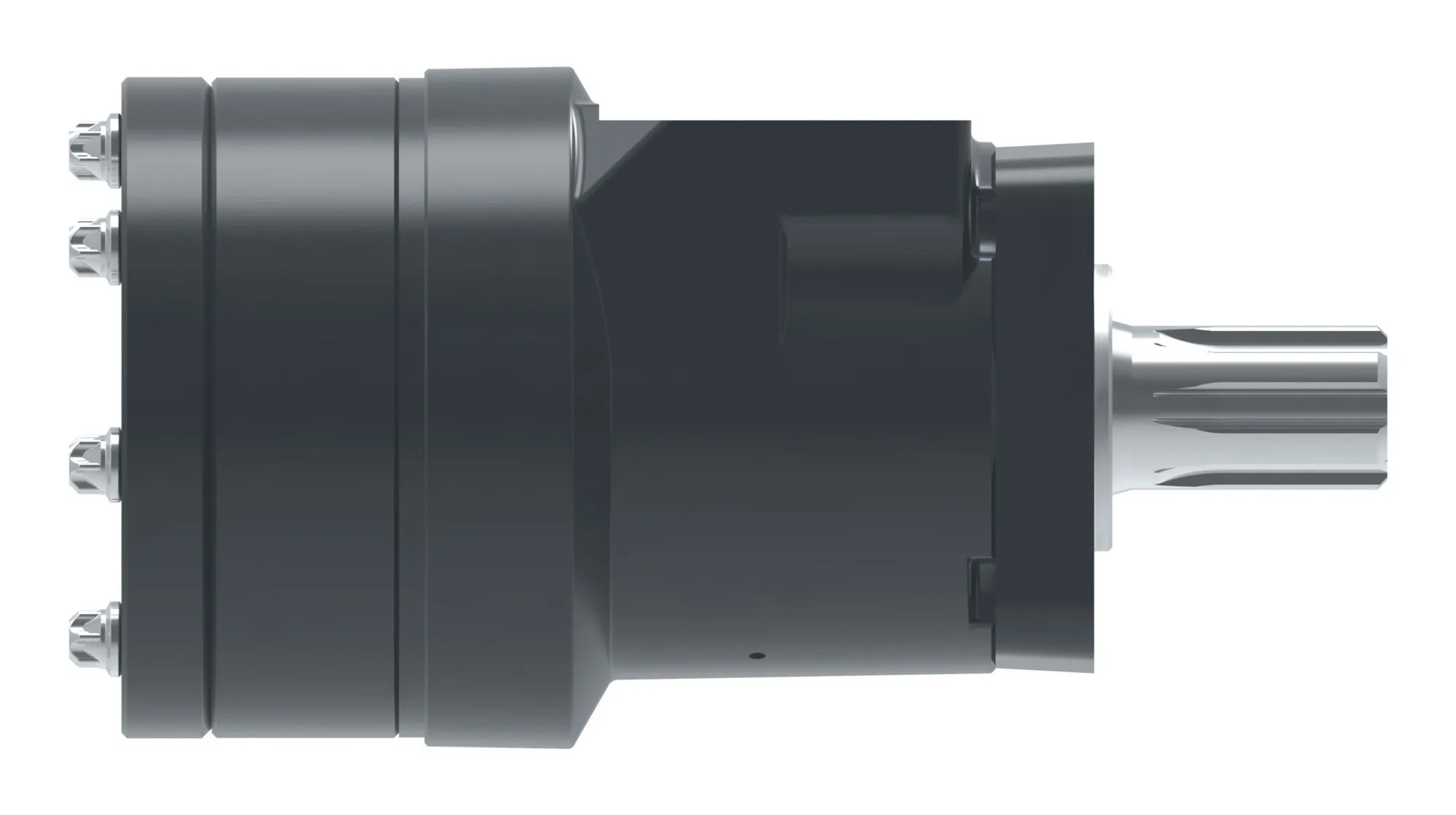

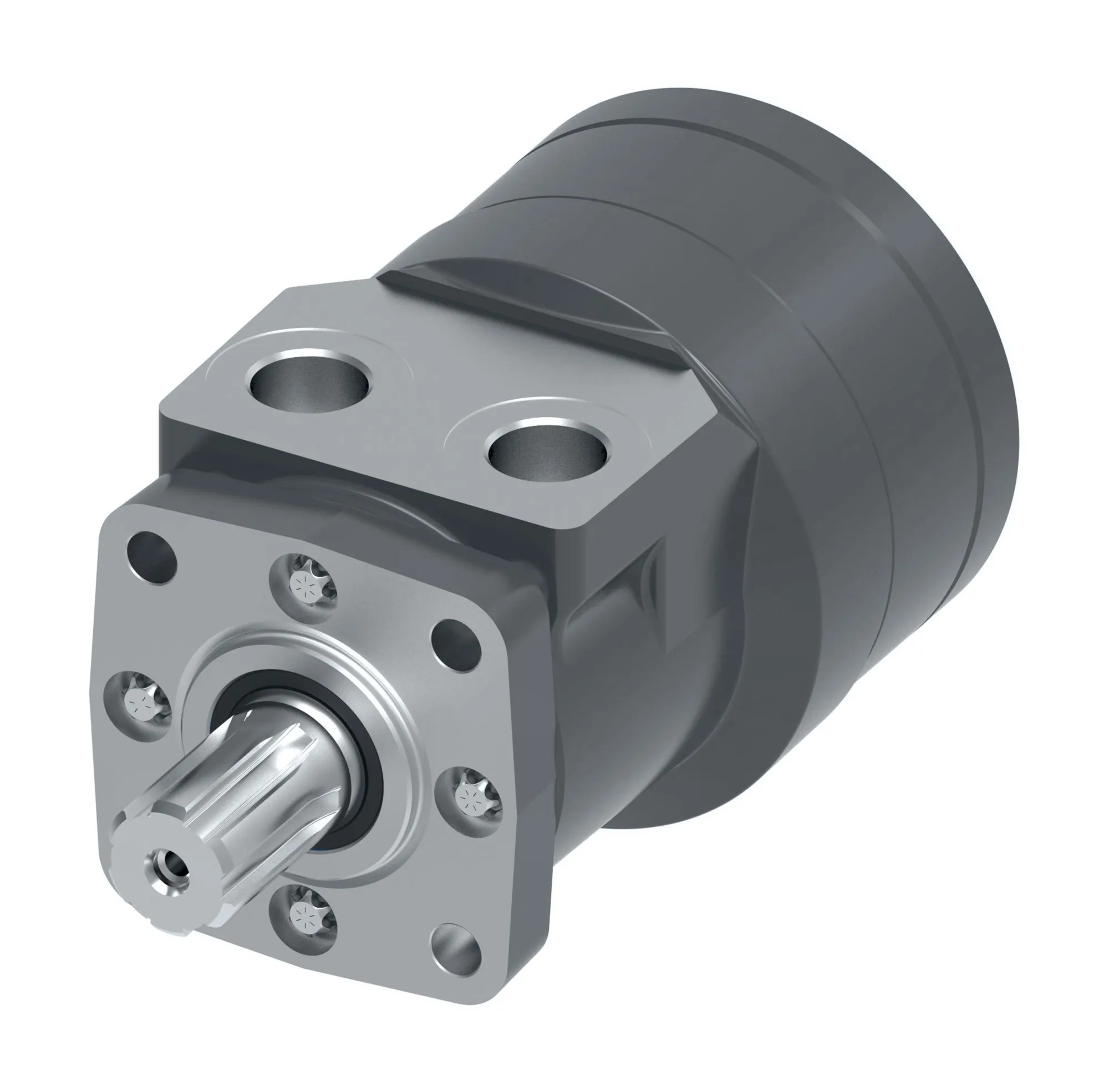

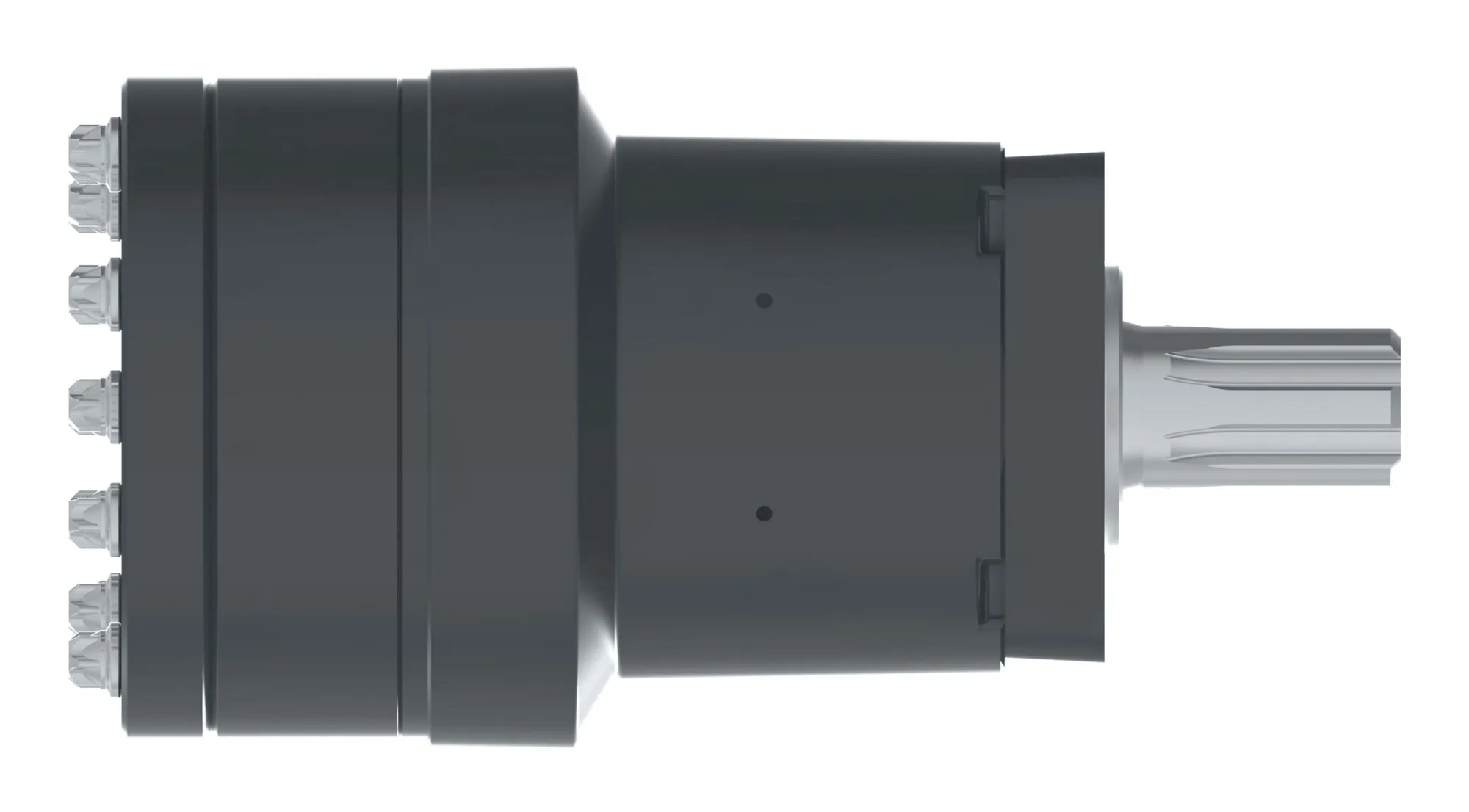

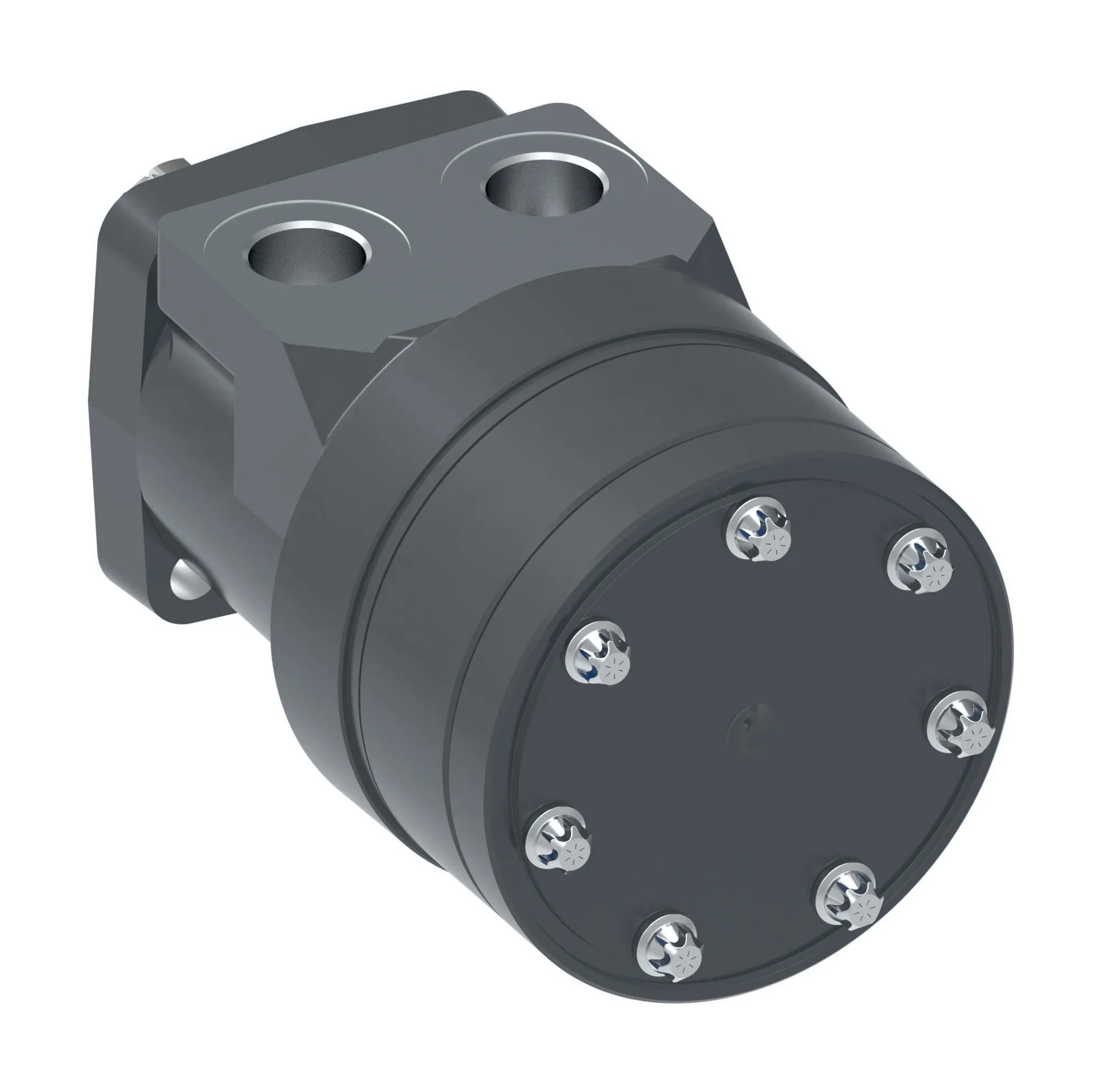

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137BA02AB0000000000000AA00M – 103-1054-012
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137BA02AB0000000000000AA00M – 103-1054-012
Specification
| Model Code | MS0137BA02AB0000000000000AA00M |
|---|---|
| Motor Series | S Series |
| Valve System | Spool valve |
| Orbital Gearwheel Set Type | Geroler |
| Motor Size | 225 |
| Geometric Displacement [Cm3/R [In3/R]] | 224 [13.7] |
| Motor Type | Standard |
| Motor Function | Standard |
| Mounting Flange Type | 4 Bolt – Square |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 44.4 x 3.1, 82.6, 3/8 – 16 UNC-2B [1.75 x 0.12, 3.25, 3/8 – 16 UNC-2B] |
| Shaft Type | Splined |
| Shaft Dimension | Dia. 1 inch, SAE 6B, 1/4 – 20 UNC-2B thread in shaft end |
| Shaft Key | n/a |
| Main Port Thread Type | NPT / NPTF |
| Main Port Style | Sideport – aligned |
| Main Port Dimension | 1/2 – 14 NPTF |
| Drain Port Dimension | None |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint Information | Primer, Black, Low gloss |
| Special Features Assembly | Standard |
| Dust Seal | Standard |
| Shaft Seal | NBR – Standard |
| Seal Kit | No data available |
| Front Bearing Type | Journal bearing |
| Rear Bearing Type | Journal bearing |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | No |
| Hydraulic Valve Function | None |
| Sensor | None |
| Packaging | No data available |
| Name Tag | Danfoss name tag |
| Design Code | 12 |
