Danfoss (Drives) 101-4161-009

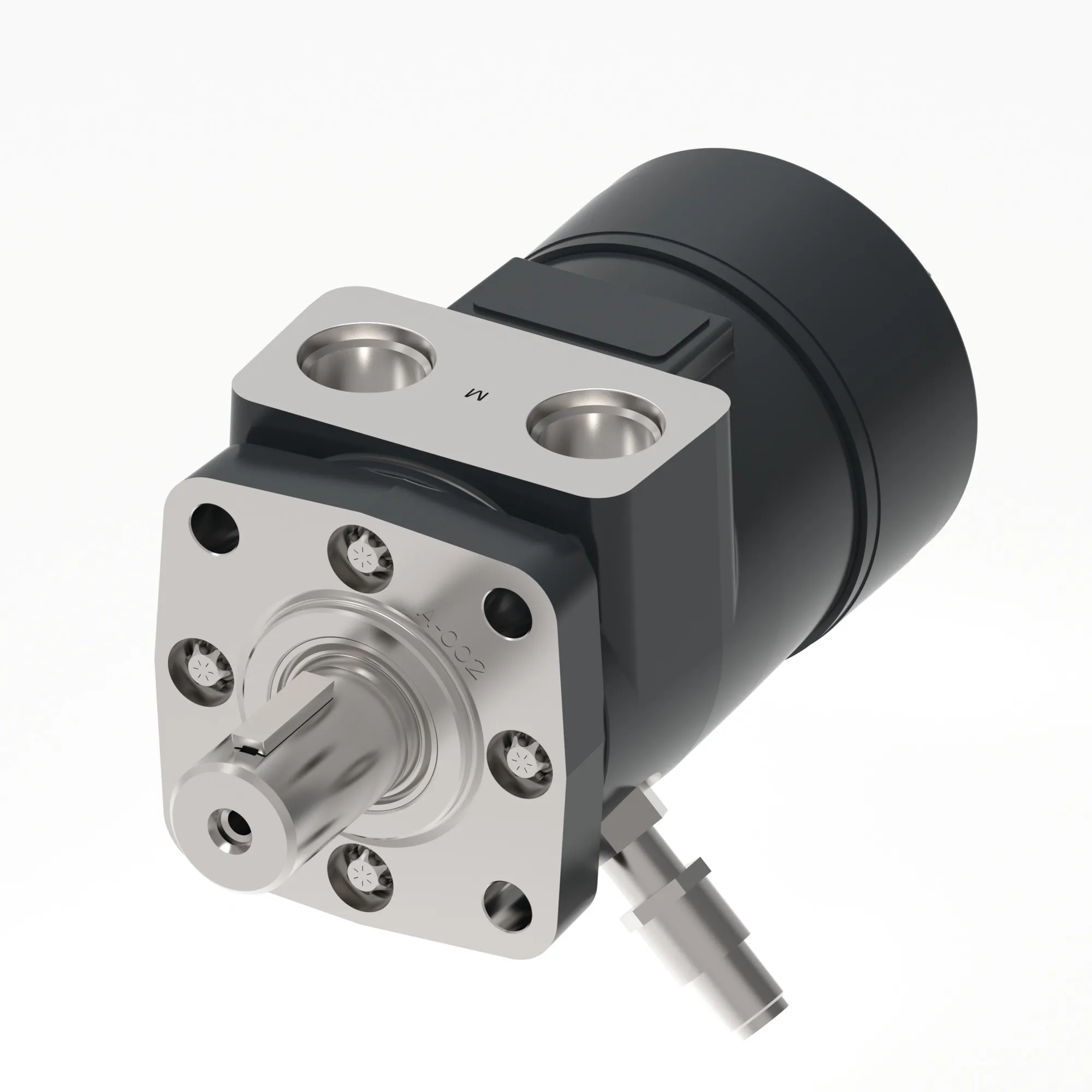

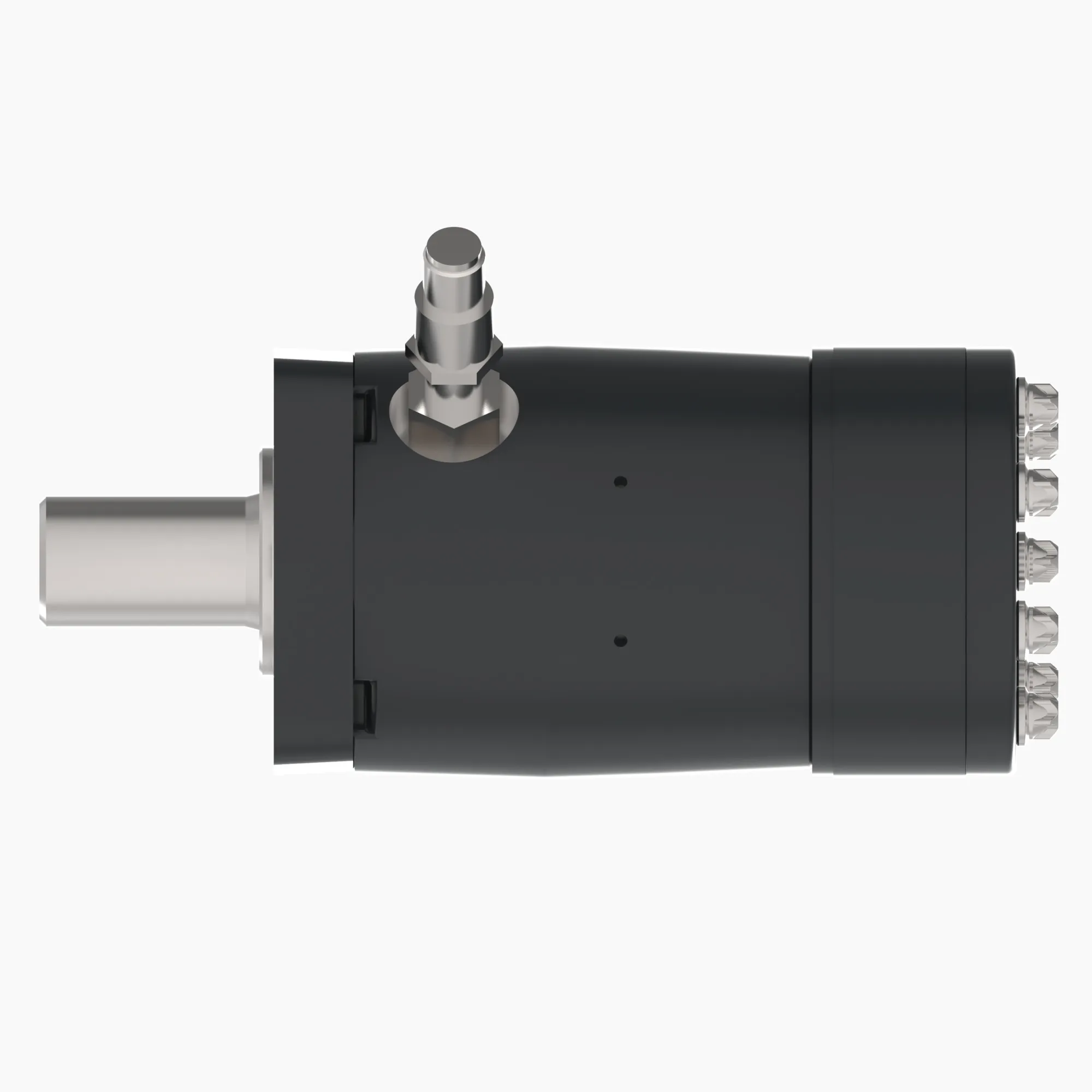

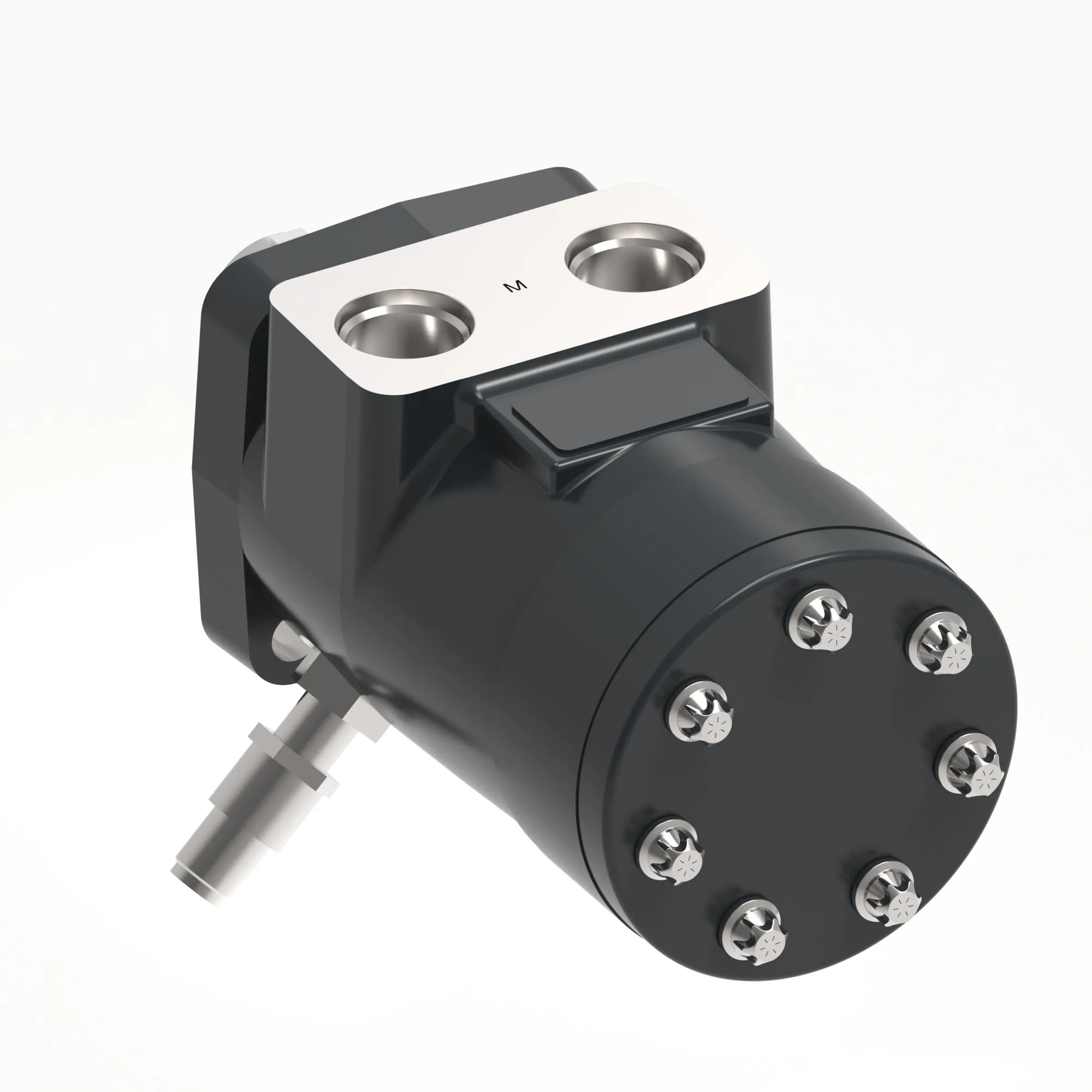

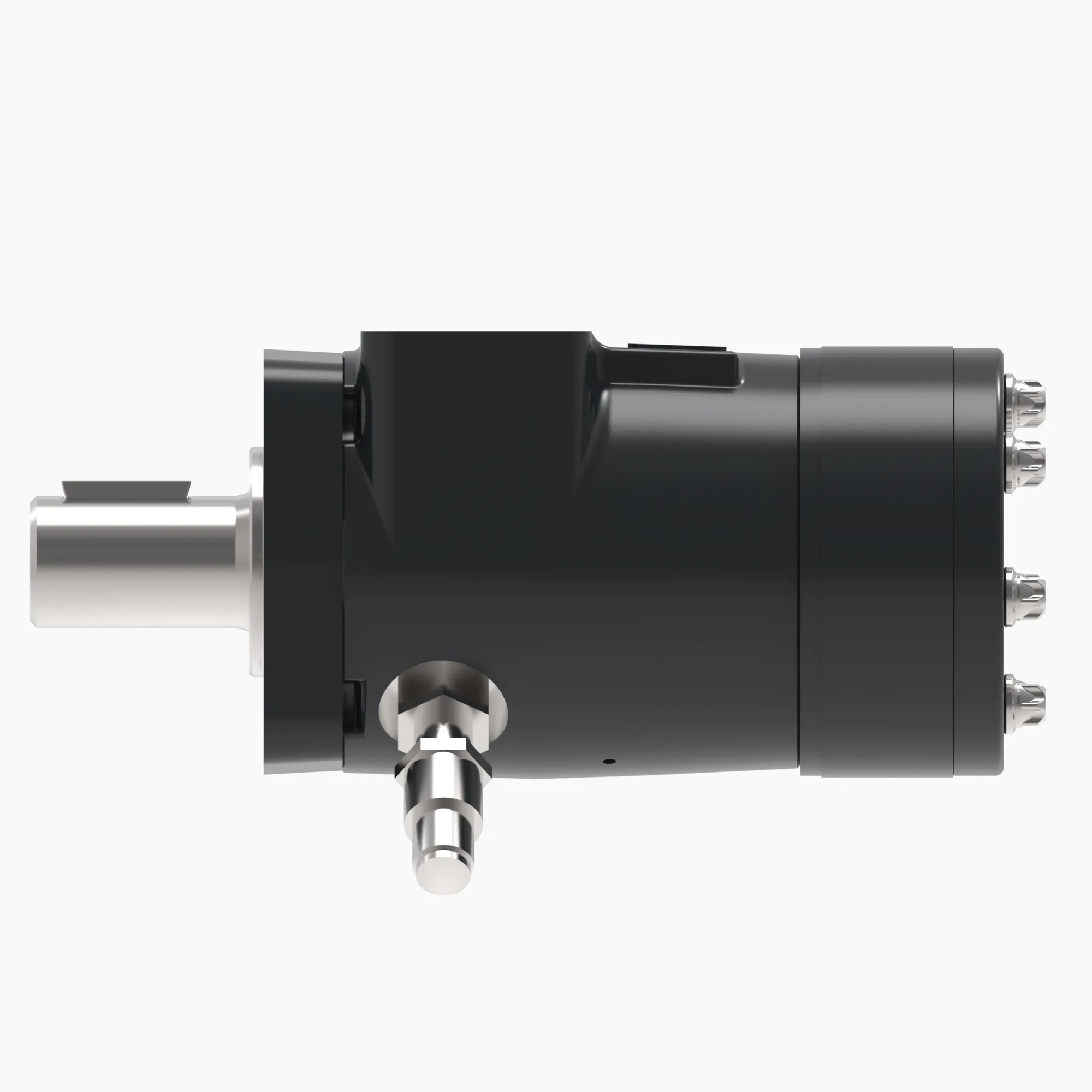

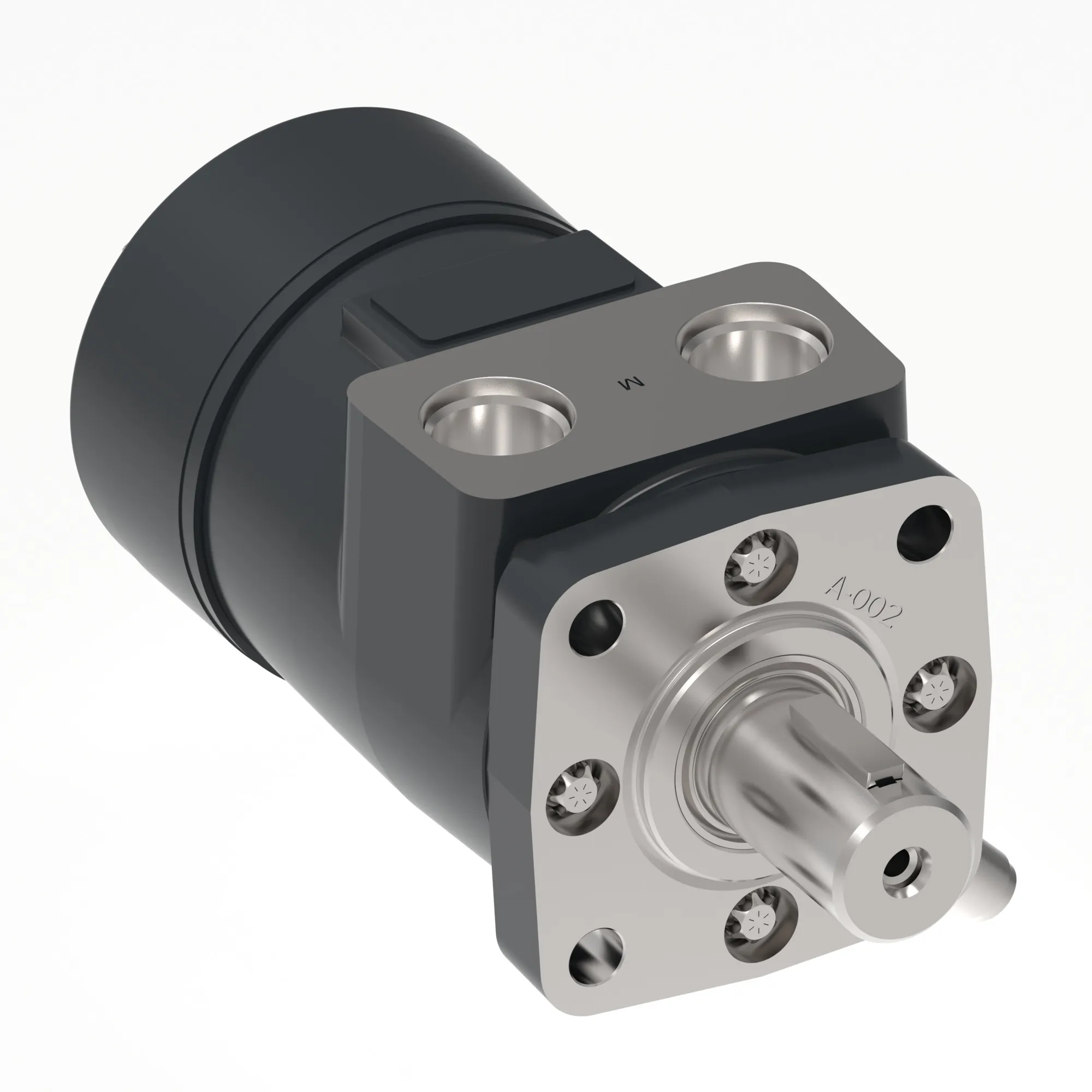

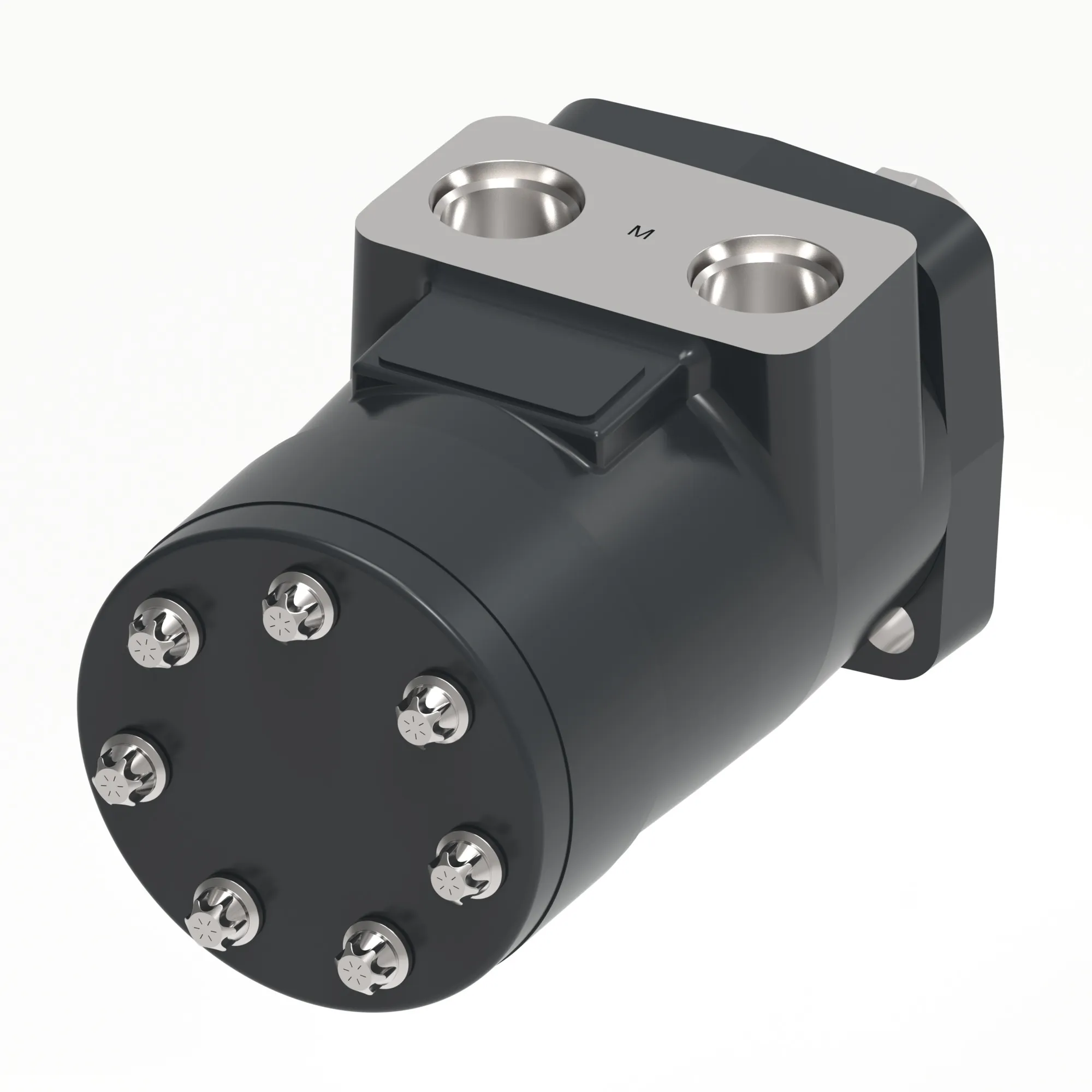

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022AA01AA00A0000000000AF00J – 101-4161-009
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022AA01AA00A0000000000AF00J – 101-4161-009
Specification
| Model Code | MH0022AA01AA00A0000000000AF00J |
|---|---|
| Motor Series | H Series |
| Valve System | Spool valve |
| Orbital Gearwheel Set Type | Gerotor |
| Motor Size | 35 |
| Geometric Displacement [Cm3/R [In3/R]] | 36 [2.2] |
| Motor Type | Standard |
| Motor Function | Standard |
| Mounting Flange Type | 2 Bolt – A |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 82.5 x 3.1, 106.4, 13.6 [3.25 x 0.12, 4.19, 0.54] |
| Shaft Type | Straight |
| Shaft Dimension | Dia. 1 inch, 1/4 – 20 UNC-2B thread in shaft end |
| Shaft Key | Woodruff key |
| Main Port Thread Type | UN / UNF |
| Main Port Style | Sideport – aligned |
| Main Port Dimension | 7/8 – 14 UNF-2B SAE O-Ring port |
| Drain Port Dimension | None |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint Information | Environmental coated, Black |
| Special Features Assembly | Standard |
| Dust Seal | Standard |
| Shaft Seal | NBR – Standard |
| Seal Kit | 60540-000 |
| Front Bearing Type | Journal bearing |
| Rear Bearing Type | Journal bearing |
| Orbital Gearwheel Set | Free running |
| Check Valve Function | No |
| Hydraulic Valve Function | None |
| Sensor | None |
| Packaging | No data available |
| Name Tag | Danfoss name tag |
| Design Code | 09 |
| Brand | Danfoss |
| Sub Brand | Char-Lynn |
