Danfoss (Drives) 08Z-A70
Hose End (perm) 1S/1R 90 D F. ORS SWVL – 08Z-A70
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

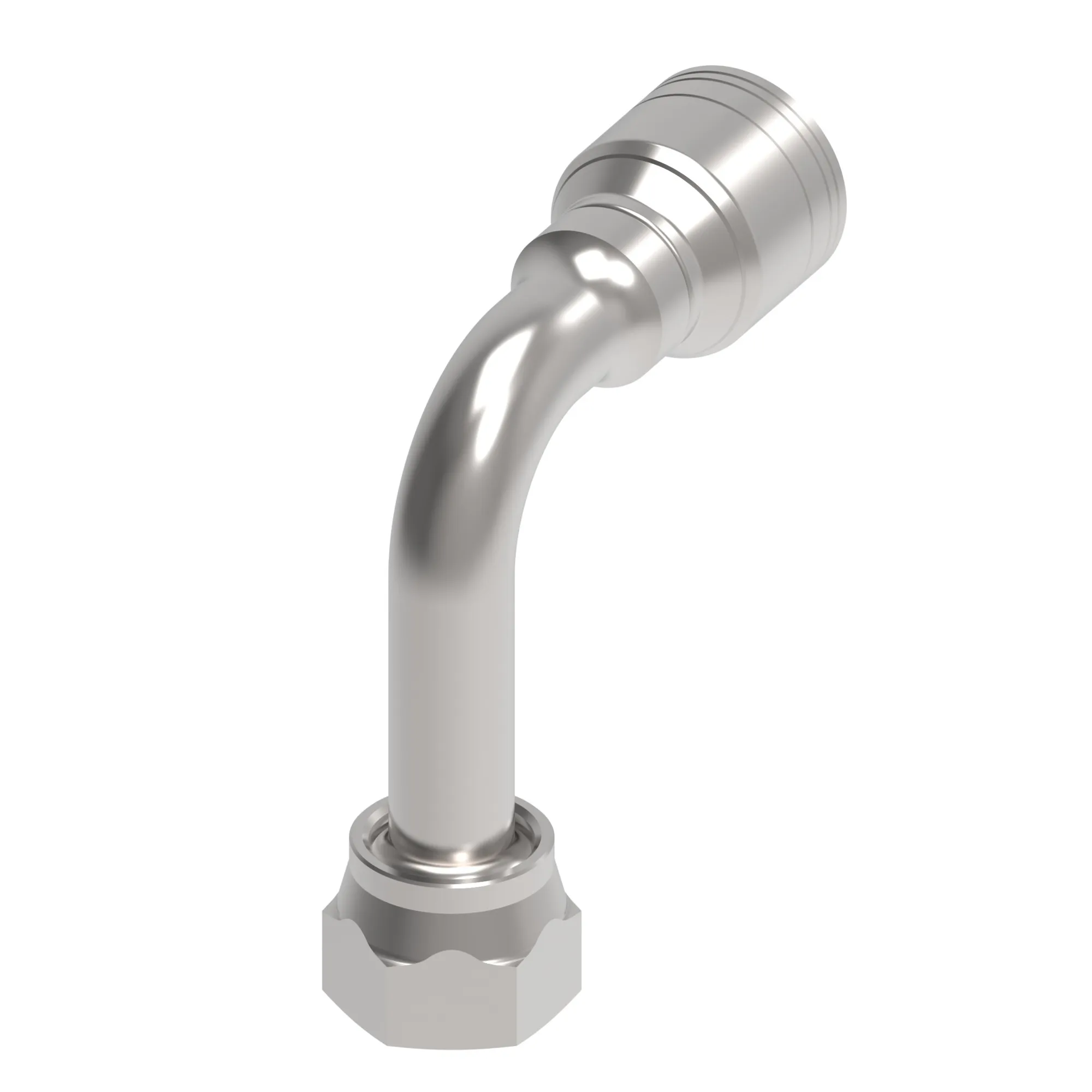

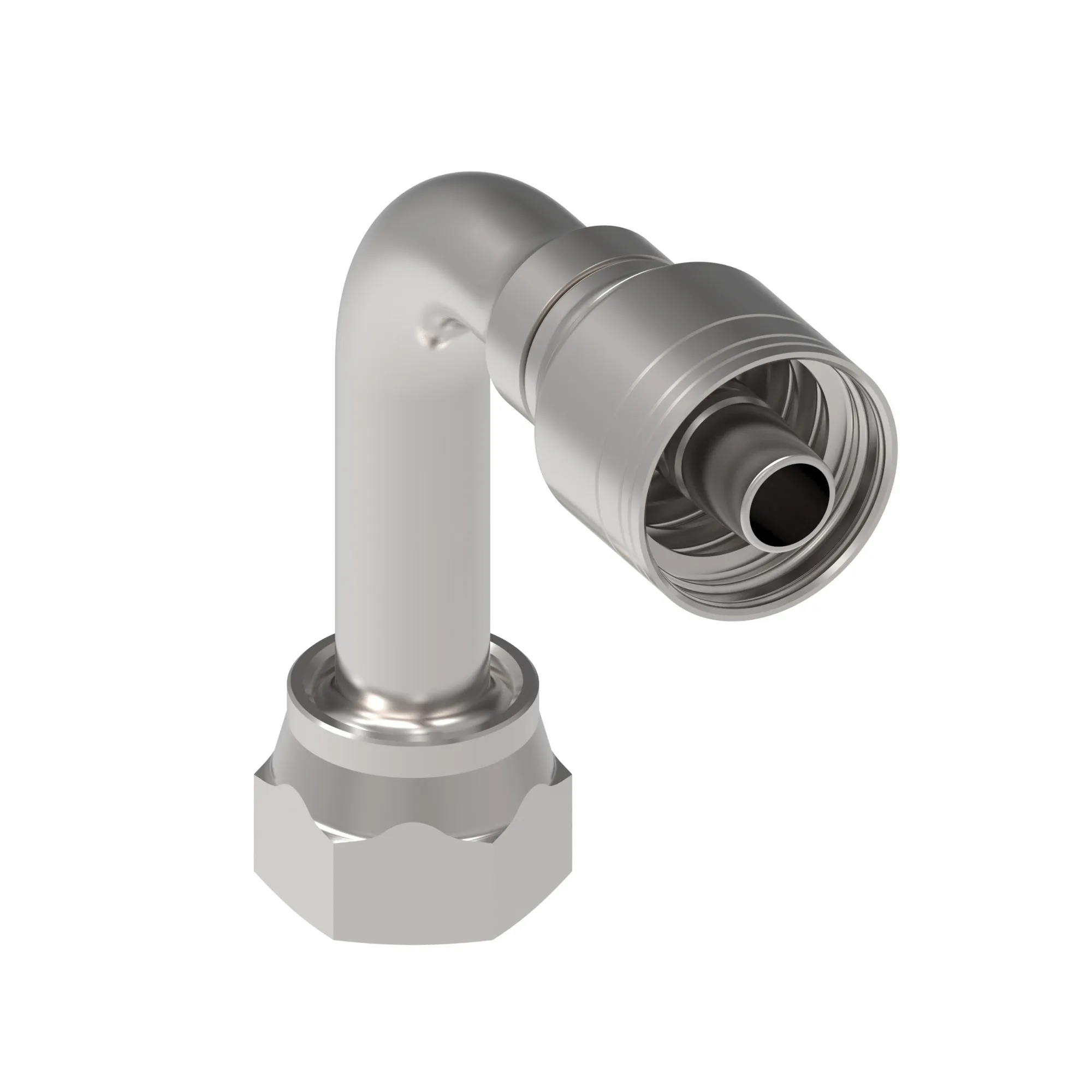

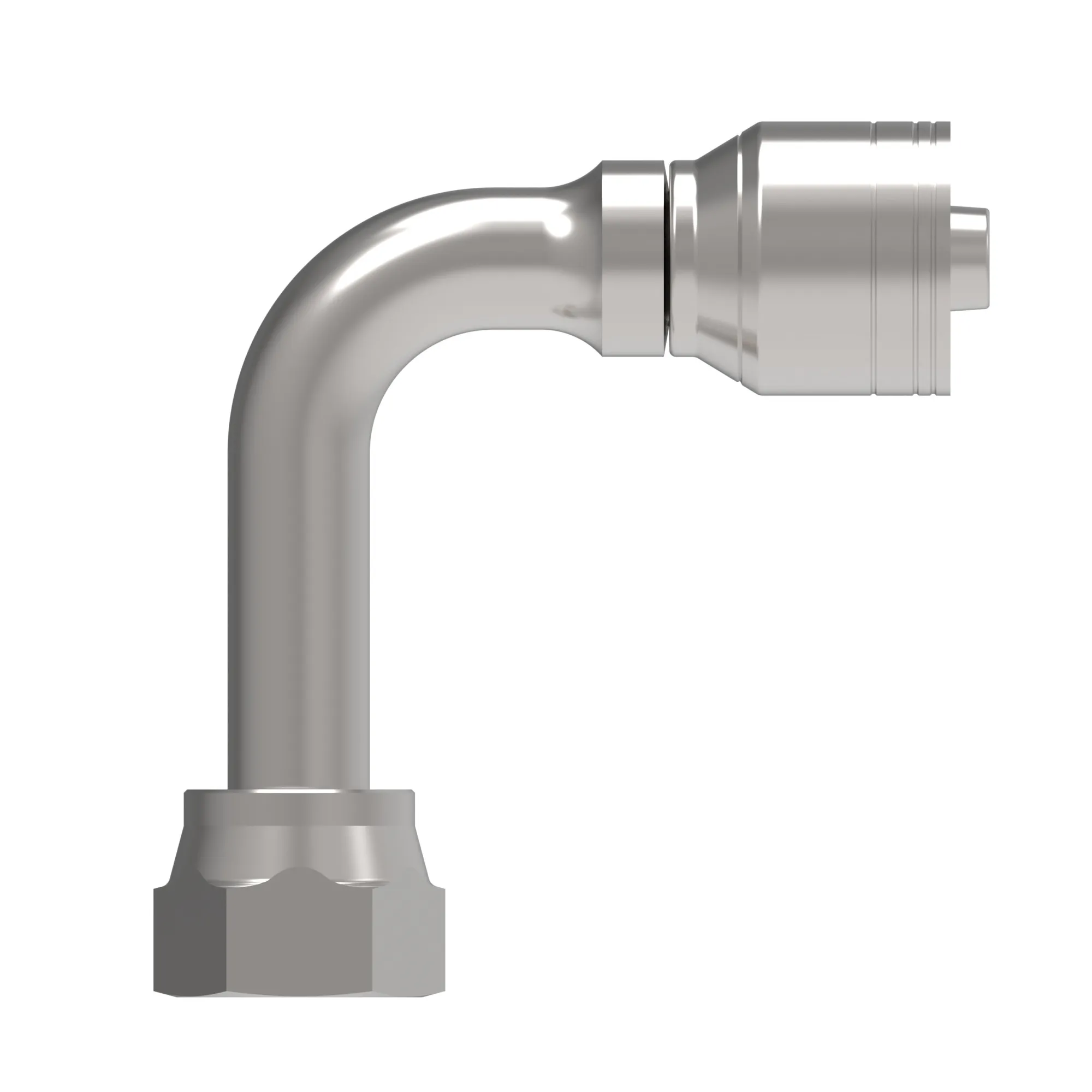

Hose End (perm) 1S/1R 90 D F. ORS SWVL – 08Z-A70
Specification
| E A N/ U P C | 639789294869 |
|---|---|
| Angle Shape | 90 Degree |
| Brand | Weatherhead by Danfoss |
| Compatible Hose Id In | 0.500 |
| Compatible Hose Id Mm | 12.700 |
| Compliances | SAE J1176 |
| Construction Style | Crimp |
| Drop Dimension In | 2.760 |
| Drop Dimension Mm | 70.1 |
| End Size 1 | -16 |
| End Type 1 | Female ORFS swivel |
| Finish Plating | Dura-Kote |
| Hex Size 1 In | 1.125 |
| Hex Size 1 Mm | 28.6 |
| Hose Cut Off Factor In | 1.910 |
| Hose Cut Off Factor Mm | 48.514 |
| Hose Size | -8 |
| Inside Diameter In | 0.380 |
| Inside Diameter Mm | 9.652 |
| Product Material | Carbon steel |
| Thread Sealant | No |
