Danfoss (Drives) 08Z-648-BG
Ftng (perm), SAE 37 R2 – 08Z-648-BG
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

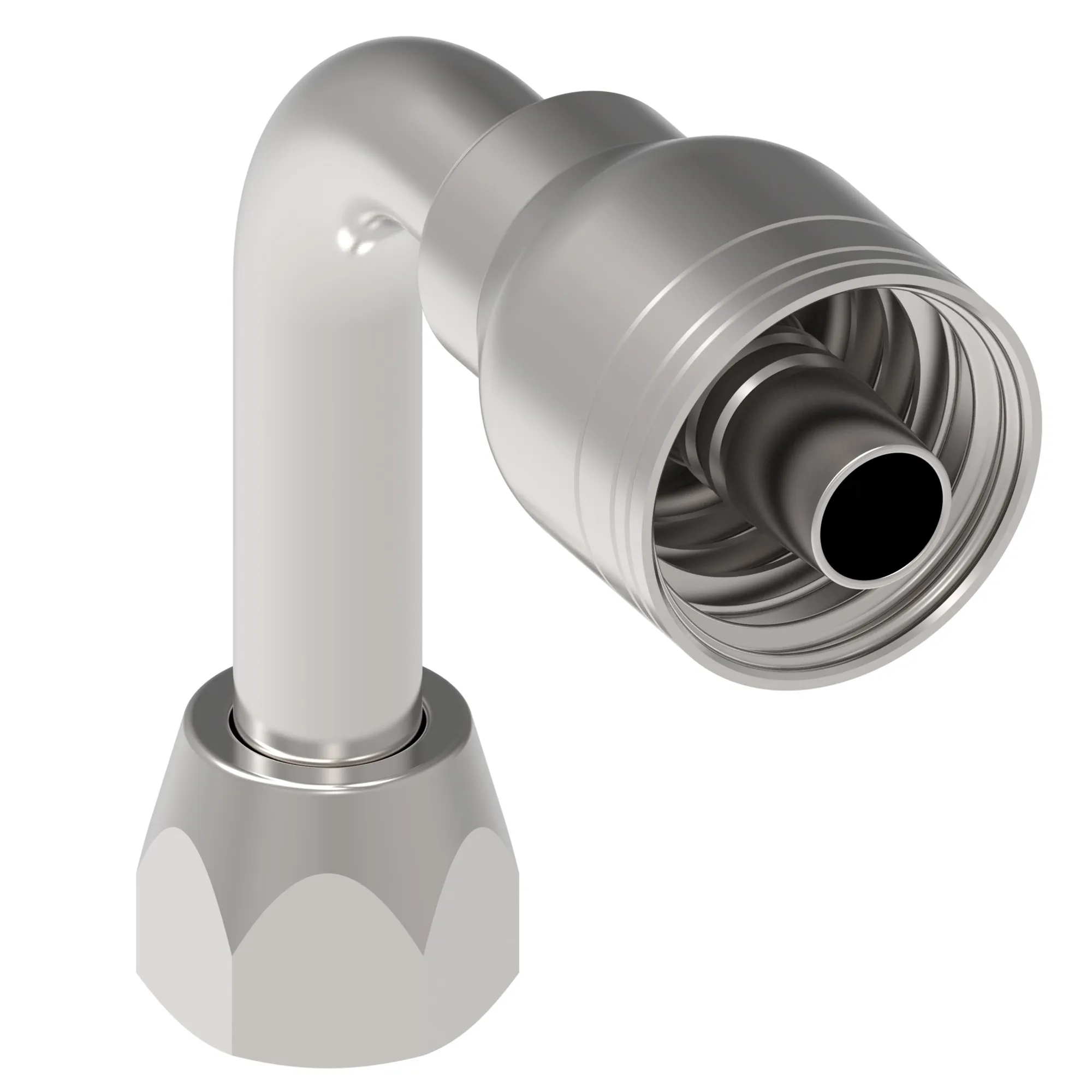

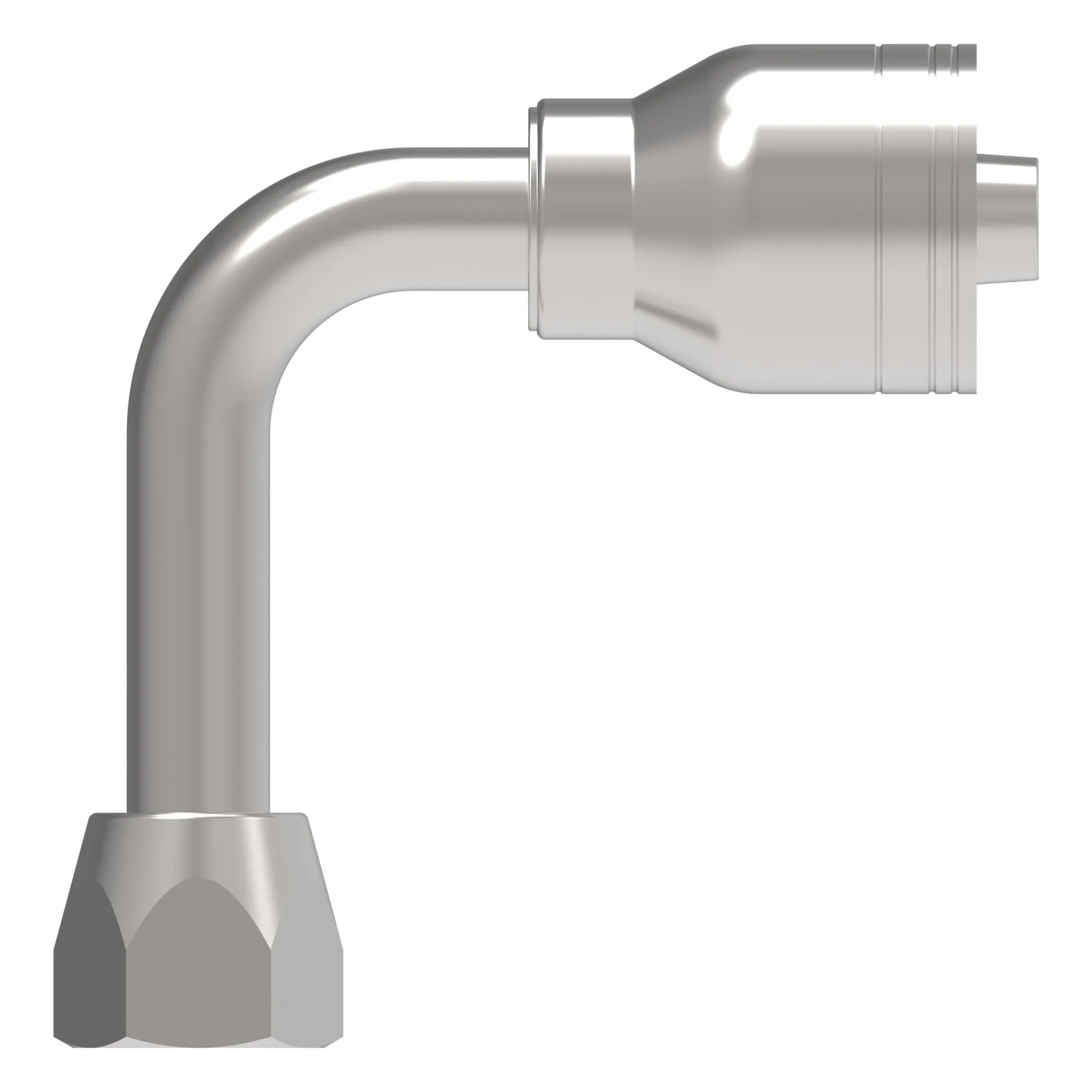

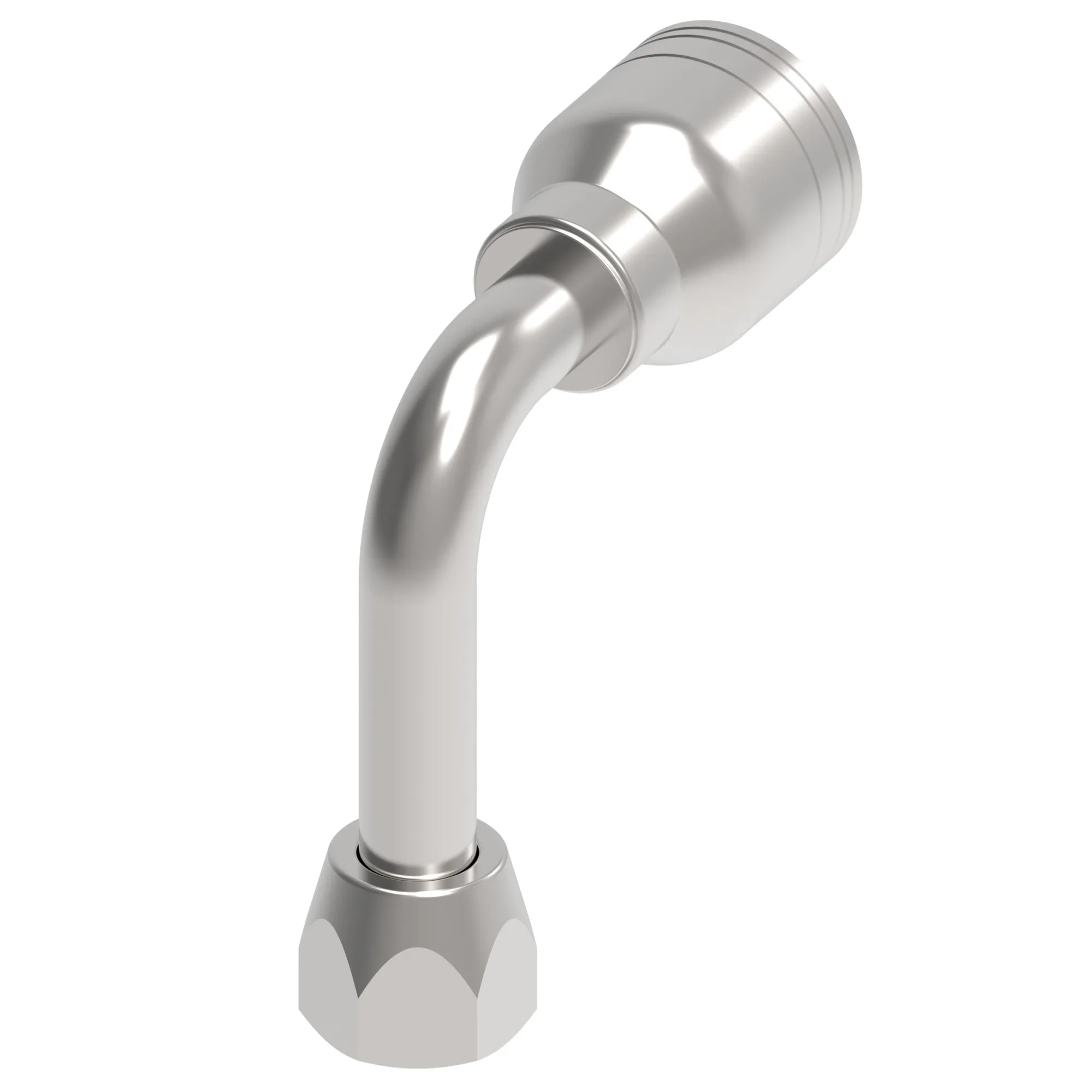

Ftng (perm), SAE 37 R2 – 08Z-648-BG
Specification
| E A N/ U P C | 810075336450 |
|---|---|
| Angle Shape | 90 Degree |
| Brand | Weatherhead by Danfoss |
| Compatible Hose Id In | 0.500 |
| Compatible Hose Id Mm | 12.700 |
| Compatible Tube Od In | 0.50 |
| Compatible Tube Od Mm | 12.700 |
| Compliances | SAE J1176 |
| Construction Style | Crimp |
| Drop Dimension In | 2.000 |
| Drop Dimension Mm | 62.0 |
| End Size 1 | -12 |
| End Type 1 | Female 37 degree swivel |
| Finish Plating | Dura-Kote |
| Hex Size 1 In | 0.875 |
| Hex Size 1 Mm | 22.2 |
| Hose Cut Off Factor In | 1.540 |
| Hose Cut Off Factor Mm | 39.116 |
| Hose Size | -8 |
| Inside Diameter In | 0.370 |
| Inside Diameter Mm | 9.398 |
| Product Material | Carbon steel |
| Thread Sealant | No |
| Tube Od 1 In | 0.500 |
| Tube Od 1 Mm | 12.700 |
