Danfoss (Drives) 06Z-76P-BG
Hose End (perm) 1S/1R – 06Z-76P-BG
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

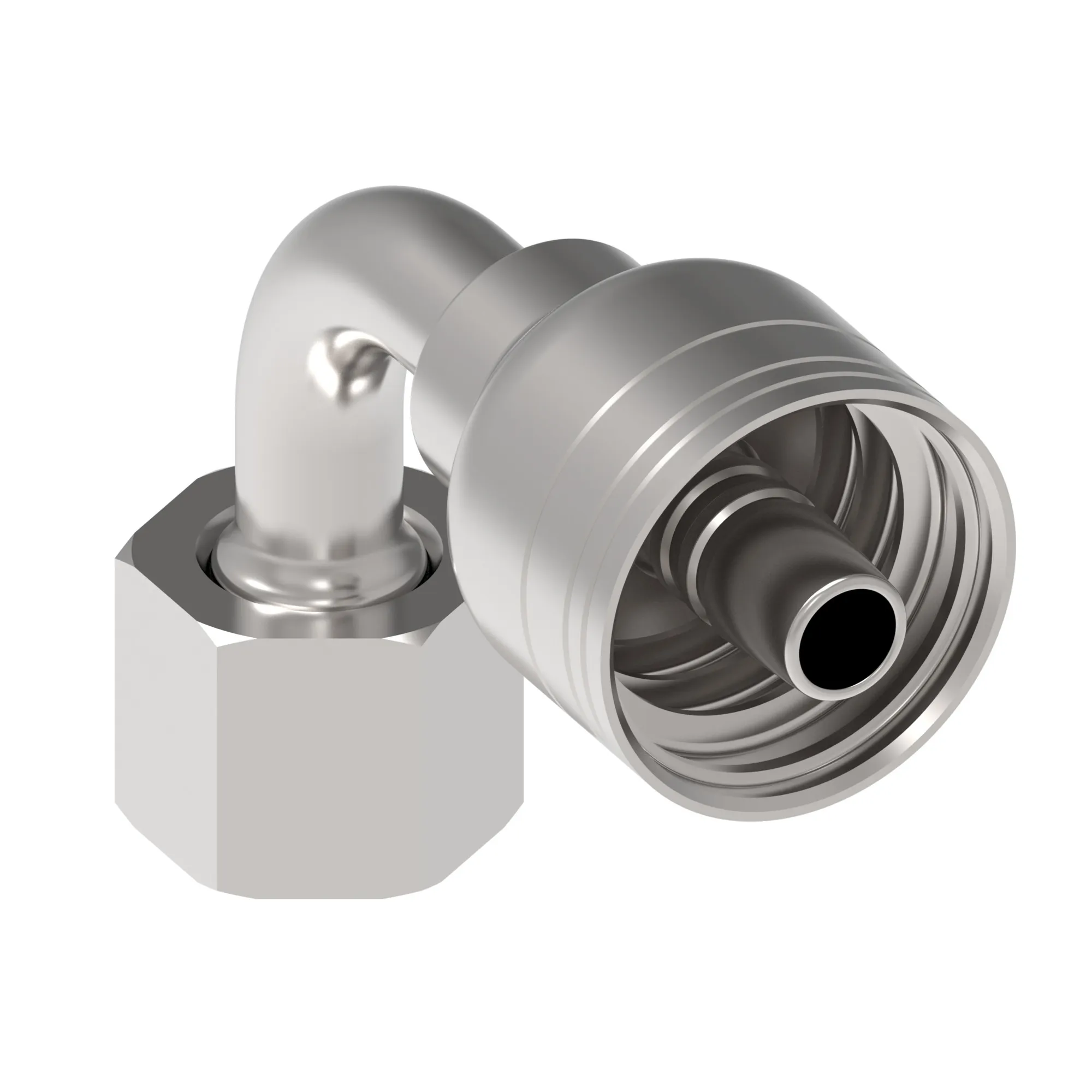

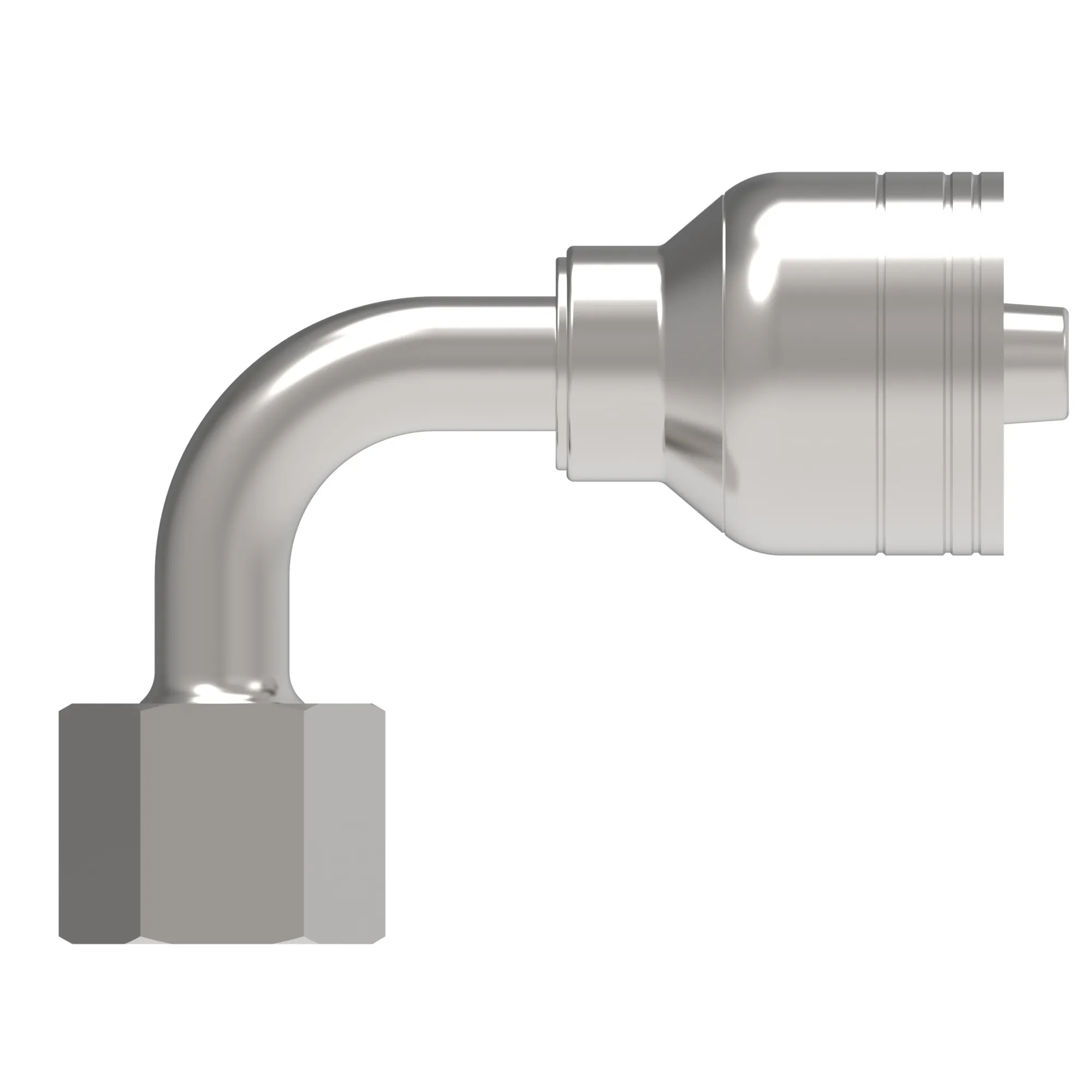

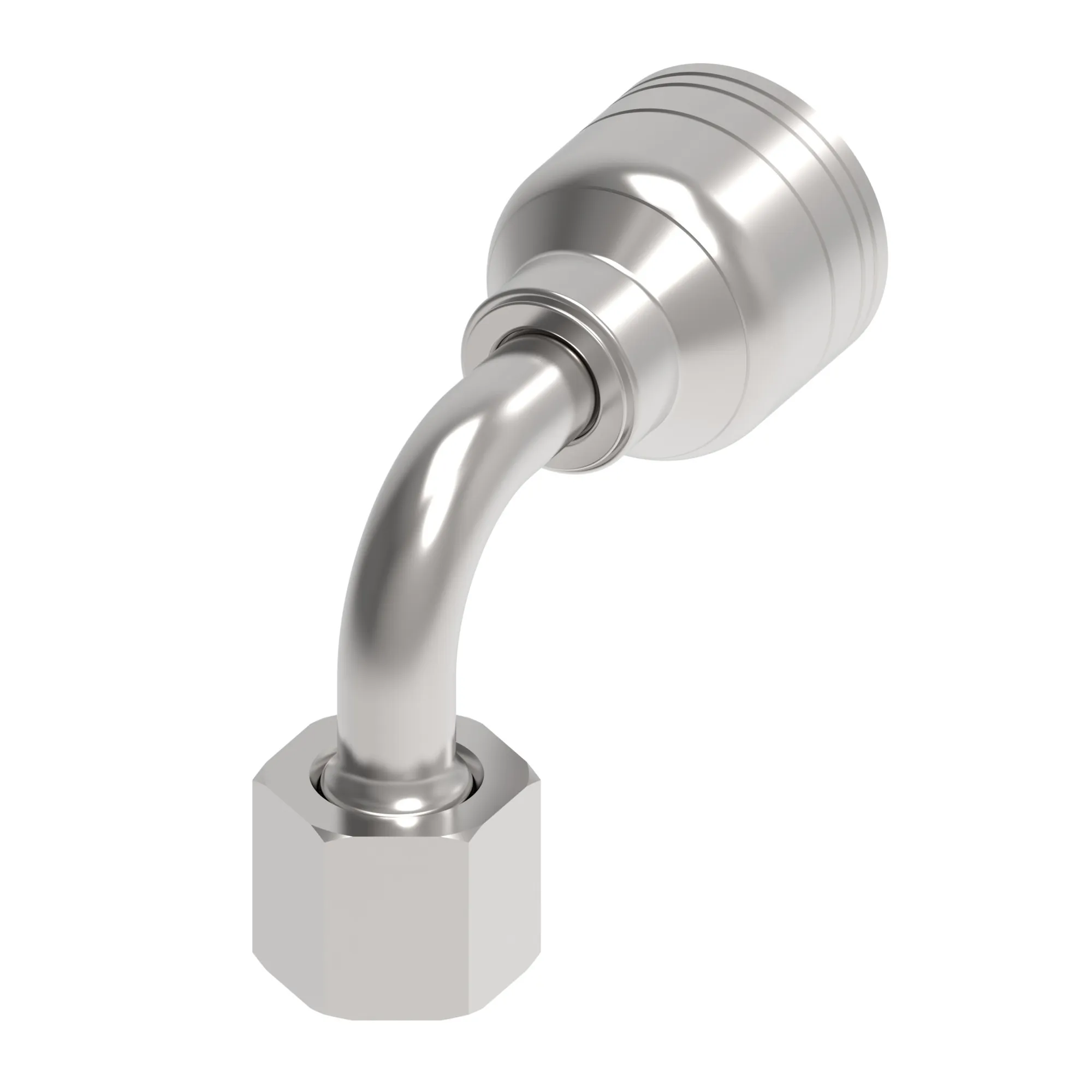

Hose End (perm) 1S/1R – 06Z-76P-BG
Specification
| E A N/ U P C | 810075335804 |
|---|---|
| Angle Shape | 90 Degree |
| Brand | Weatherhead by Danfoss |
| Compatible Hose Id In | 0.370 |
| Compatible Hose Id Mm | 9.398 |
| Compatible Tube Od In | 0.38 |
| Compatible Tube Od Mm | 9.525 |
| Compliances | SAE J1176 |
| Construction Style | Crimp |
| Drop Dimension In | 1.000 |
| Drop Dimension Mm | 35.00 |
| End Size 1 | -6 |
| End Type 1 | Female BSPP swivel |
| Finish Plating | Dura-Kote |
| Hex Size 1 In | 0.870 |
| Hex Size 1 Mm | 22.100 |
| Hose Cut Off Factor In | 1.320 |
| Hose Cut Off Factor Mm | 33.528 |
| Hose Size | -6 |
| Inside Diameter In | 0.2600 |
| Inside Diameter Mm | 6.6040 |
| Product Material | Carbon steel |
| Thread Sealant | No |
| Thread Size 1 | G 3/8 |
| Tube Od 1 In | 0.375 |
| Tube Od 1 Mm | 9.525 |
