Description

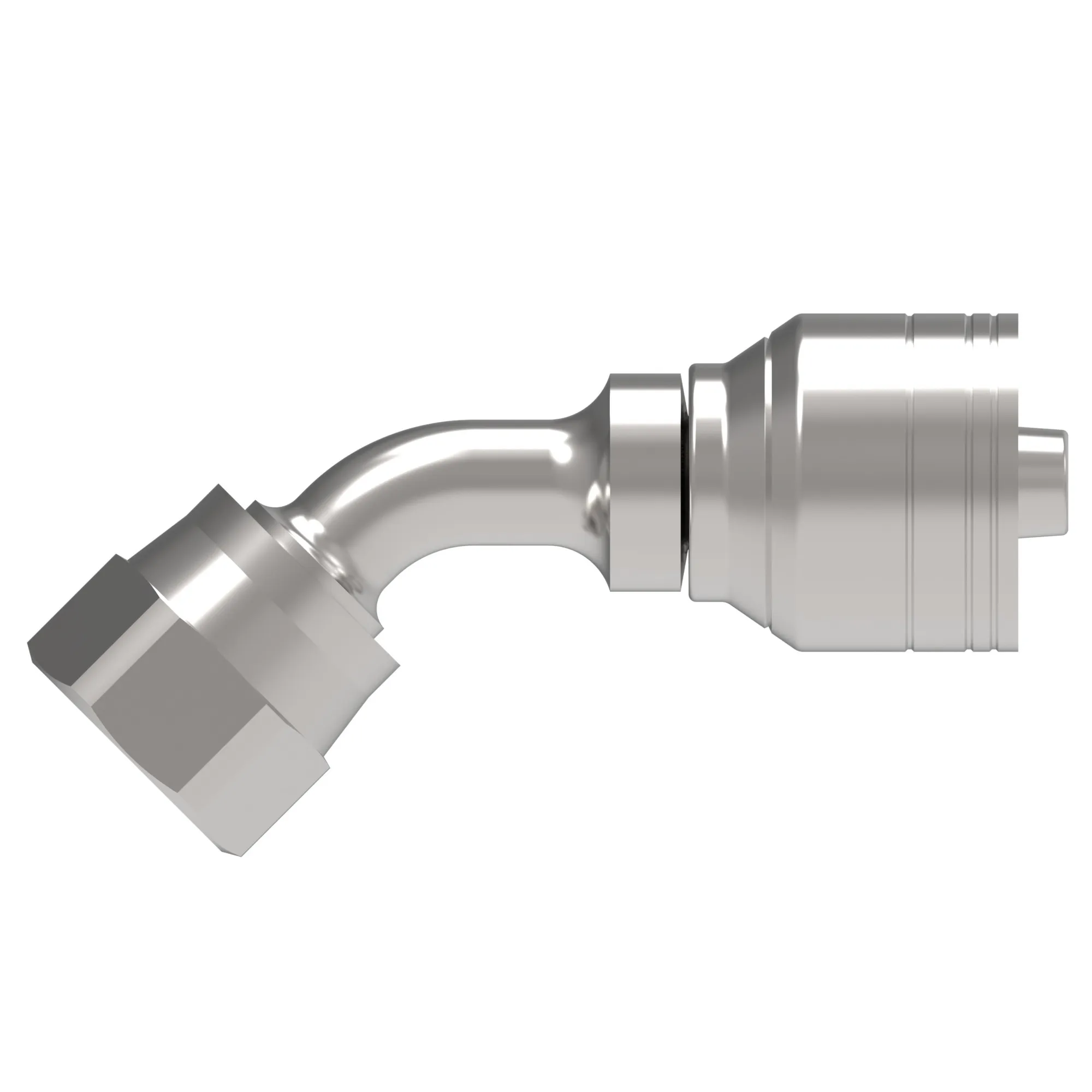

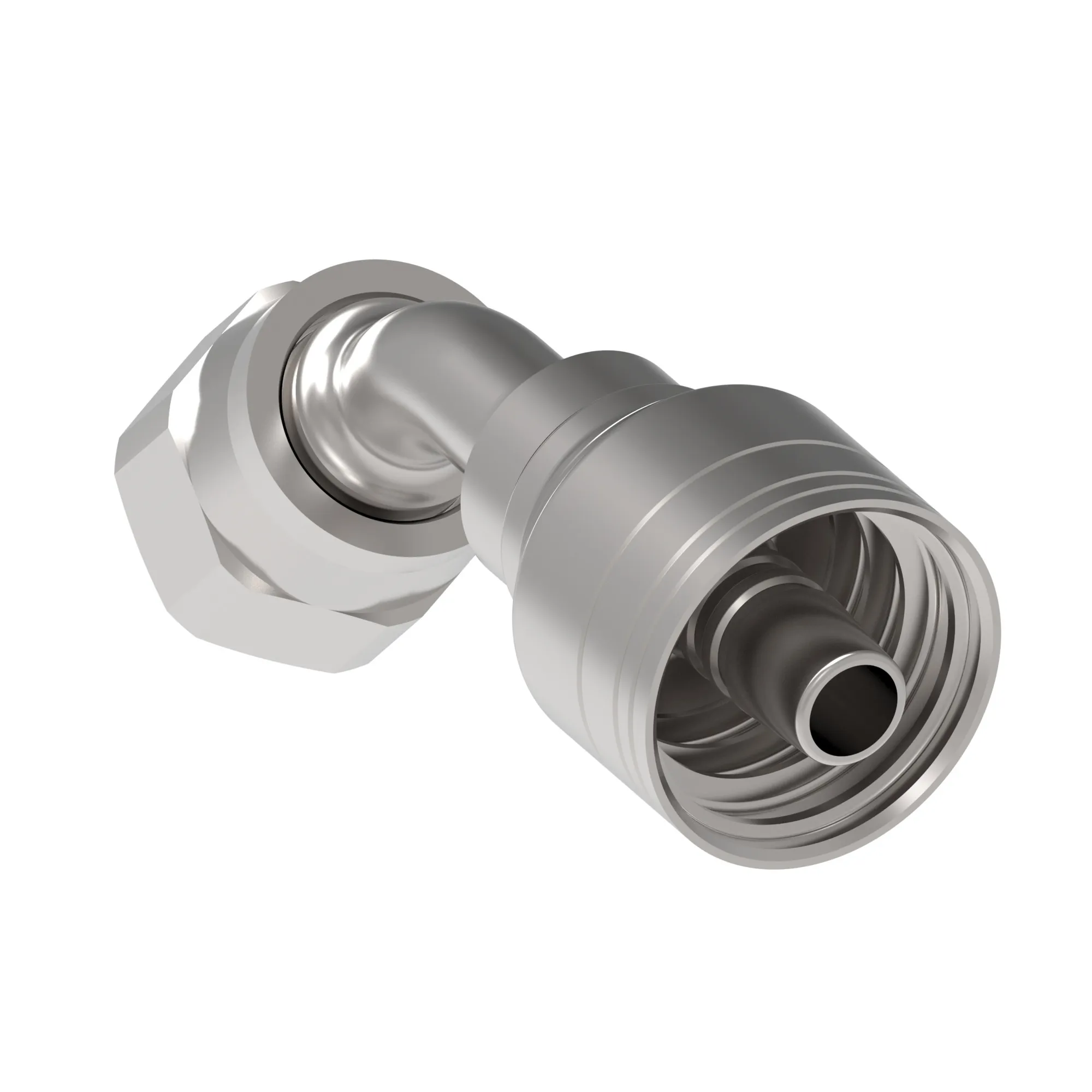

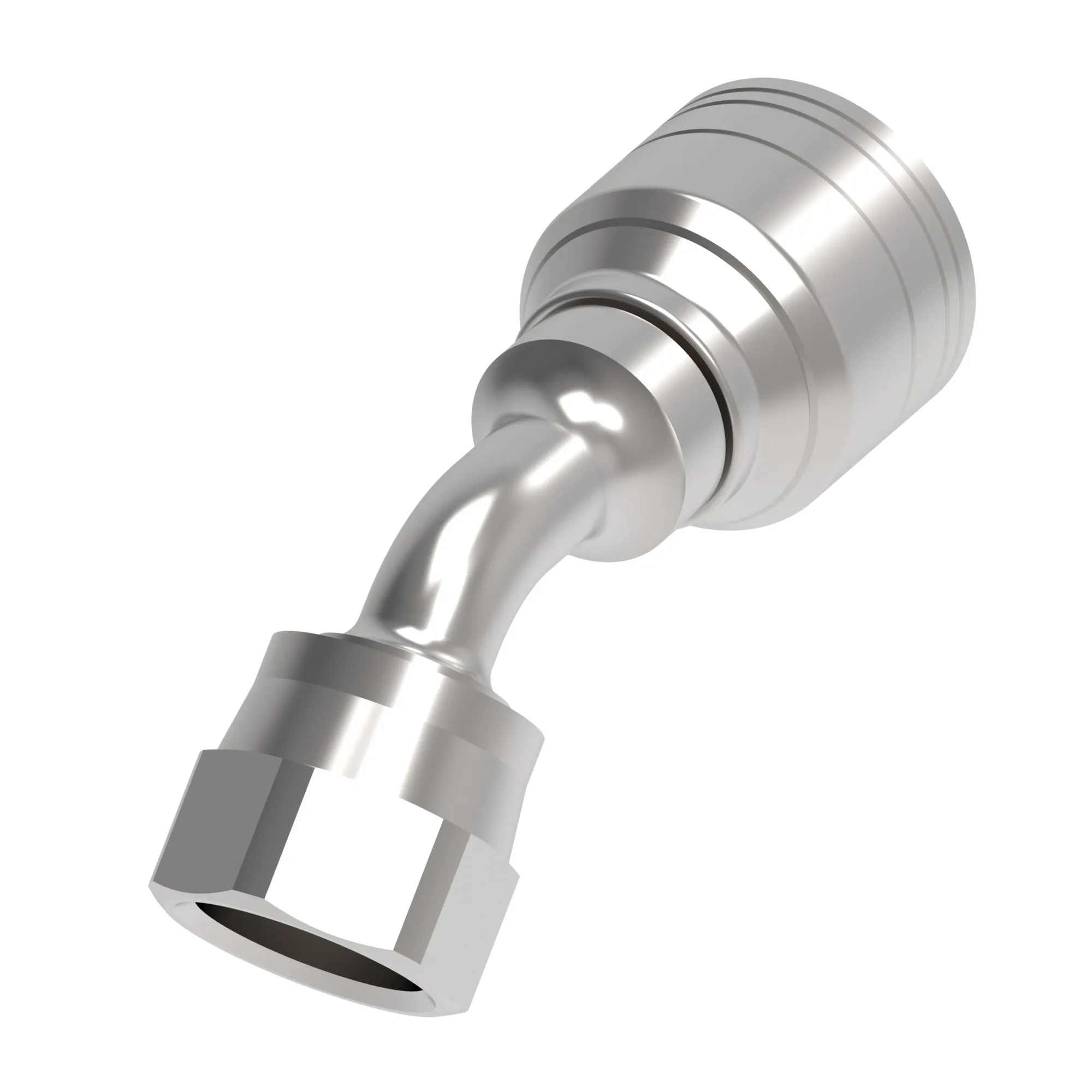

Hose End (perm) 1S/1R 45 D F SAE 37 Sw – 06Z-688
Specification
| E A N/ U P C | 639789292810 |
|---|---|
| Angle Shape | 45 Degree |
| Brand | Weatherhead by Danfoss |
| Compatible Hose Id In | 0.370 |
| Compatible Hose Id Mm | 9.398 |
| Compatible Tube Od In | 0.50 |
| Compatible Tube Od Mm | 12.700 |
| Compliances | SAE J1176 |
| Construction Style | Crimp |
| Drop Dimension In | 0.550 |
| Drop Dimension Mm | 14.00 |
| End Size 1 | -12 |
| End Type 1 | Female 37 degree swivel |
| Finish Plating | Dura-Kote |
| Hex Size 1 In | 0.880 |
| Hex Size 1 Mm | 22.400 |
| Hose Cut Off Factor In | 1.660 |
| Hose Cut Off Factor Mm | 42.164 |
| Hose Size | -6 |
| Inside Diameter In | 0.2600 |
| Inside Diameter Mm | 6.6040 |
| Product Material | Carbon steel |
| Thread Sealant | No |
| Tube Od 1 In | 0.500 |
| Tube Od 1 Mm | 12.700 |
