Danfoss (Drives) 06Z-666

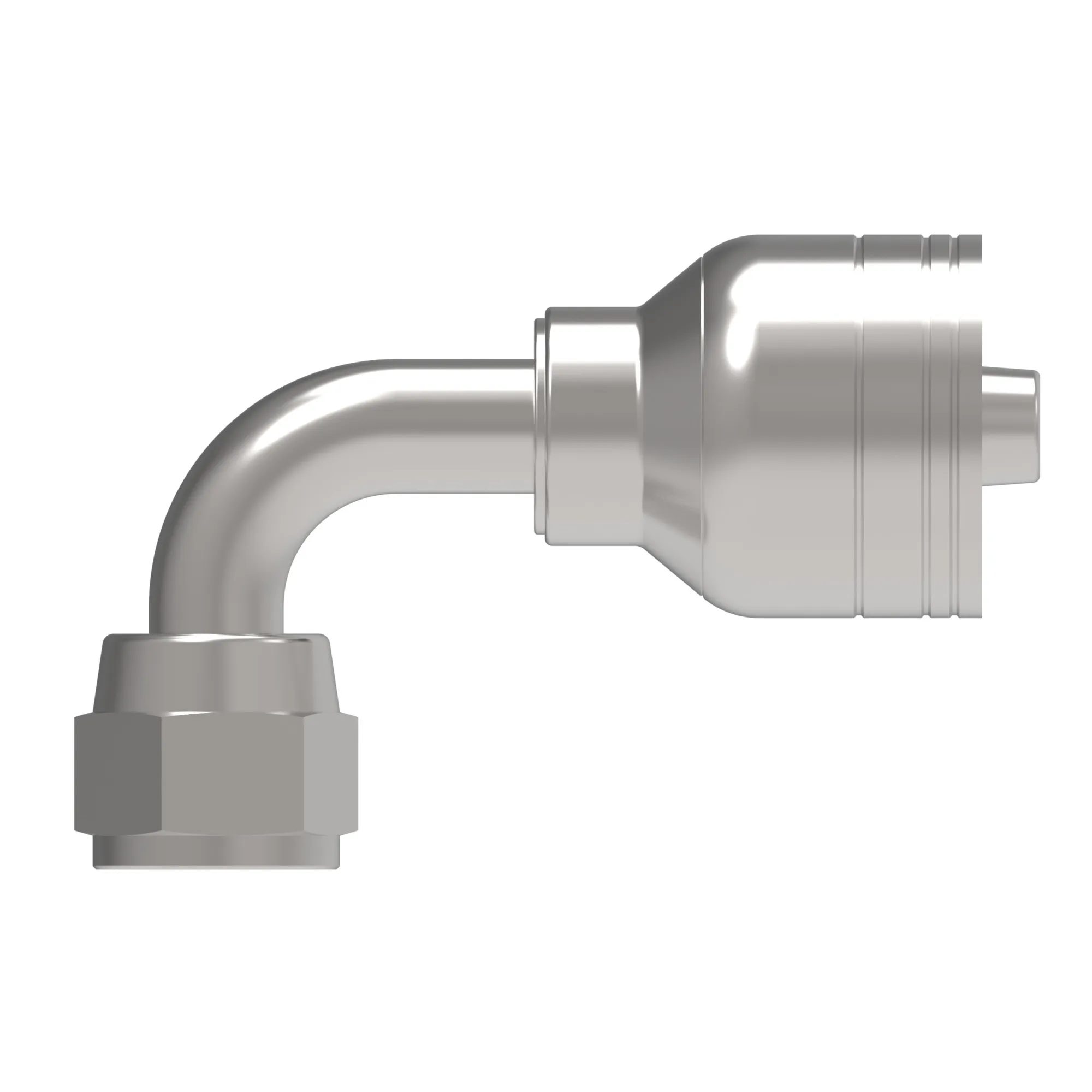

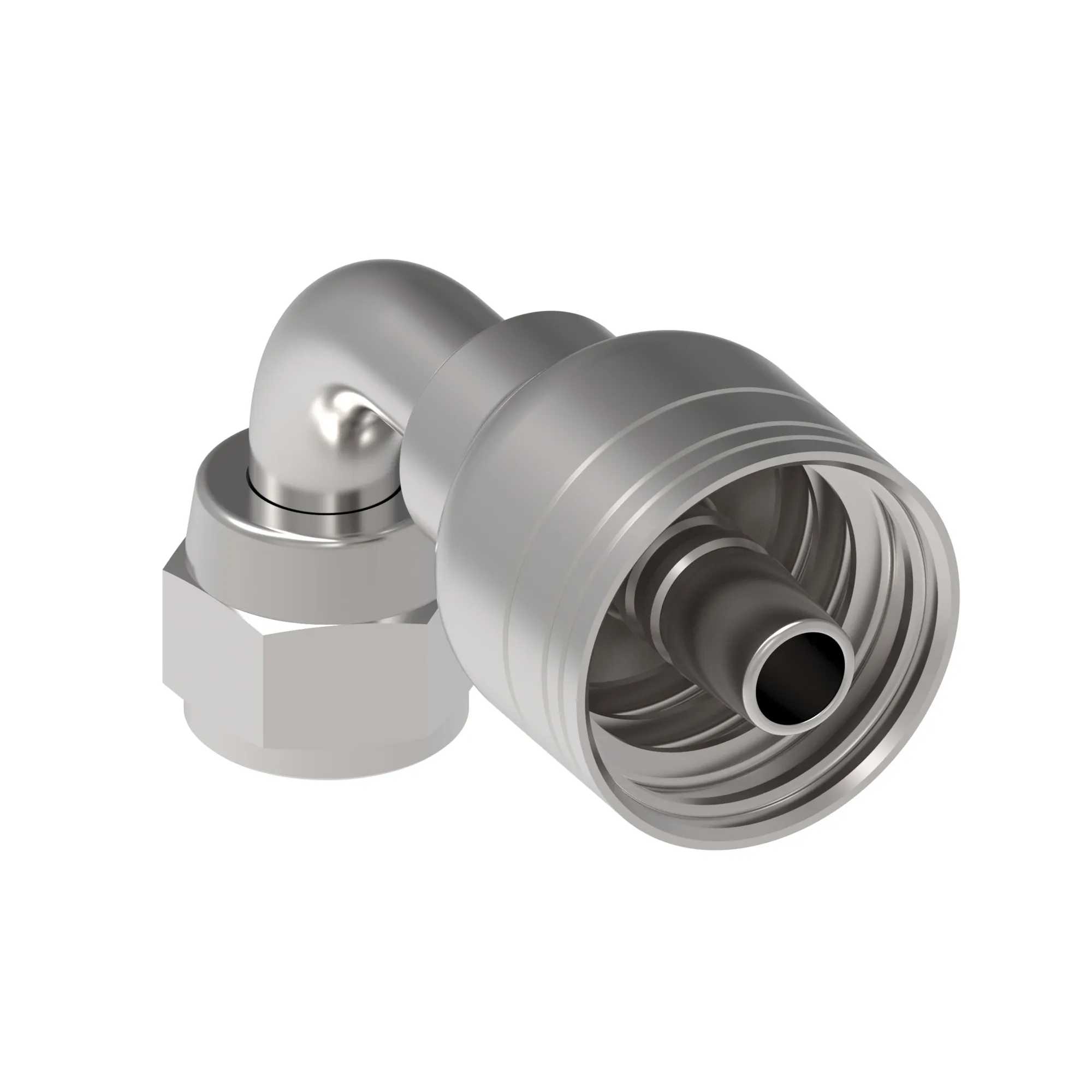

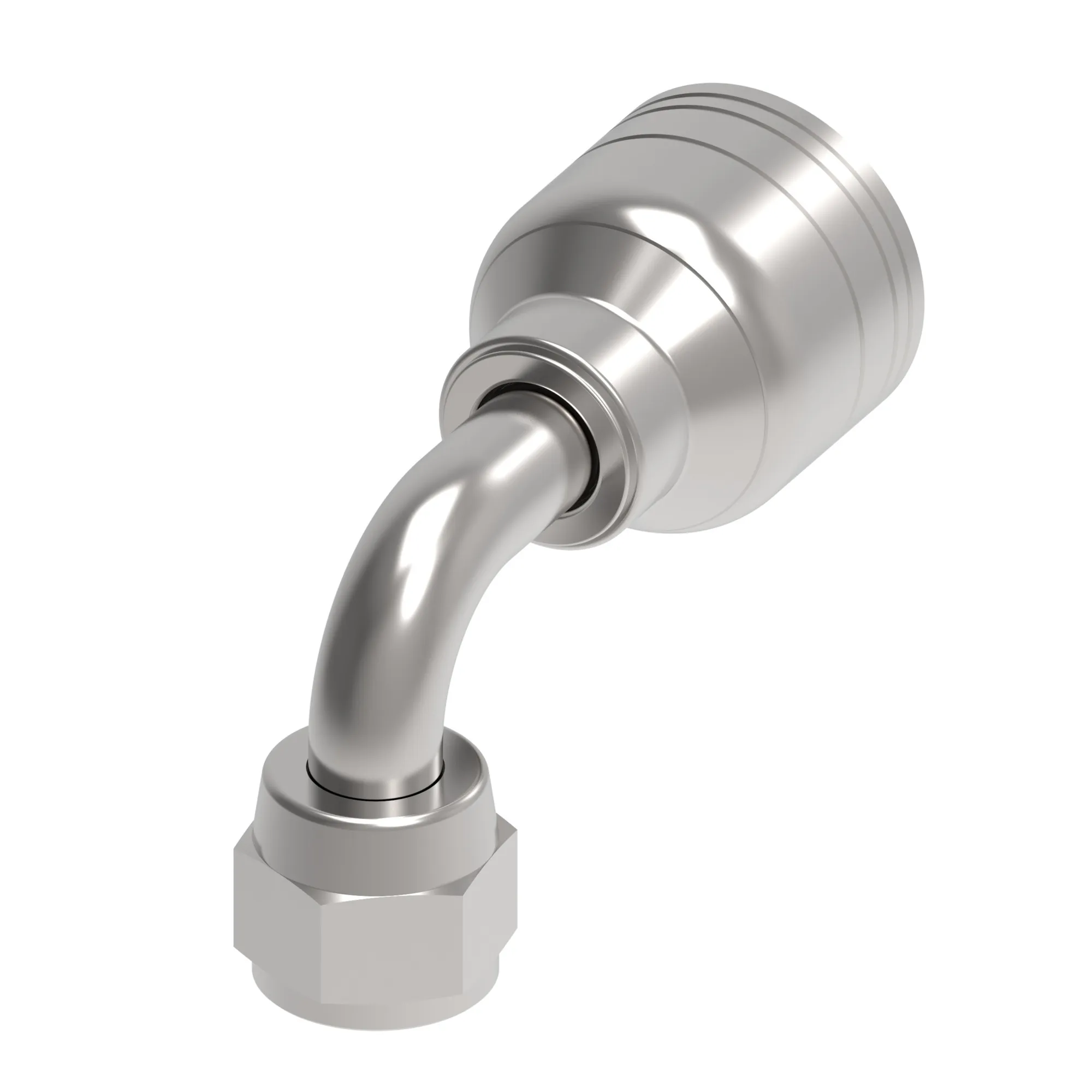

Ftng (perm), SAE 37 R2 Female JIC 90 Deg – 06Z-666
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Ftng (perm), SAE 37 R2 Female JIC 90 Deg – 06Z-666
Specification
| E A N/ U P C | 639789292780 |
|---|---|
| Angle Shape | 90 Degree |
| Brand | Weatherhead by Danfoss |
| Compatible Hose Id In | 0.370 |
| Compatible Hose Id Mm | 9.398 |
| Compatible Tube Od In | 0.38 |
| Compatible Tube Od Mm | 9.525 |
| Compliances | SAE J1176 |
| Construction Style | Crimp |
| Drop Dimension In | 0.850 |
| Drop Dimension Mm | 21.59 |
| End Size 1 | -6 |
| End Type 1 | Female 37 degree swivel |
| Finish Plating | Dura-Kote |
| Hex Size 1 In | 0.688 |
| Hex Size 1 Mm | 17.526 |
| Hose Cut Off Factor In | 1.220 |
| Hose Cut Off Factor Mm | 30.988 |
| Hose Size | -6 |
| Inside Diameter In | 0.240 |
| Inside Diameter Mm | 6.096 |
| Product Material | Carbon steel |
| Thread Sealant | No |
| Tube Od 1 In | 0.375 |
| Tube Od 1 Mm | 9.525 |
