Danfoss (Drives) 06Z-108
Hose End (perm) 1S/1R Str -08 M Pipe – 06Z-108
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

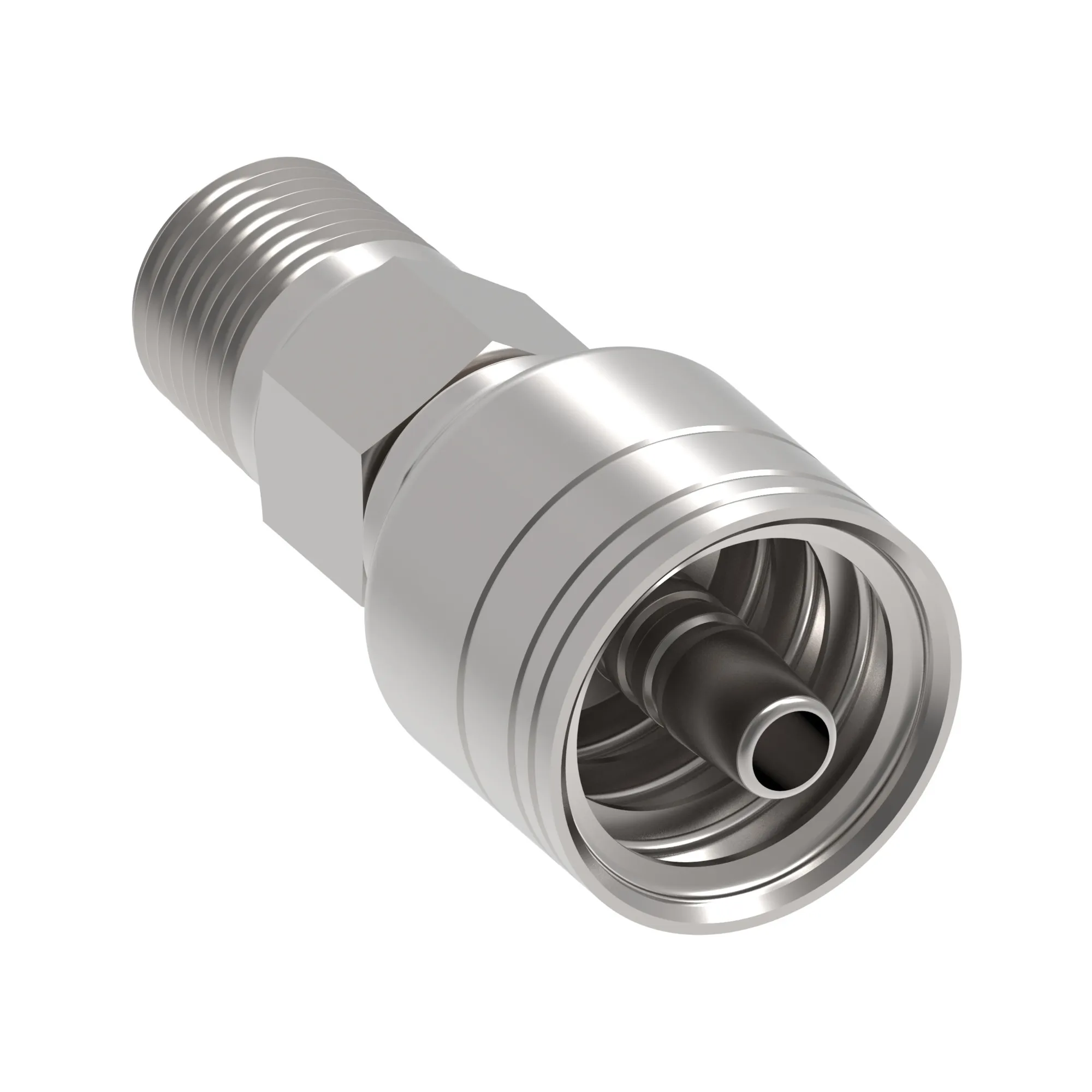

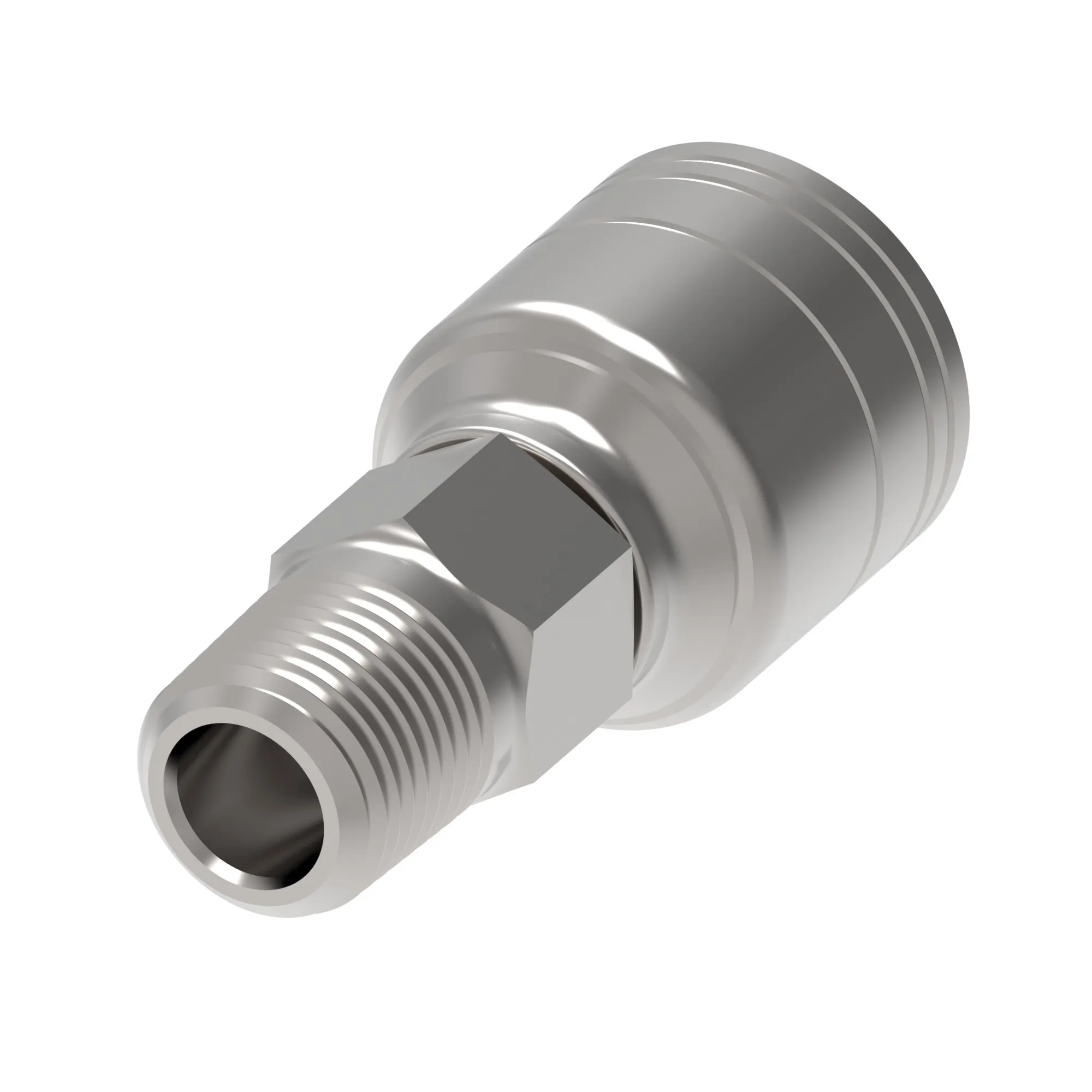

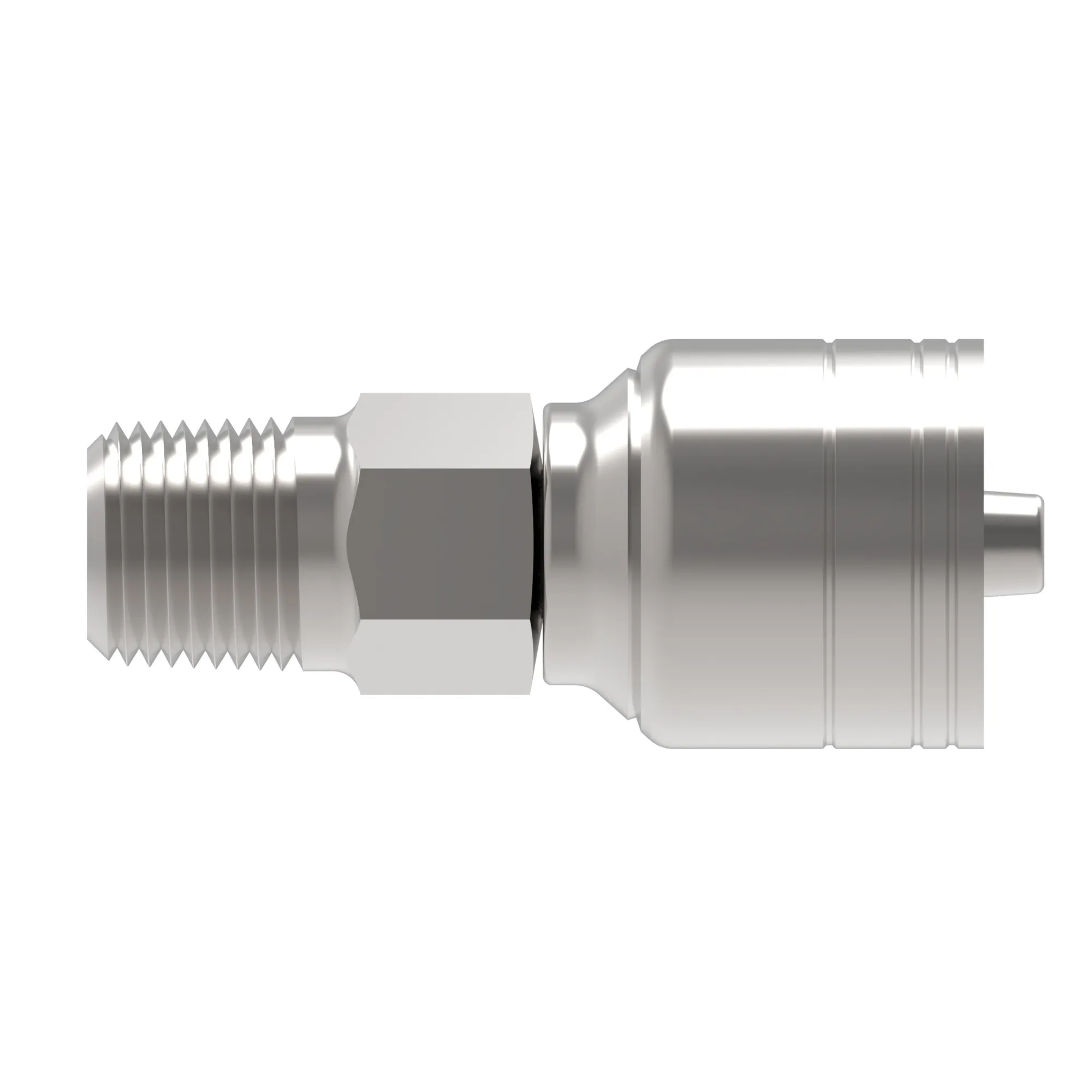

Hose End (perm) 1S/1R Str -08 M Pipe – 06Z-108
Specification
| E A N/ U P C | 639789292698 |
|---|---|
| A Dimension In | 2.110 |
| A Dimension Mm | 53.700 |
| Angle Shape | Straight |
| Brand | Weatherhead by Danfoss |
| Compatible Hose Id In | 0.380 |
| Compatible Hose Id Mm | 9.500 |
| Compatible Tube Od In | 0.38 |
| Compatible Tube Od Mm | 9.525 |
| Compliances | SAE J1176 |
| Construction Style | Crimp |
| End Size 1 | -8 |
| End Type 1 | Male pipe (NPTF) |
| Finish Plating | Dura-Kote |
| Hex Size 1 In | 0.880 |
| Hex Size 1 Mm | 22.400 |
| Hex Size 2 Mm | 21.000 |
| Hose Cut Off Factor In | 1.280 |
| Hose Cut Off Factor Mm | 32.512 |
| Hose Size | -6 |
| Inside Diameter In | 0.2600 |
| Inside Diameter Mm | 6.6040 |
| Product Material | Carbon steel |
| Series | 1A/Z Series |
| Thread Sealant | No |
| Thread Size 1 | 1/2-14 NPTF |
| Tube Od 1 In | 0.375 |
| Tube Od 1 Mm | 9.525 |
| Working Pressure Max Bar | 414 |
| Working Pressure Max Psi | 6000 |
| Working Temperature Max C | 150 |
| Working Temperature Max F | 302 |
| Working Temperature Min C | -40 |
| Working Temperature Min F | -40 |
