Danfoss (Drives) 04Z-74P

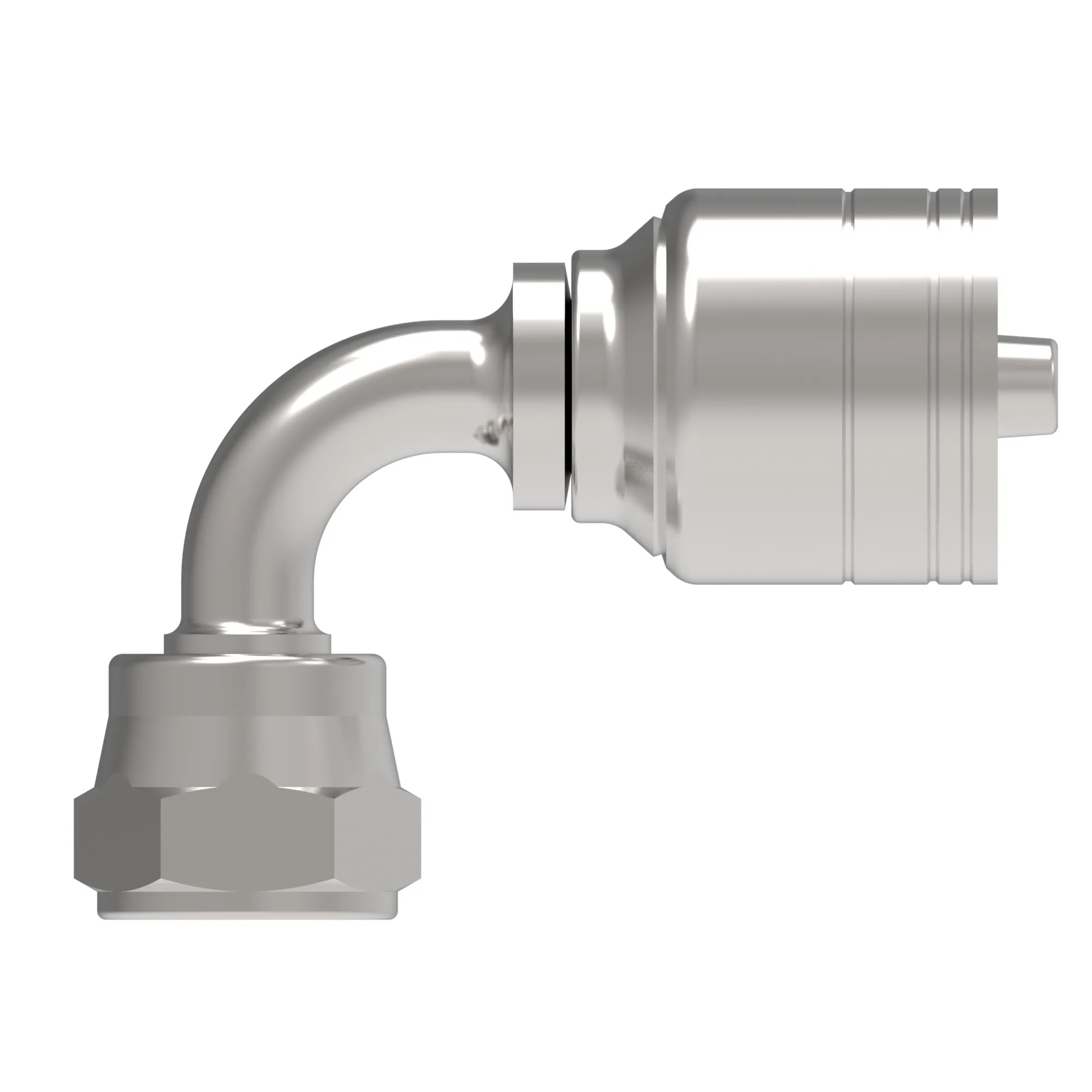

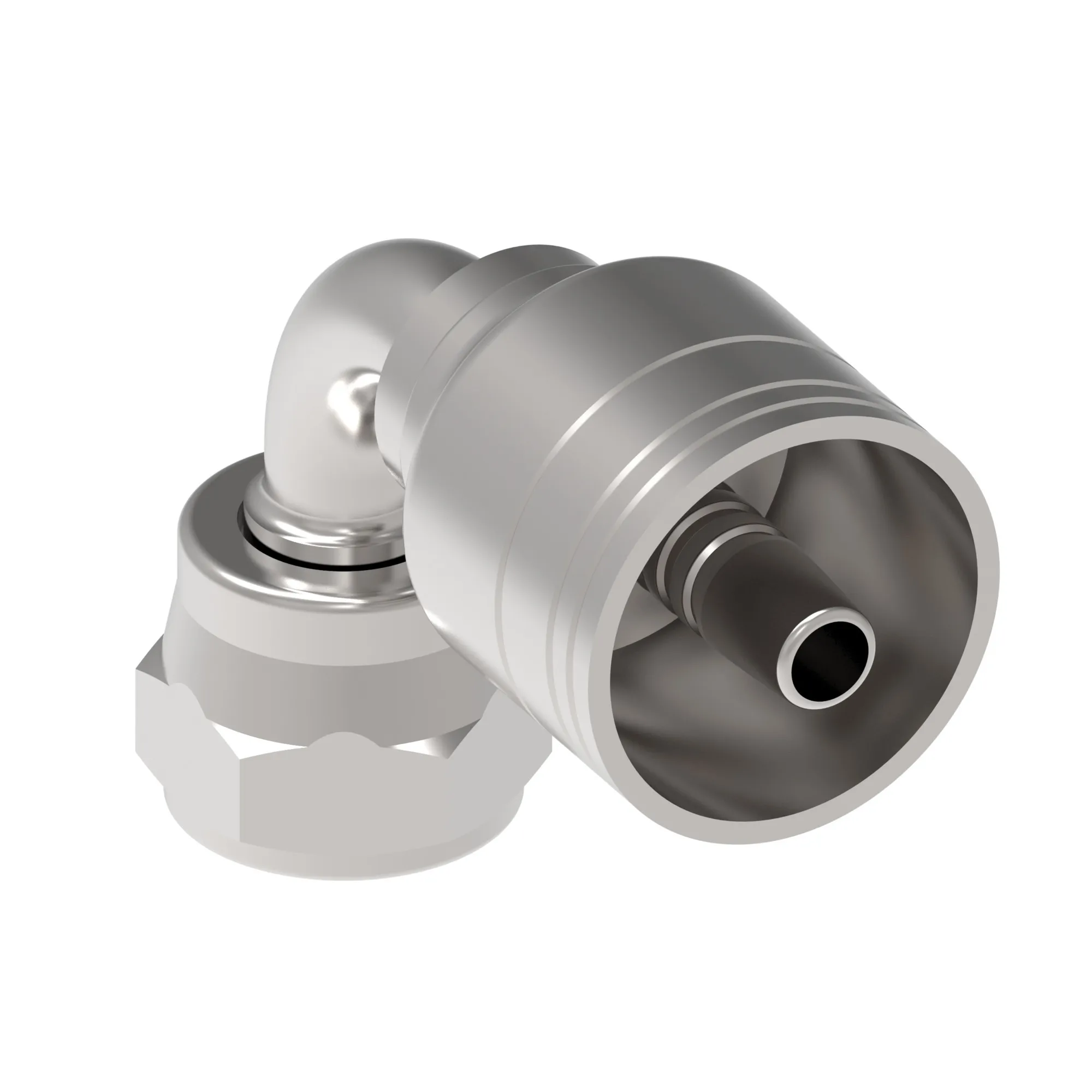

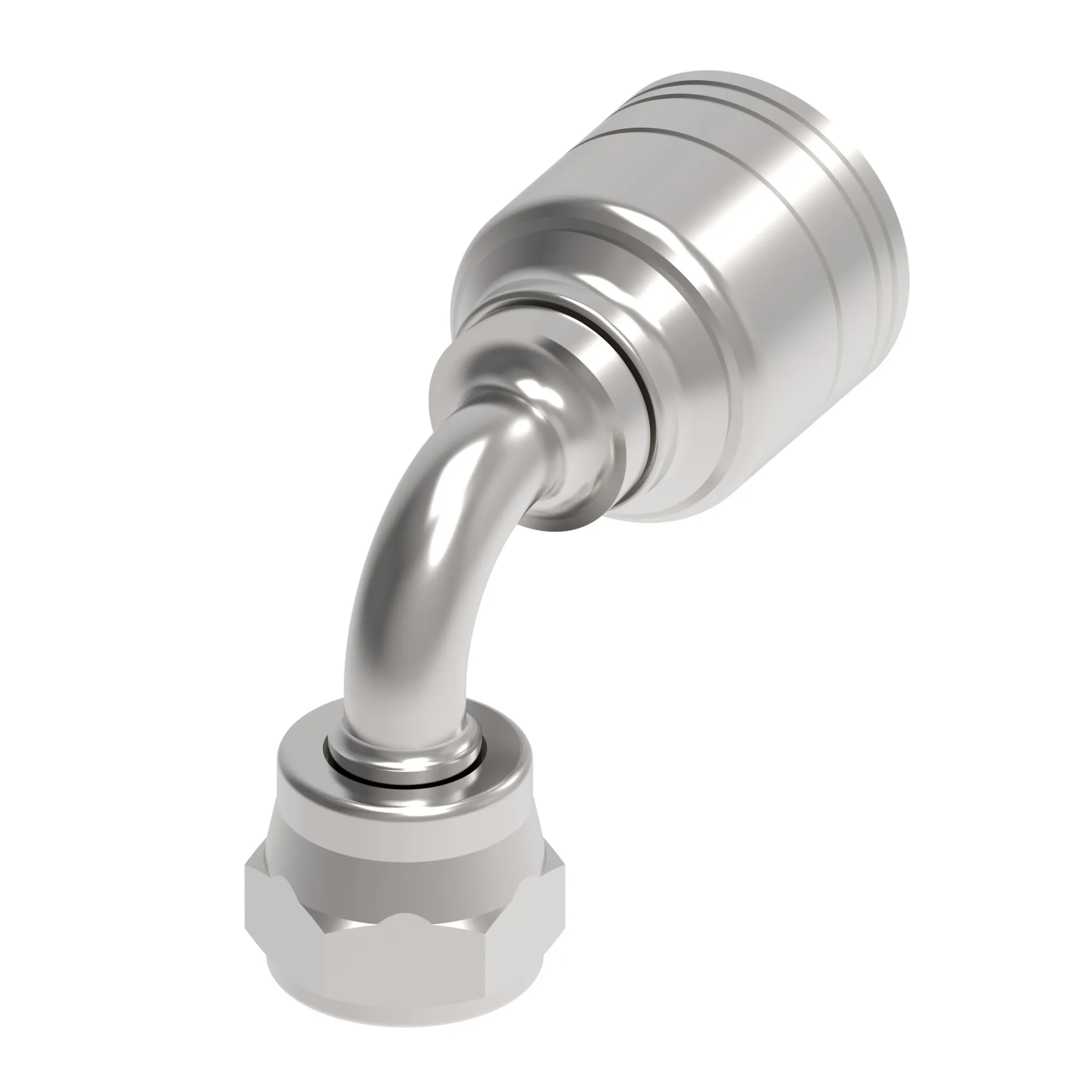

Hose End (perm) 1S/1R 90 D F BSPP Swvl – 04Z-74P
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Hose End (perm) 1S/1R 90 D F BSPP Swvl – 04Z-74P
Specification
| E A N/ U P C | 639789294388 |
|---|---|
| Angle Shape | 90 Degree |
| Brand | Weatherhead by Danfoss |
| Compatible Hose Id In | 0.250 |
| Compatible Hose Id Mm | 6.350 |
| Compatible Tube Od In | 0.25 |
| Compatible Tube Od Mm | 6.350 |
| Compliances | SAE J1176 |
| Construction Style | Crimp |
| Drop Dimension In | 0.980 |
| Drop Dimension Mm | 24.90 |
| End Size 1 | -4 |
| End Type 1 | Female BSPP swivel |
| Finish Plating | Dura-Kote |
| Hex Size 1 In | 0.670 |
| Hex Size 1 Mm | 17.000 |
| Hose Cut Off Factor In | 0.880 |
| Hose Cut Off Factor Mm | 22.352 |
| Hose Size | -4 |
| Inside Diameter In | 0.1600 |
| Inside Diameter Mm | 4.0640 |
| Product Material | Carbon steel |
| Thread Sealant | No |
| Thread Size 1 | G 1/4 |
| Tube Od 1 In | 0.250 |
| Tube Od 1 Mm | 6.350 |
