Description

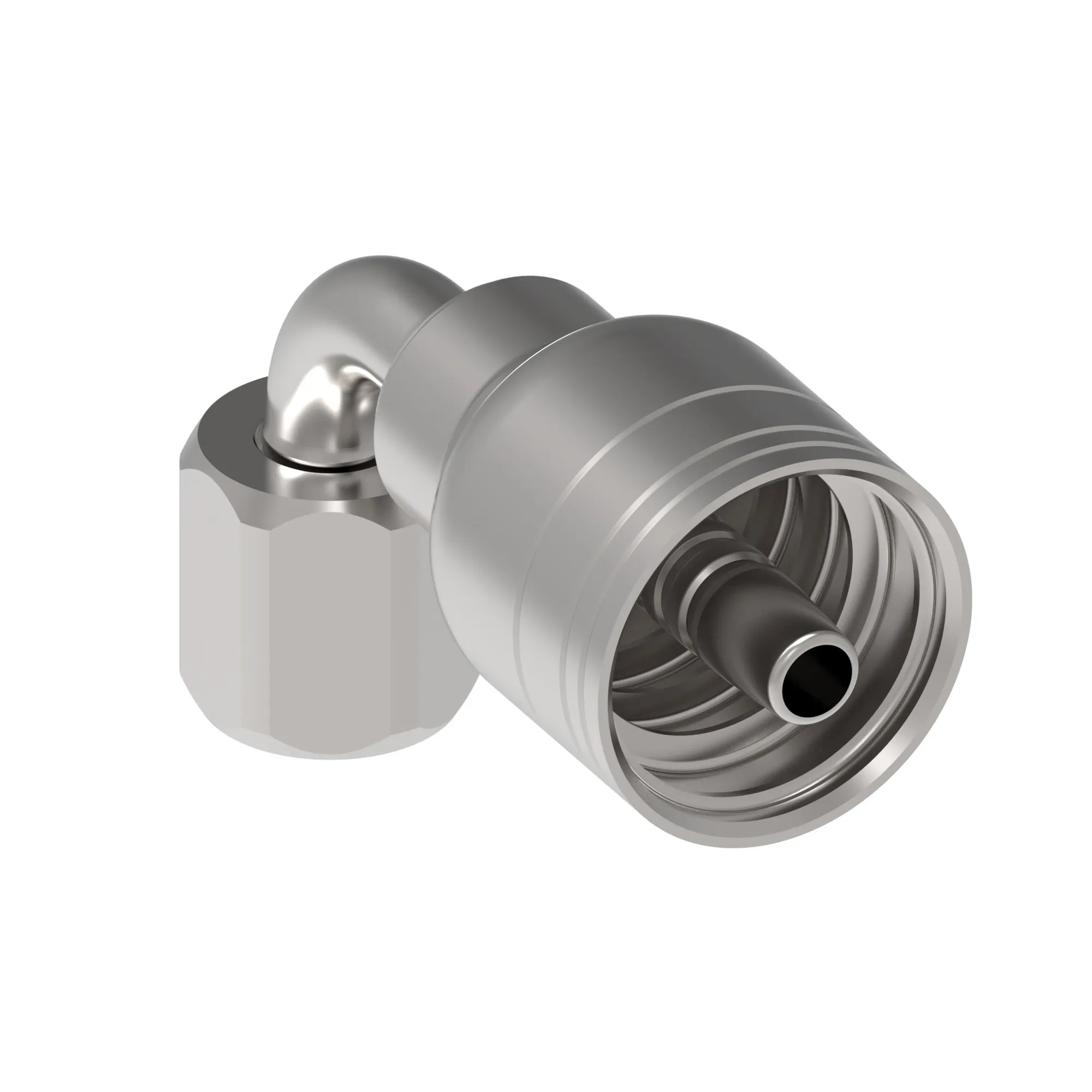

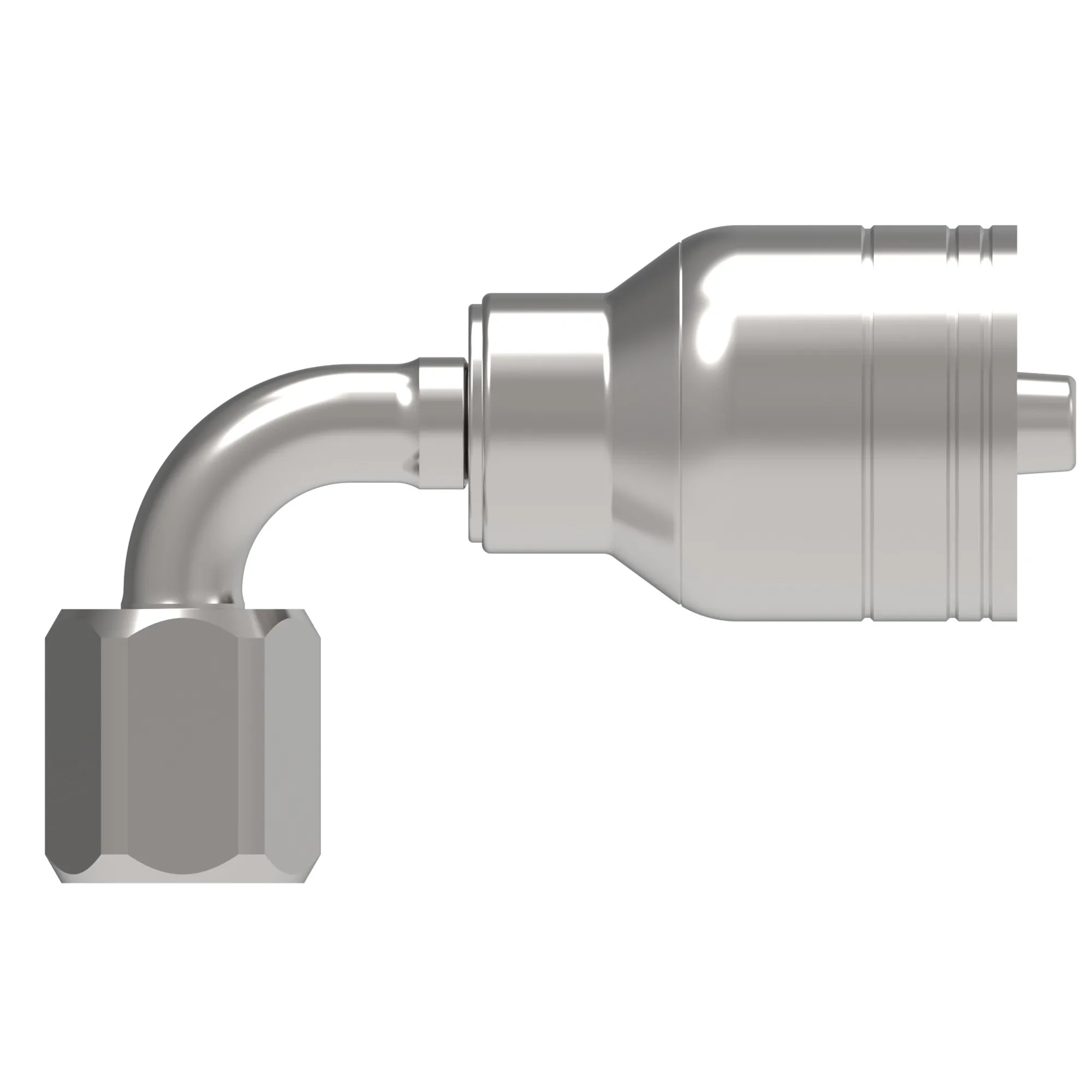

Ftng (perm), SAE 37 R2 – 04Z-666-BG
Specification
| E A N/ U P C | 810075334999 |
|---|---|
| Angle Shape | 90 Degree |
| Brand | Weatherhead by Danfoss |
| Compatible Hose Id In | 0.250 |
| Compatible Hose Id Mm | 6.350 |
| Compatible Tube Od In | 0.38 |
| Compatible Tube Od Mm | 9.525 |
| Compliances | SAE J1176 |
| Construction Style | Crimp |
| Drop Dimension In | 1.000 |
| Drop Dimension Mm | 23.00 |
| End Size 1 | -6 |
| End Type 1 | Female 37 degree swivel |
| Finish Plating | Dura-Kote |
| Hex Size 1 In | 0.690 |
| Hex Size 1 Mm | 17.500 |
| Hose Cut Off Factor In | 0.990 |
| Hose Cut Off Factor Mm | 25.146 |
| Hose Size | -4 |
| Inside Diameter In | 0.1700 |
| Inside Diameter Mm | 4.3180 |
| Product Material | Carbon steel |
| Thread Sealant | No |
| Tube Od 1 In | 0.375 |
| Tube Od 1 Mm | 9.525 |
