Danfoss (Drives) 04Z-665
Hose End (perm) 1S/1R 90 D F SAE 37 Sw – 04Z-665
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

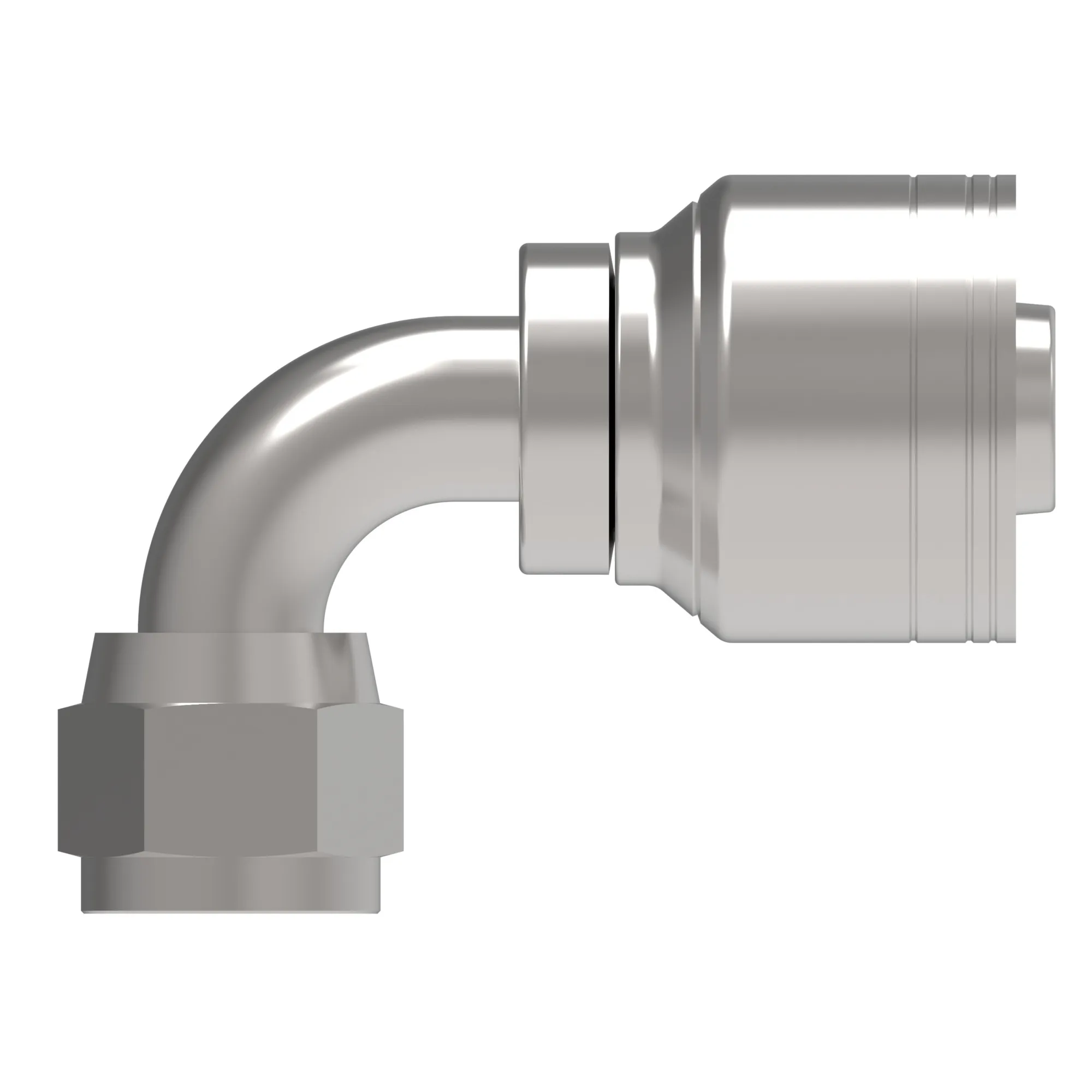

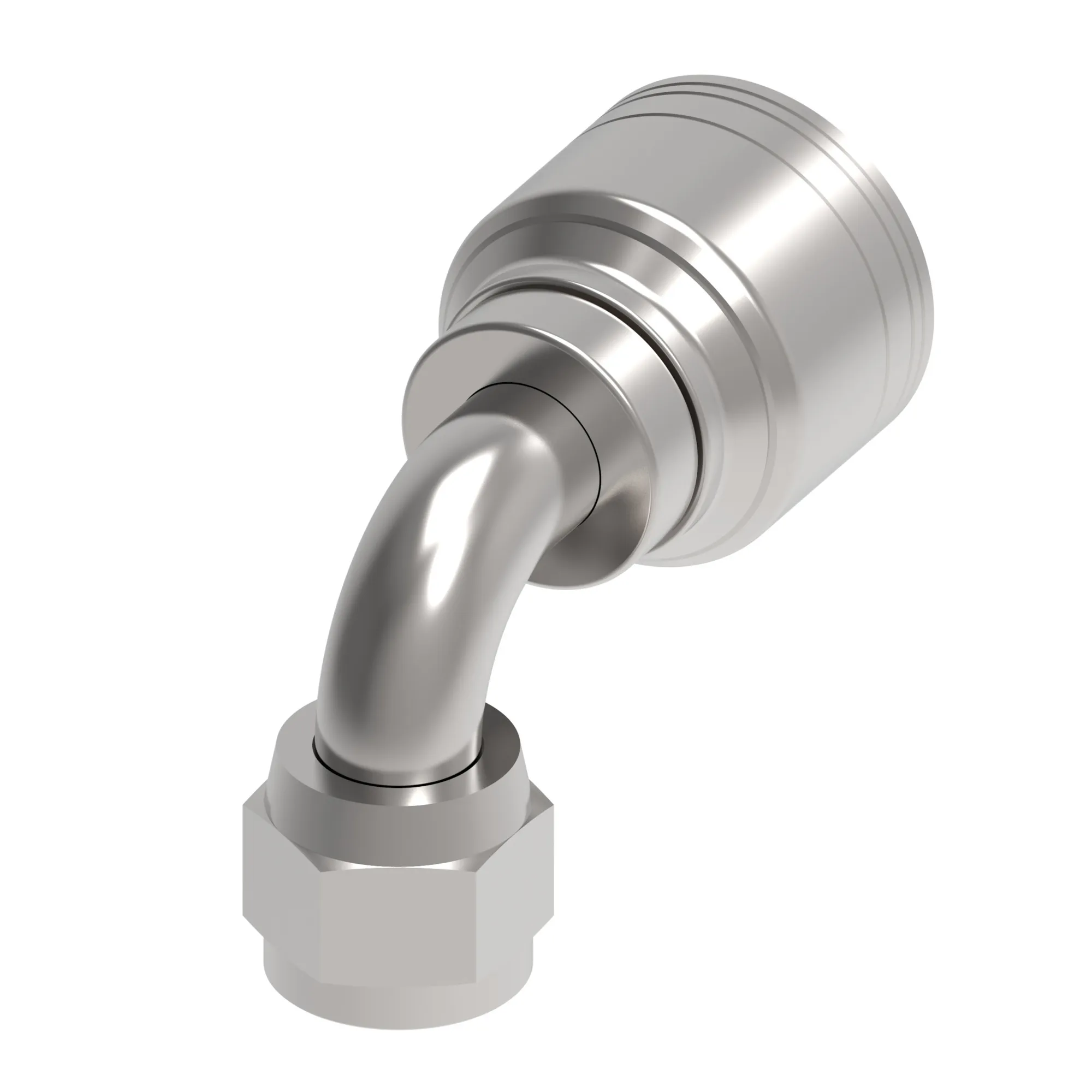

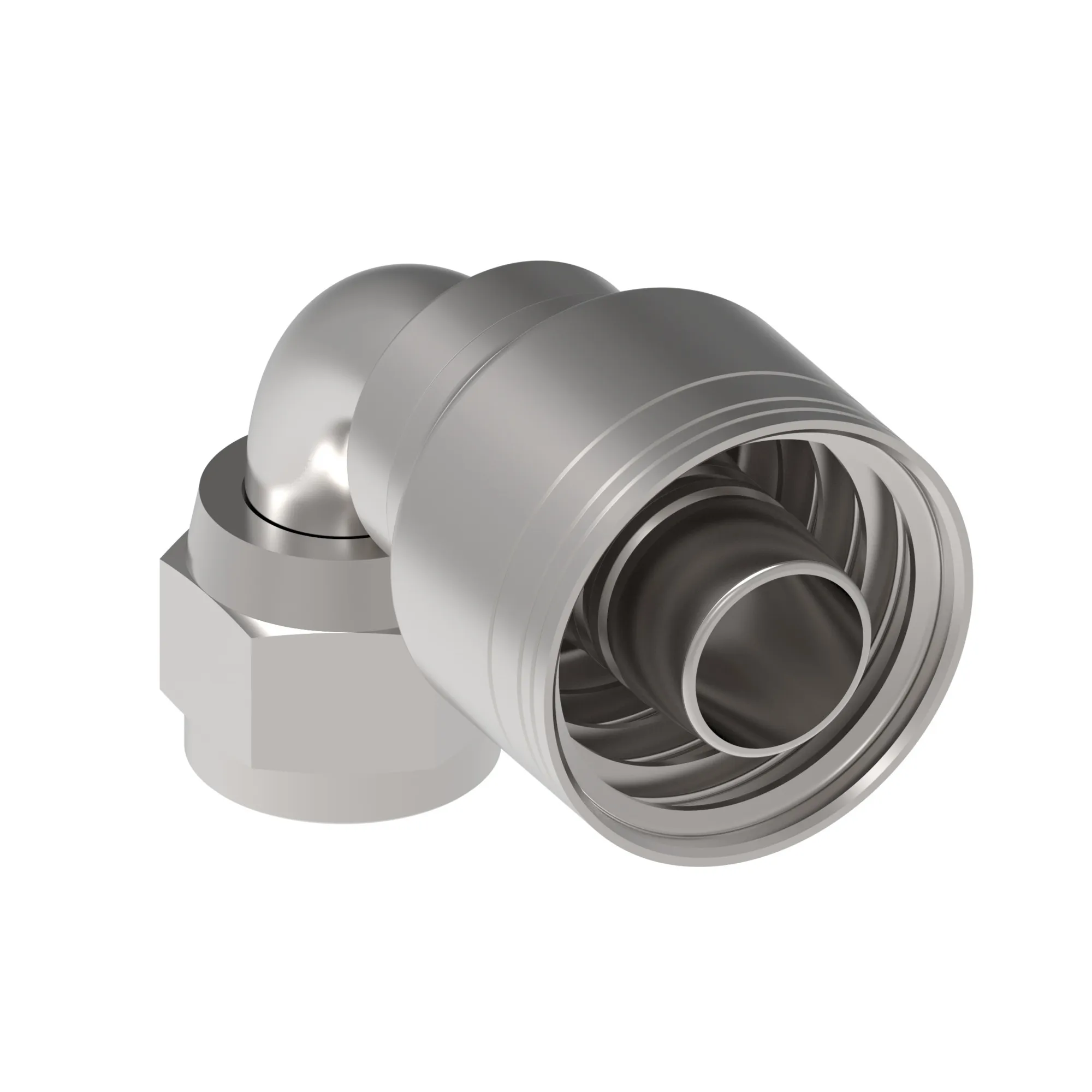

Hose End (perm) 1S/1R 90 D F SAE 37 Sw – 04Z-665
Specification
| E A N/ U P C | 639789294364 |
|---|---|
| Angle Shape | 90 Degree |
| Brand | Weatherhead by Danfoss |
| Compatible Hose Id In | 0.250 |
| Compatible Hose Id Mm | 6.350 |
| Compatible Tube Od In | 0.31 |
| Compatible Tube Od Mm | 7.874 |
| Compliances | SAE J1176 |
| Construction Style | Crimp |
| Drop Dimension In | 0.770 |
| Drop Dimension Mm | 19.60 |
| End Size 1 | -8 |
| End Type 1 | Female 37 degree swivel |
| Finish Plating | Dura-Kote |
| Hex Size 1 In | 0.625 |
| Hex Size 1 Mm | 15.900 |
| Hose Cut Off Factor In | 0.996 |
| Hose Cut Off Factor Mm | 25.298 |
| Hose Size | -4 |
| Inside Diameter In | 0.1700 |
| Inside Diameter Mm | 4.3180 |
| Product Material | Carbon steel |
| Thread Sealant | No |
| Tube Od 1 In | 0.310 |
| Tube Od 1 Mm | 7.874 |
