Danfoss (Drives) 04Z-604-300BX

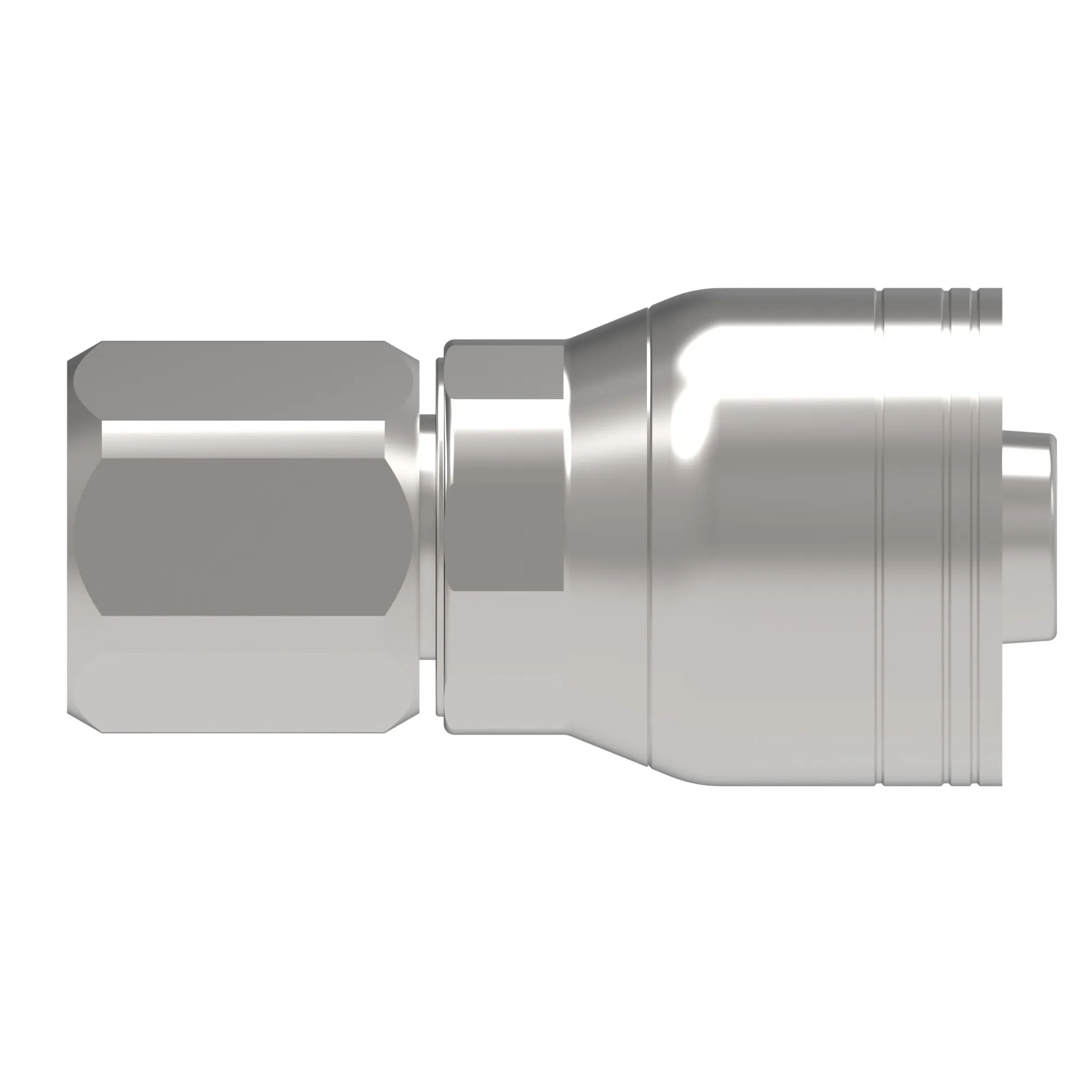

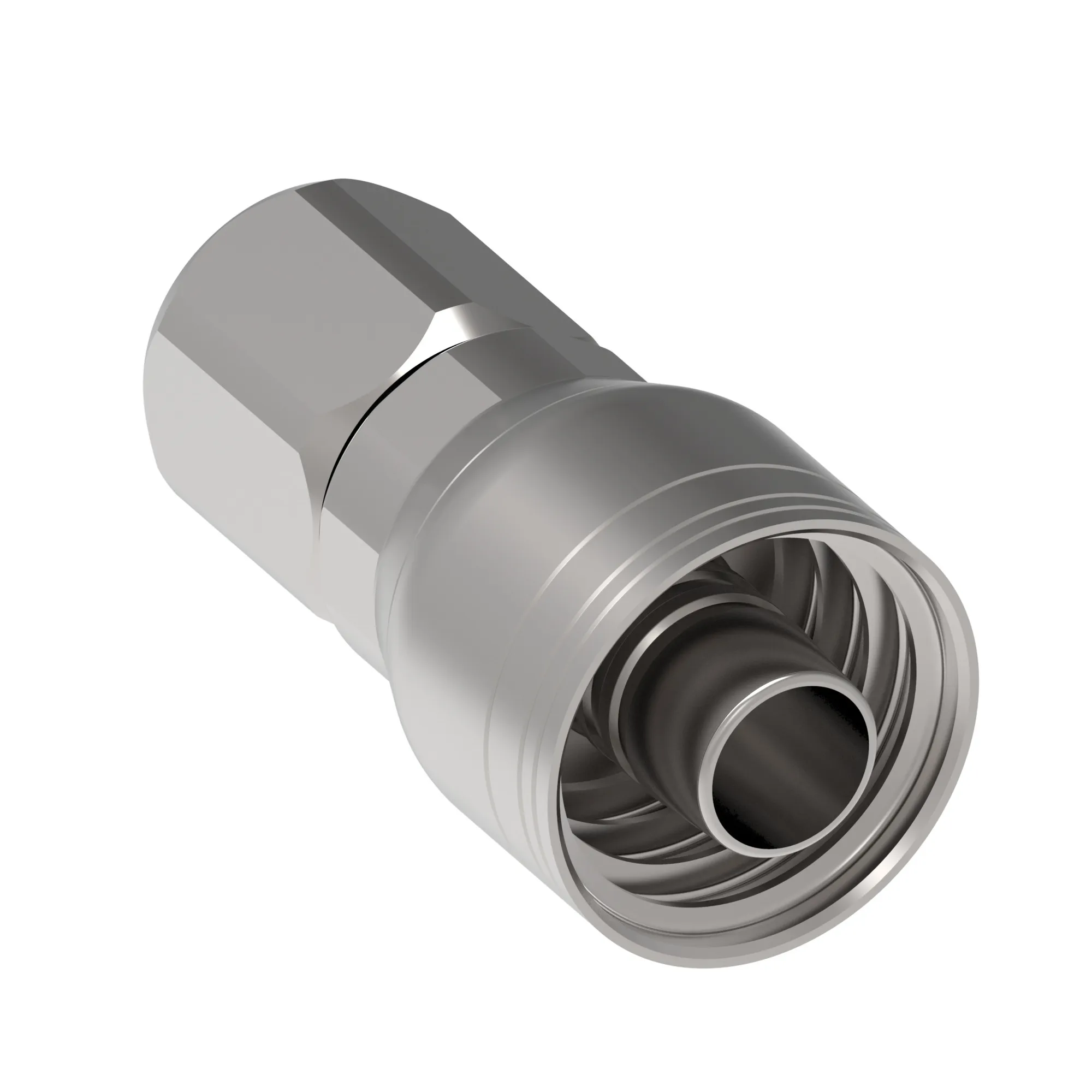

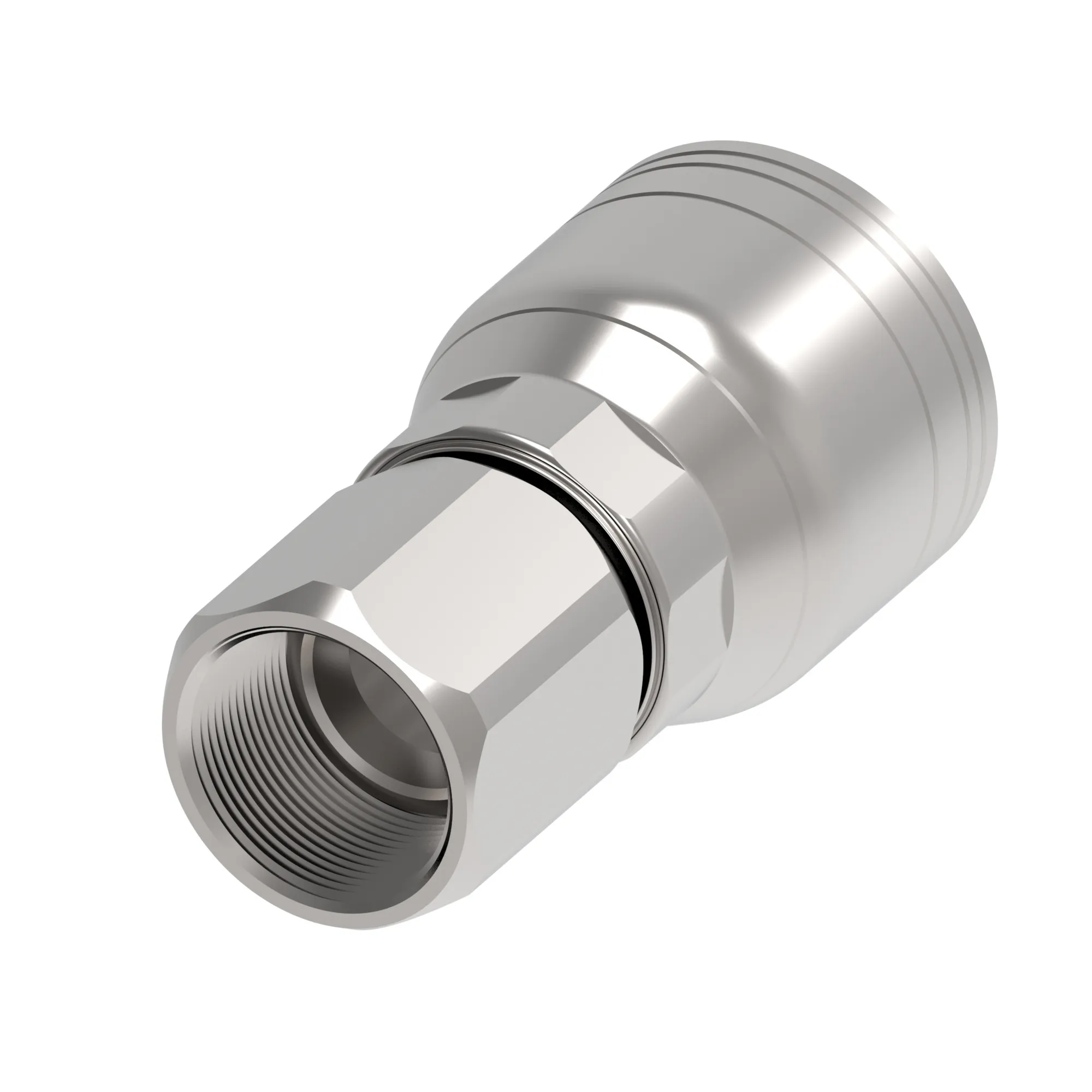

End perm 1S 1R F JIC Straigt – 04Z-604-300BX
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
End perm 1S 1R F JIC Straigt – 04Z-604-300BX
Specification
| E A N/ U P C | 639789327116 |
|---|---|
| A Dimension In | 1.920 |
| A Dimension Mm | 48.800 |
| Angle Shape | Straight |
| Compatible Hose Id In | 0.250 |
| Compatible Hose Id Mm | 6.400 |
| Compatible Hoses | H881 |
| Construction Style | Crimp |
| End Connection Torque | 11-12 lb-ft(15-16 Nm) |
| End Size 1 | -4 |
| End Type 1 | Female 37 degree swivel |
| Finish Plating | Dura-Kote |
| Hex Size 1 Mm | 14.000 |
| Hex Size 2 In | 0.563 |
| Hex Size 2 Mm | 14.000 |
| Hose Cut Off Factor In | 1.080 |
| Hose Cut Off Factor Mm | 27.300 |
| Hose Size | -4 |
| Inside Diameter In | 0.1700 |
| Inside Diameter Mm | 4.2000 |
| Product Height In | 0.882 |
| Product Height Mm | 22.400 |
| Product Material | Carbon steel |
| Series | 1A/Z Series |
| Thread Sealant | No |
| Thread Size 1 | 7/16-20 UNF |
| Working Pressure Max Bar | 450 |
| Working Pressure Max Psi | 6550 |
| Working Temperature Max C | 100 |
| Working Temperature Max F | 212 |
| Working Temperature Min C | -40 |
| Working Temperature Min F | -40 |
