Danfoss (Drives) 036-0266-002

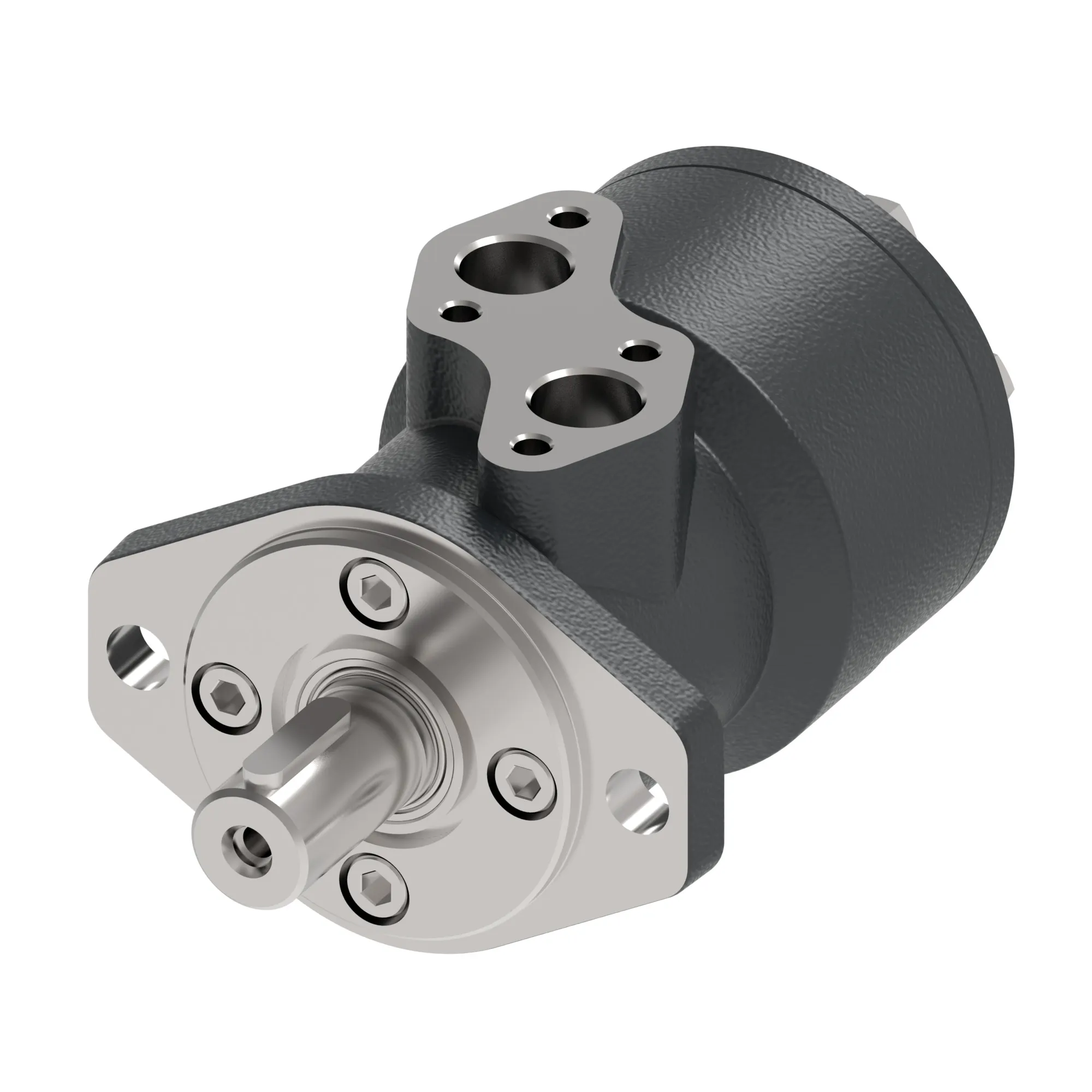

MOTOR-ORBITAL,XLS SERIES 395 [24.0], MCS395AC04AE310000A000C00B – 036-0266-002
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,XLS SERIES 395 [24.0], MCS395AC04AE310000A000C00B – 036-0266-002
Specification
| Model Code | MCS395AC04AE310000A000C00B |
|---|---|
| Motor Series | XLS Series |
| Valve System | Spool valve |
| Orbital Gearwheel Set Type | Geroler |
| Motor Size | 395 |
| Geometric Displacement [Cm3/R [In3/R]] | 393.0 [23.98] |
| Motor Type | Standard |
| Motor Function | Standard |
| Mounting Flange Type | 2 Bolt – A |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 82.6 x 2.8, 106.4, 13.5 [3.25 x 0.11, 4.19, 0.53] |
| Shaft Type | Splined |
| Shaft Dimension | Dia. 1 inch, SAE 6B, 1/4 – 20 UNC-2B thread in shaft end |
| Shaft Key | n/a |
| Main Port Thread Type | UN / UNF |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | 7/8 – 14 UNF-2B SAE O-Ring port, 4 x M8 block mounting threads |
| Drain Port Dimension | 7/16 – 20 UNF-2B SAE O-Ring port |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint Information | Painted, Black |
| Special Features Assembly | Standard |
| Dust Seal | Standard |
| Shaft Seal | NBR – Standard |
| Seal Kit | Z331-25 |
| Front Bearing Type | Journal bearing |
| Rear Bearing Type | Journal bearing |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | Yes |
| Hydraulic Valve Function | None |
| Sensor | None |
| Packaging | No data available |
| Name Tag | Danfoss name tag |
| Design Code | 2 |
| Brand | Danfoss |
| Sub Brand | Xcel |
