Danfoss (Drives) 036-0192-002

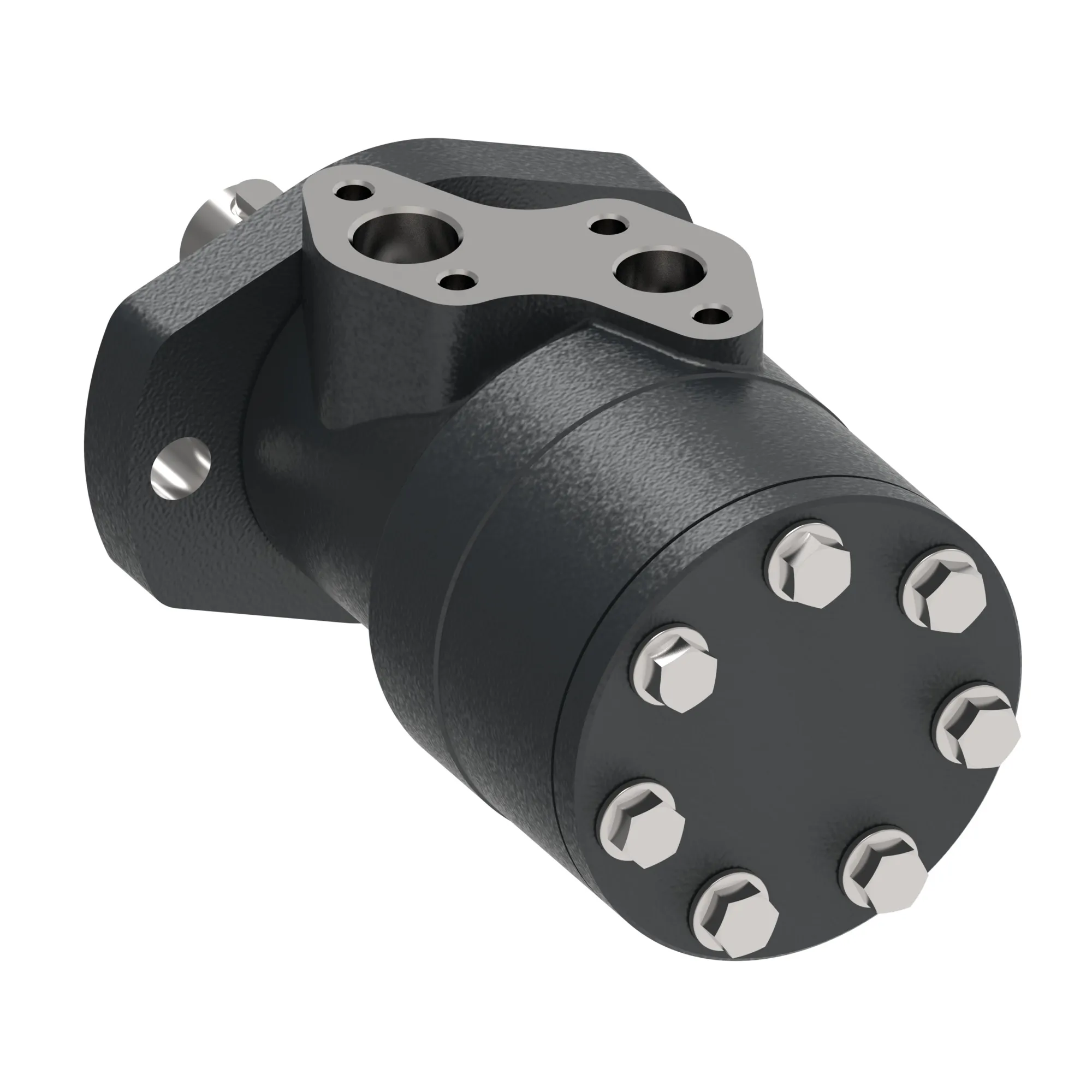

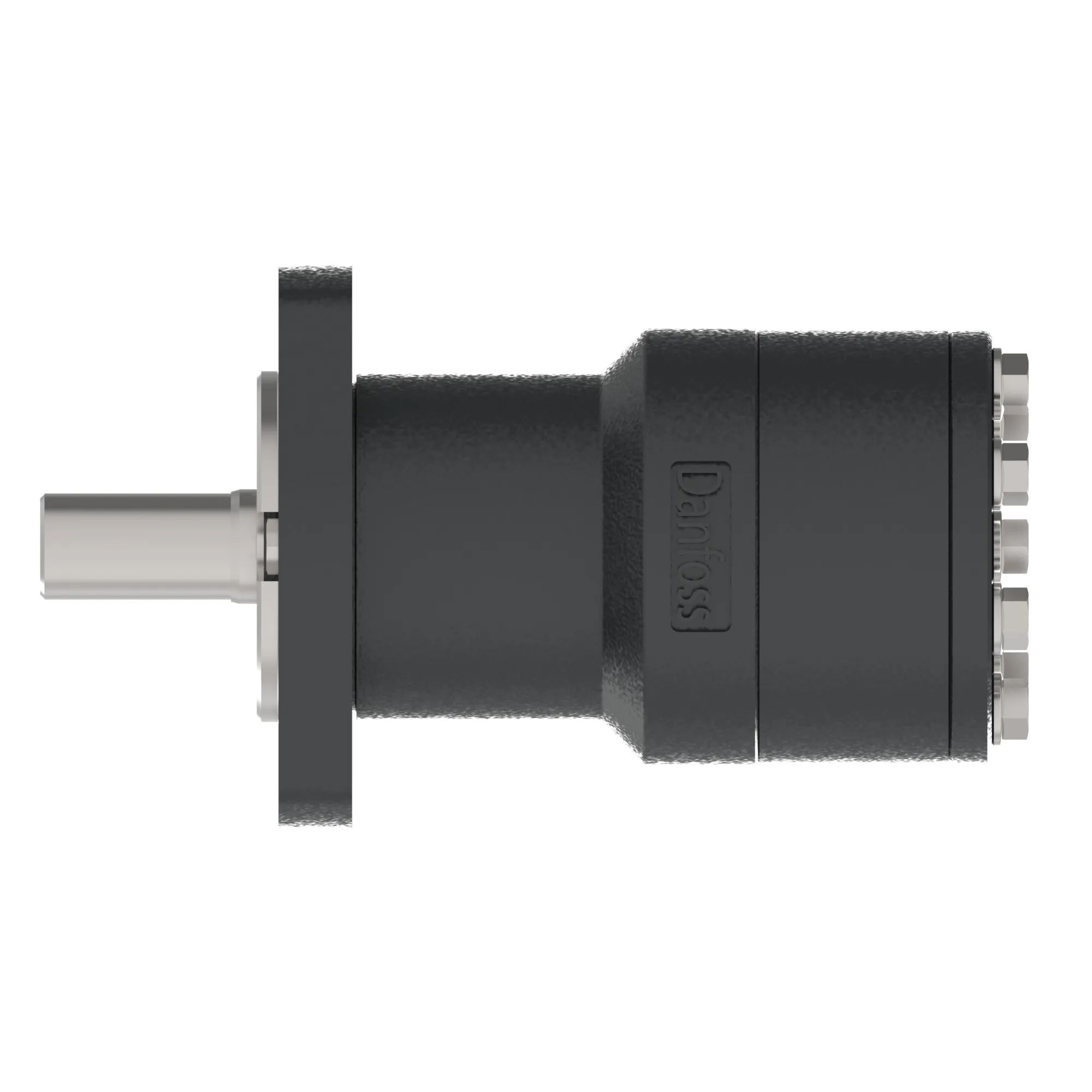

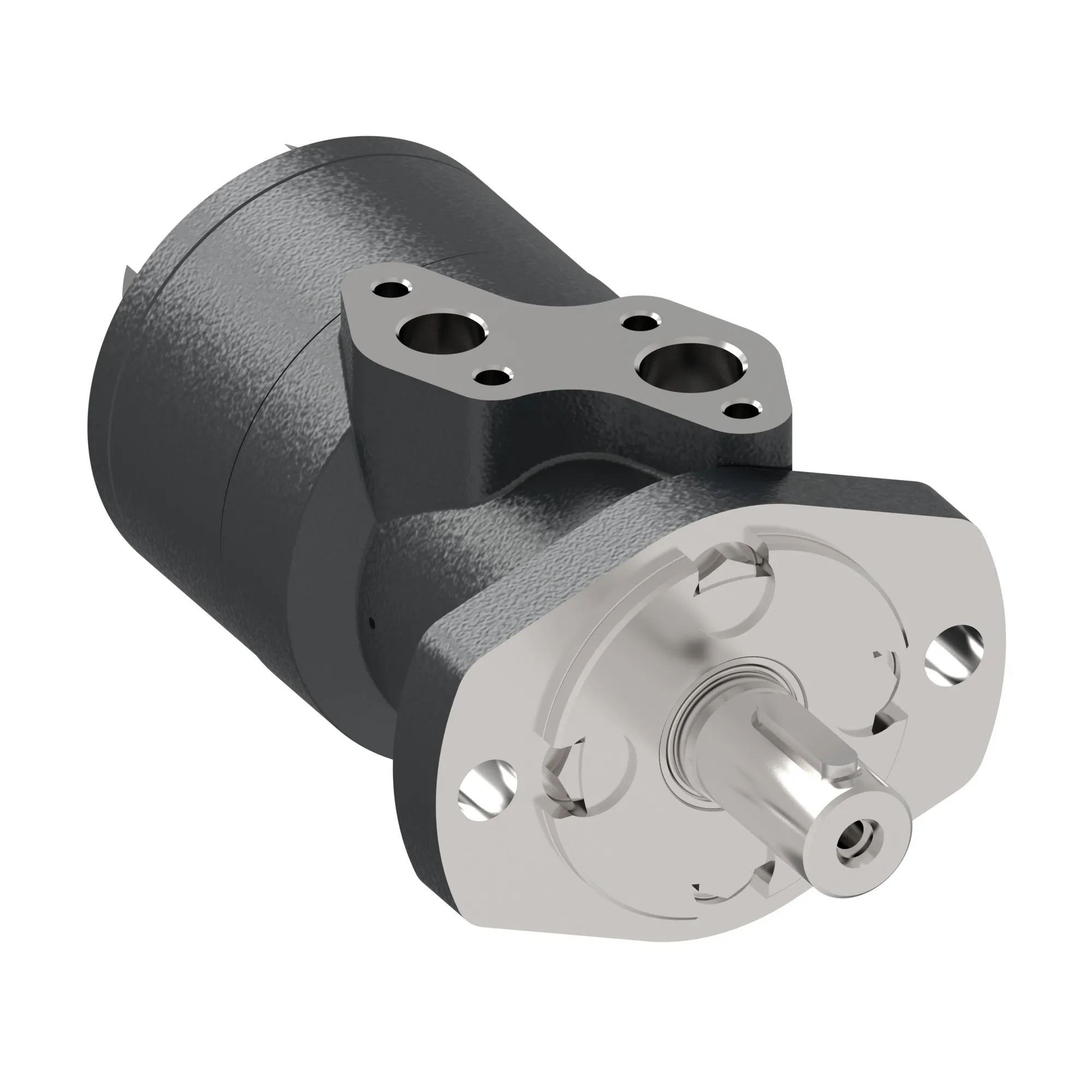

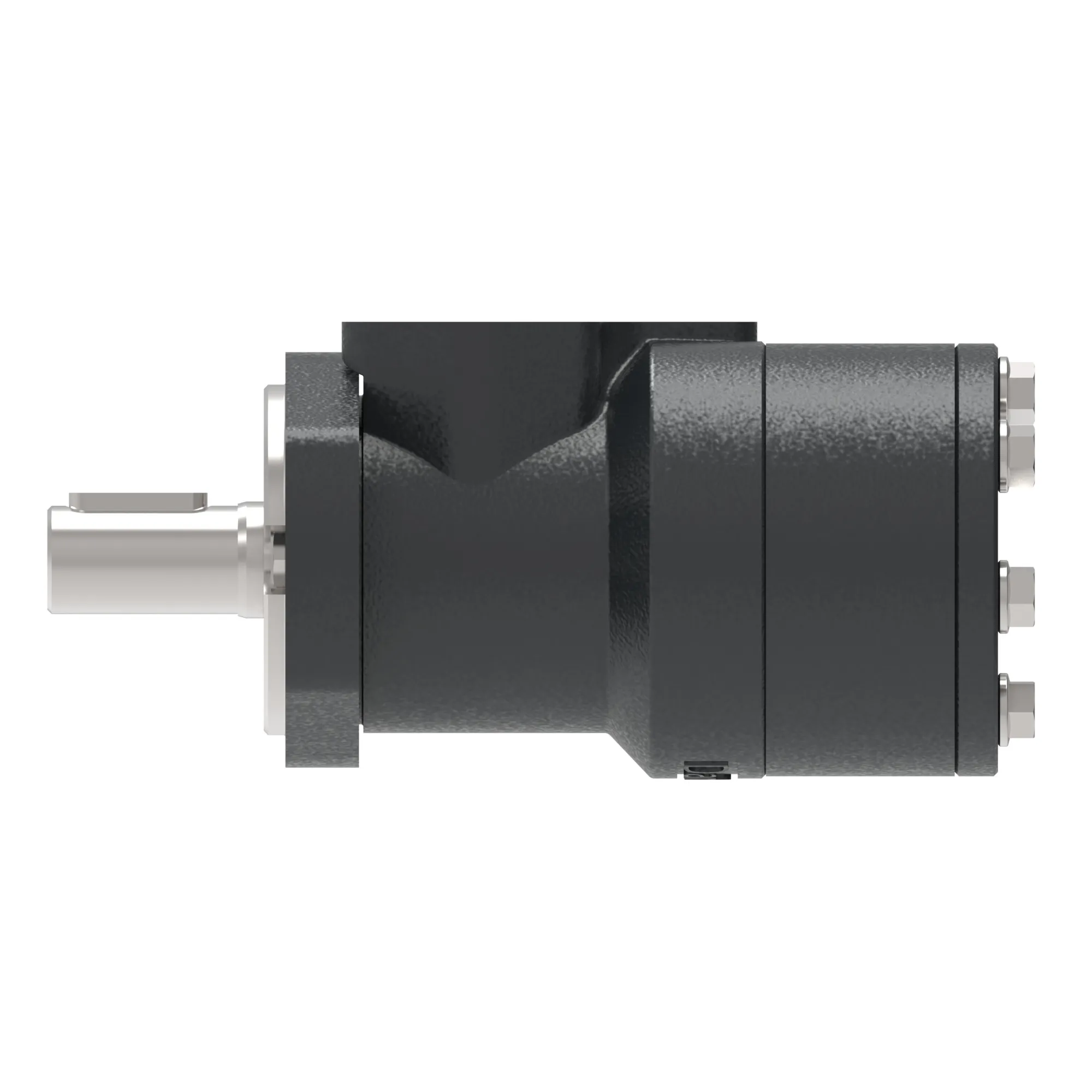

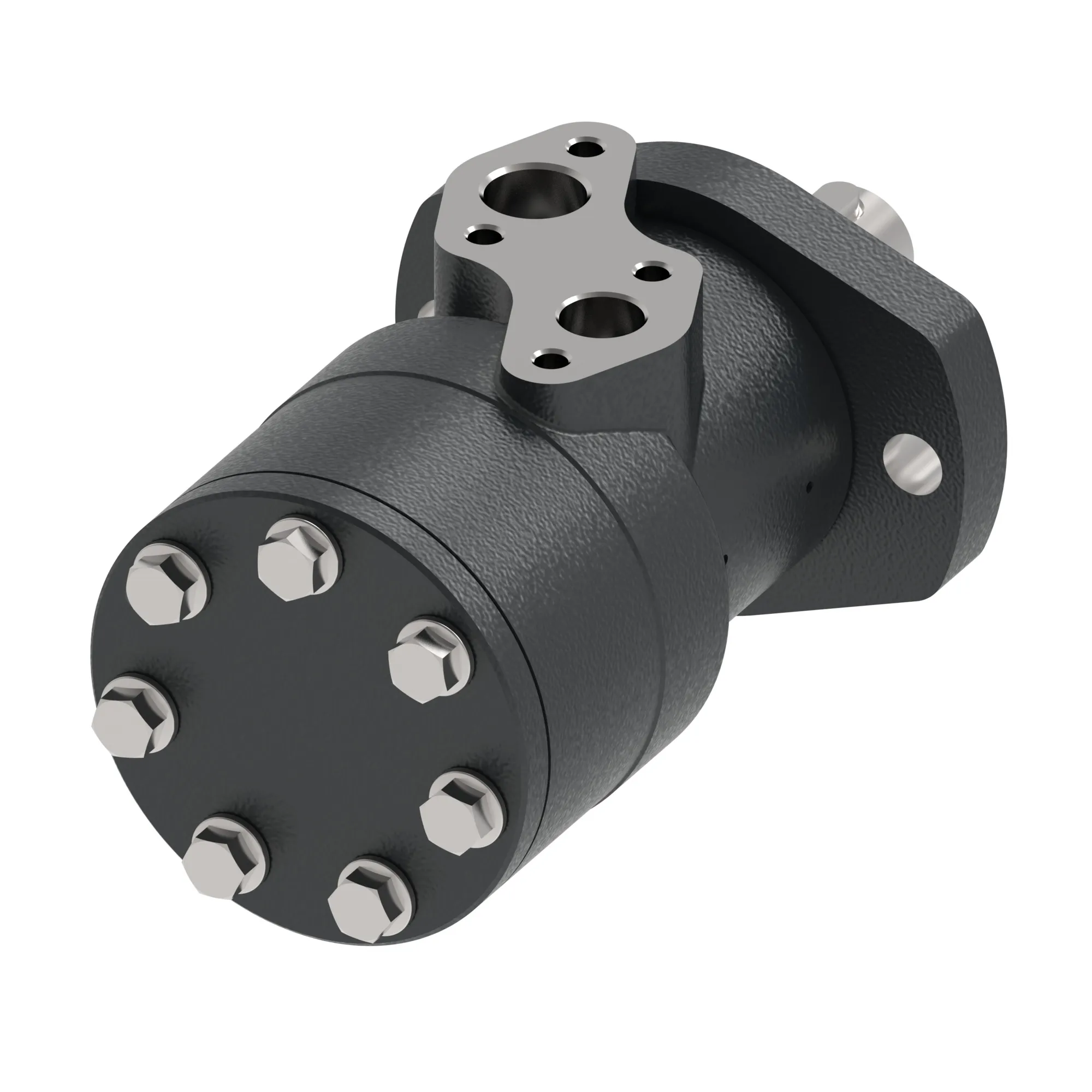

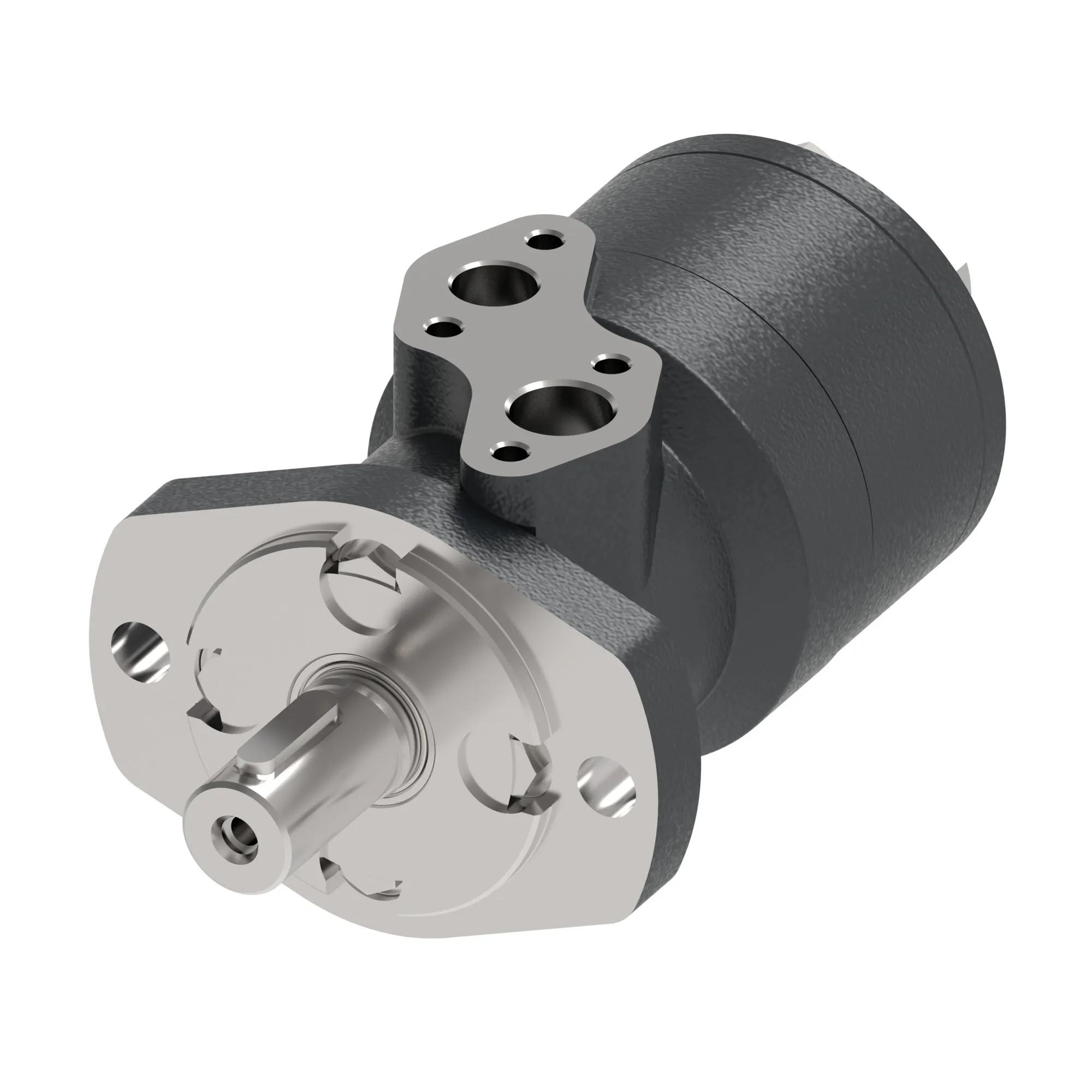

MOTOR-ORBITAL,XLS SERIES 245 [14.9], MCS245AI22AA010000A020B00B – 036-0192-002
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,XLS SERIES 245 [14.9], MCS245AI22AA010000A020B00B – 036-0192-002
Specification
| Model Code | MCS245AI22AA010000A020B00B |
|---|---|
| Motor Series | XLS Series |
| Valve System | Spool valve |
| Orbital Gearwheel Set Type | Geroler |
| Motor Size | 245 |
| Geometric Displacement [Cm3/R [In3/R]] | 243.9 [14.88] |
| Motor Type | Standard |
| Motor Function | Standard |
| Mounting Flange Type | 2 Bolt |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 82.6 x 5.0, 106.4, 13.5 [3.25 x 0.20, 4.19, 0.53] – Spec. Component |
| Shaft Type | Straight |
| Shaft Dimension | Dia. 25 mm, M8 thread in shaft end – Spec. Component |
| Shaft Key | Rectangular key, A8 x 7 x 32 mm |
| Main Port Thread Type | BSP |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | G 1/2, 4 x M8 block mounting threads |
| Drain Port Dimension | None |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint Information | Painted, Blue |
| Special Features Assembly | Standard |
| Dust Seal | Standard |
| Shaft Seal | NBR – Standard |
| Seal Kit | Z331-25 |
| Front Bearing Type | Needle roller bearing |
| Rear Bearing Type | Needle roller bearing |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | Yes |
| Hydraulic Valve Function | None |
| Sensor | None |
| Packaging | No data available |
| Name Tag | Danfoss name tag |
| Brand | Danfoss |
| Sub Brand | Xcel |
