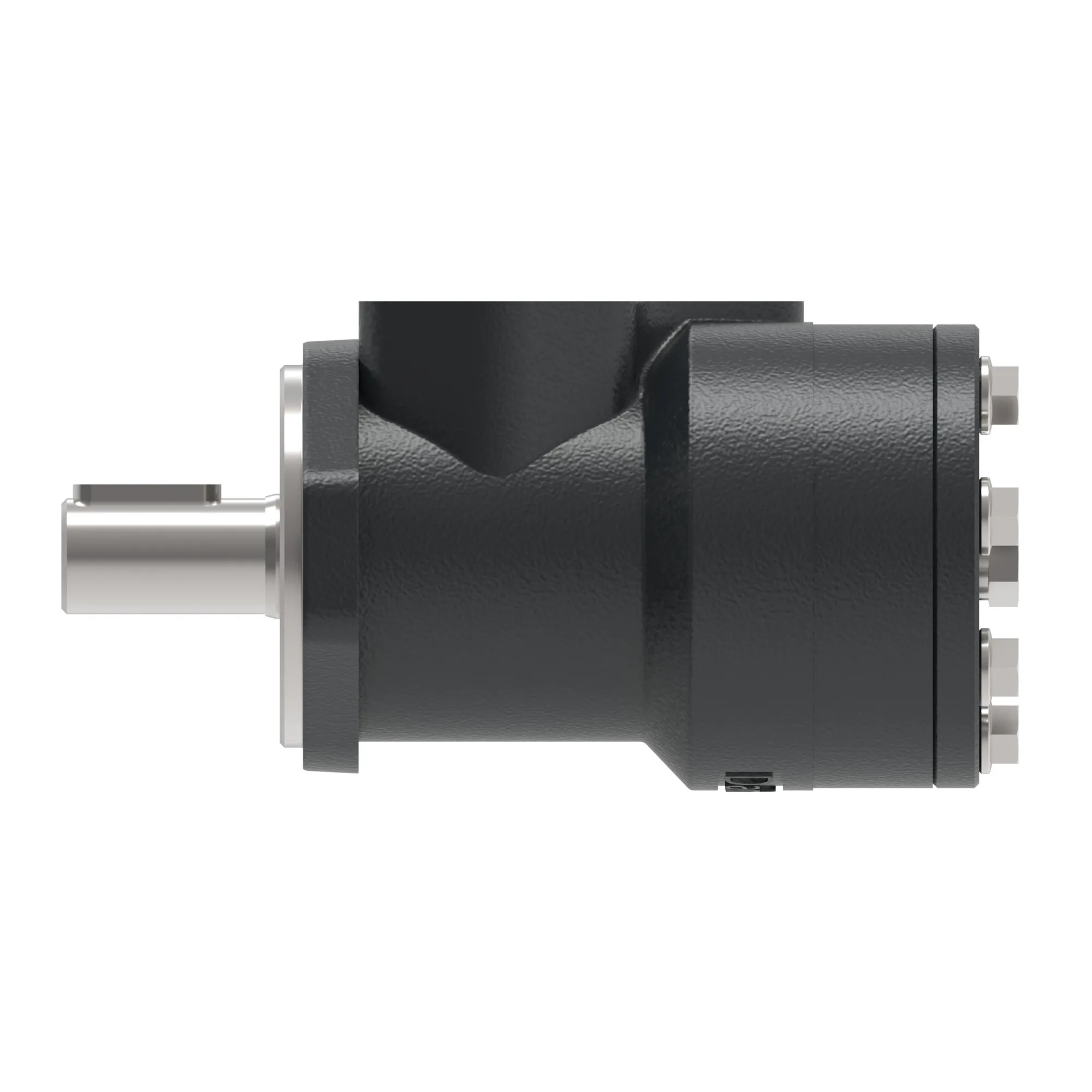

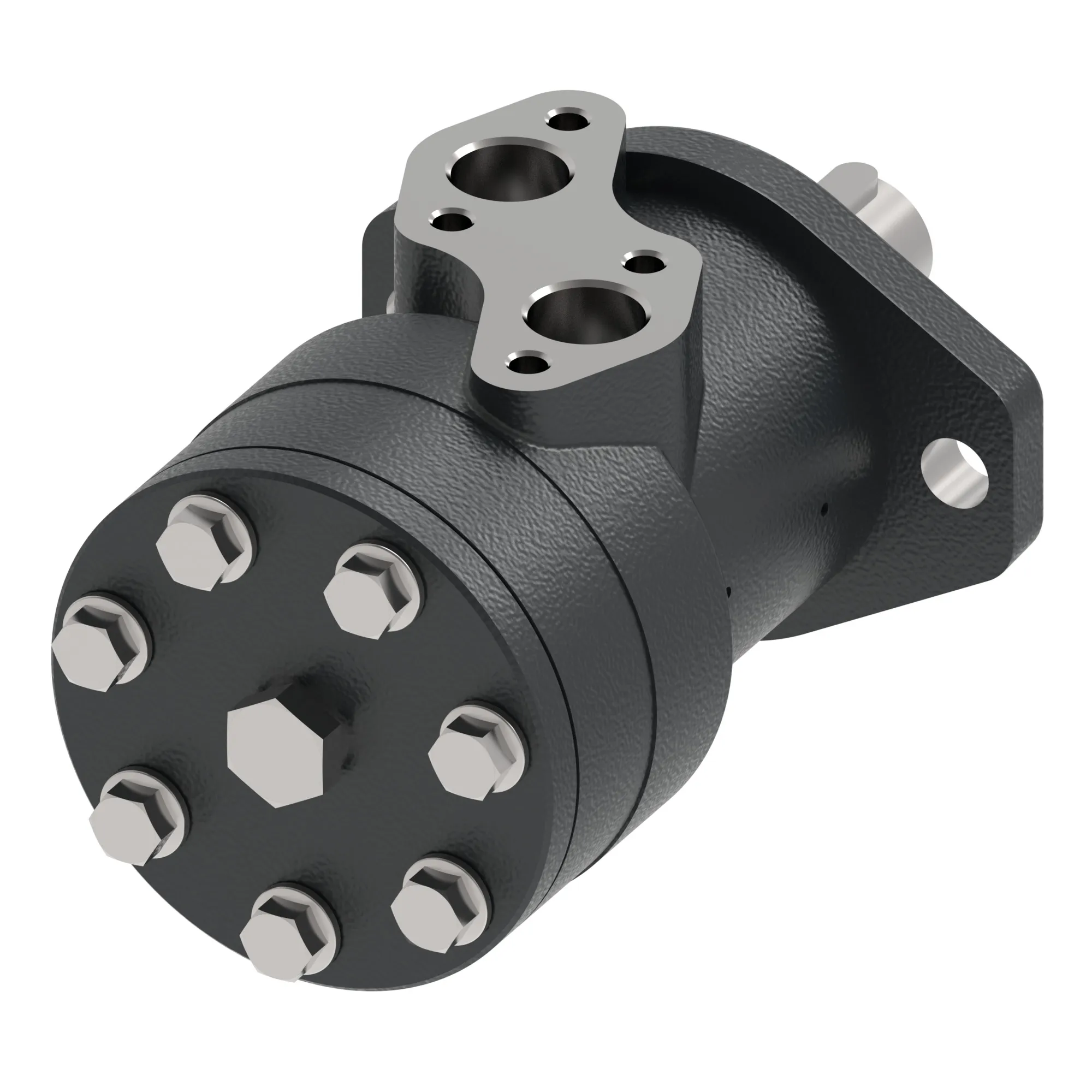

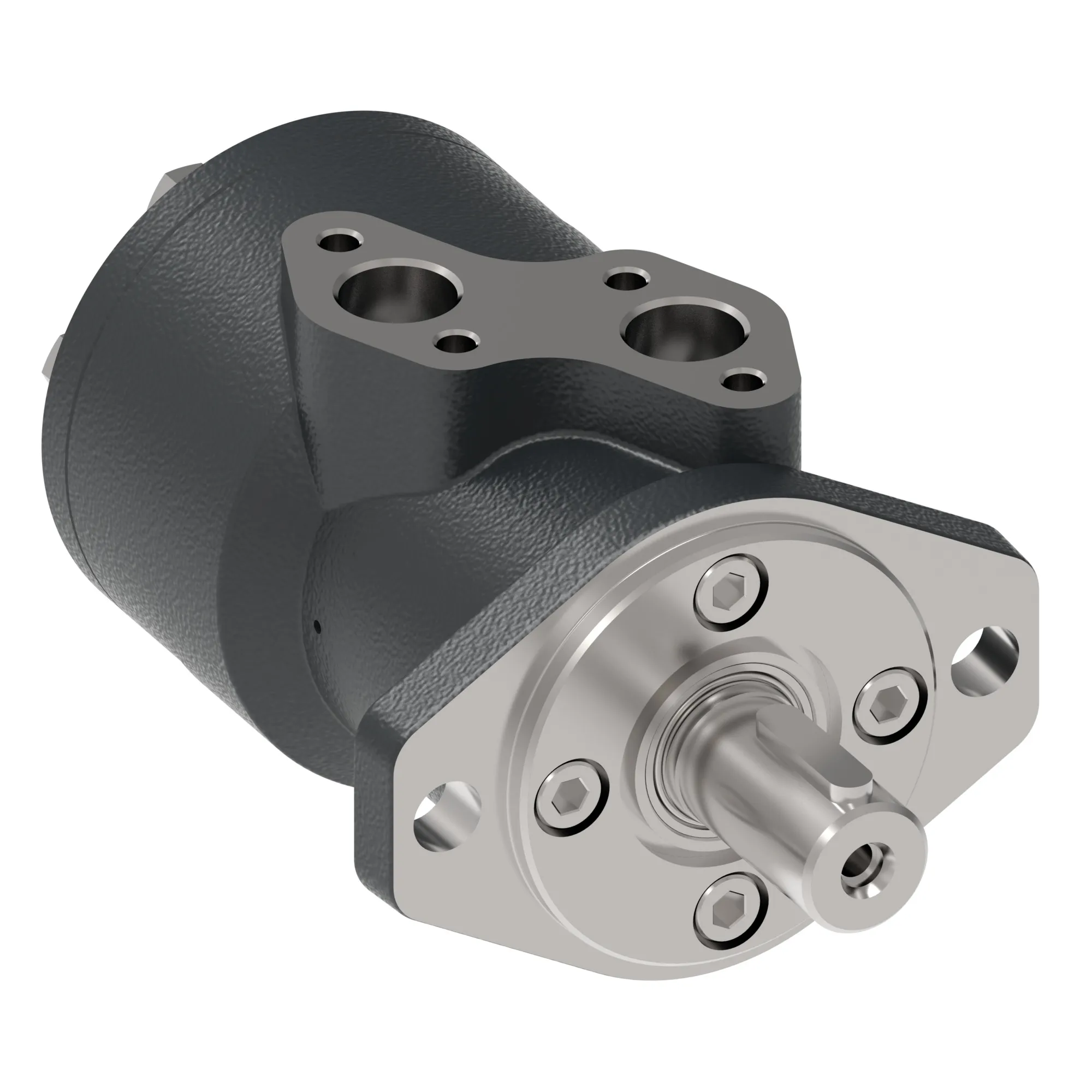

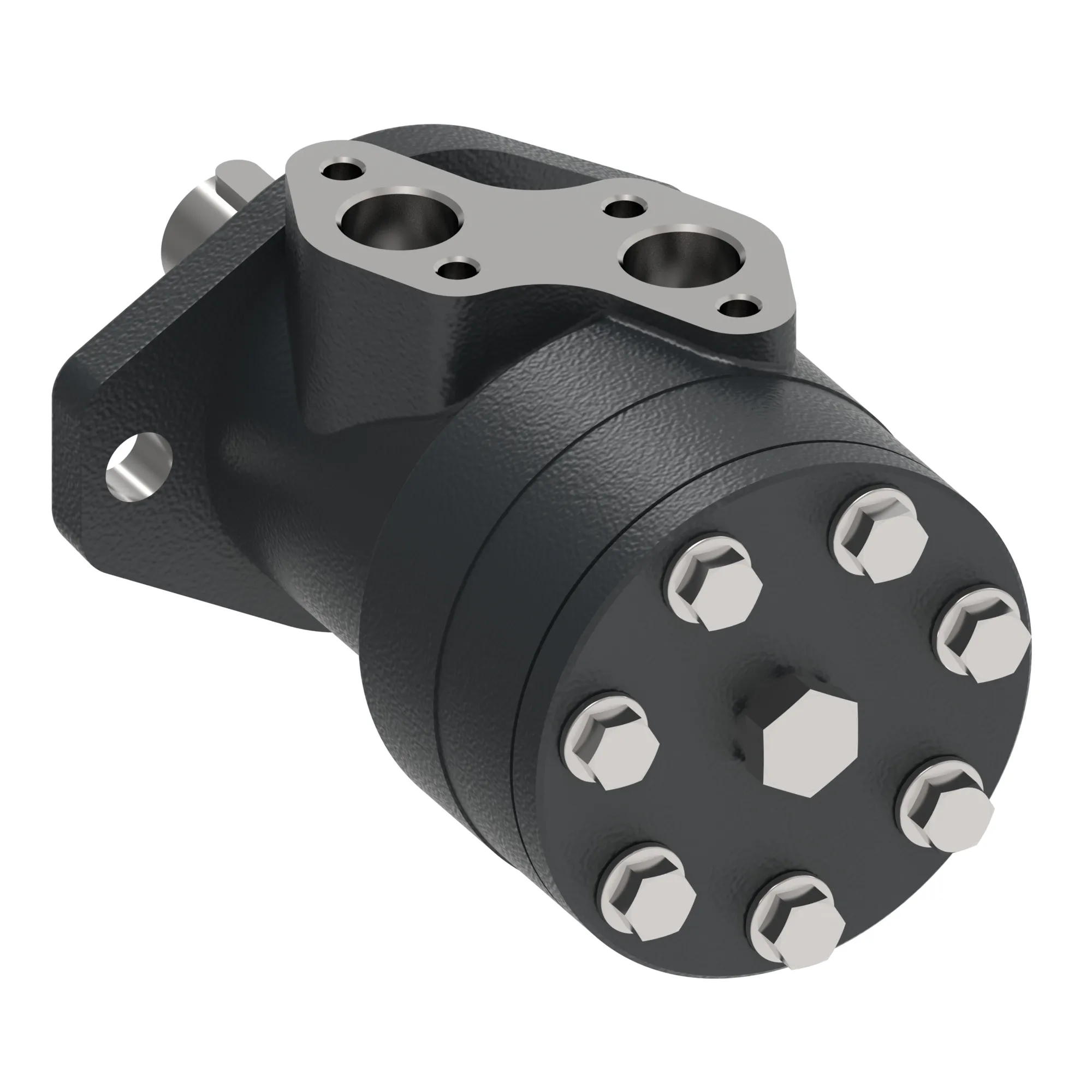

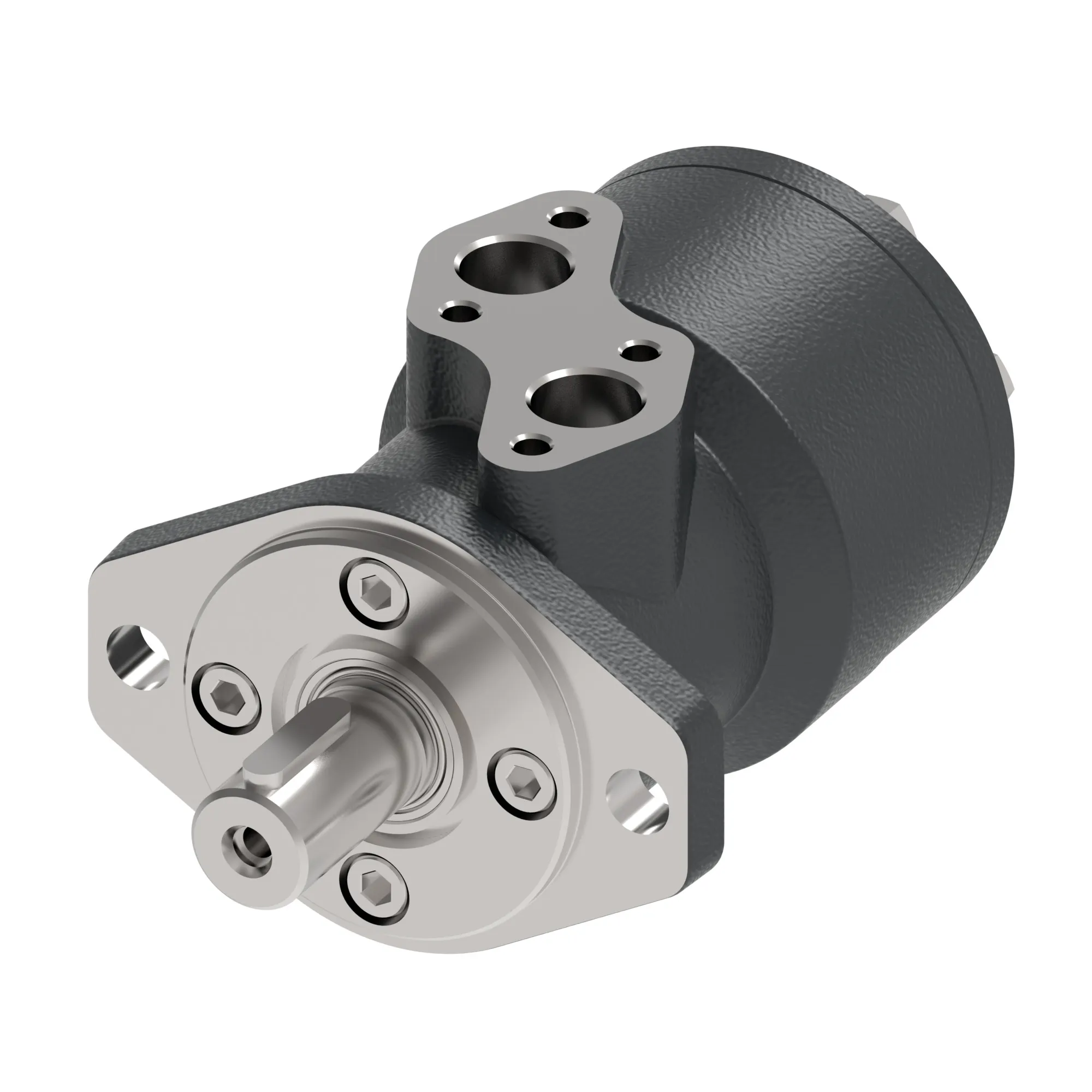

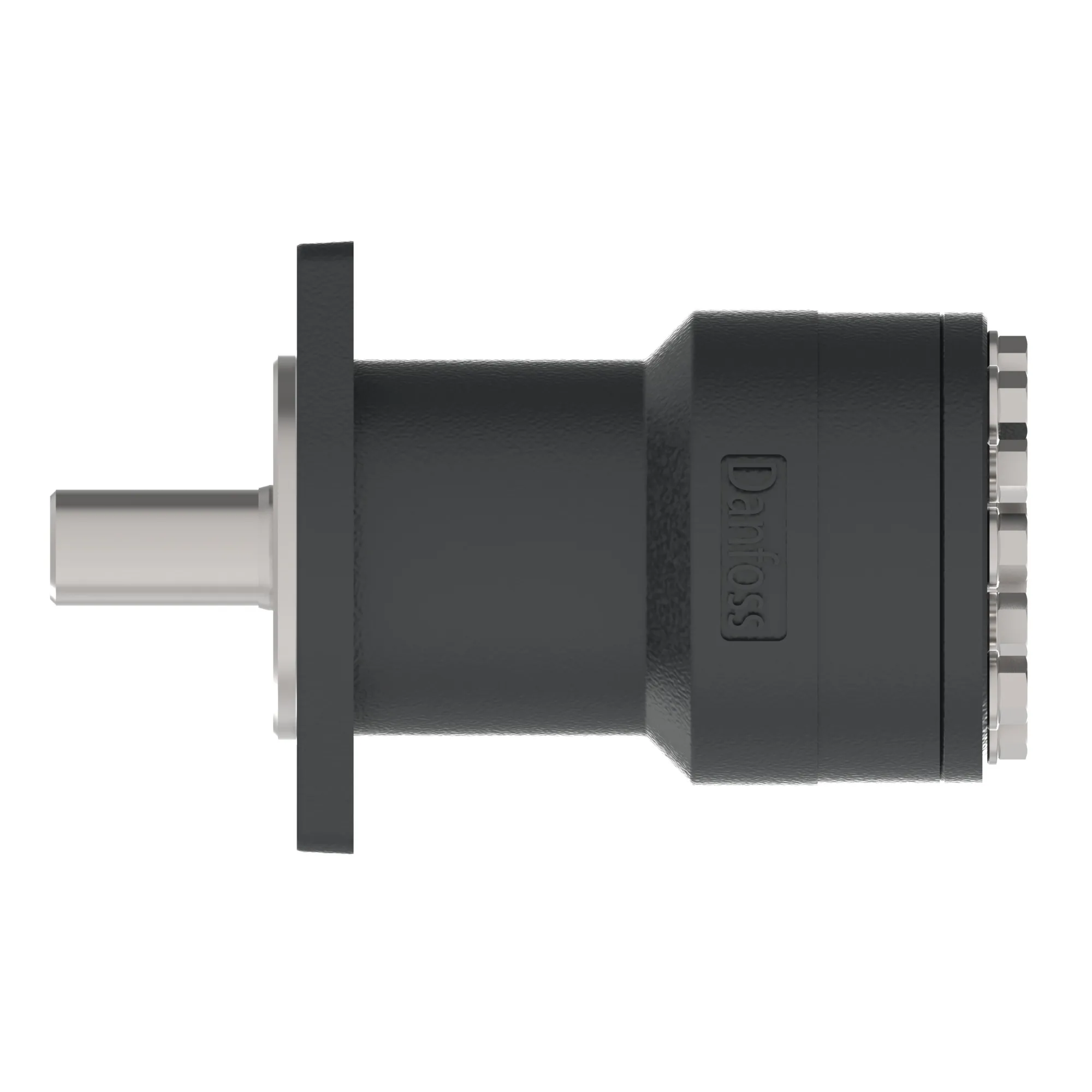

Danfoss (Drives) 036-0166-002
MOTOR-ORBITAL,XLS SERIES 50 [3.1], MCS050AA02AA110020A000D00B – 036-0166-002
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,XLS SERIES 50 [3.1], MCS050AA02AA110020A000D00B – 036-0166-002
Specification
| Model Code | MCS050AA02AA110020A000D00B |
|---|---|
| Motor Series | XLS Series |
| Valve System | Spool valve |
| Orbital Gearwheel Set Type | Geroler |
| Motor Size | 50 |
| Geometric Displacement [Cm3/R [In3/R]] | 50.4 [3.08] |
| Motor Type | Standard |
| Motor Function | Standard |
| Mounting Flange Type | 2 Bolt – A |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 82.6 x 5.0, 106.4, 13.5 [3.25 x 0.20, 4.19, 0.53] |
| Shaft Type | Straight |
| Shaft Dimension | Dia. 25 mm, M8 thread in shaft end – Spec. Component |
| Shaft Key | Rectangular key, A8 x 7 x 32 mm |
| Main Port Thread Type | BSP |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | G 1/2, 4 x M8 block mounting threads |
| Drain Port Dimension | G 1/4 |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint Information | Painted, Black – Spec. Component |
| Special Features Assembly | Standard |
| Dust Seal | Standard |
| Shaft Seal | NBR – High pressure |
| Seal Kit | Z331-59 |
| Front Bearing Type | Journal bearing |
| Rear Bearing Type | Journal bearing |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | Yes |
| Hydraulic Valve Function | None |
| Sensor | None |
| Packaging | No data available |
| Name Tag | Danfoss name tag |
| Brand | Danfoss |
| Sub Brand | Xcel |
