Danfoss (Drives) 03310-20ANZ
SOCKET-PERM, 2P/20, CS – 03310-20ANZ
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

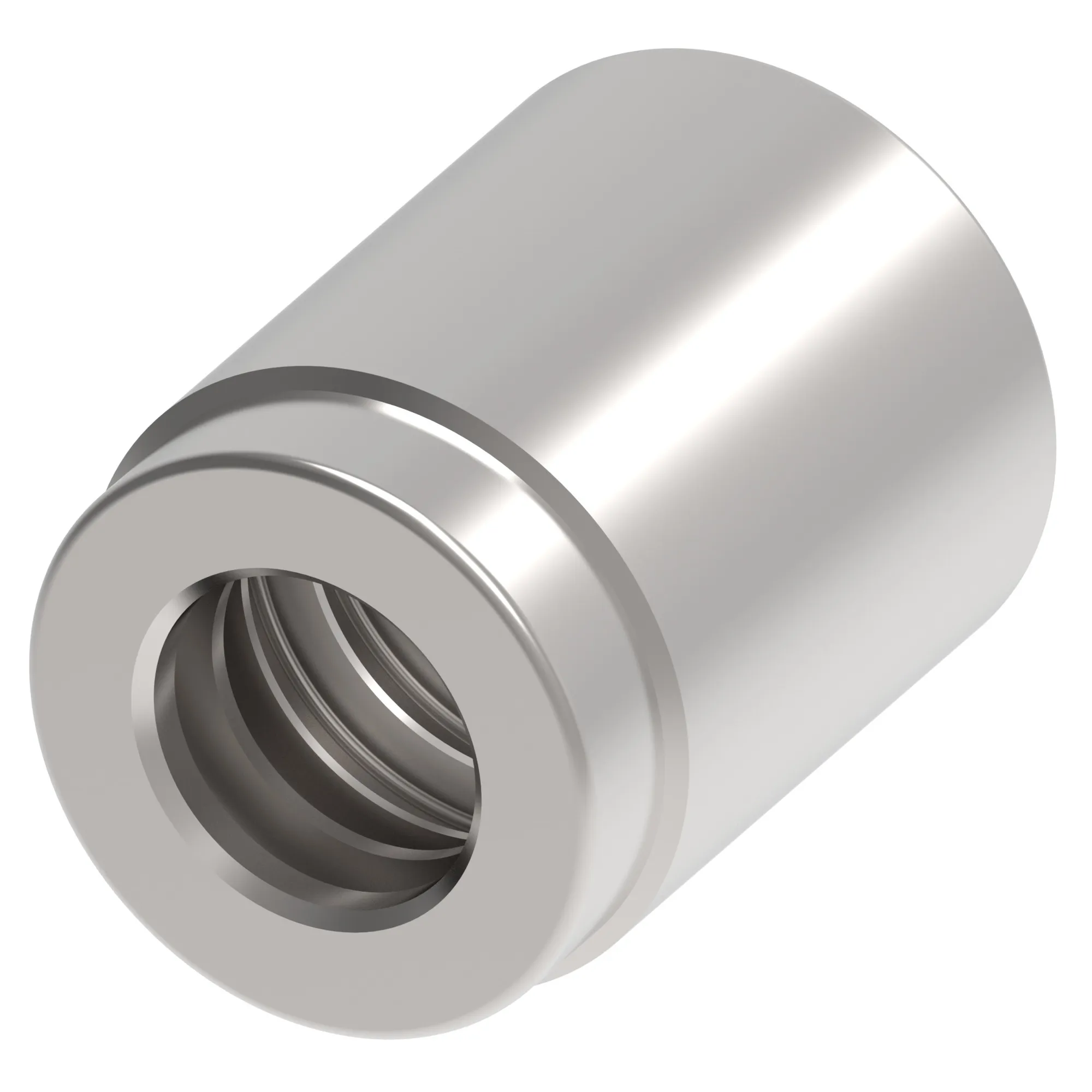

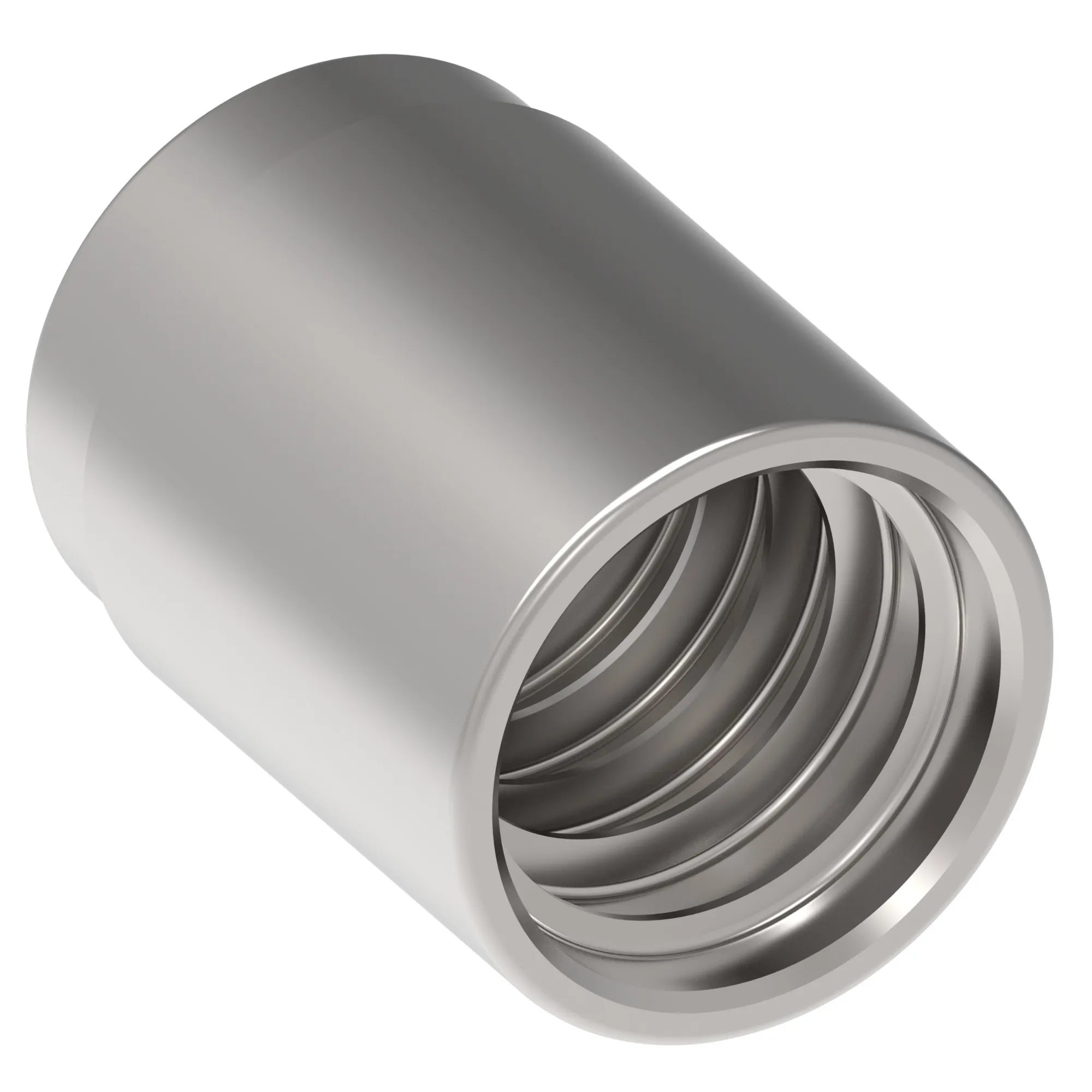

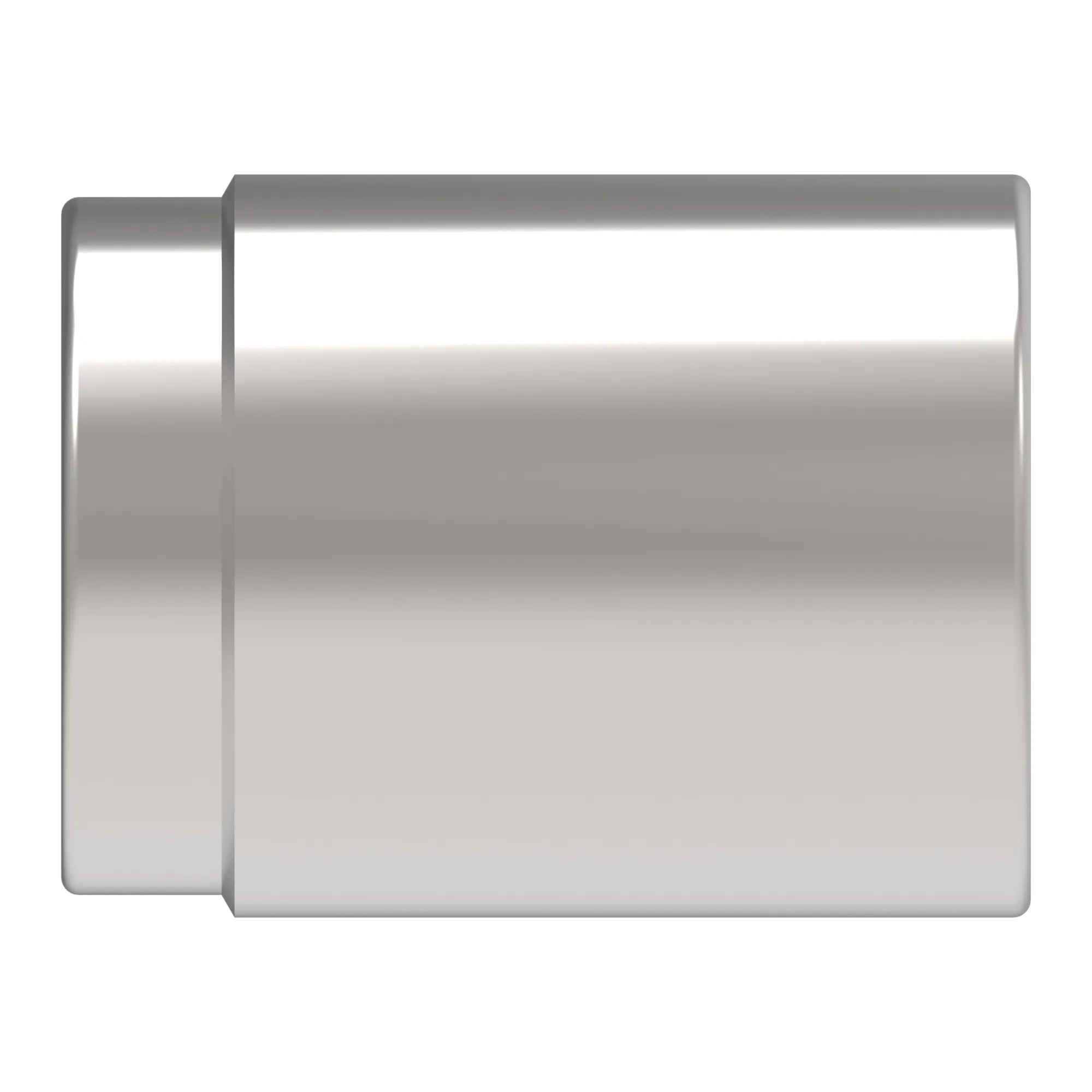

SOCKET-PERM, 2P/20, CS – 03310-20ANZ
Specification
| A Dimension In | 2.165 |
|---|---|
| A Dimension Mm | 55.000 |
| Angle Shape | Straight |
| Application | General industrial use, Hydraulic systems, Petroleum based fluids, Water based fluids |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 1.250 |
| Compatible Hose Id Mm | 31.800 |
| Construction Style | Crimp |
| Finish Plating | Zinc plating |
| Hose Size | -20 |
| Inside Diameter In | 1.4700 |
| Inside Diameter Mm | 37.5000 |
| Product Height In | 2.320 |
| Product Height Mm | 58.928 |
| Product Length In | 2.160 |
| Product Length Mm | 54.864 |
| Product Material | Carbon steel |
| Product Width In | 2.320 |
| Product Width Mm | 58.928 mm |
| Series | Winner 2-Piece |
| Thread Sealant | No |
| Working Temperature Max C | 100 |
| Working Temperature Max F | 212 |
| Working Temperature Min C | -40 |
| Working Temperature Min F | -40 |
