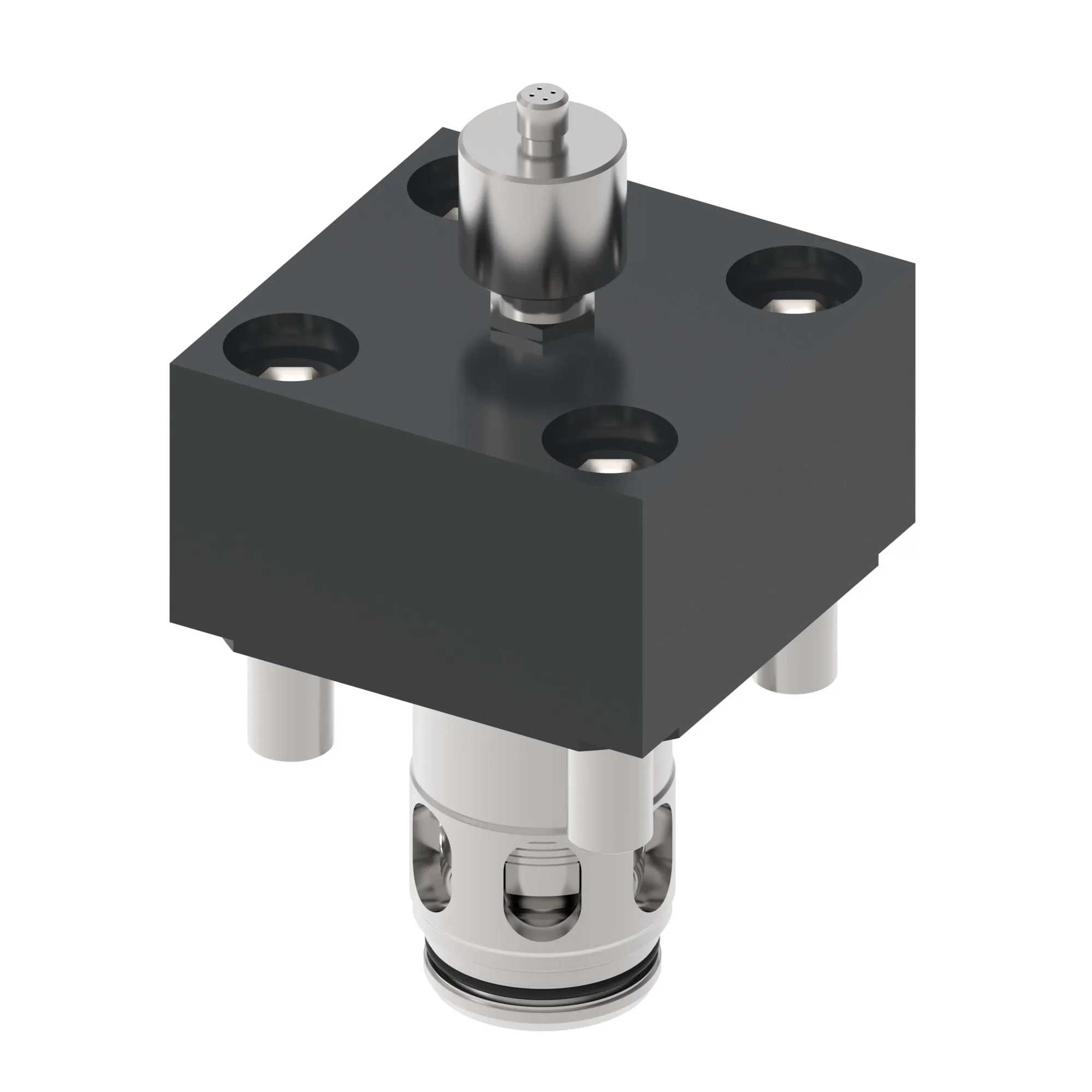

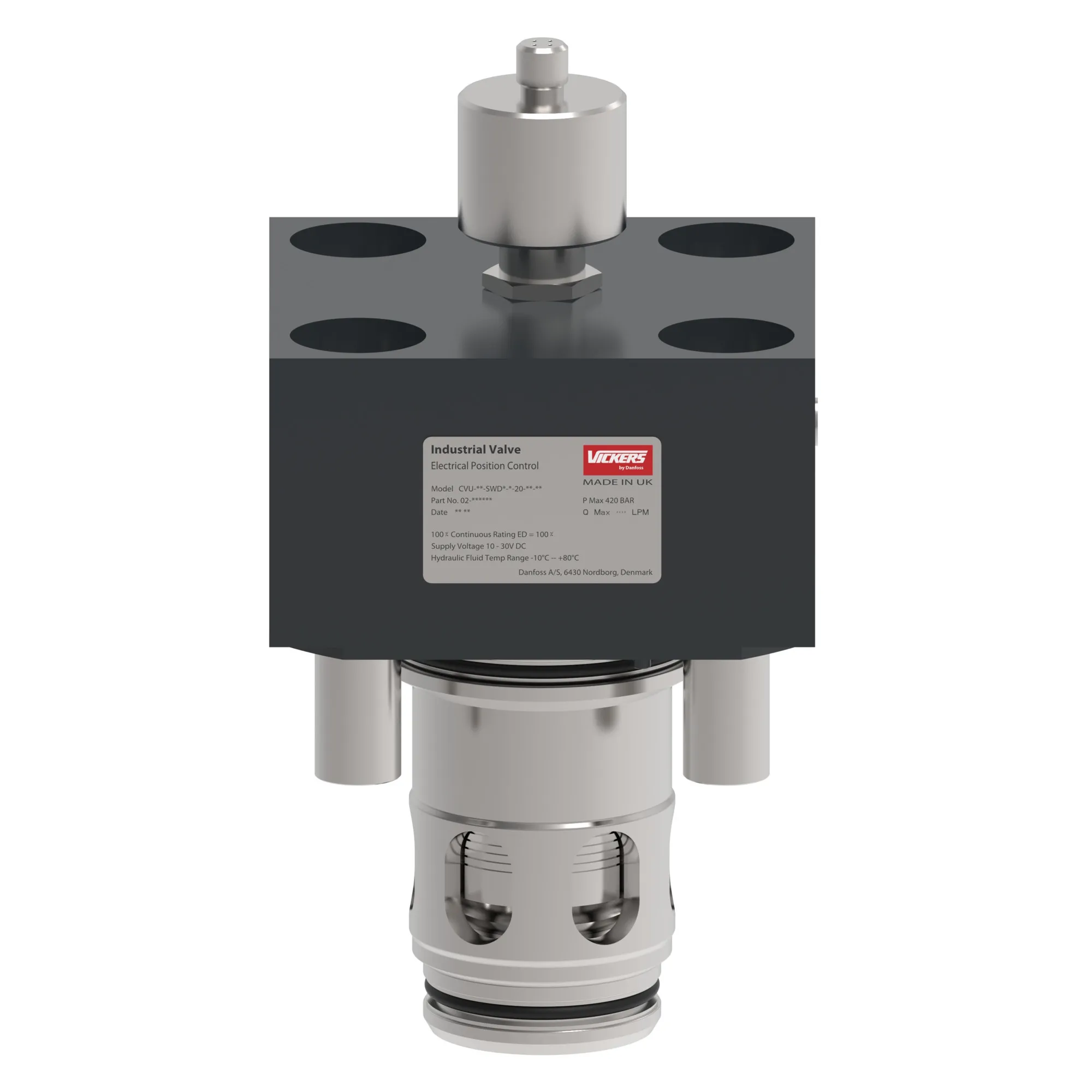

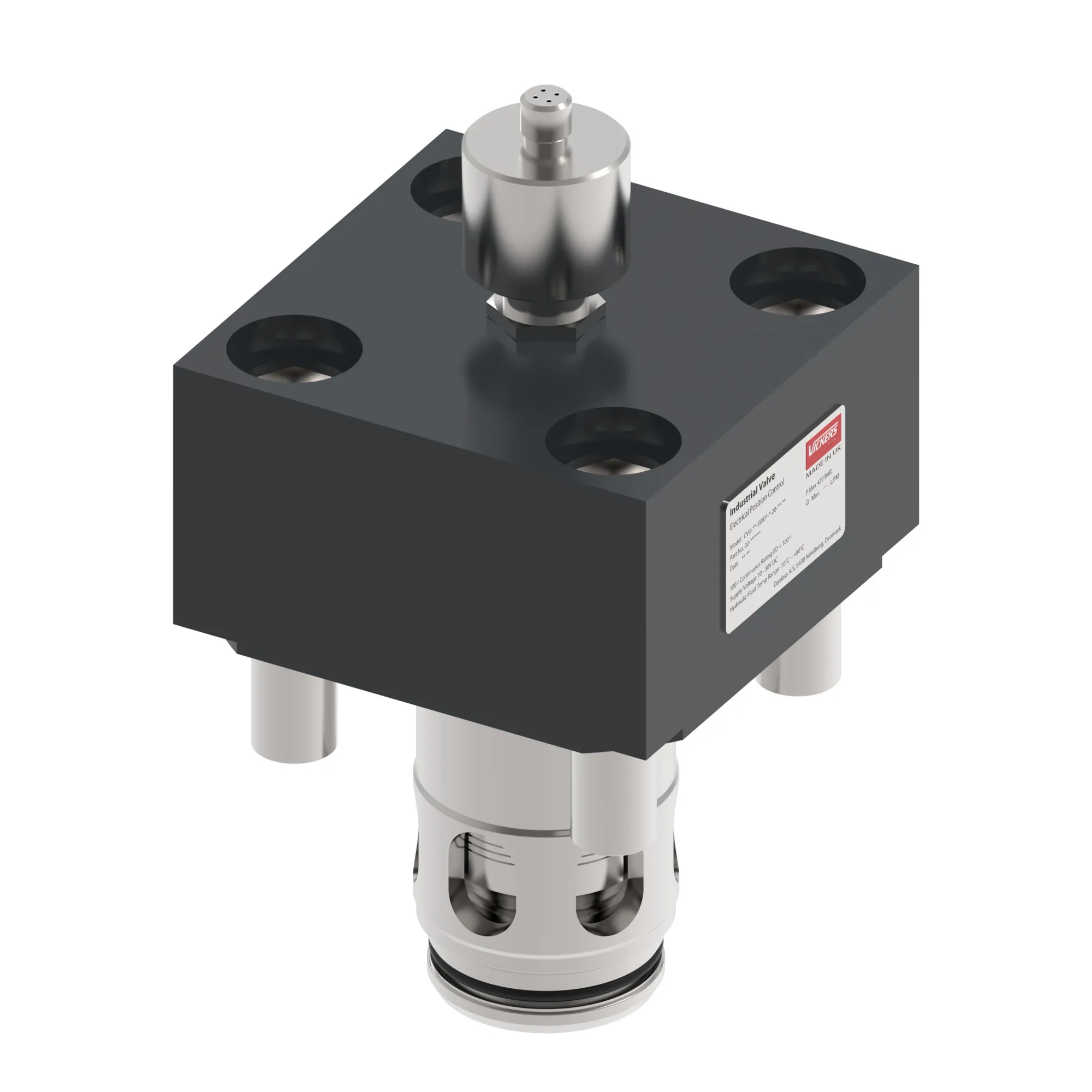

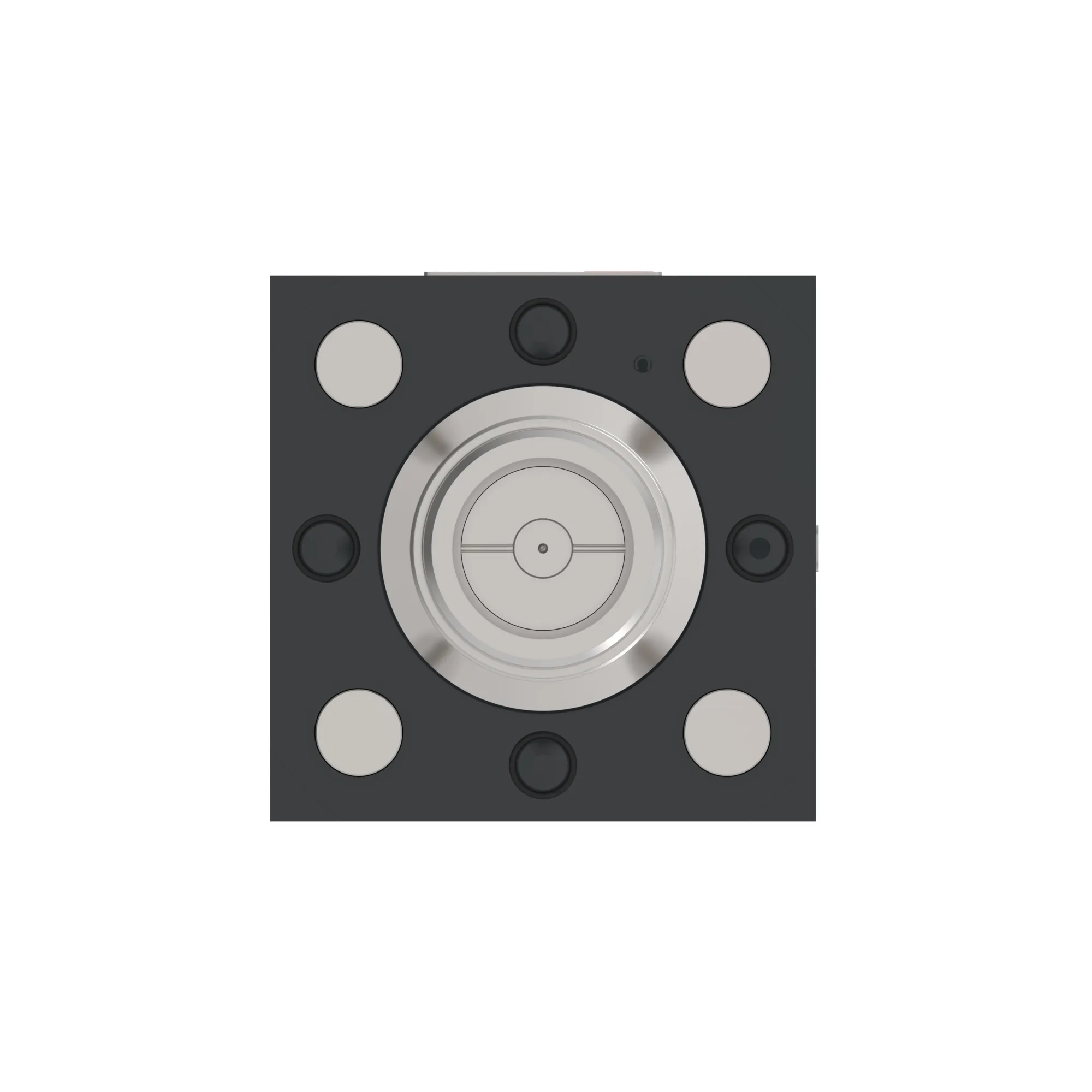

Danfoss (Drives) 02-420818
CVU-40-SWD-L-20, CVU40SWDL20 – 02-420818
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
CVU-40-SWD-L-20, CVU40SWDL20 – 02-420818
Specification
| Adjustment | No |
|---|---|
| Brand | Vickers by Danfoss |
| Cover Type | Directional valve with electric switch |
| Cracking Pressure Bar | 0.50 |
| Cracking Pressure Psi | 7.0 |
| Design Series | 20 Design |
| Flow Rate Lpm | 1925 |
| Flow Rate Usgpm | 510.0 |
| Fluid Cleanliness | 18/16/13 micron |
| Fluid Compatibility | Water Glycol, Water-in-Oil Emulsions and Petroleum Oil |
| Gauge Port Thread | BSPF |
| Insert Ratio | 1:2 |
| Interface | No |
| Leakage | Standard |
| Model Code 1 | CVU40SWDL20 |
| Normal Function | Normally closed |
| Pilot Port Orientation | ISO |
| Pressure Rating Bar | 420 |
| Pressure Rating Psi | 6092.00 |
| Seal Material | Buna-N |
| Size | NG 40 |
| Special Feature | None |
| Spool Position Sensor | Yes |
| Valve Type | Cartridge valve unit |
| Valvistor | No |
| Working Temp Max C | 80 |
| Working Temp Max F | 176 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
