Description

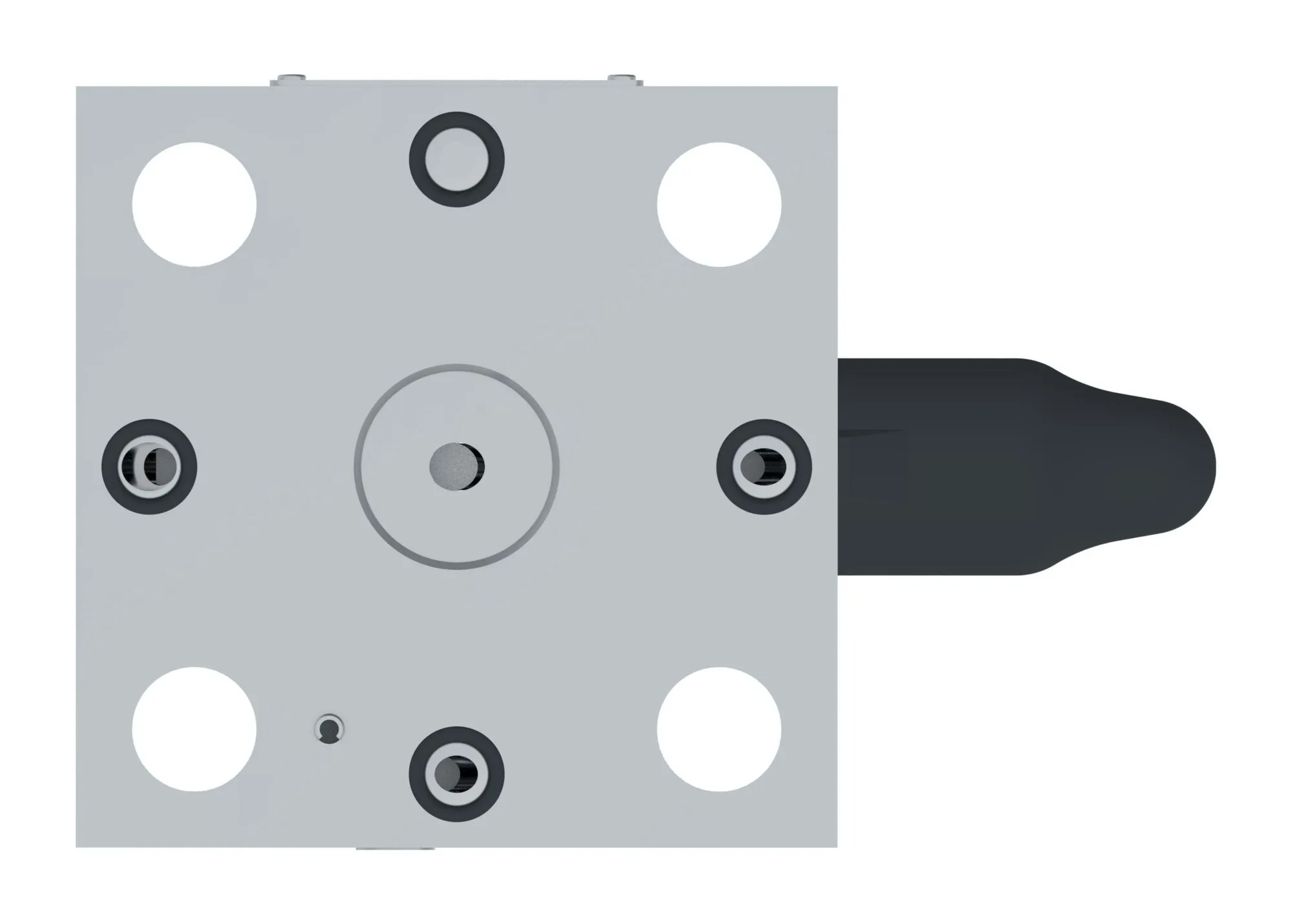

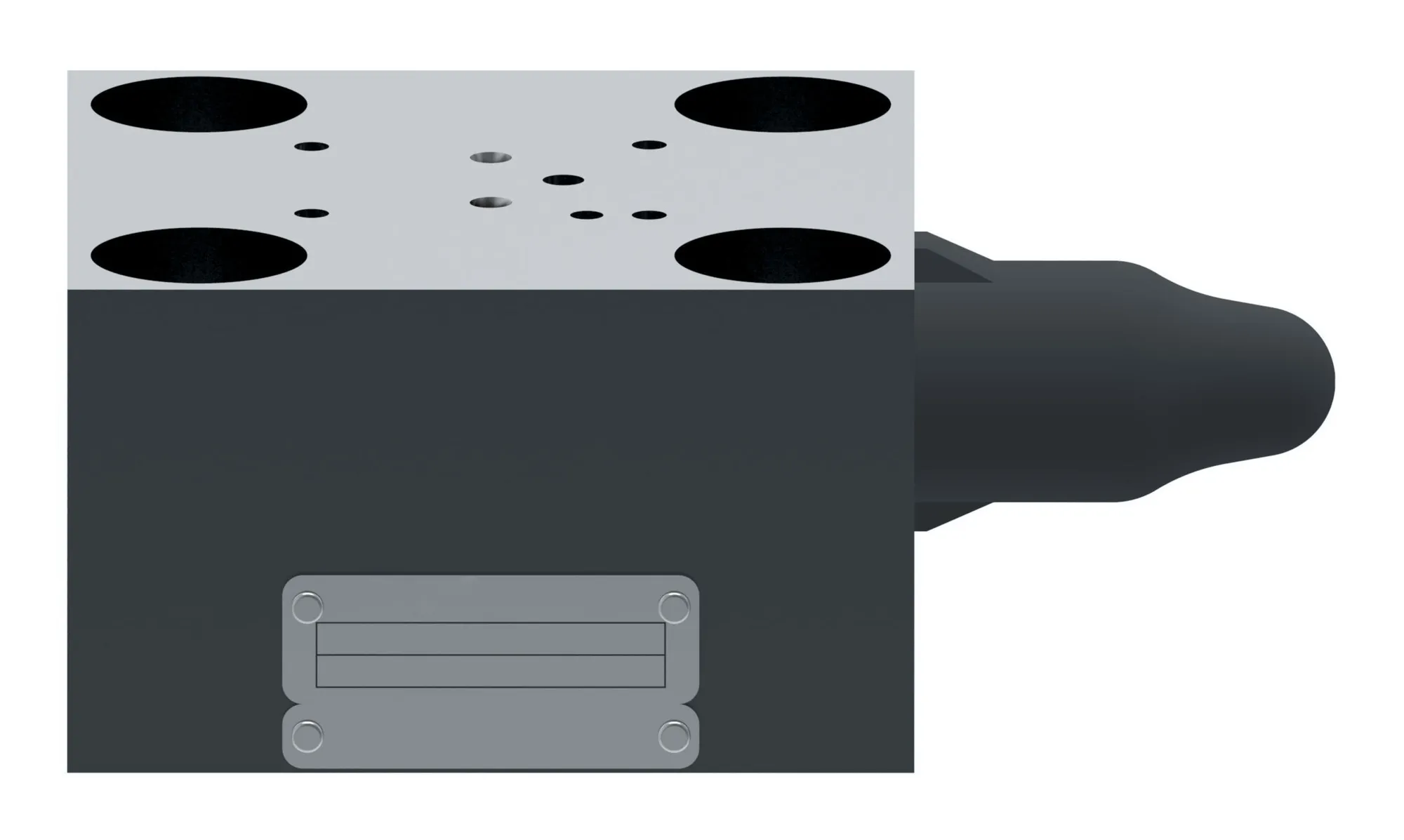

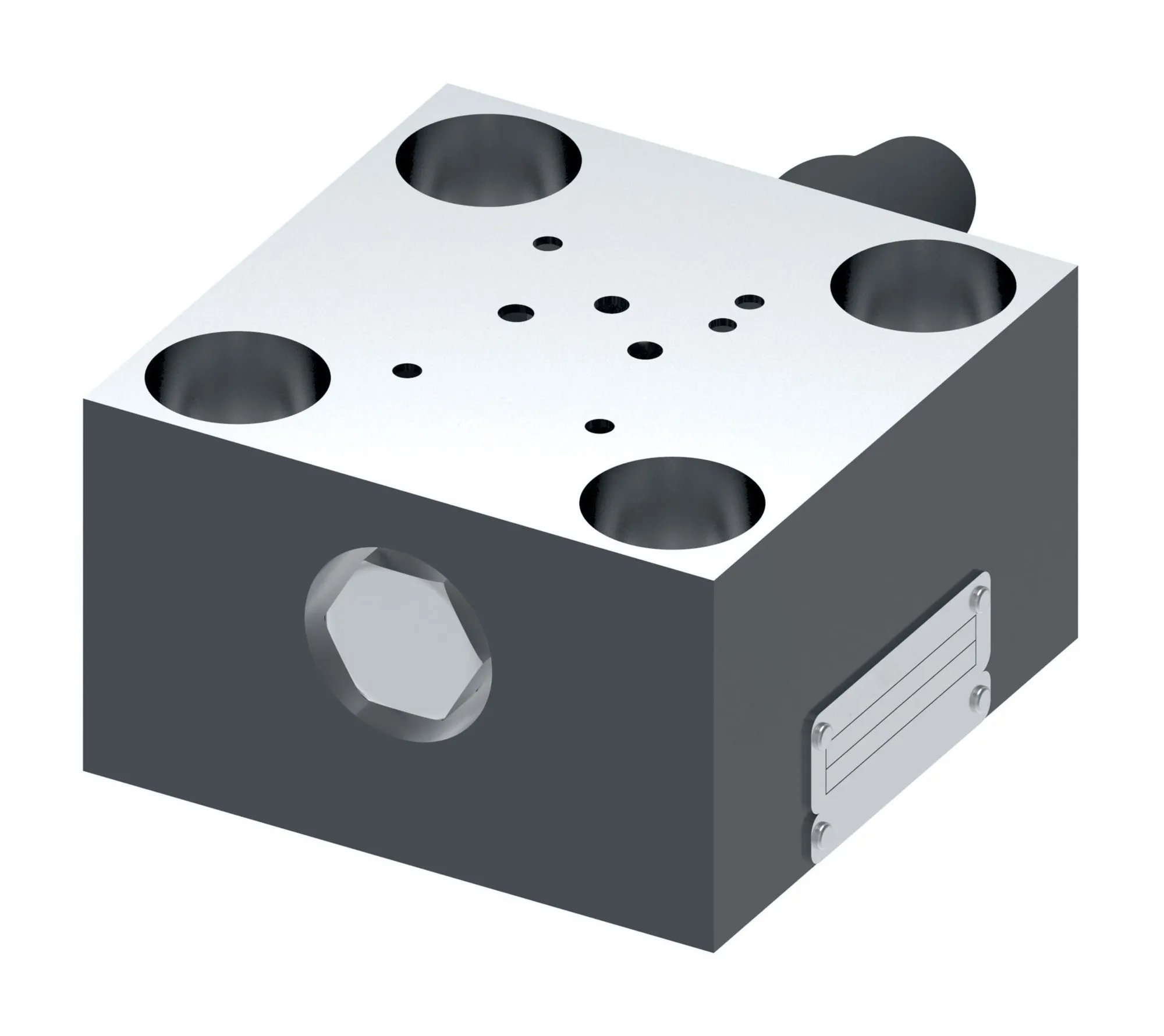

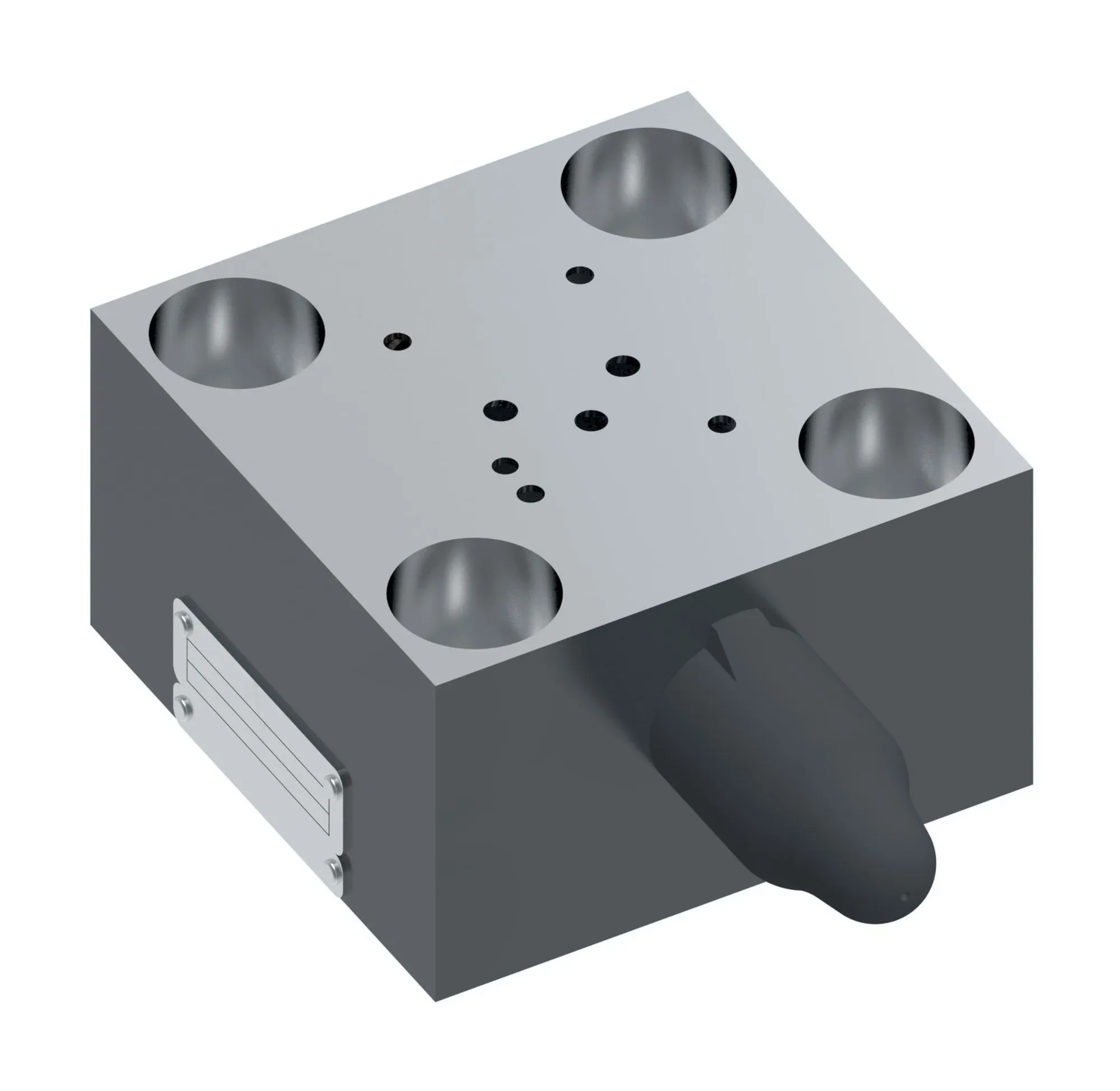

CVCS-25-U-W-250-20-EN127, CVCS25UW25020EN127 – 02-414905
Specification
| Adjustment | Yes |
|---|---|
| Adjustment Type | Wrench with hex locknut |
| Brand | Vickers by Danfoss |
| Cover Type | Pressure unloading / relief |
| Cracking Pressure Bar | 5.00 |
| Cracking Pressure Psi | 72.0 |
| Design Series | 20 Design |
| Flow Rate Lpm | 300 |
| Flow Rate Usgpm | 80.0 |
| Fluid Cleanliness | 18/16/13 micron |
| Fluid Compatibility | Water Glycol, Water-in-Oil Emulsions and Petroleum Oil |
| Gauge Port Thread | SAE |
| Insert Ratio | 1:1 |
| Insert Type | Unloading |
| Interface | No |
| Leakage | Standard |
| Model Code 1 | CVCS25UW25020EN127 |
| Normal Function | Normally closed |
| Pilot Port Orientation | ISO |
| Pressure Rating Bar | 350 |
| Pressure Rating Psi | 5000 |
| Product Height In | 2.480 |
| Product Height Mm | 62.992 |
| Product Length In | 5.990 |
| Product Length Mm | 152.146 |
| Product Width In | 3.510 |
| Product Width Mm | 89.154 |
| Seal Material | Buna-N |
| Size | NG 25 |
| Special Feature | Notched pilot spool |
| Spool Position Sensor | No |
| Valve Type | Cartridge valve cover |
| Valvistor | No |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
