Danfoss (Drives) 02-414861

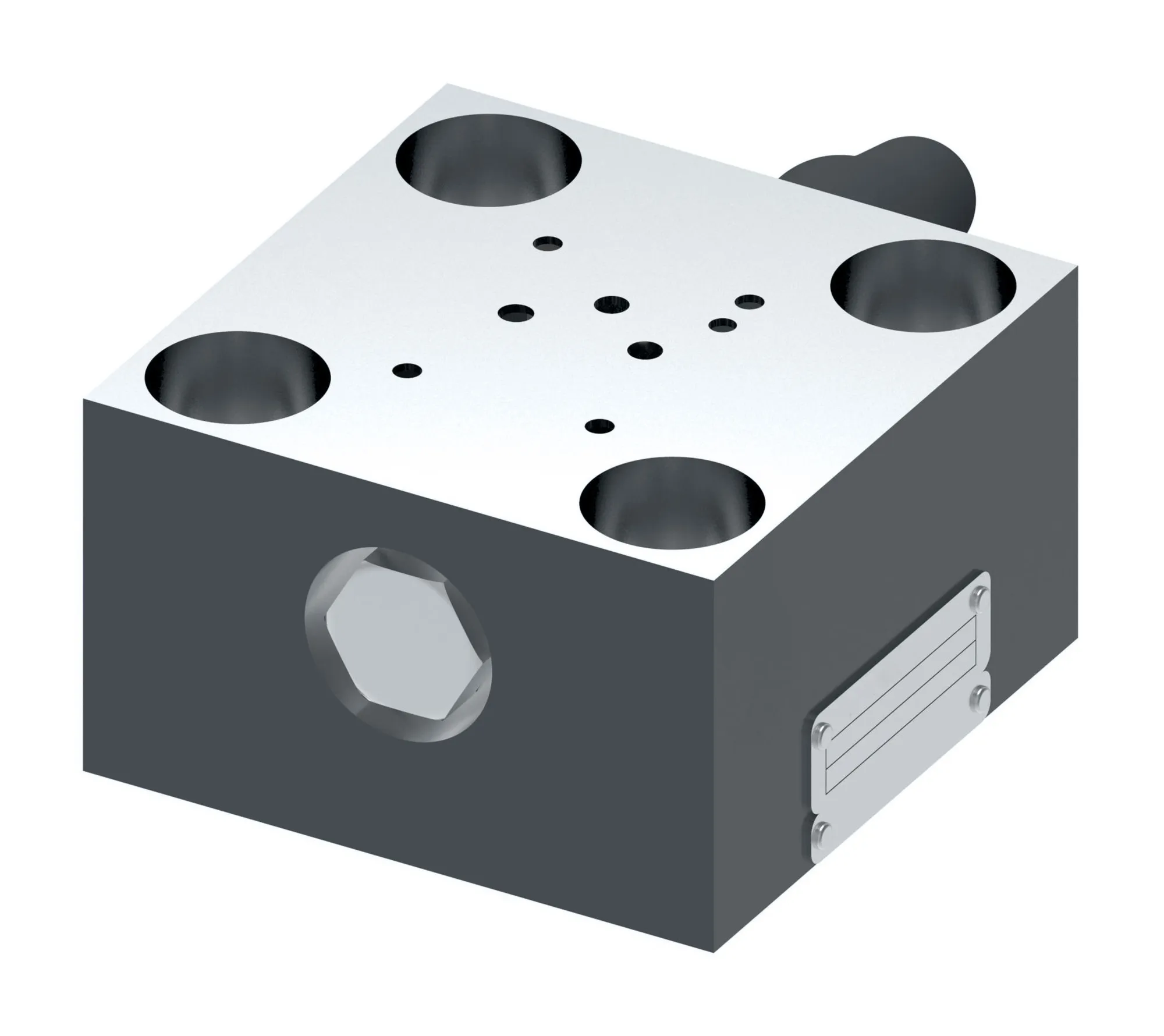

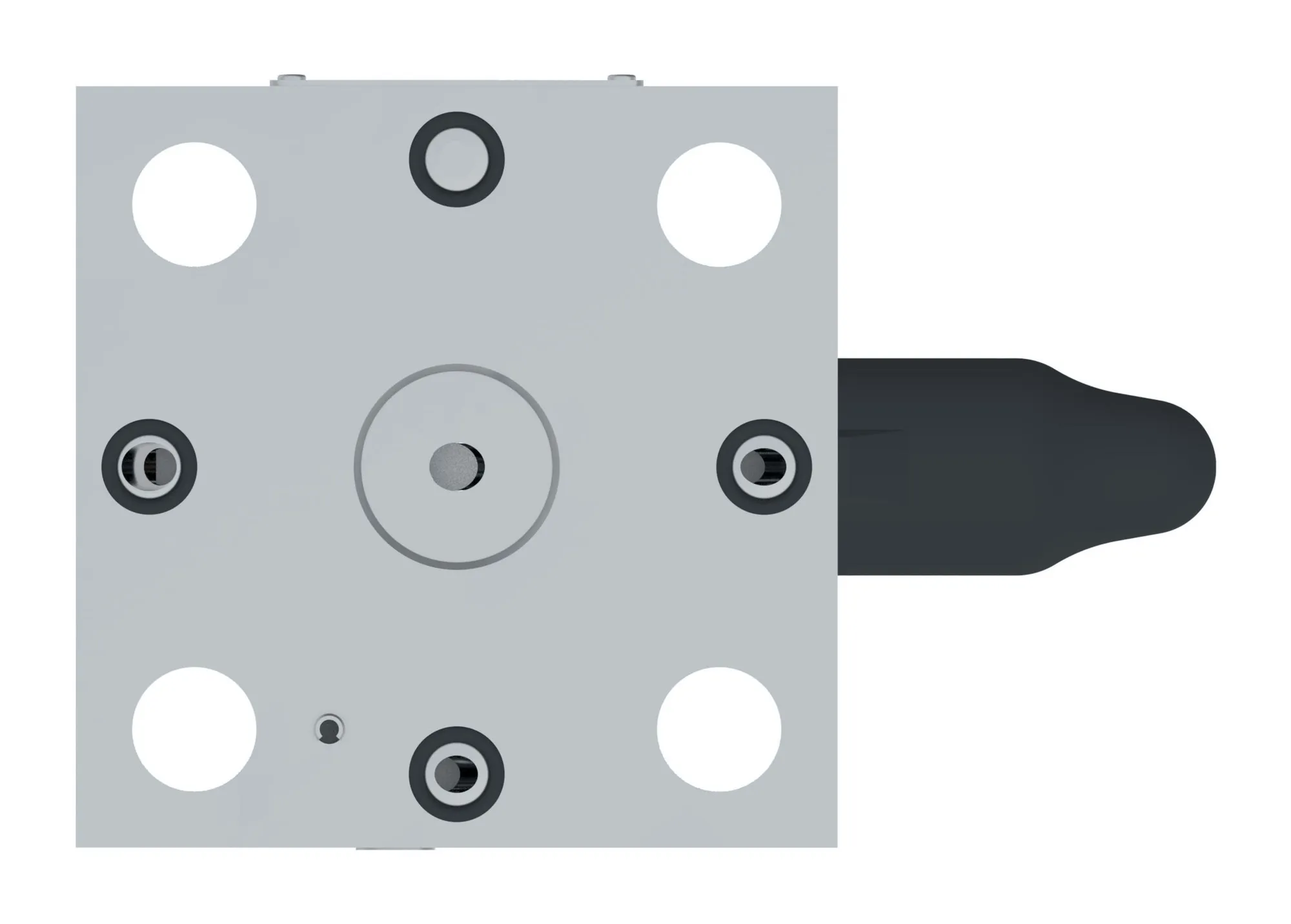

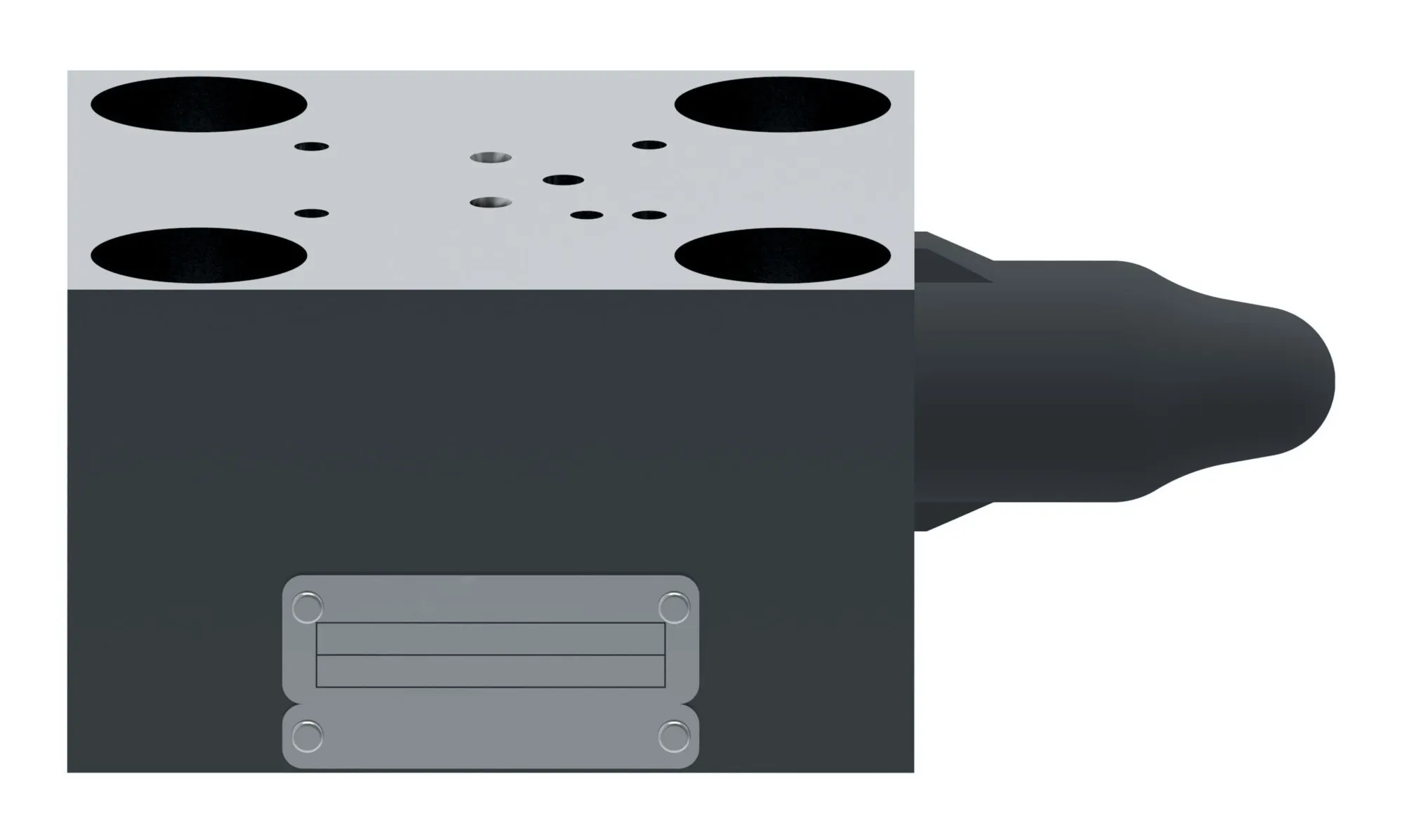

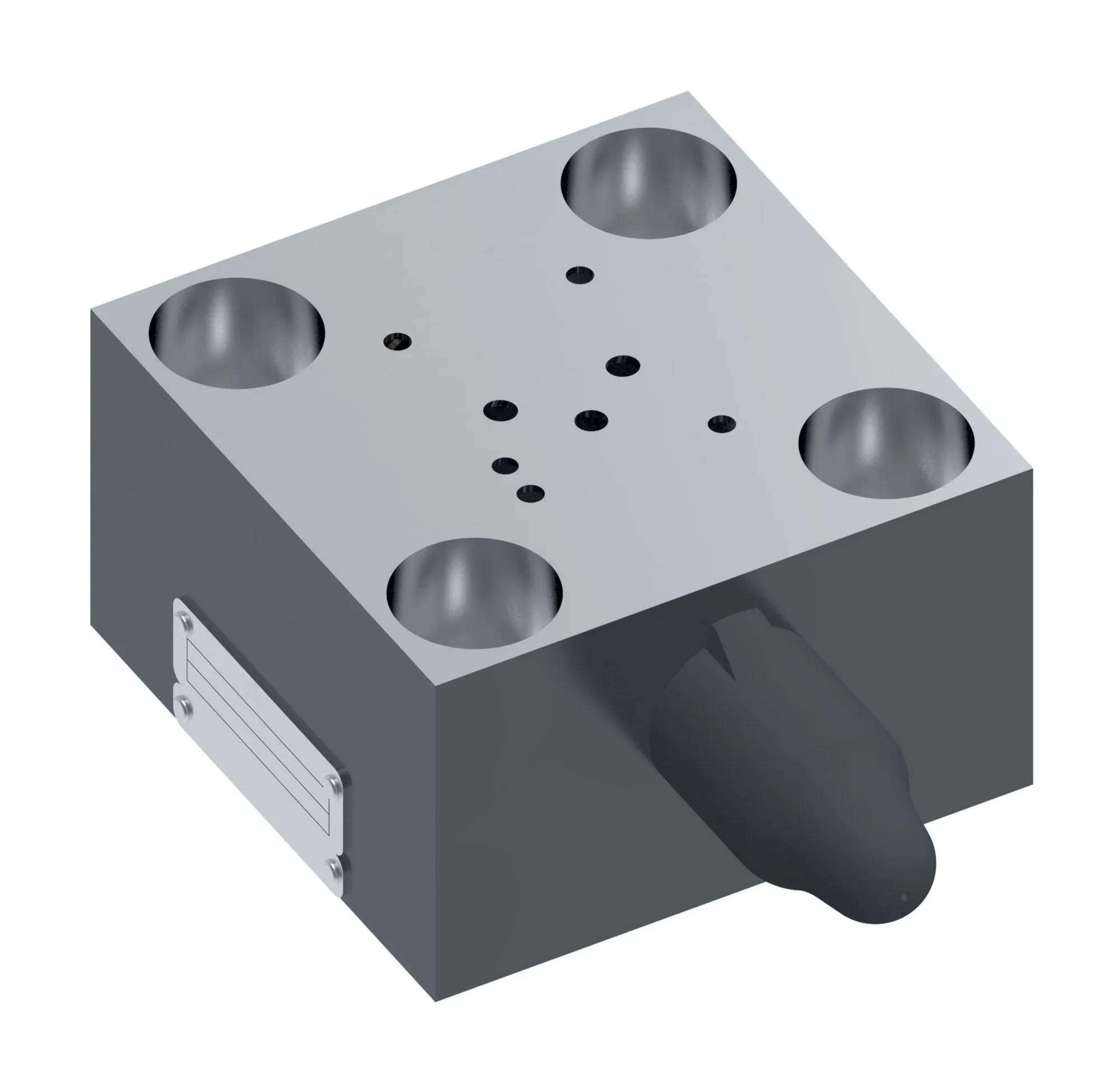

CVCS-16-U3-W-350-20-EN136, CVCS16U3W35020EN136 – 02-414861
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
CVCS-16-U3-W-350-20-EN136, CVCS16U3W35020EN136 – 02-414861
Specification
| Adjustment | Yes |
|---|---|
| Adjustment Type | Wrench with hex locknut |
| Brand | Vickers by Danfoss |
| Cover Type | Unloading relief with size 03 pilot interface |
| Cracking Pressure Bar | 8.00 |
| Cracking Pressure Psi | 116.0 |
| Design Series | 20 Design |
| Flow Rate Lpm | 165 |
| Flow Rate Usgpm | 44.0 |
| Fluid Cleanliness | 18/16/13 micron |
| Fluid Compatibility | Water Glycol, Water-in-Oil Emulsions and Petroleum Oil |
| Gauge Port Thread | SAE |
| Insert Ratio | 1:1 |
| Insert Type | Unloading |
| Interface | Yes |
| Leakage | Standard |
| Model Code 1 | CVCS16U3W35020EN136 |
| Normal Function | Normally closed |
| Pilot Port Orientation | ISO |
| Pressure Rating Bar | 350 |
| Pressure Rating Psi | 5000 |
| Product Height In | 2.440 |
| Product Height Mm | 61.976 |
| Product Length In | 5.950 |
| Product Length Mm | 151.130 |
| Product Width In | 2.720 |
| Product Width Mm | 69.088 |
| Seal Material | Buna-N |
| Size | NG 16 |
| Special Feature | Pilot ports as for SWA/B/C |
| Spool Position Sensor | No |
| Valve Type | Cartridge valve cover |
| Valvistor | No |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
