Danfoss (Drives) 02-414788

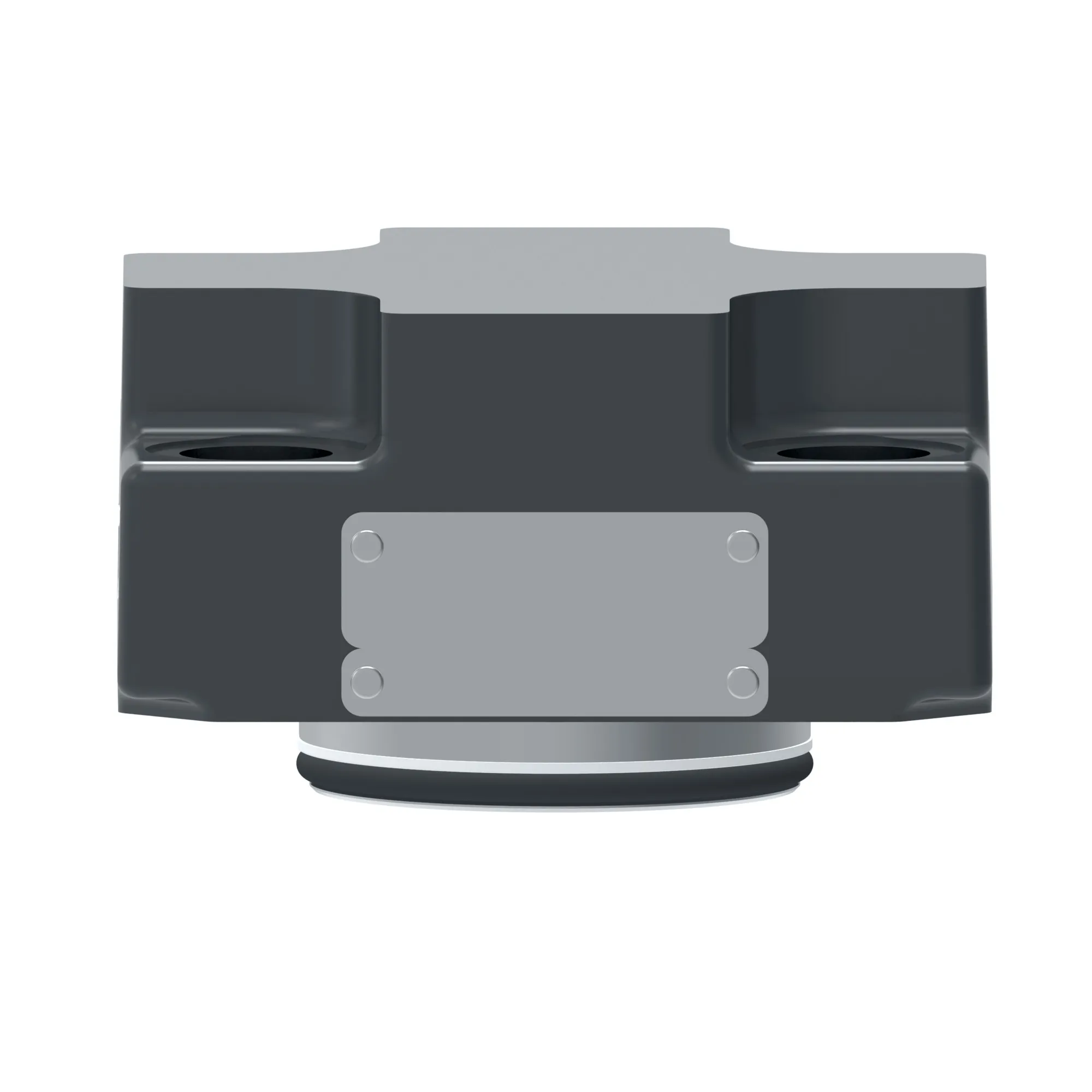

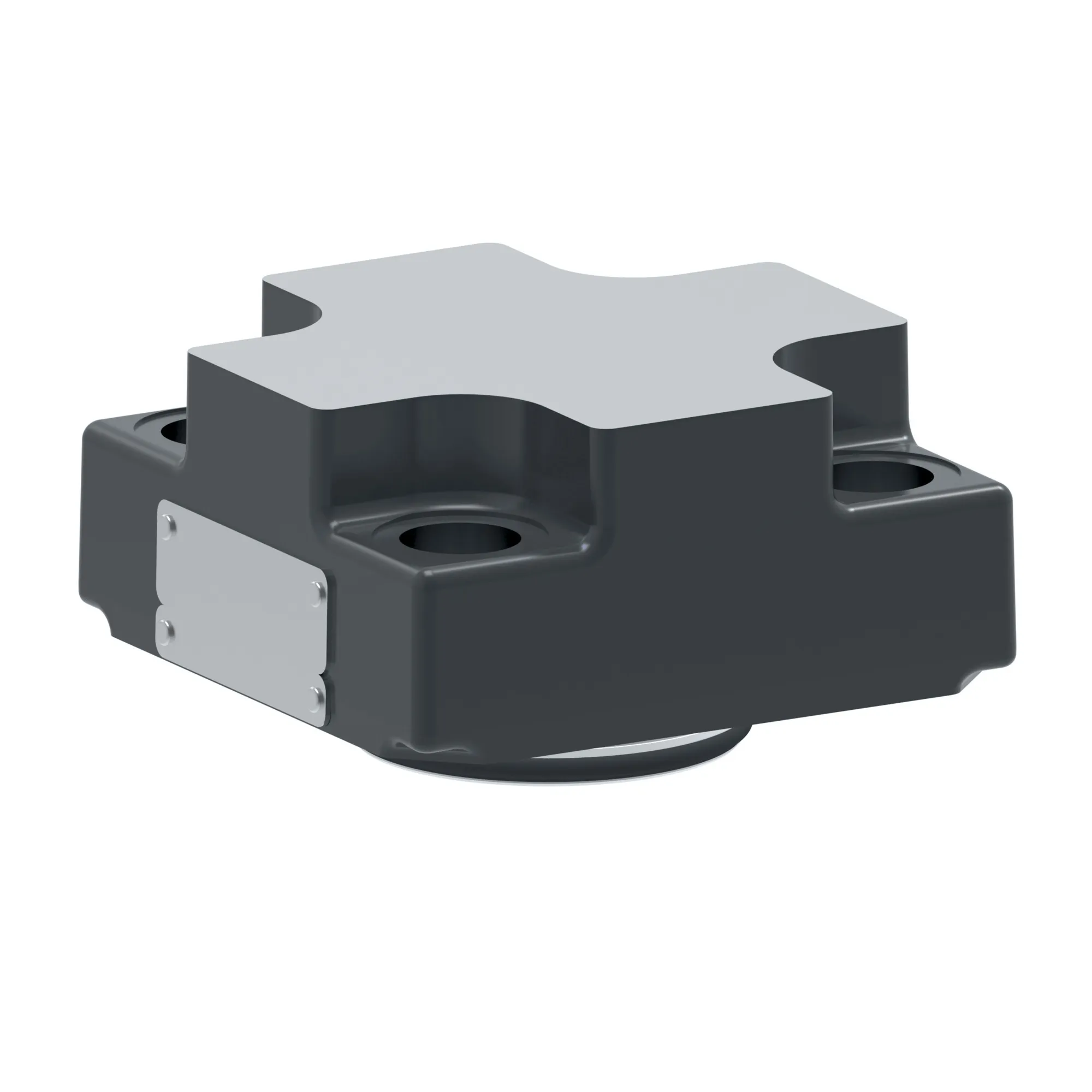

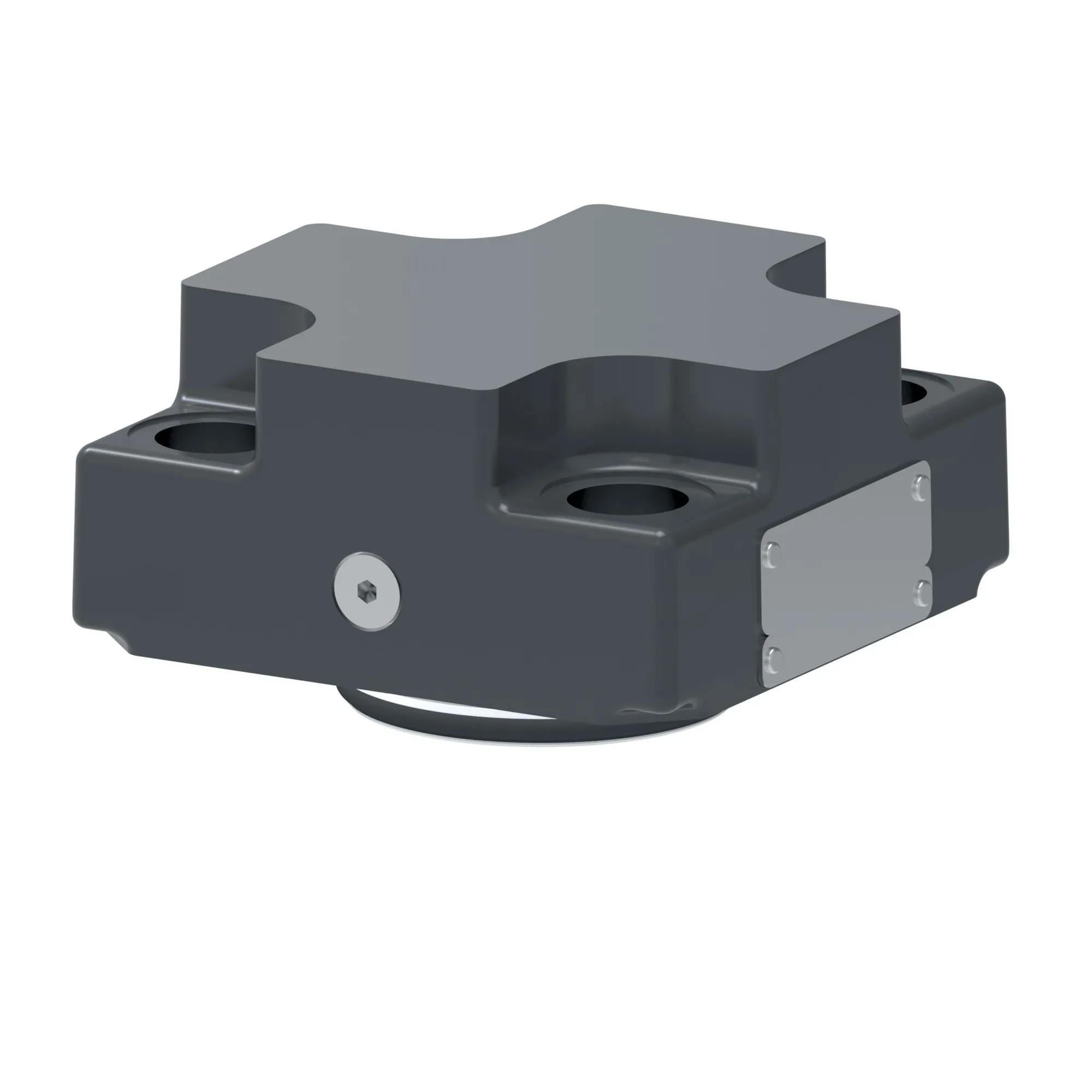

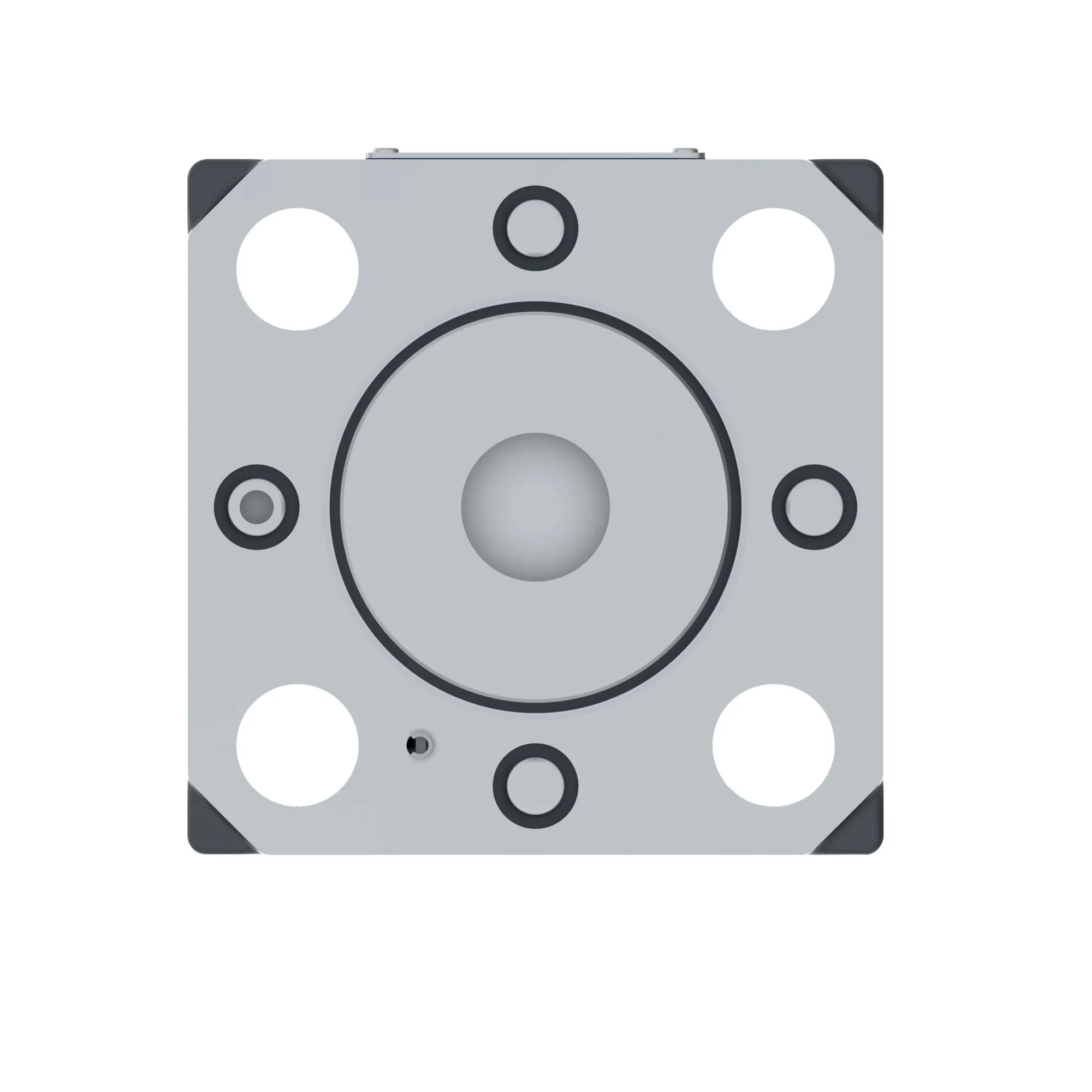

CVCS-25-N-20-EN137, CVCS25N20EN137 – 02-414788
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
CVCS-25-N-20-EN137, CVCS25N20EN137 – 02-414788
Specification
| Adjustment | No |
|---|---|
| Brand | Vickers by Danfoss |
| Cover Type | Basic |
| Design Series | 20 Design |
| Flow Rate Lpm | 590 |
| Flow Rate Usgpm | 155.0 |
| Fluid Cleanliness | 18/16/13 micron |
| Fluid Compatibility | Petroleum oils |
| Gauge Port Thread | SAE |
| Insert Type | Directional |
| Interface | No |
| Leakage | Standard |
| Model Code 1 | CVCS25N20EN137 |
| Normal Function | Normally open |
| Pilot Port Orientation | ISO |
| Pressure Rating Bar | 350 |
| Pressure Rating Psi | 5000 |
| Seal Material | Buna-N |
| Size | NG 25 |
| Special Feature | Redesign of seal arrangement |
| Spool Position Sensor | No |
| Valve Type | Cartridge valve cover |
| Valvistor | No |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
