Fast delivery within 72 Hours
Danfoss (Drives) 02-414641
CVI-32-D105-H-50-EN106, CVI32D105H50EN106 – 02-414641
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

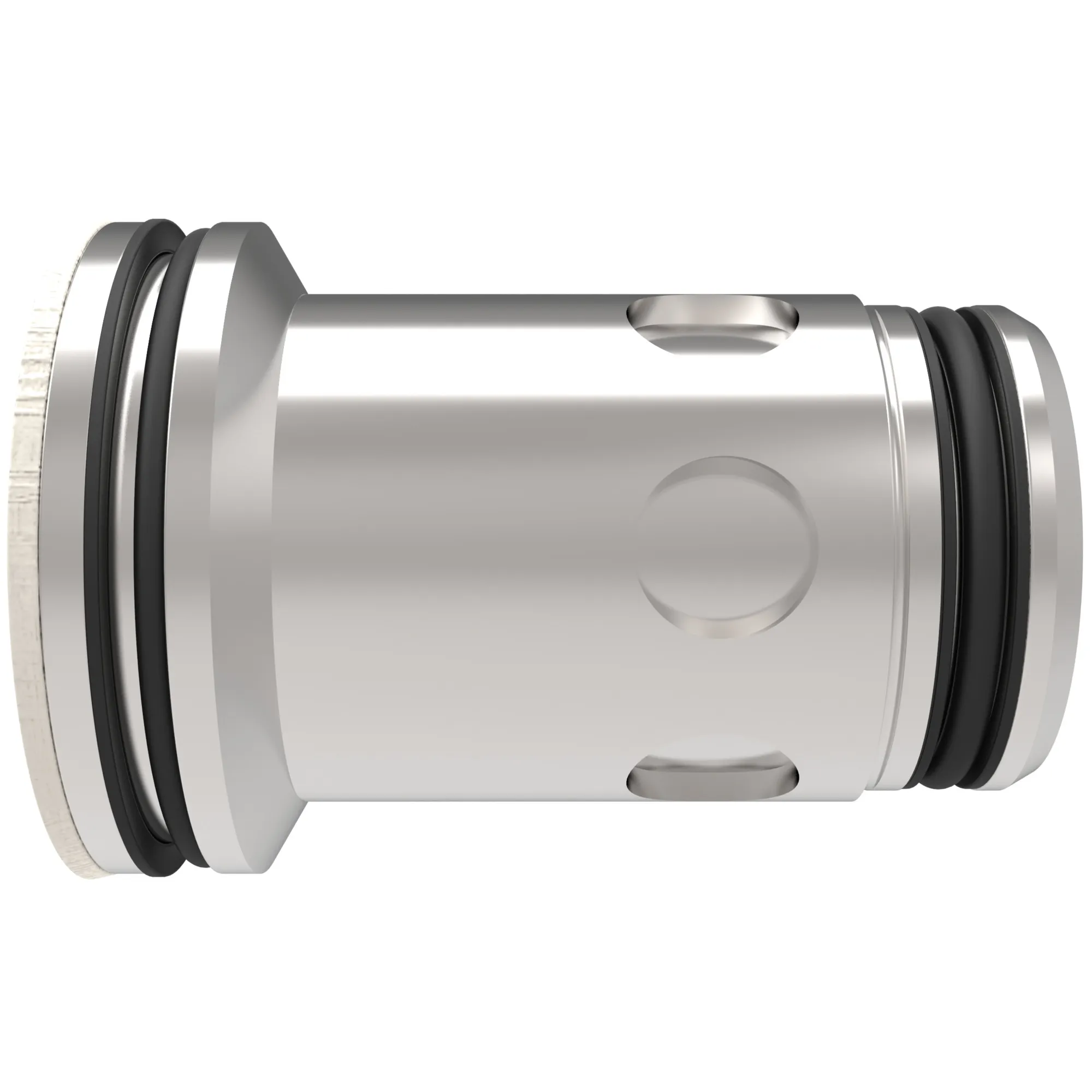

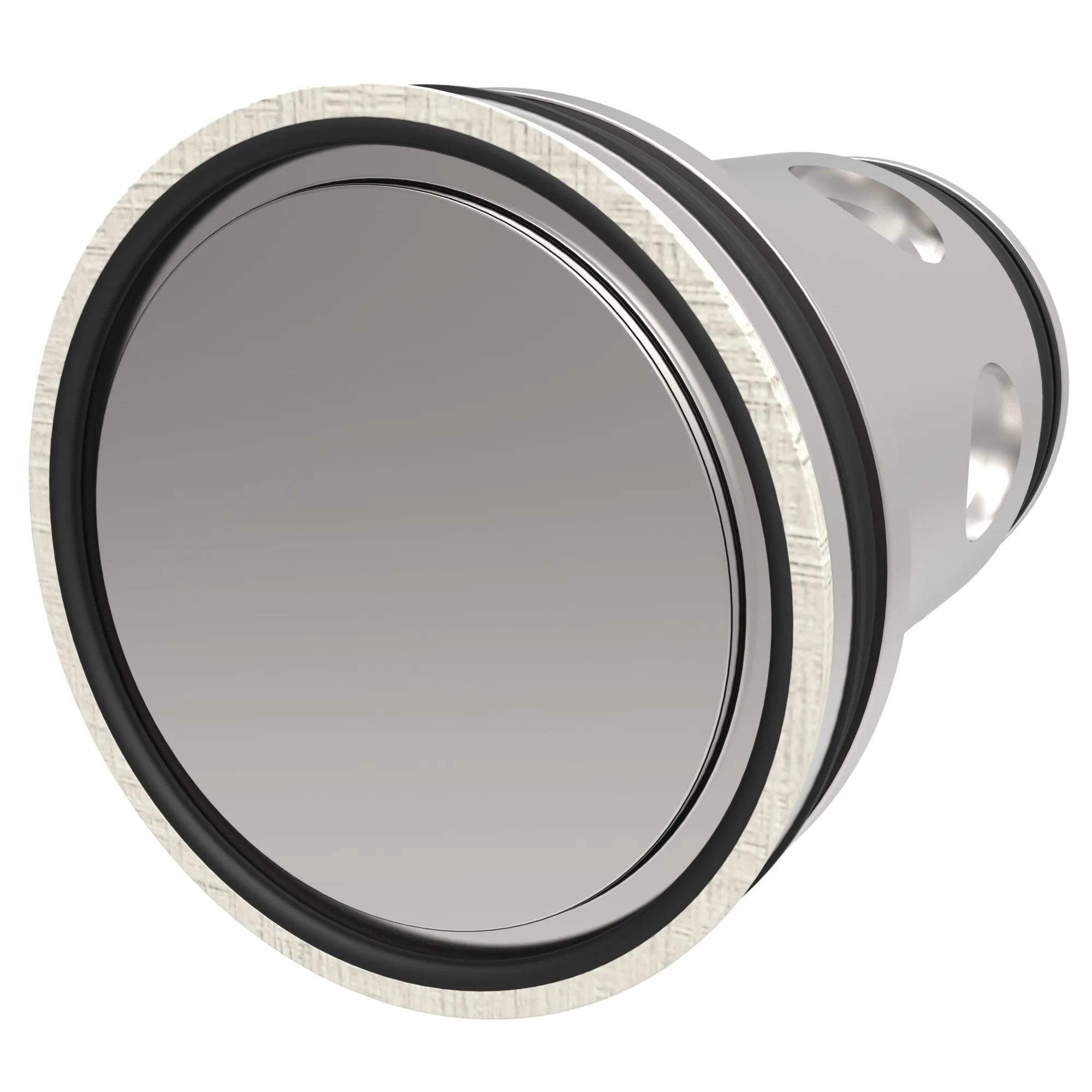

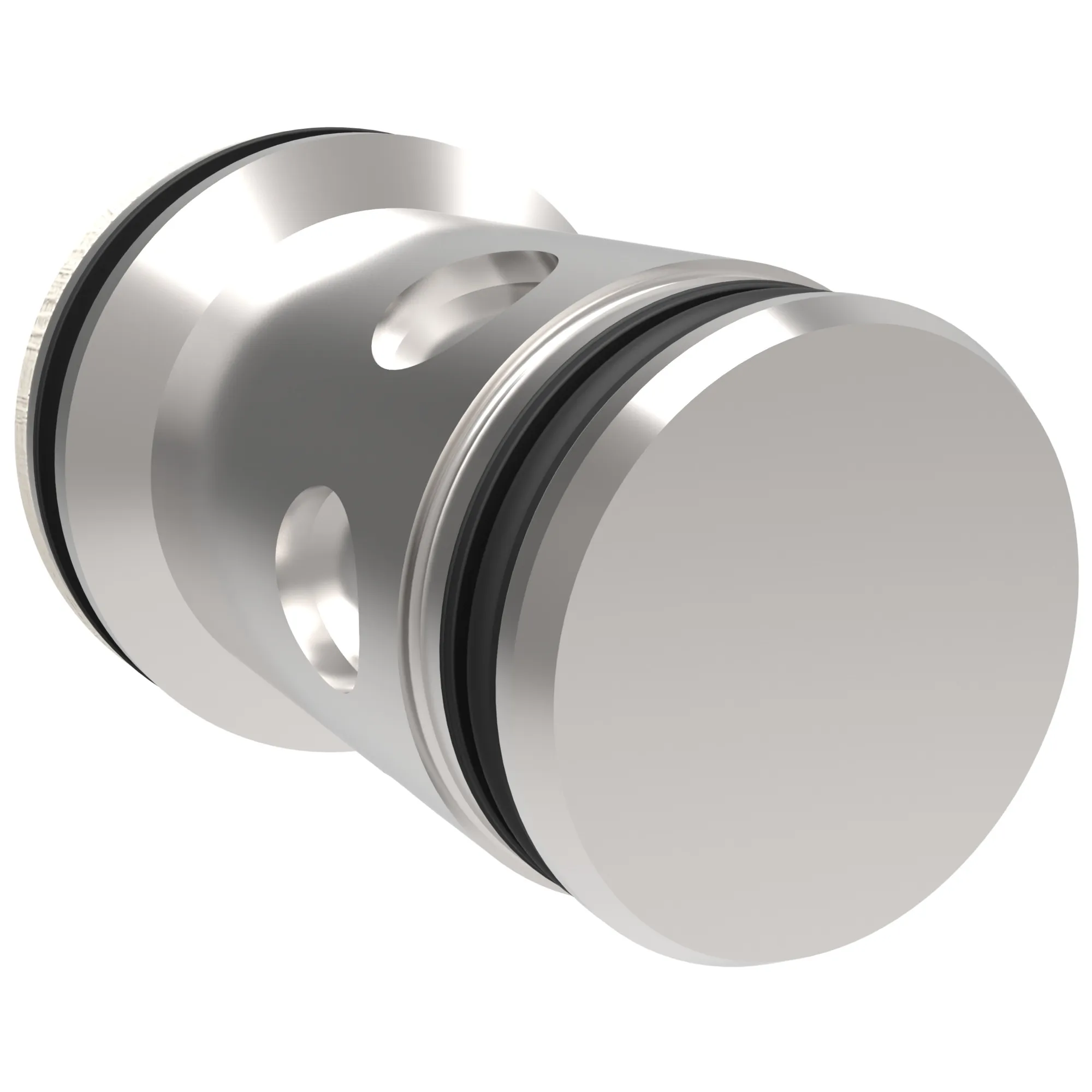

CVI-32-D105-H-50-EN106, CVI32D105H50EN106 – 02-414641
Specification
| Adjustment | No |
|---|---|
| Brand | Vickers by Danfoss |
| Cracking Pressure Bar | 3.50 |
| Cracking Pressure Psi | 51.0 |
| Design Series | 50 Design |
| Flow Rate Lpm | 1250 |
| Flow Rate Usgpm | 330.0 |
| Fluid Cleanliness | 18/16/13 micron |
| Fluid Compatibility | Water Glycol, Water-in-Oil Emulsions and Petroleum Oil |
| Gauge Port Thread | SAE |
| Insert Ratio | 1:1.05 |
| Insert Type | Directional, 1:1.05 Area Ratio |
| Interface | No |
| Leakage | Standard |
| Model Code 1 | CVI32D105H50EN106 |
| Normal Function | Normally open |
| Pilot Port Orientation | ISO |
| Pressure Rating Bar | 350 |
| Pressure Rating Psi | 5000 |
| Product Height In | 2.360 |
| Product Height Mm | 59.944 |
| Product Length In | 3.340 |
| Product Length Mm | 84.836 |
| Product Width In | 2.360 |
| Product Width Mm | 59.944 |
| Seal Material | Buna-N |
| Size | NG 32 |
| Special Feature | High pressure seals |
| Spool Position Sensor | No |
| Valve Type | Cartridge valve insert |
| Valvistor | No |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
