Danfoss (Drives) 02-414624

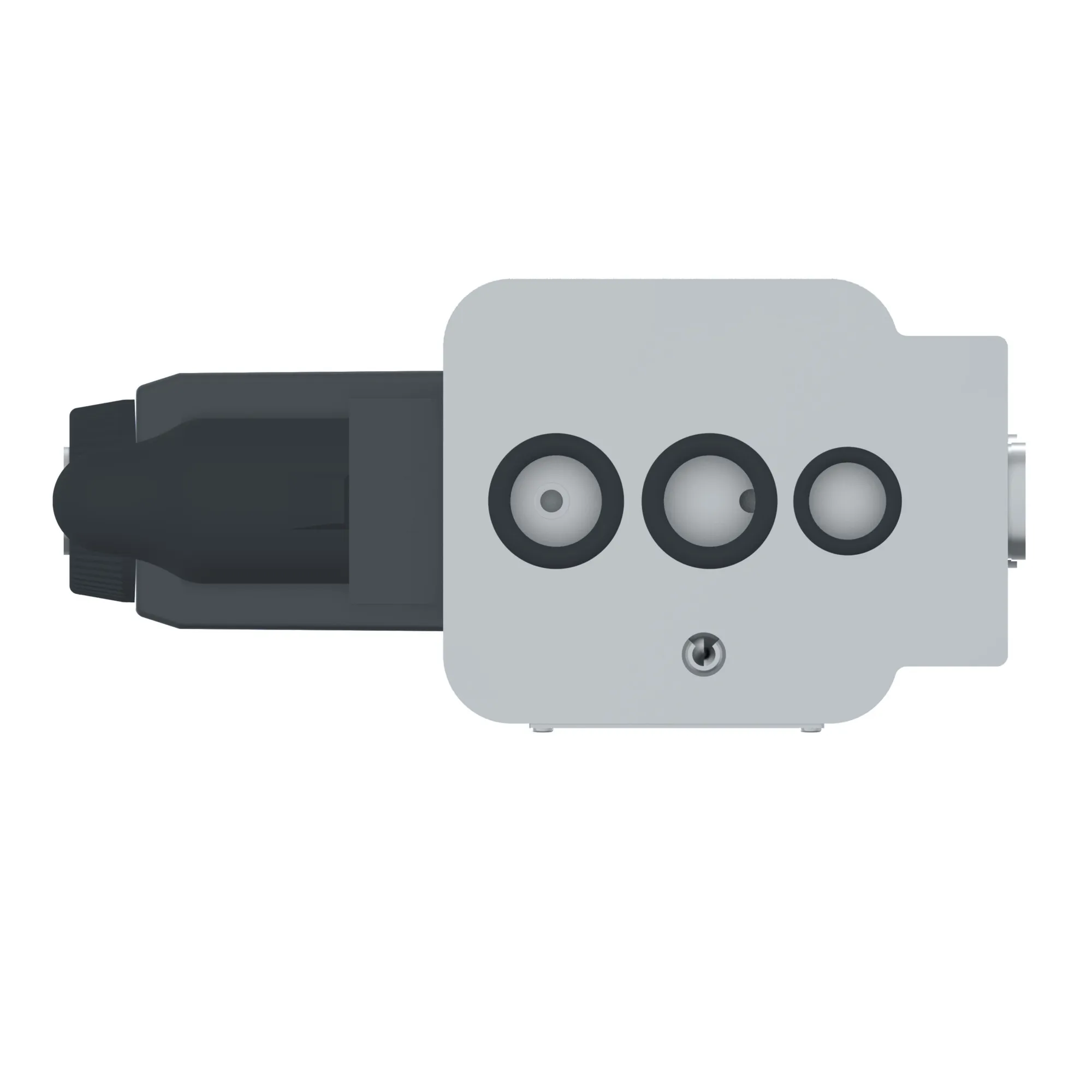

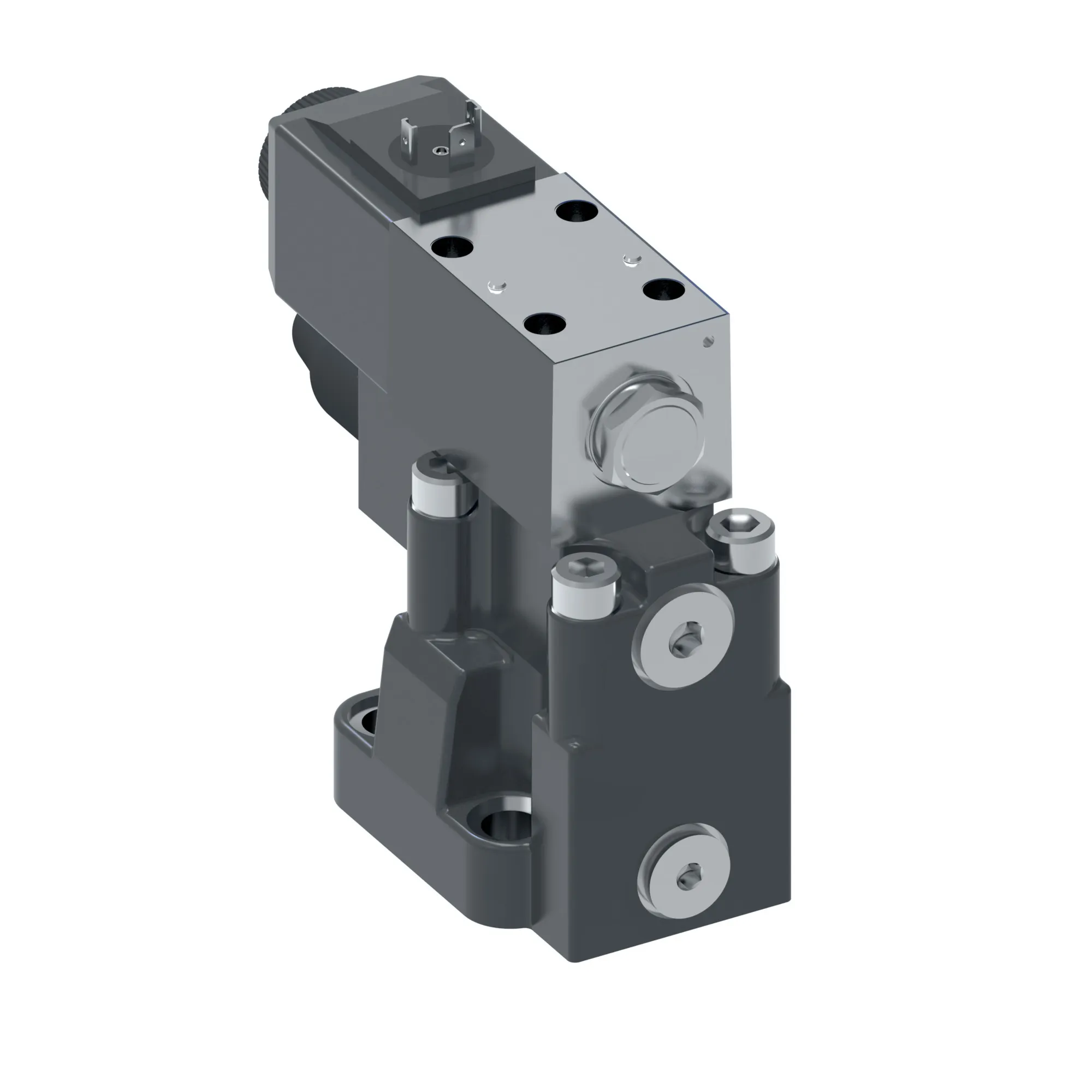

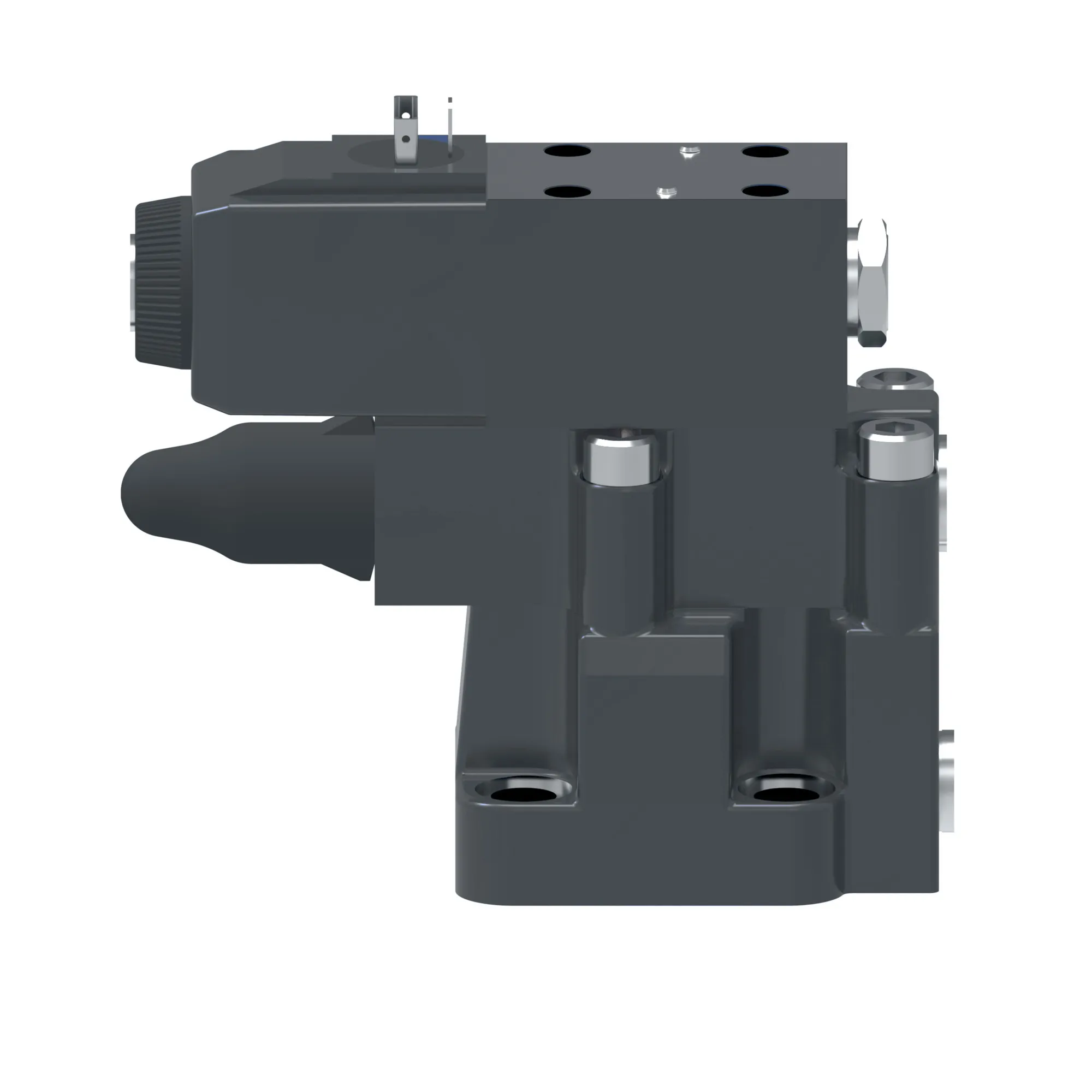

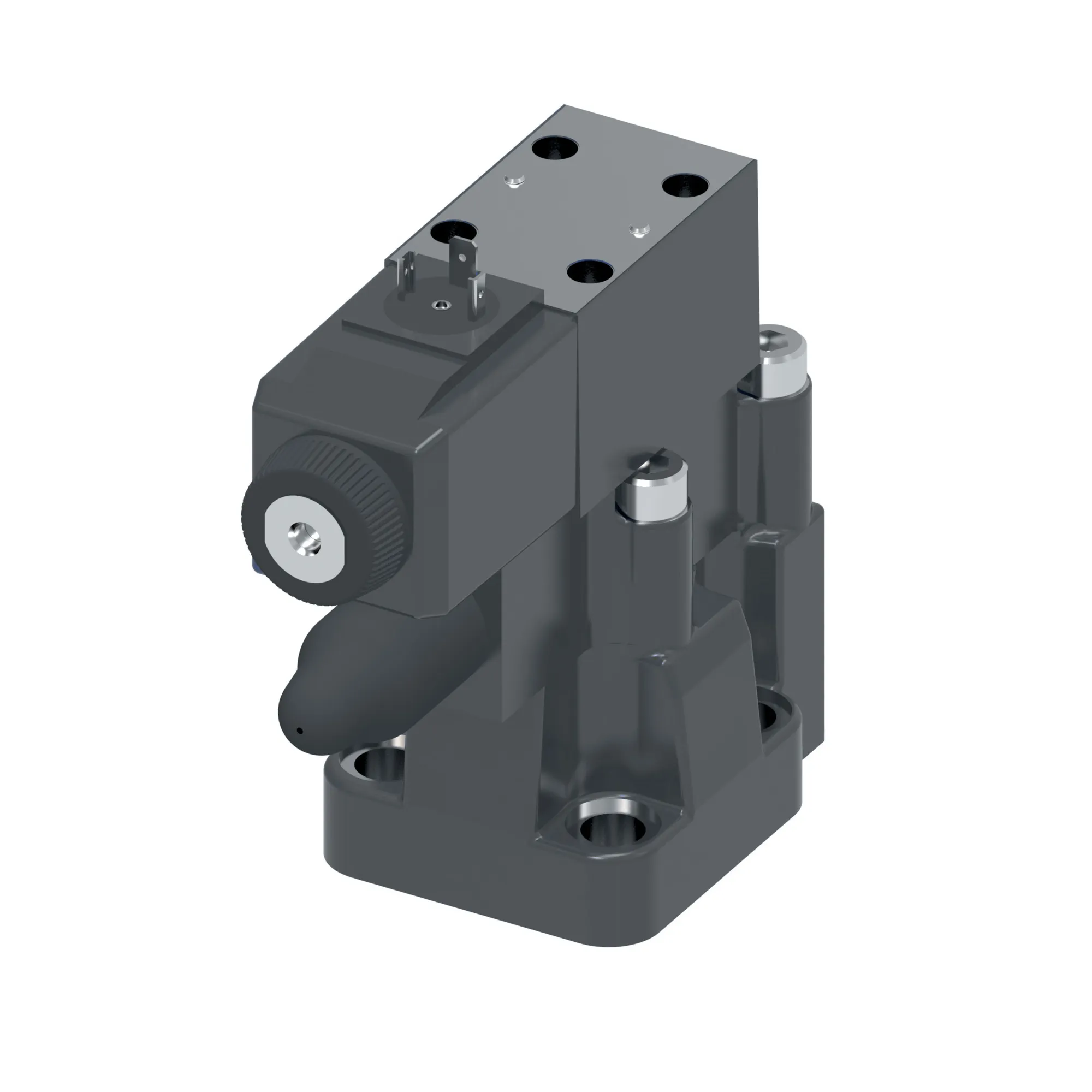

CG5V-10CW-B-2-M-U-H7-10, CG5V10CWB2MUH710 – 02-414624
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
CG5V-10CW-B-2-M-U-H7-10, CG5V10CWB2MUH710 – 02-414624
Specification
| Actuation Type | Solenoid operated |
|---|---|
| Adjustment Range Bar | 100 |
| Adjustment Type | Screw with locknut |
| Brand | Vickers by Danfoss |
| Coil Voltage | 24 VDC |
| Cracking Pressure Bar | 3.0 |
| Cracking Pressure Psi | 48 |
| Design Series | 10 Series |
| Drain | Internal |
| Electrical Connection | ISO4400 (Din 43650) Connector |
| Flow Rate Lpm | 650.0 |
| Flow Rate Usgpm | 172.0 |
| Fluid Cleanliness | 19/17/14 Micron |
| Fluid Compatibility | Petroleum oils |
| Interface | ISO6264-10, Cetop 10 |
| Leakage | Standard |
| Manual Override | Plain |
| Maximum Pressure Bar | 350 |
| Maximum Pressure Psi | 5000 |
| Model Code 1 | CG5V10CWB2MUH710 |
| Performance | Standard |
| Power Consumption | 30 watt |
| Product Height In | 4.000 |
| Product Height Mm | 101.600 |
| Product Length In | 4.640 |
| Product Length Mm | 117.856 |
| Product Width In | 4.500 |
| Product Width Mm | 114.3 |
| Seal Material | Nitrile |
| Size | Size 10 |
| Special Feature | None |
| Stage | Two stage |
| Tank Pressure Bar | 210 |
| Tank Pressure Psi | 3000 |
| Valve Mount Type | Subplate mounted |
| Valve Type | Relief valve |
| Working Temperature Max C | 70 |
| Working Temperature Max F | 158 |
| Working Temperature Min C | -20 |
| Working Temperature Min F | -4 |
