Description

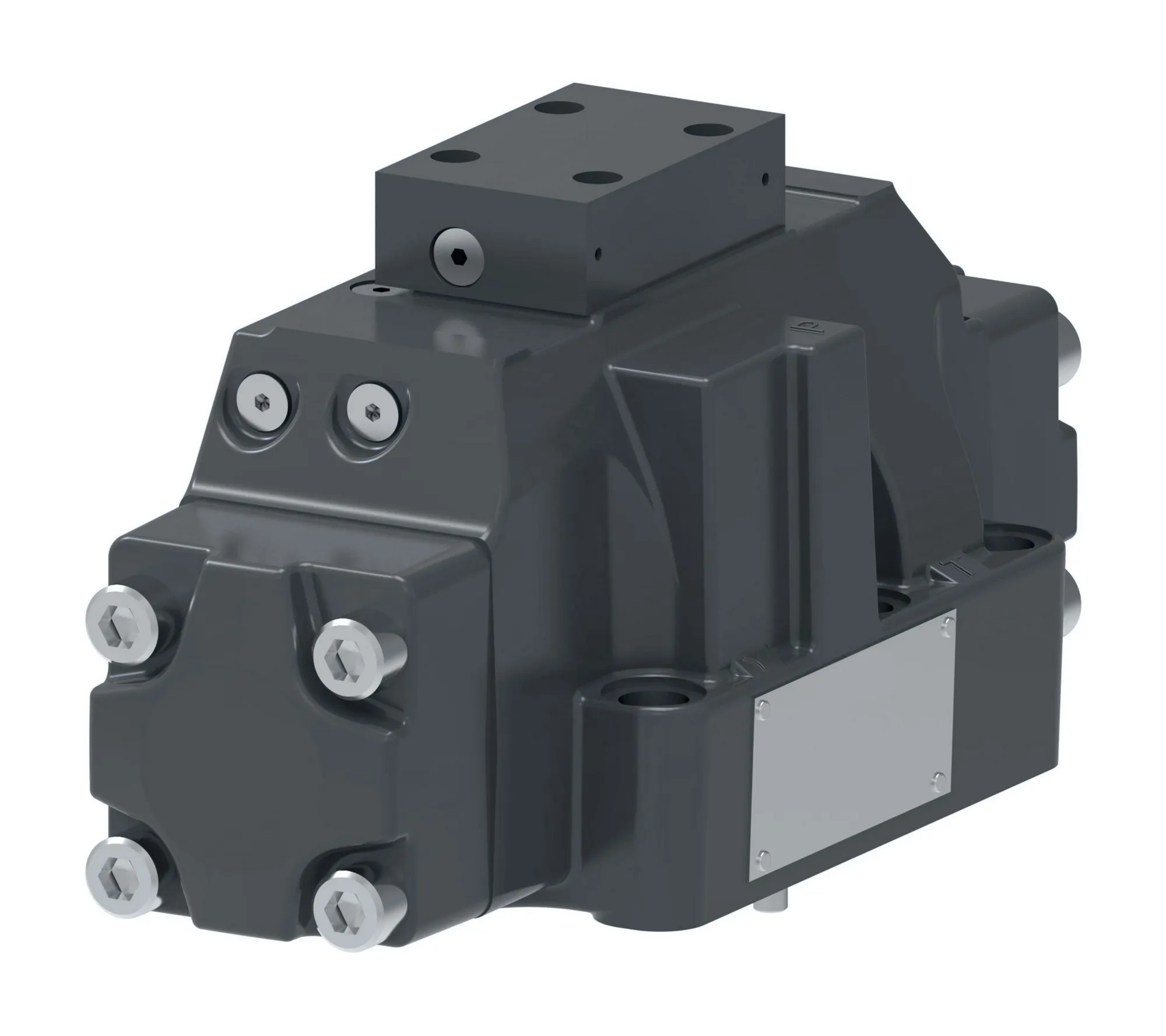

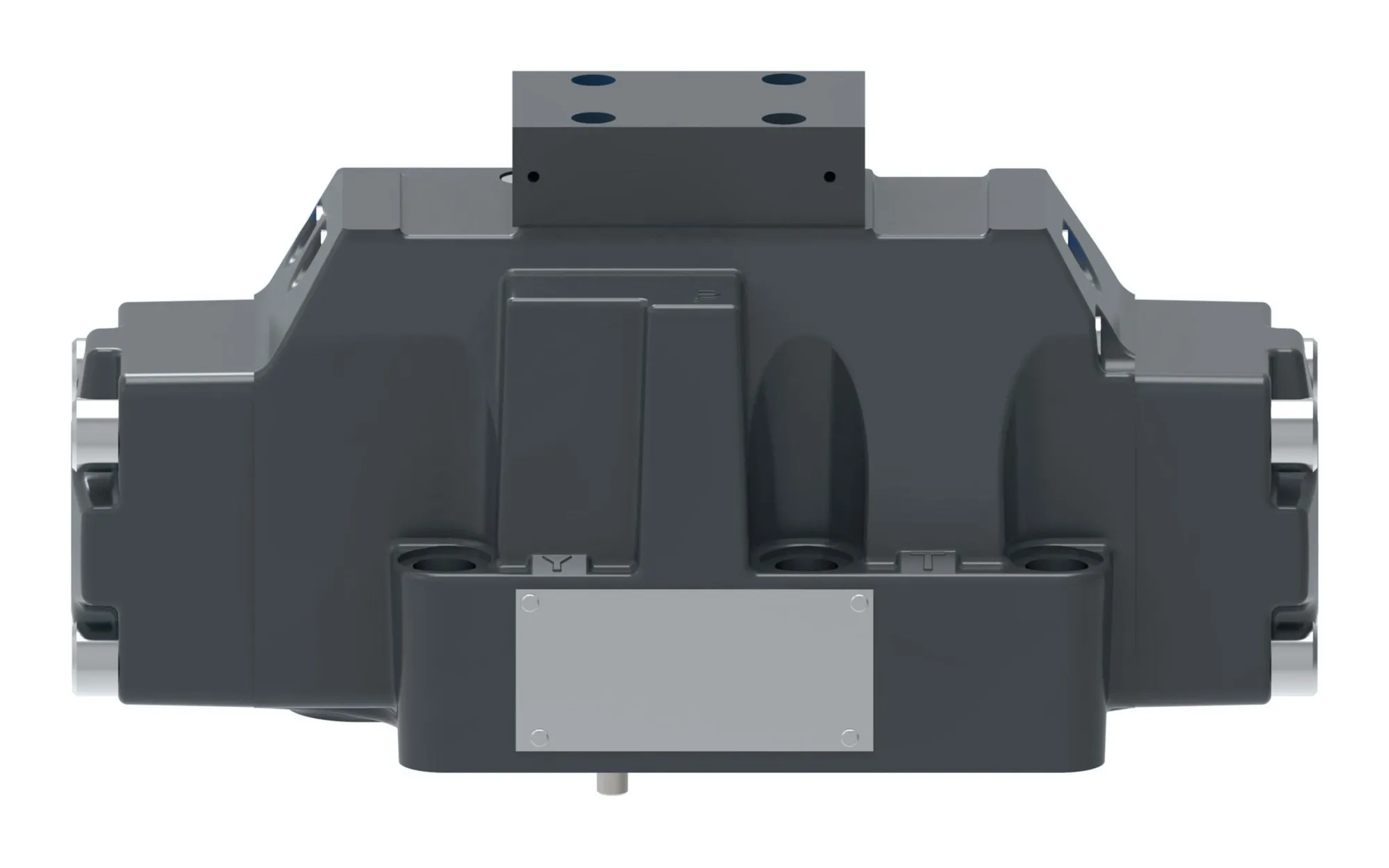

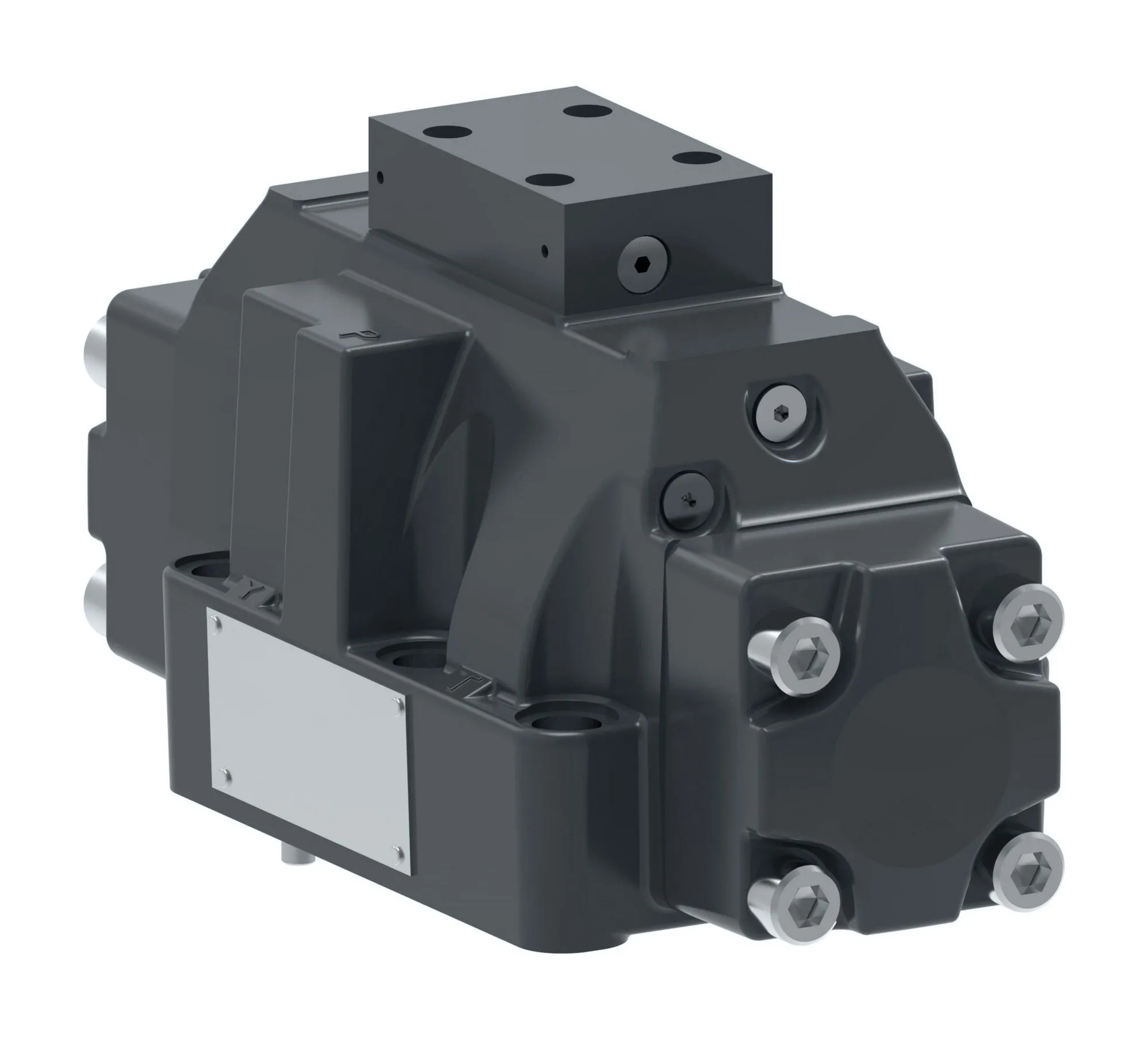

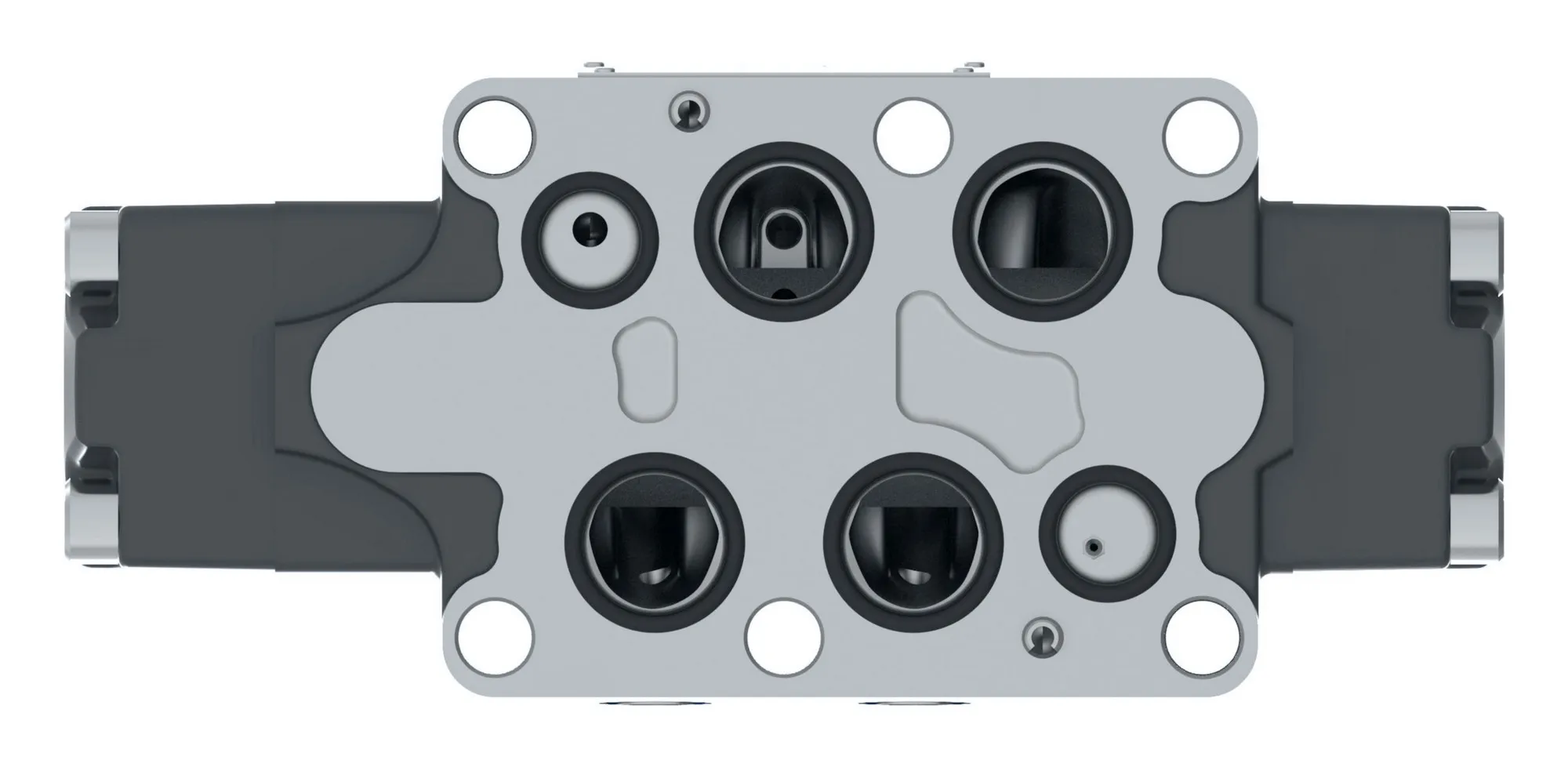

DG5V-7-2C-T-50-EN55, DG5V72CT50EN55 – 02-414411
Specification
| Actuation Type | Pilot operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | None |
| Design Series | 50 Series |
| Electrical Connection | None |
| Ext Pilot Pressure | External |
| Flow Rate Upto Gpm | 79.0 |
| Flow Rate Upto Lpm | 300.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Indicator Light | No |
| Int Pilot Drain | Internal |
| Interface | ISO4401-07 |
| Manual Override | None |
| Model Code 1 | DG5V72CT50EN55 |
| Performance | High performance |
| Pressure Rating Bar | 350 |
| Pressure Rating Psi | 5000 |
| Product Height In | 7.170 |
| Product Height Mm | 182.118 |
| Product Length In | 7.800 |
| Product Length Mm | 198.120 |
| Product Width In | 3.650 |
| Product Width Mm | 92.71 |
| Seal Type | Buna-N |
| Solenoid Energising Id | None |
| Special Features | None |
| Spool Position Monitor | No |
| Spool Type | Spool 2 |
| Spring Arrangement | Spring centred |
| Stage | Two stage |
| Surge Suppr Damper | No |
| Tank Port Rating Bar | 210 |
| Tank Port Rating Psi | 3000 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
