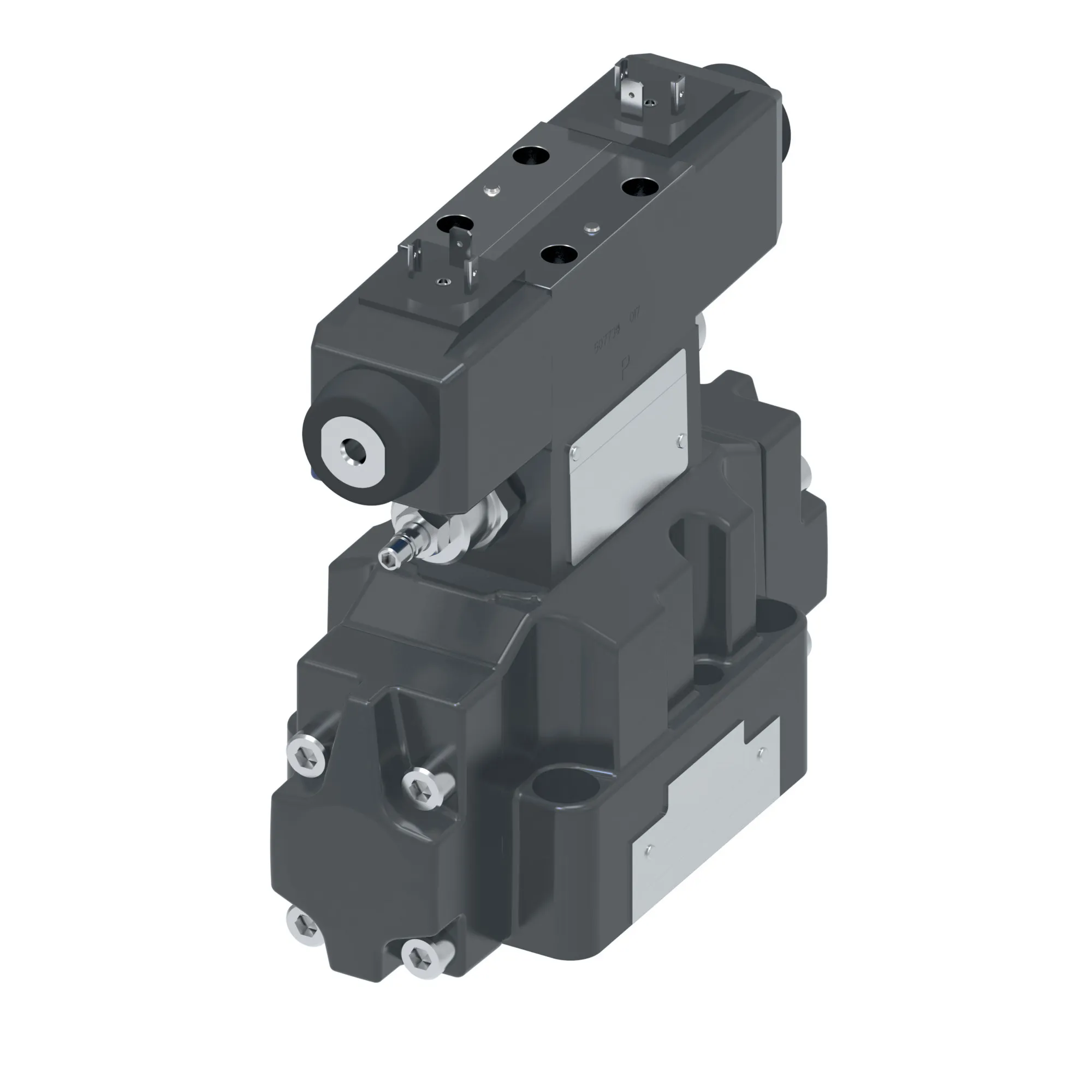

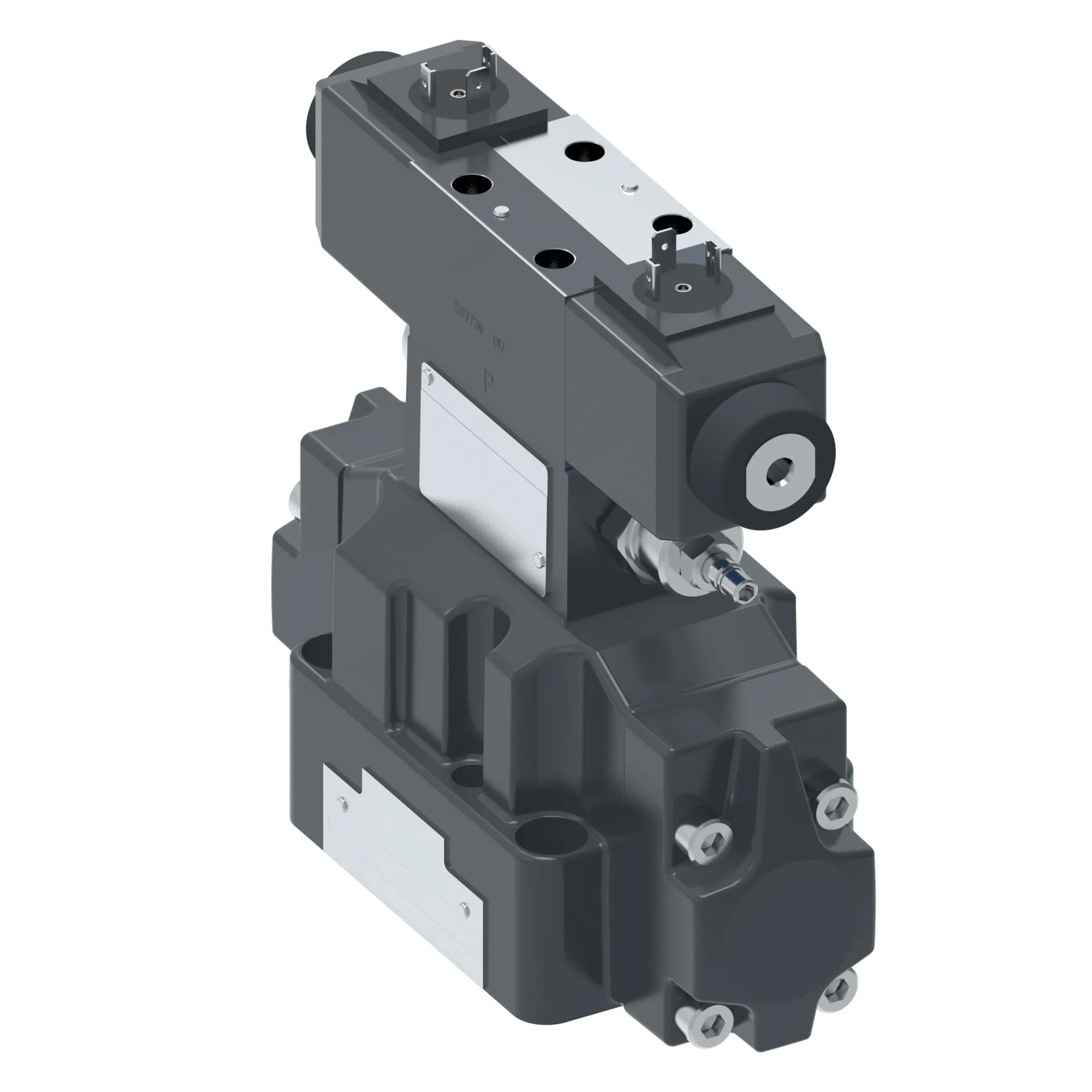

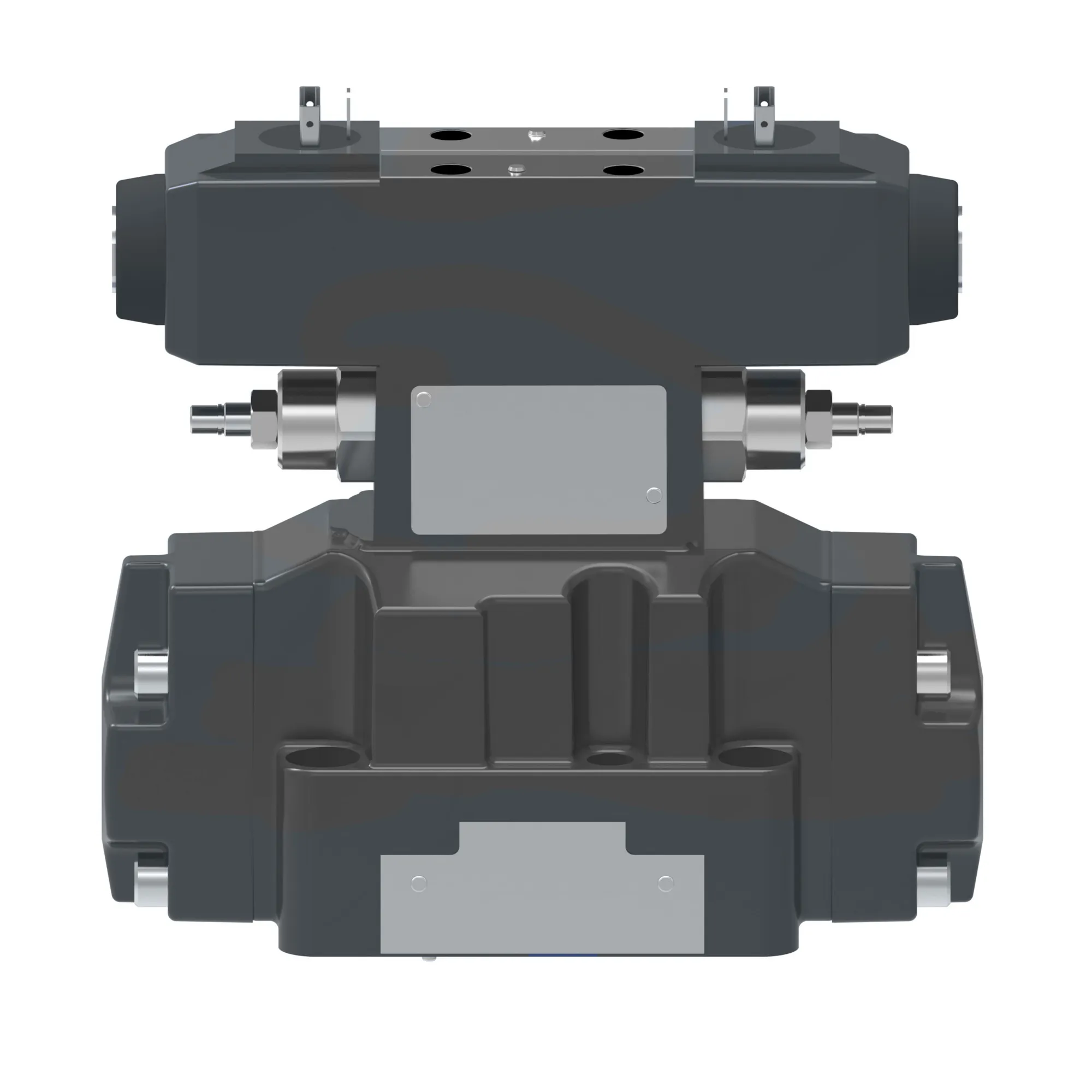

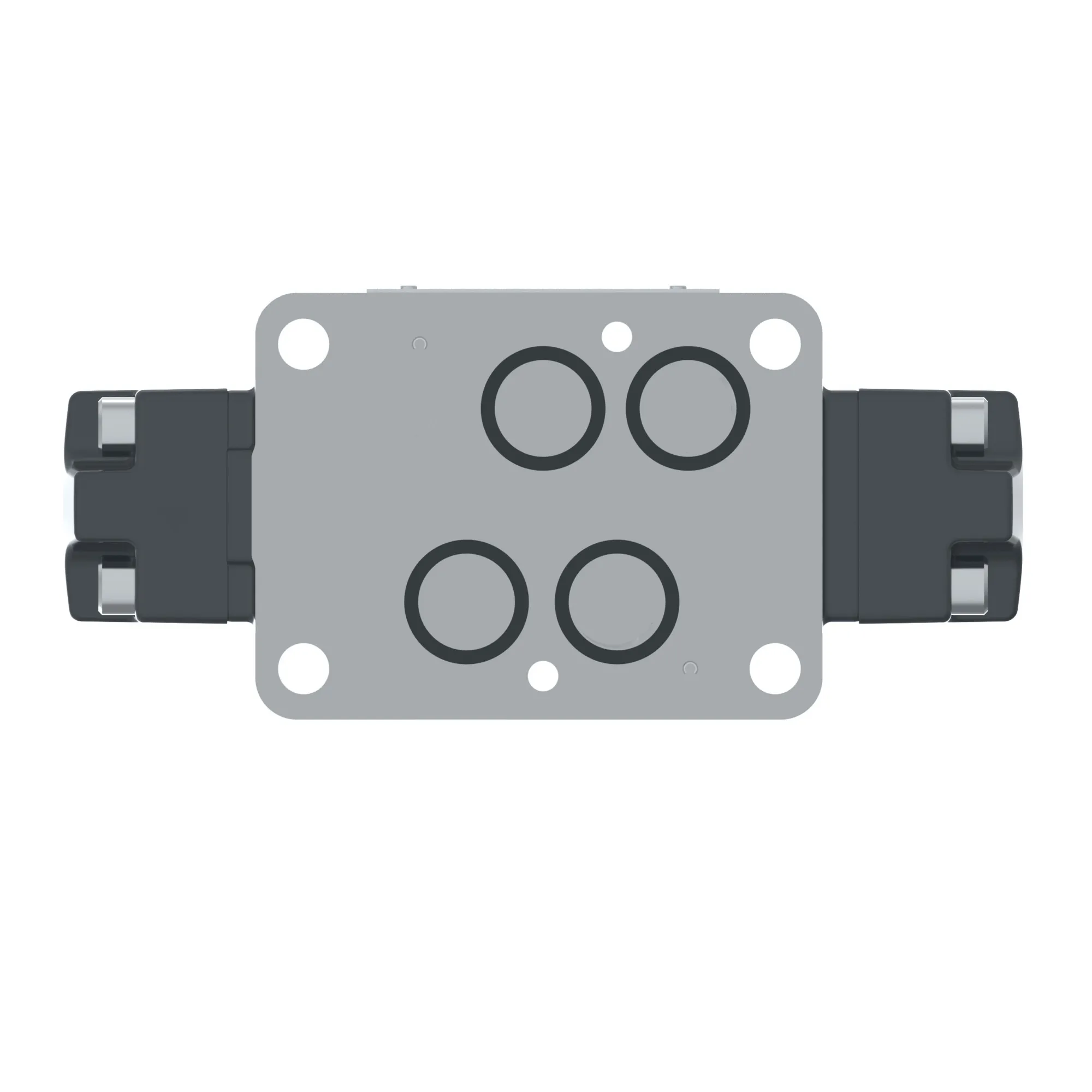

Danfoss (Drives) 02-414405
DG5V-7-52C-2-E-T-M-U-H7-50-EN108, DG5V752C2ETMUH750EN108 – 02-414405
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DG5V-7-52C-2-E-T-M-U-H7-50-EN108, DG5V752C2ETMUH750EN108 – 02-414405
Specification
| Actuation Type | Pilot operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | 24 VDC |
| Design Series | 50 Series |
| Electrical Connection | ISO 4400 (Din 43650) connector |
| Ext Pilot Pressure | External |
| Flow Rate Upto Gpm | 79.0 |
| Flow Rate Upto Lpm | 300.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Indicator Light | No |
| Int Pilot Drain | Internal |
| Interface | ISO4401-07 |
| Manual Override | Plain |
| Model Code 1 | DG5V752C2ETMUH750EN108 |
| Performance | High performance |
| Power Consumption | 30 watt |
| Pressure Rating Bar | 350 |
| Pressure Rating Psi | 5000 |
| Product Height In | 8.740 |
| Product Height Mm | 221.996 |
| Product Length In | 8.700 |
| Product Length Mm | 220.980 |
| Product Width In | 3.650 |
| Product Width Mm | 92.71 |
| Seal Type | Buna-N |
| Solenoid Energising Id | Standard as per ANSI B93 9 |
| Special Features | Uses pilot choke DGMFN-3-X-A2W-B2W-41 (694414) |
| Spool Control | Pilot choke adjustment |
| Spool Position Monitor | No |
| Spool Type | Spool 52 |
| Spring Arrangement | Spring centred |
| Stage | Two stage |
| Surge Suppr Damper | No |
| Tank Port Rating Bar | 210.0 |
| Tank Port Rating Psi | 3000 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
