Danfoss (Drives) 02-414014

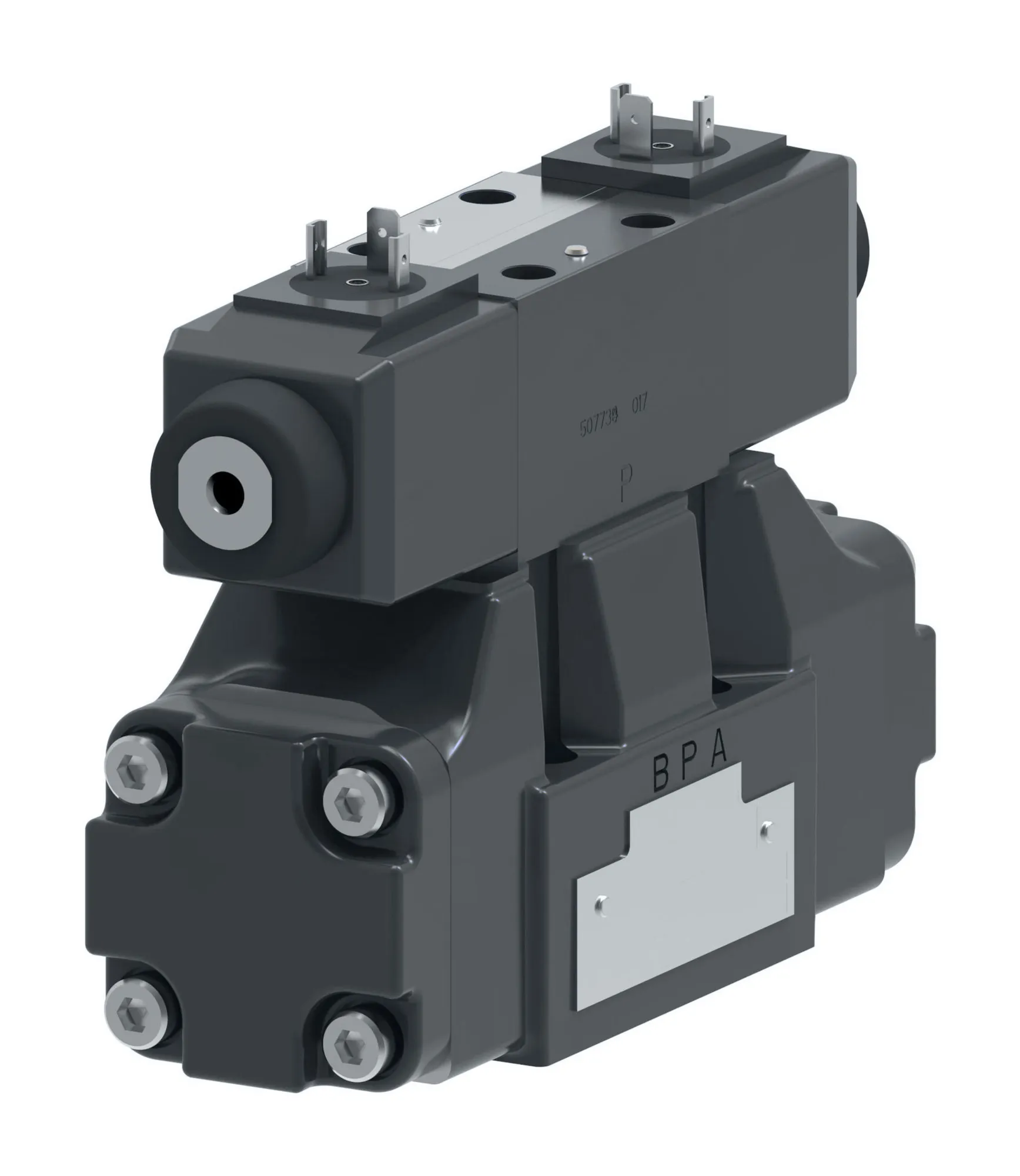

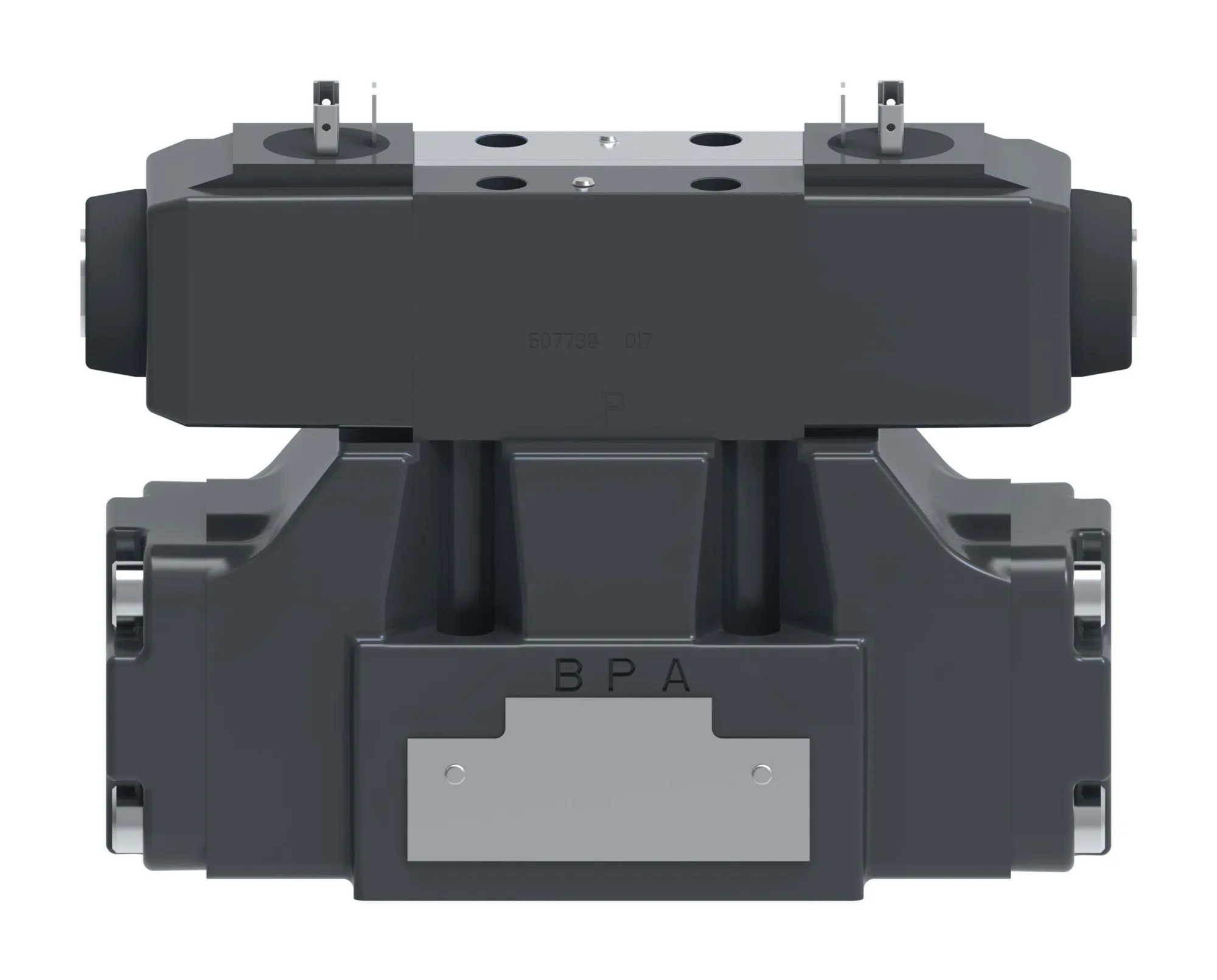

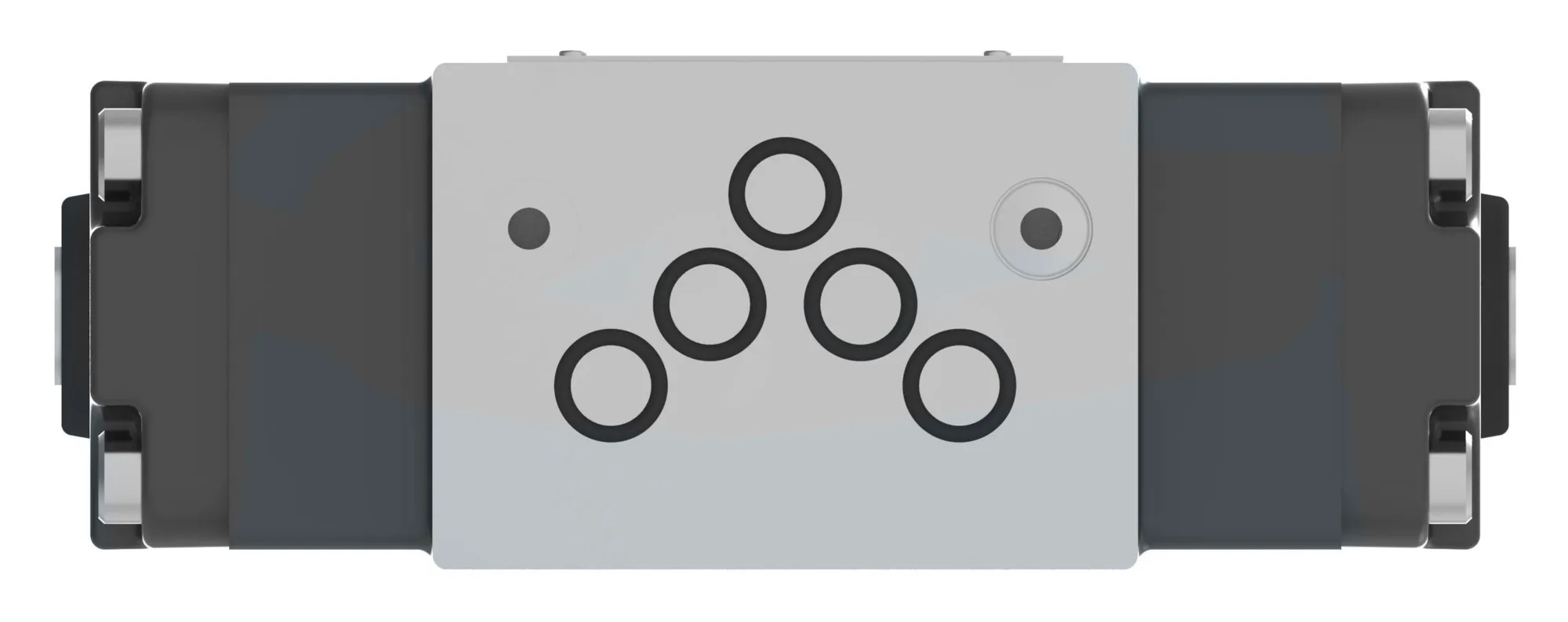

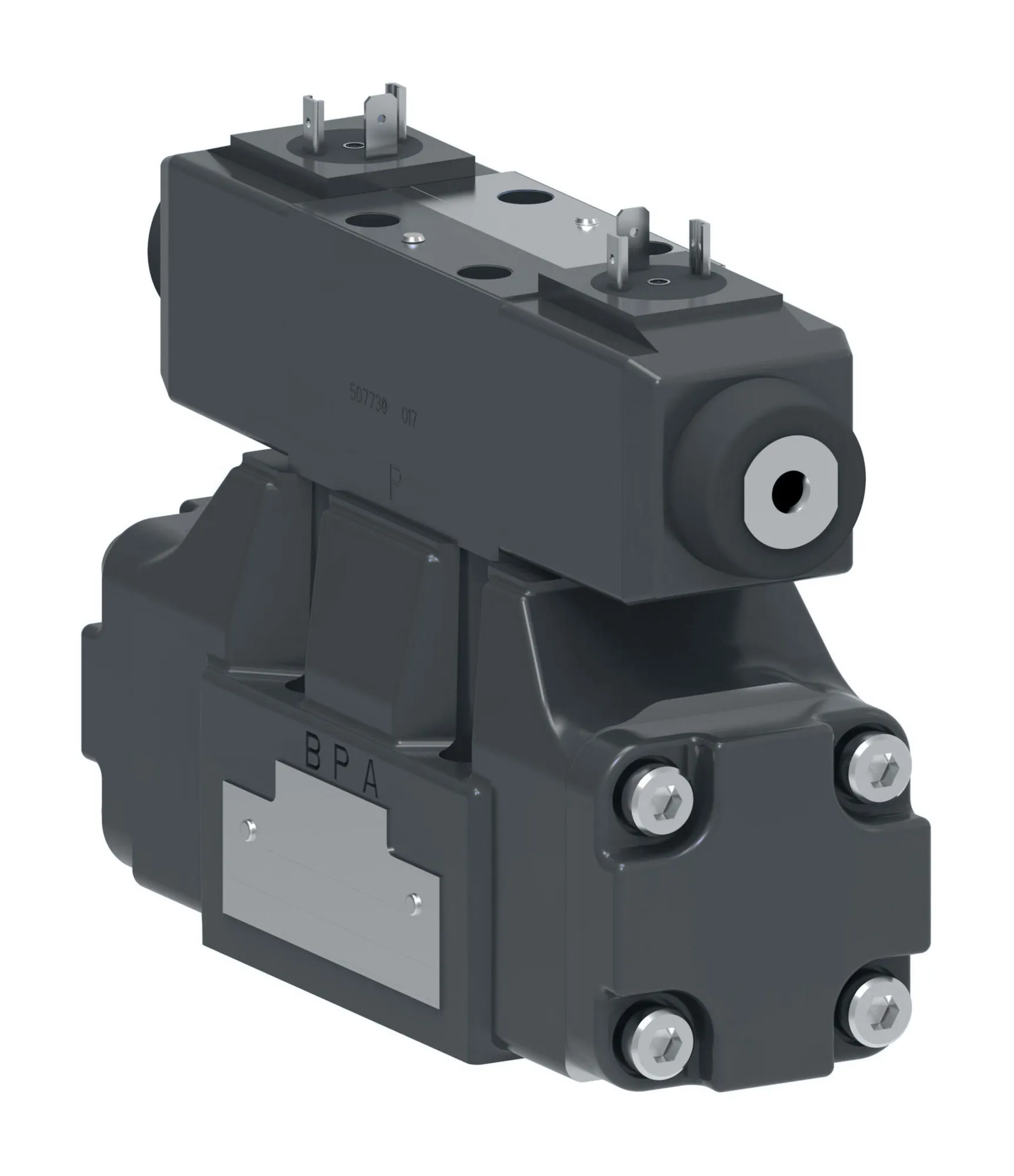

DG5V-5-X2A-T-M-U-H7-10-P08-EN109, DG5V5X2ATMUH710P08EN109 – 02-414014
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DG5V-5-X2A-T-M-U-H7-10-P08-EN109, DG5V5X2ATMUH710P08EN109 – 02-414014
Specification
| Actuation Type | Pilot operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | 24 VDC |
| Design Series | 10 Series |
| Electrical Connection | ISO 4400 (Din 43650) connector |
| Ext Pilot Pressure | Internal |
| Flow Rate Upto Gpm | 42.0 |
| Flow Rate Upto Lpm | 160.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Indicator Light | No |
| Int Pilot Drain | Internal |
| Interface | ISO4401-05 |
| Manual Override | Plain |
| Model Code 1 | DG5V5X2ATMUH710P08EN109 |
| Performance | High performance |
| Power Consumption | 30 watt |
| Pressure Rating Bar | 315 |
| Pressure Rating Psi | 4500 |
| Product Height In | 6.900 |
| Product Height Mm | 175.260 |
| Product Length In | 6.200 |
| Product Length Mm | 157.480 |
| Product Width In | 2.860 |
| Product Width Mm | 72.644 |
| Seal Type | Buna-N |
| Solenoid Energising Id | Standard as per ANSI B93 9 |
| Special Features | DG5V 7 X2A T M U H5 40 P08 Hydac branded product using EN163 pilot valve with coil turned thru 90 degress towards T port |
| Spool Position Monitor | No |
| Spool Type | Spool X2 |
| Spring Arrangement | Spring offset end to end |
| Stage | Two stage |
| Surge Suppr Damper | No |
| Tank Port Rating Bar | 210 |
| Tank Port Rating Psi | 3000 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
| Working Temp Max C | 80 |
| Working Temp Max F | 176 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
