Danfoss (Drives) 02-413479

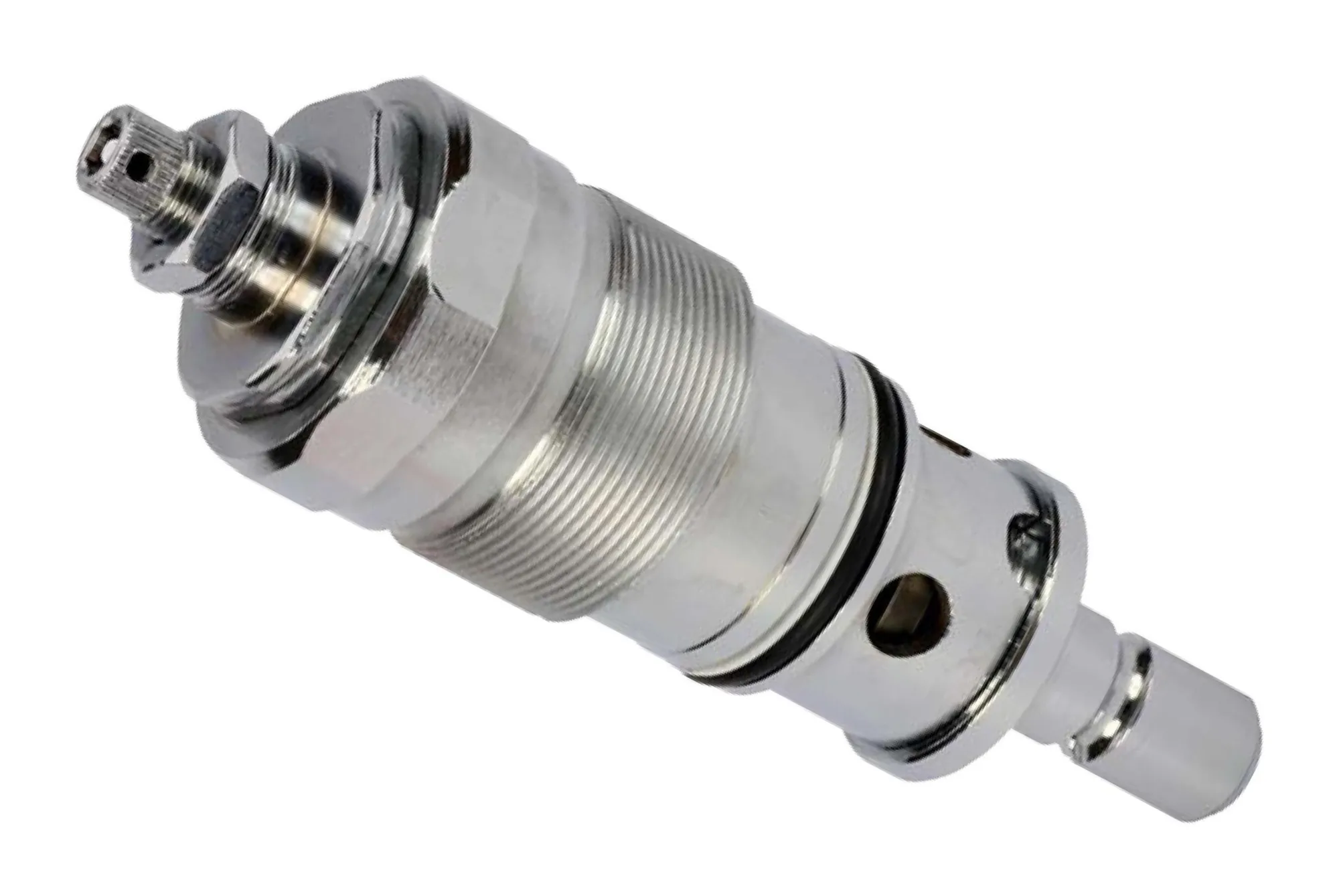

DARV-W-10-P-10/315, DARVW10P10/315 – 02-413479
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DARV-W-10-P-10/315, DARVW10P10/315 – 02-413479
Specification
| Actuation Type | Manually operated |
|---|---|
| Adjustment Range Bar | 315 |
| Adjustment Range Psi | 4500 |
| Adjustment Type | Screw with locknut |
| Brand | Vickers by Danfoss |
| Design Series | 10 Series |
| Drain | Internal |
| Electrical Connection | None |
| Flow Rate Lpm | 120.0 |
| Flow Rate Usgpm | 31.6 |
| Fluid Cleanliness | 19/17/14 Micron |
| Fluid Compatibility | Petroleum oils |
| Gauge Port Thread | G 1/2 BSP |
| Leakage | Standard |
| Maximum Pressure Bar | 400 |
| Maximum Pressure Psi | 5800 |
| Model Code 1 | DARVW10P10/315 |
| Performance | Standard |
| Product Height In | 80.000 |
| Product Height Mm | 2032.000 |
| Product Length In | 104.000 |
| Product Length Mm | 2641.600 |
| Product Width In | 60.000 |
| Product Width Mm | 1524 |
| Seal Material | Nitrile |
| Size | Size 10 |
| Special Feature | None |
| Stage | Single stage |
| Tank Pressure Bar | 315 |
| Tank Pressure Psi | 4500 |
| Valve Mount Type | Subplate mounted |
| Valve Type | Direct acting relief valve |
| Working Temperature Max C | 80 |
| Working Temperature Max F | 176 |
| Working Temperature Min C | -30 |
| Working Temperature Min F | -22 |
