Danfoss (Drives) 02-413088
DGMFN-H8-Y-A2W-B2W-10, DGMFNH8YA2WB2W10 – 02-413088
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

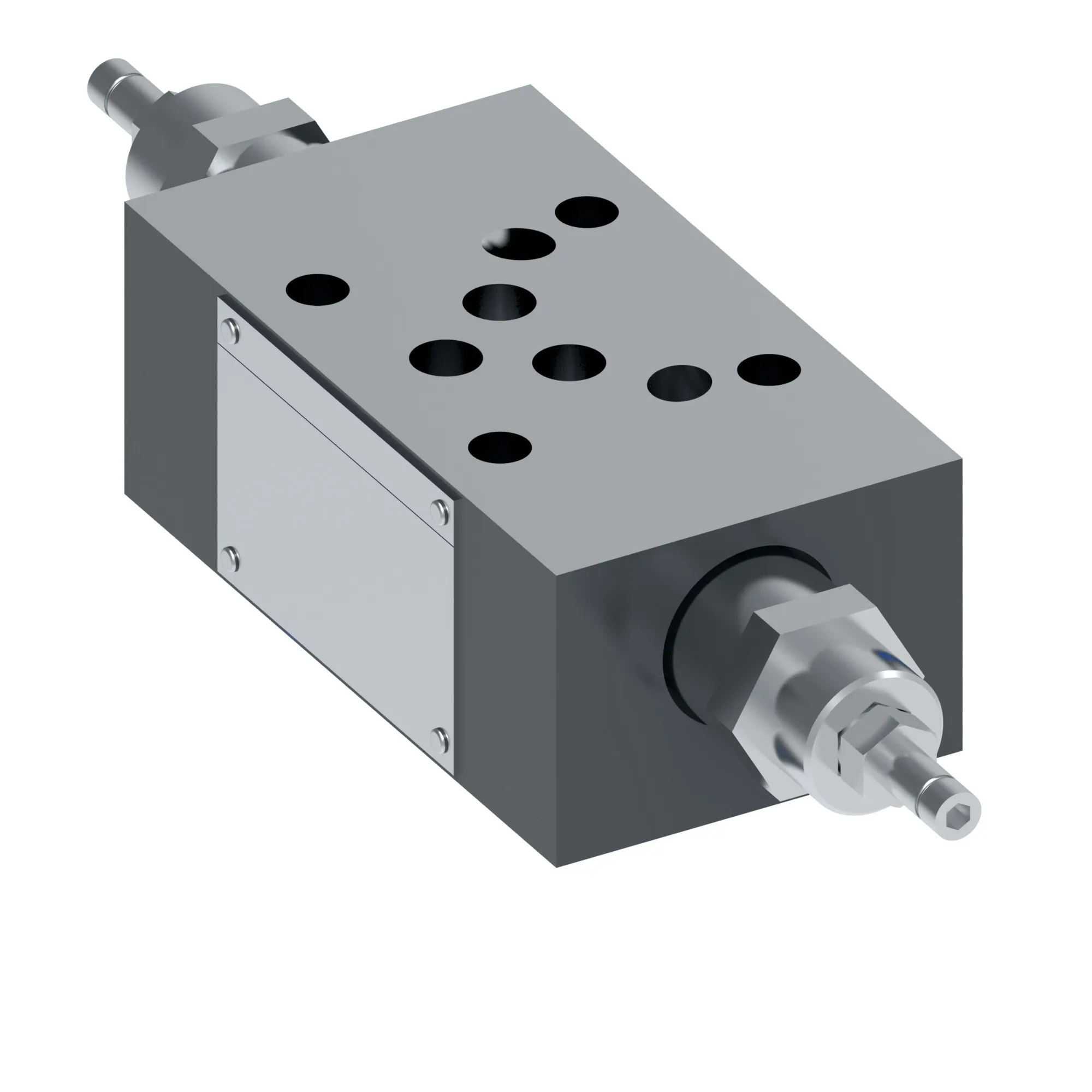

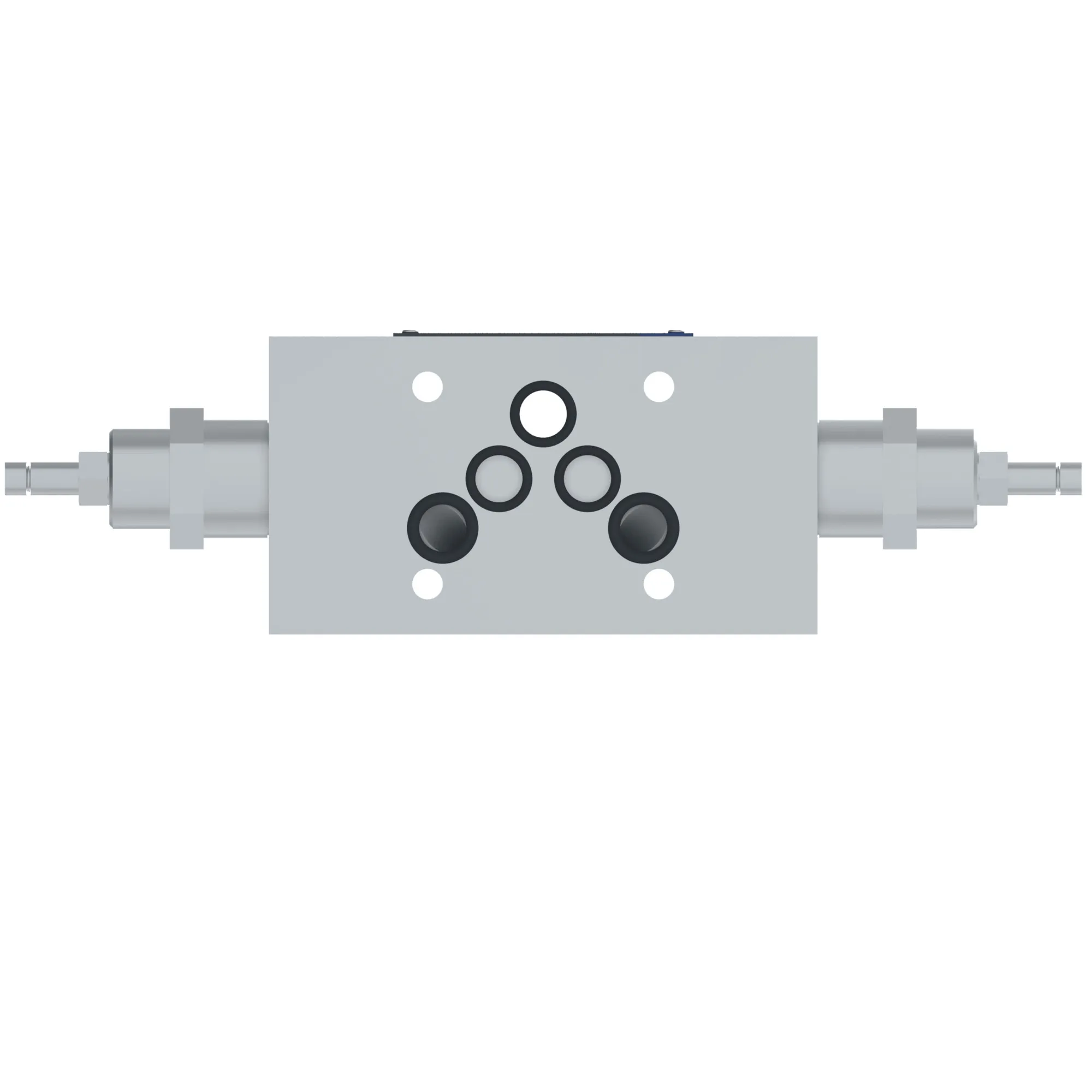

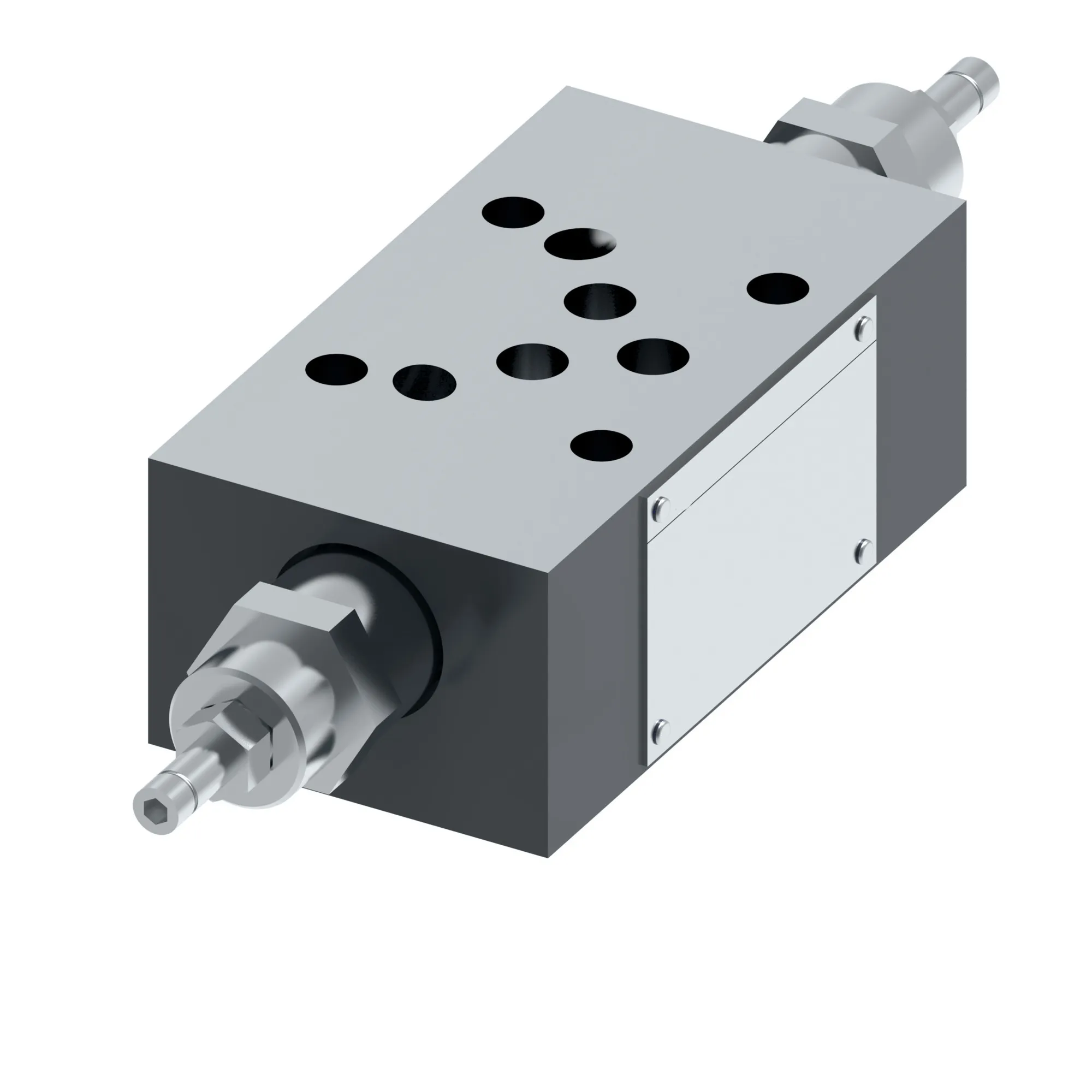

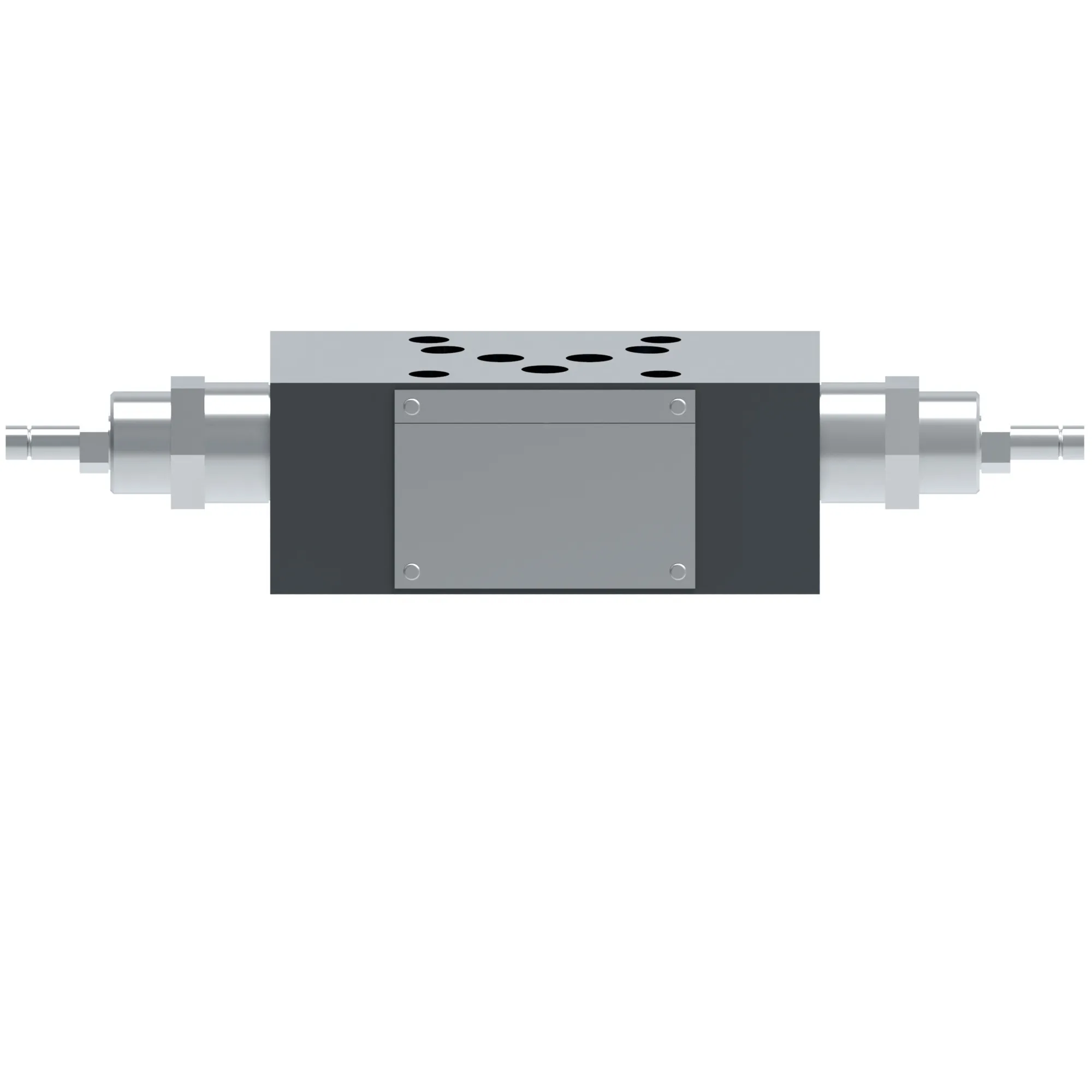

DGMFN-H8-Y-A2W-B2W-10, DGMFNH8YA2WB2W10 – 02-413088
Specification
| Actuation Type | Pressure operated |
|---|---|
| Adjustment Type | Wrench adjustment |
| Brand | Vickers by Danfoss |
| Design Series | 10 Series |
| Direction Of Flow | Meter-out control |
| Flow Rate Upto Lpm | 350 |
| Flow Rate Upto Usgpm | 92.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Anti-wear hydraulic oil |
| Interface | ISO4401-08 |
| Maximum Pressure Upto Bar | 315 |
| Maximum Pressure Upto Psi | 4500 |
| Model Code 1 | DGMFNH8YA2WB2W10 |
| Performance | Standard |
| Product Height In | 2.160 |
| Product Height Mm | 54.864 |
| Product Length In | 12.780 |
| Product Length Mm | 324.612 |
| Product Width In | 3.930 |
| Product Width Mm | 99.822 |
| Seal Type | Buna-N |
| Special Features | None |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Throttle valve with check |
| Working Temp Max C | 80 |
| Working Temp Max F | 176 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
