Description

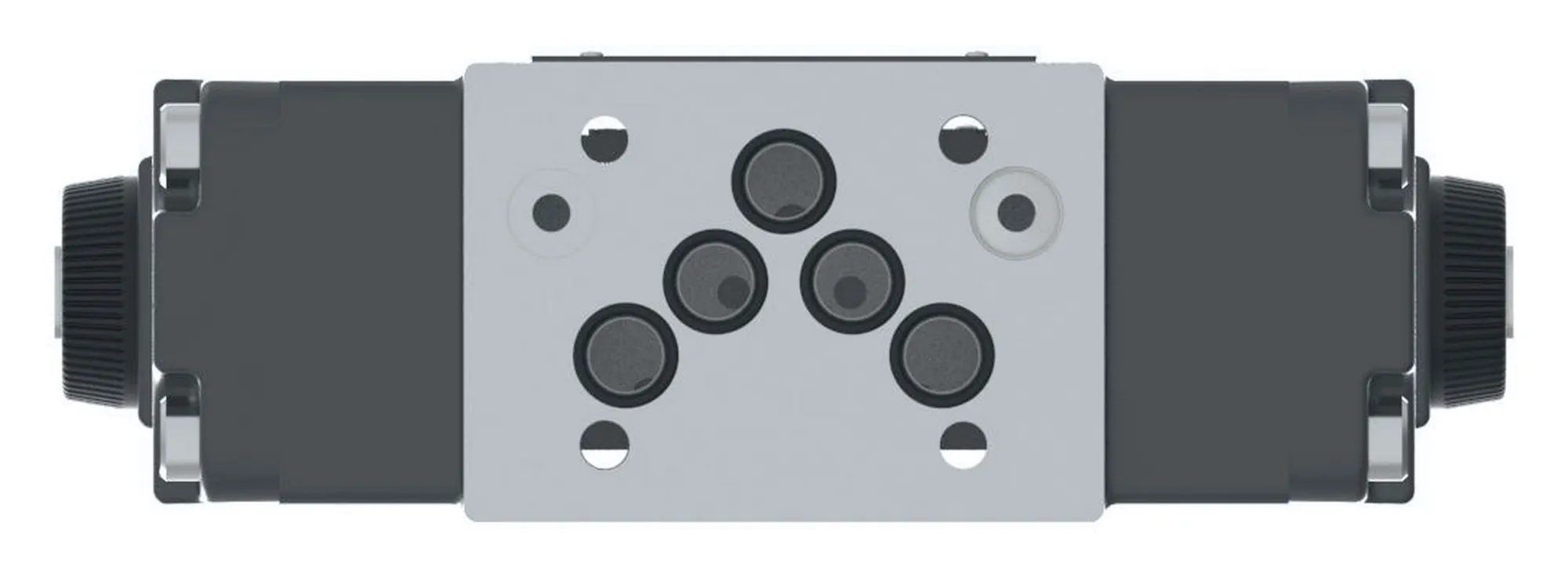

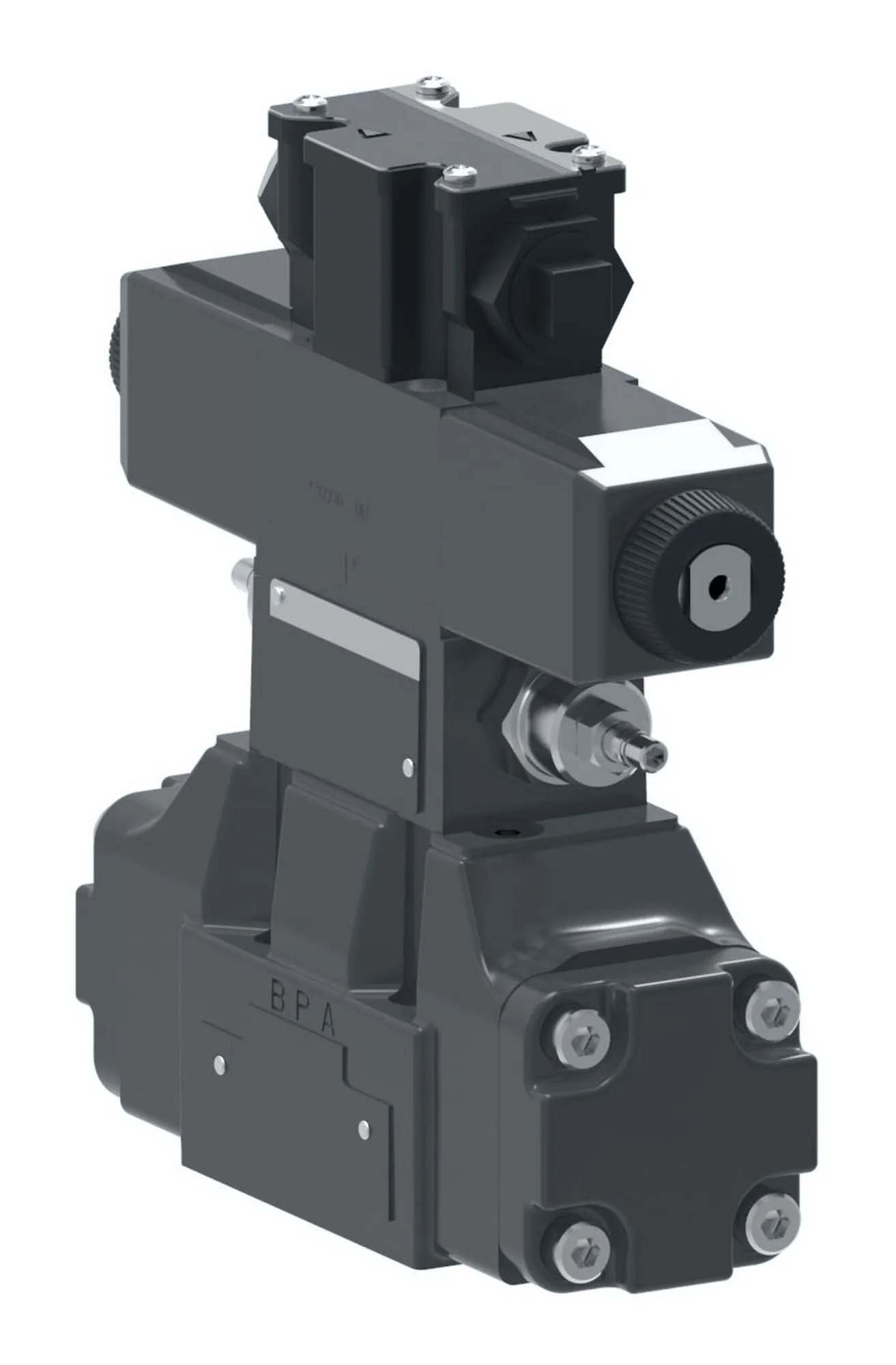

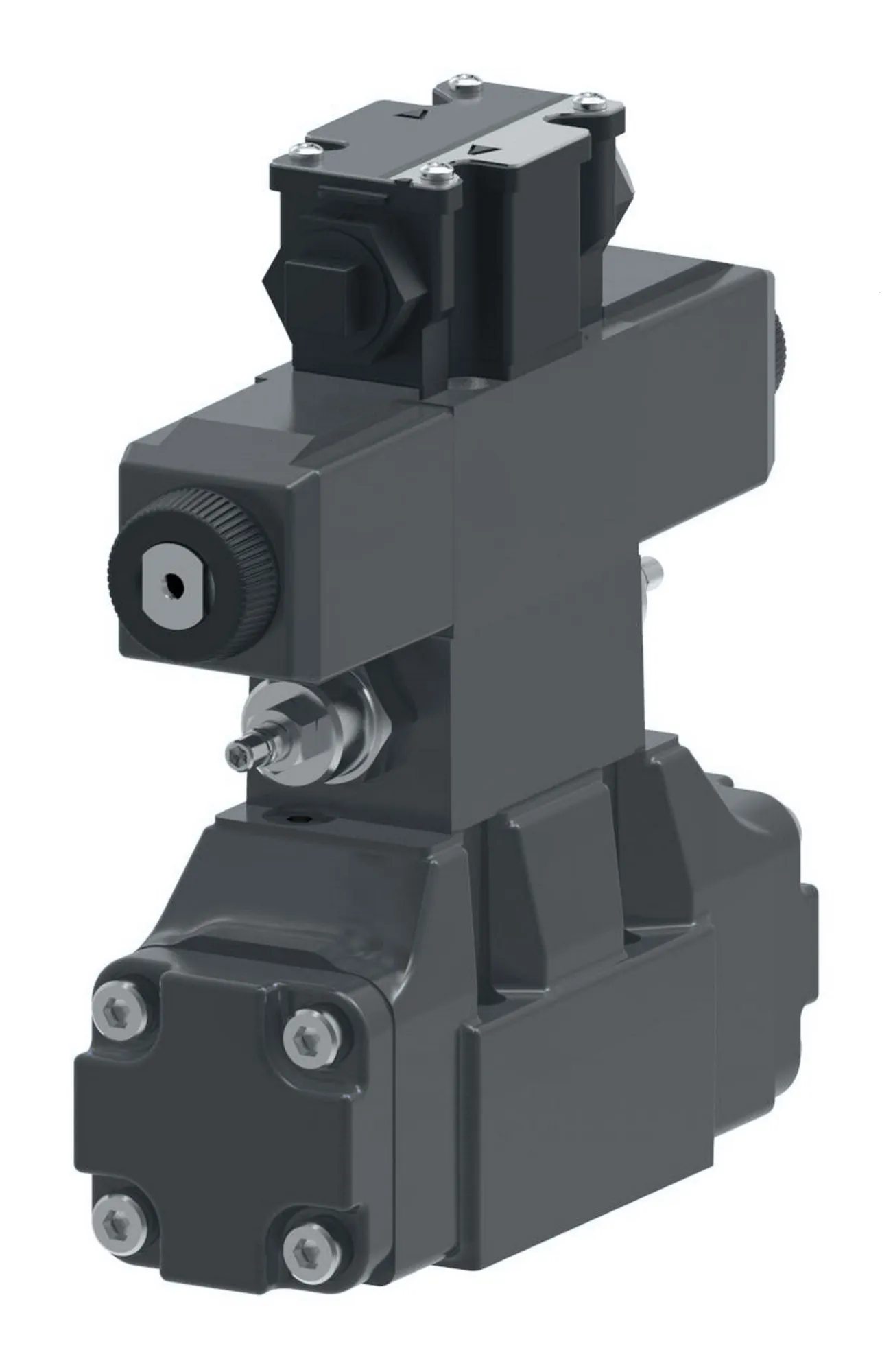

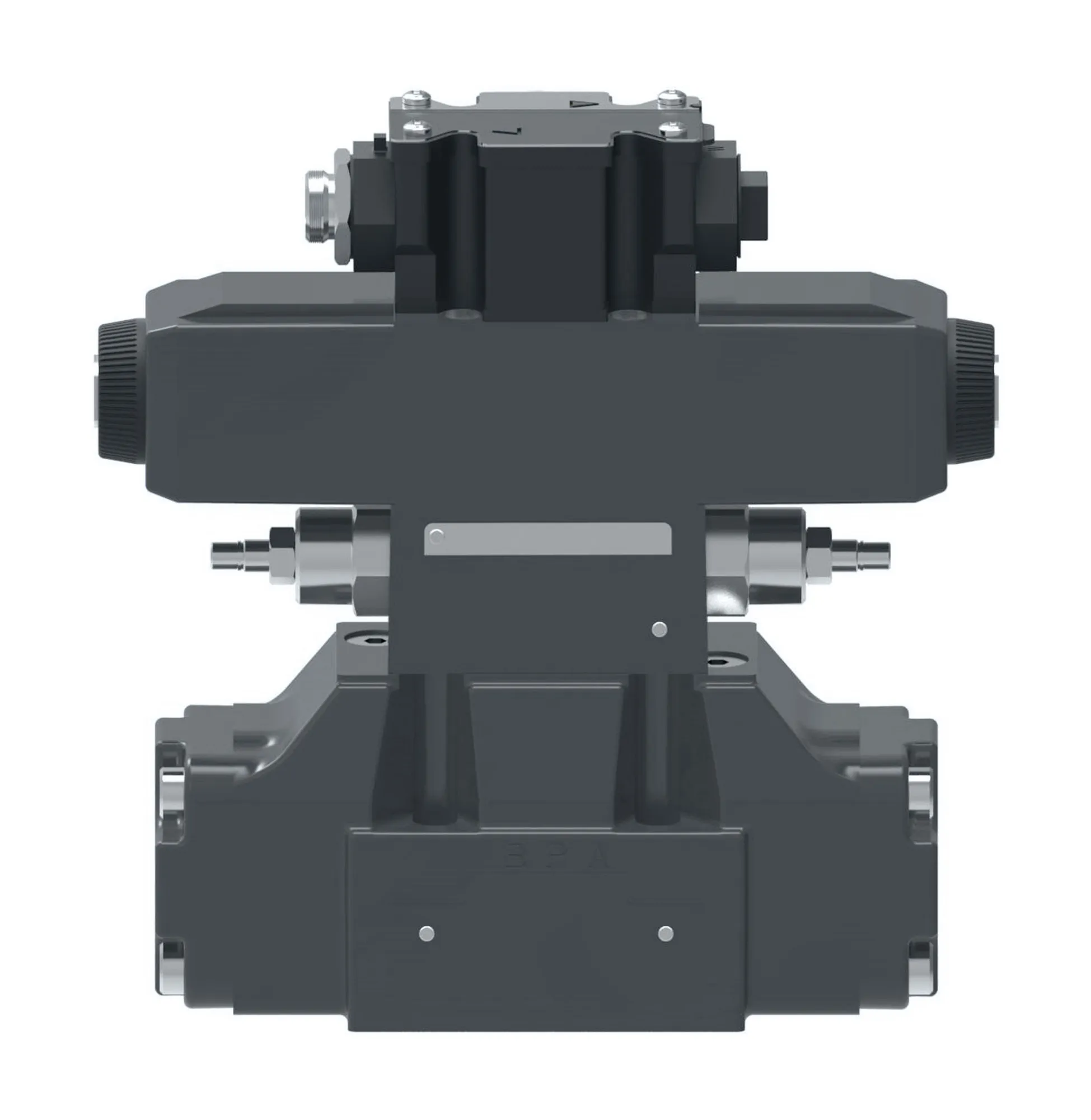

DG5V-5-3C-2-T-M-FW-B6-10, DG5V53C2TMFWB610 – 02-412772
Specification
| Actuation Type | Pilot operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | 110 VAC 50Hz/120 VAC 60Hz |
| Design Series | 10 Series |
| Electrical Connection | Flying lead 1/2″ NPT housing |
| Ext Pilot Pressure | Internal |
| Flow Rate Upto Gpm | 42.0 |
| Flow Rate Upto Lpm | 160.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Indicator Light | No |
| Int Pilot Drain | Internal |
| Interface | ISO4401-05 |
| Manual Override | Plain |
| Model Code 1 | DG5V53C2TMFWB610 |
| Performance | High performance |
| Power Consumption | 61VA 50HZ – 58VA 60HZ |
| Pressure Rating Bar | 315 |
| Pressure Rating Psi | 4500 |
| Product Height In | 8.600 |
| Product Height Mm | 218.440 |
| Product Length In | 7.870 |
| Product Length Mm | 199.898 |
| Product Width In | 2.860 |
| Product Width Mm | 72.644 |
| Seal Type | Buna-N |
| Solenoid Energising Id | Standard as per ANSI B93 9 |
| Special Features | None |
| Spool Control | Pilot choke adjustment |
| Spool Position Monitor | No |
| Spool Type | Spool 3 |
| Spring Arrangement | Spring centred |
| Stage | Two stage |
| Surge Suppr Damper | No |
| Tank Port Rating Bar | 160 |
| Tank Port Rating Psi | 2300 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
| Working Temp Max C | 80 |
| Working Temp Max F | 176 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
