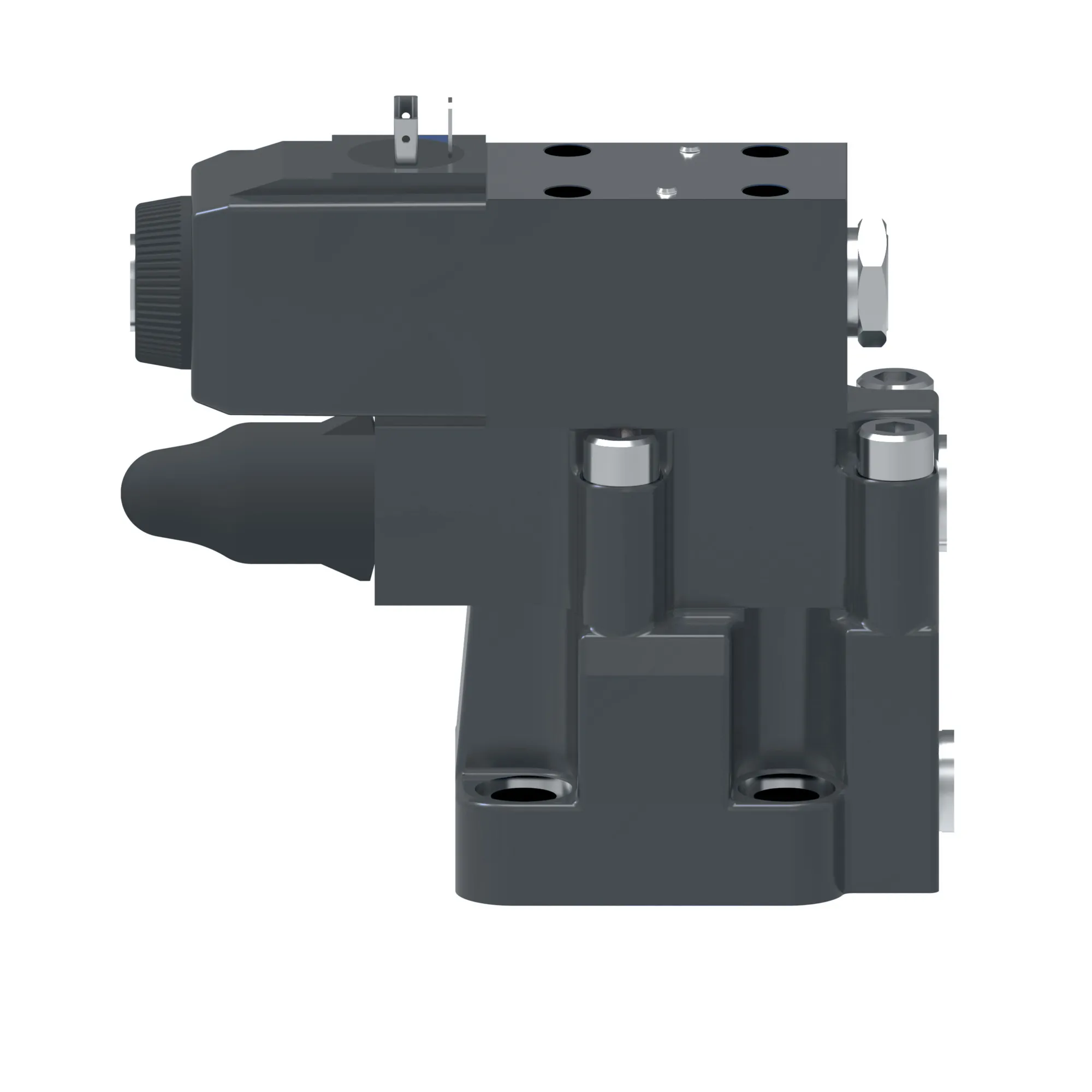

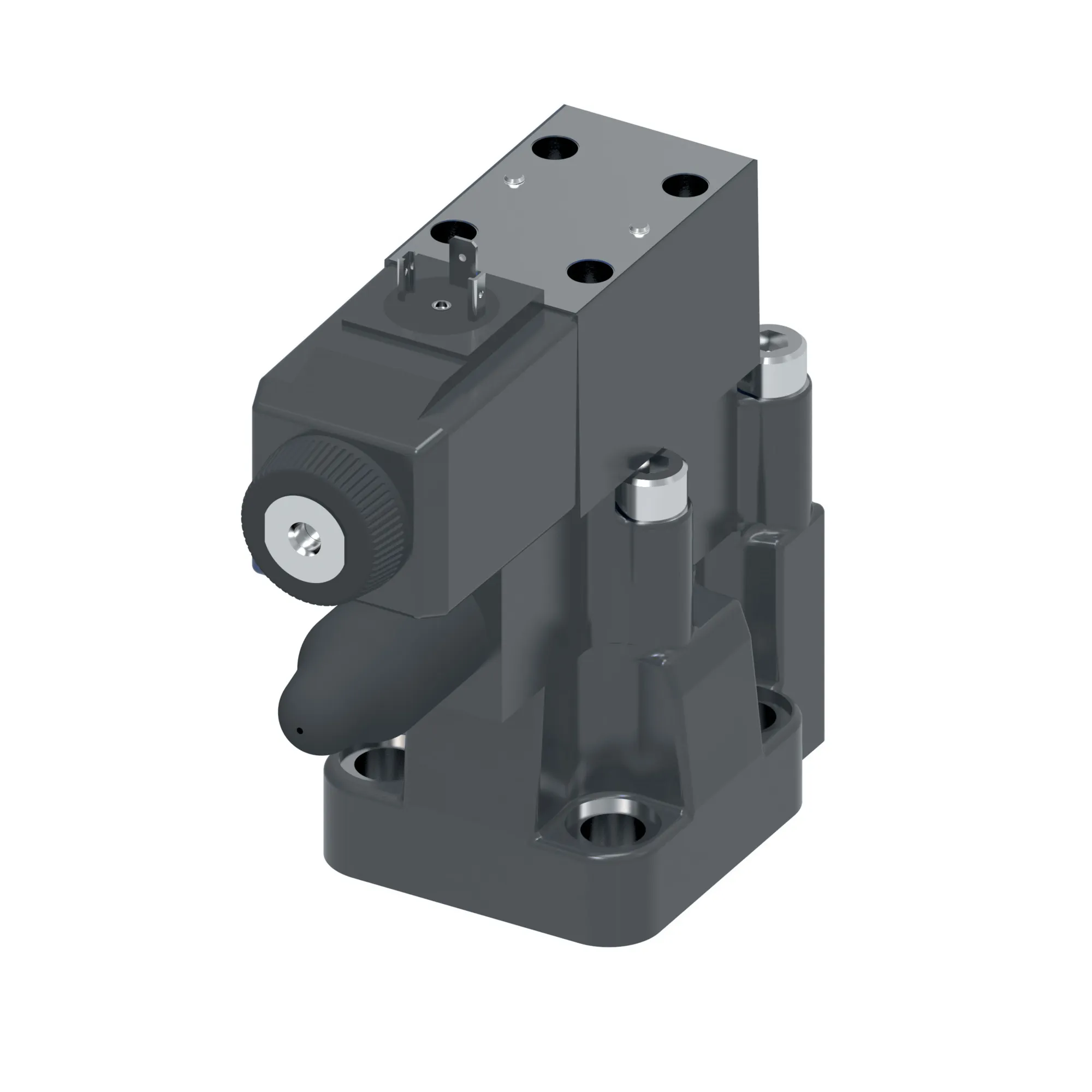

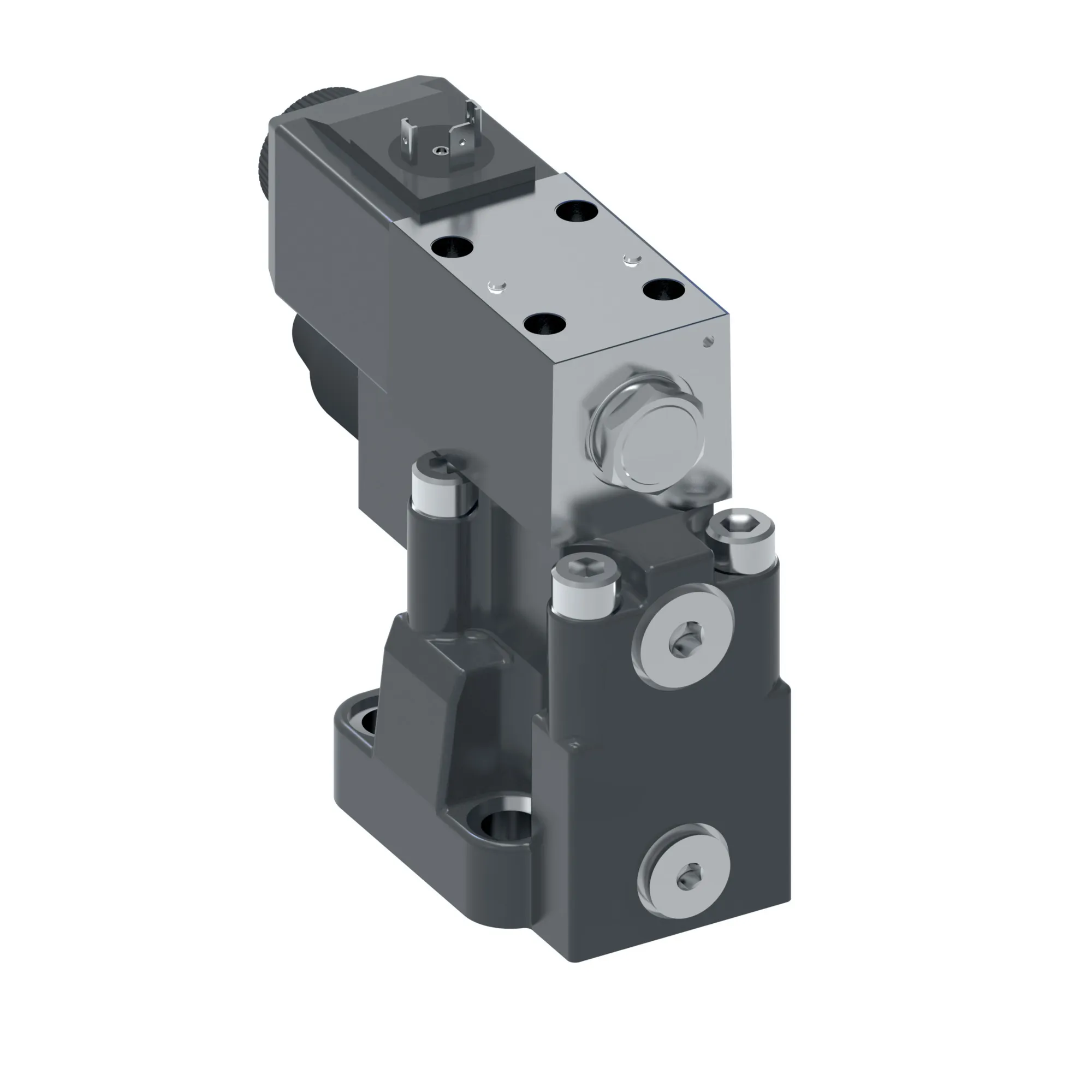

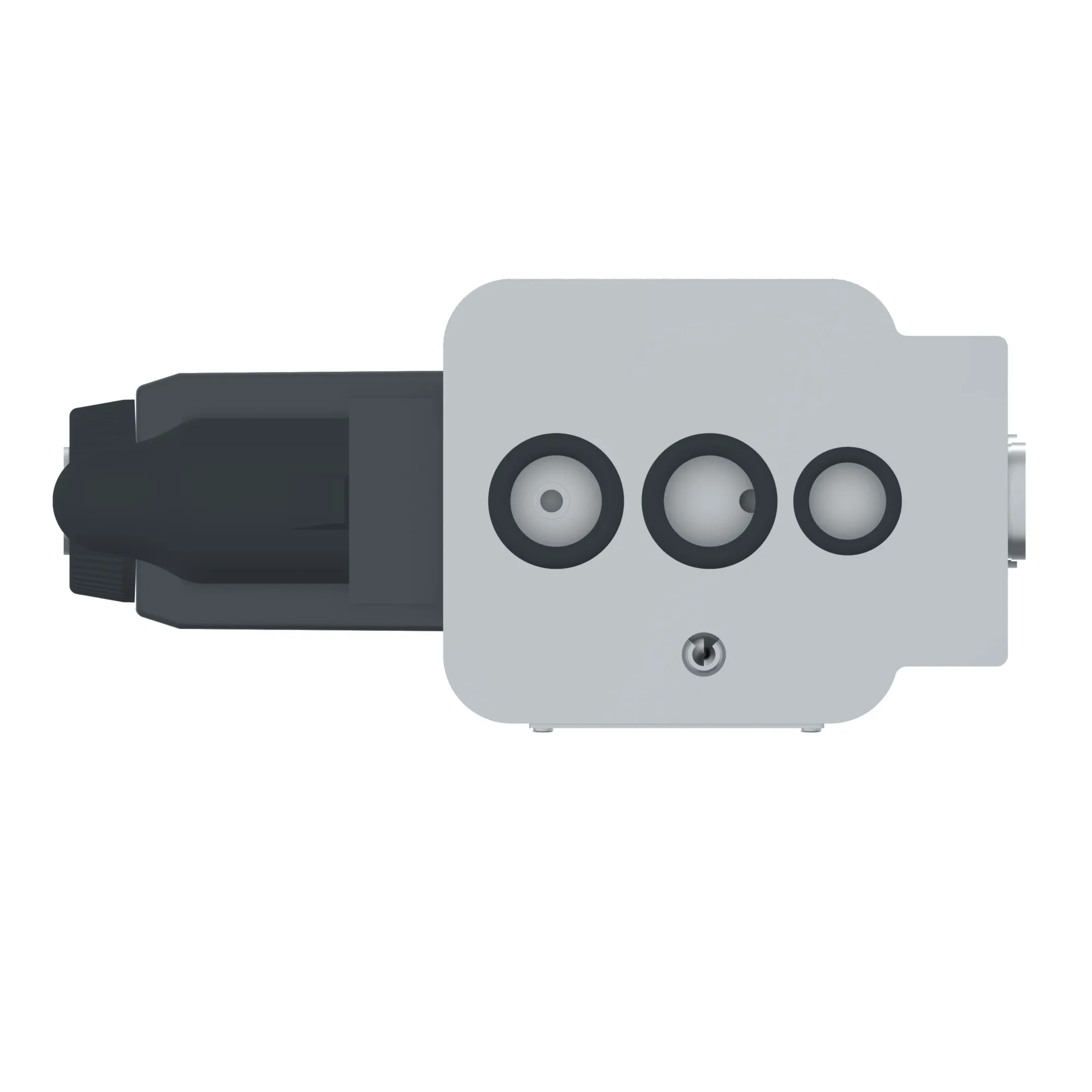

Danfoss (Drives) 02-412652
CG5V-10HW-B-2-M-U-H7-10, CG5V10HWB2MUH710 – 02-412652
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
CG5V-10HW-B-2-M-U-H7-10, CG5V10HWB2MUH710 – 02-412652
Specification
| Adjustment Range Bar | 350 |
|---|---|
| Adjustment Type | Wrench and cover |
| Brand | Vickers by Danfoss |
| Coil Voltage | 24 VDC |
| Design Series | 10 Series |
| Flow Rate Lpm | 650.0 |
| Fluid Cleanliness | 19/17/14 Micron |
| Manual Override | Plain |
| Model Code 1 | CG5V10HWB2MUH710 |
| Product Height In | 4.000 |
| Product Height Mm | 101.600 |
| Product Length In | 4.640 |
| Product Length Mm | 117.856 |
| Product Width In | 4.500 |
| Product Width Mm | 114.3 |
| Size | Size 10 |
| Valve Mount Type | Subplate mounted |
| Valve Type | Relief valve |
