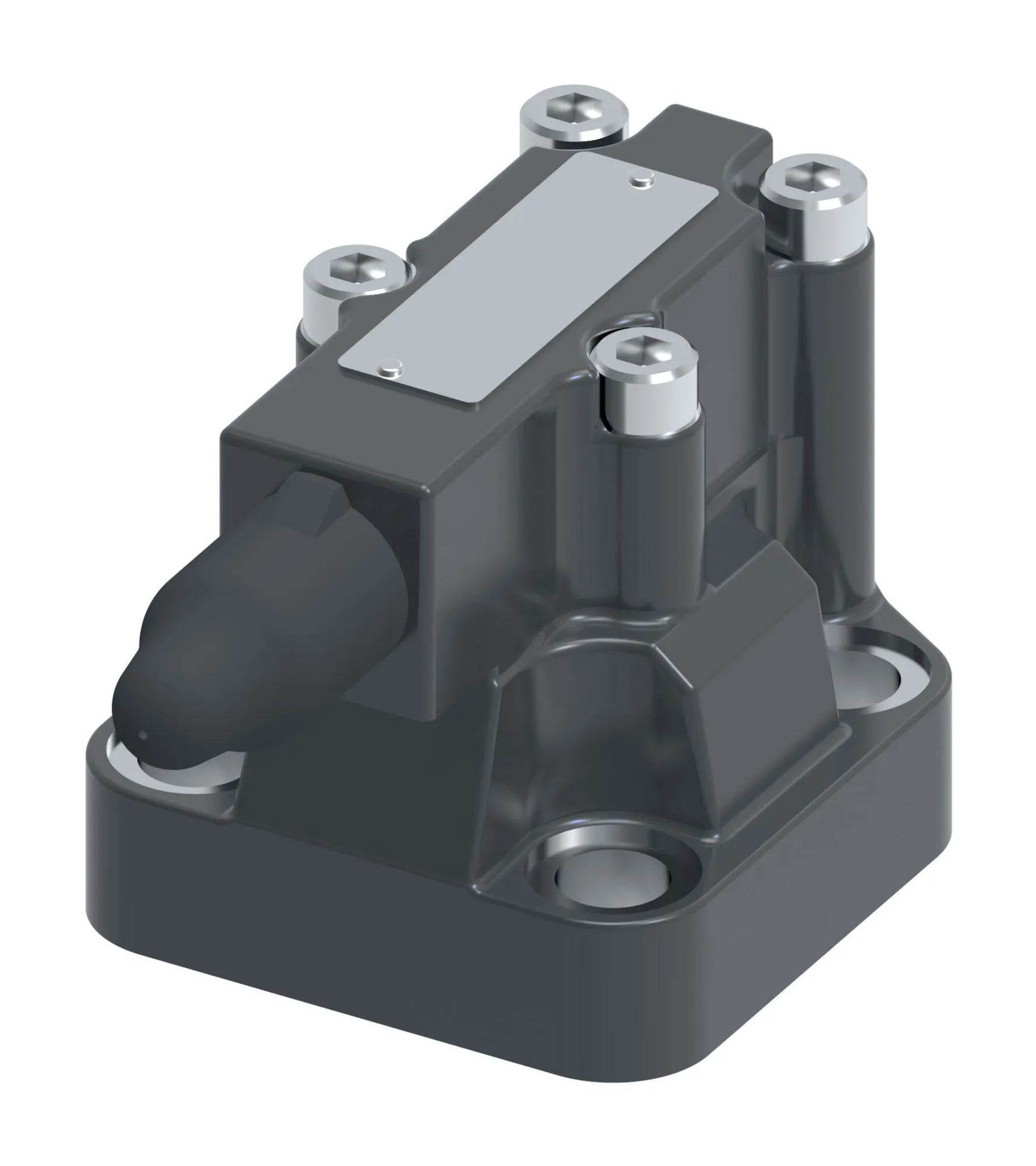

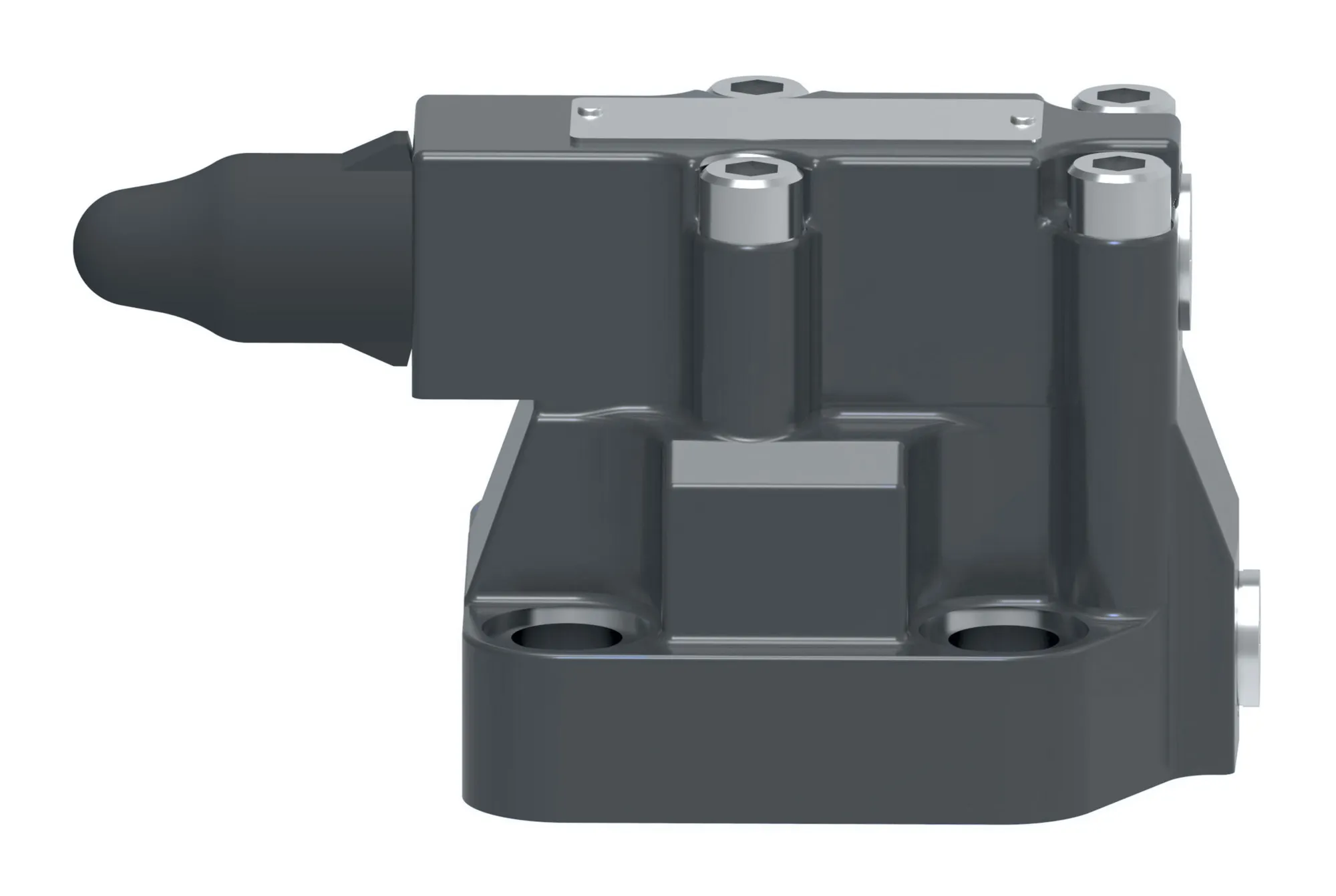

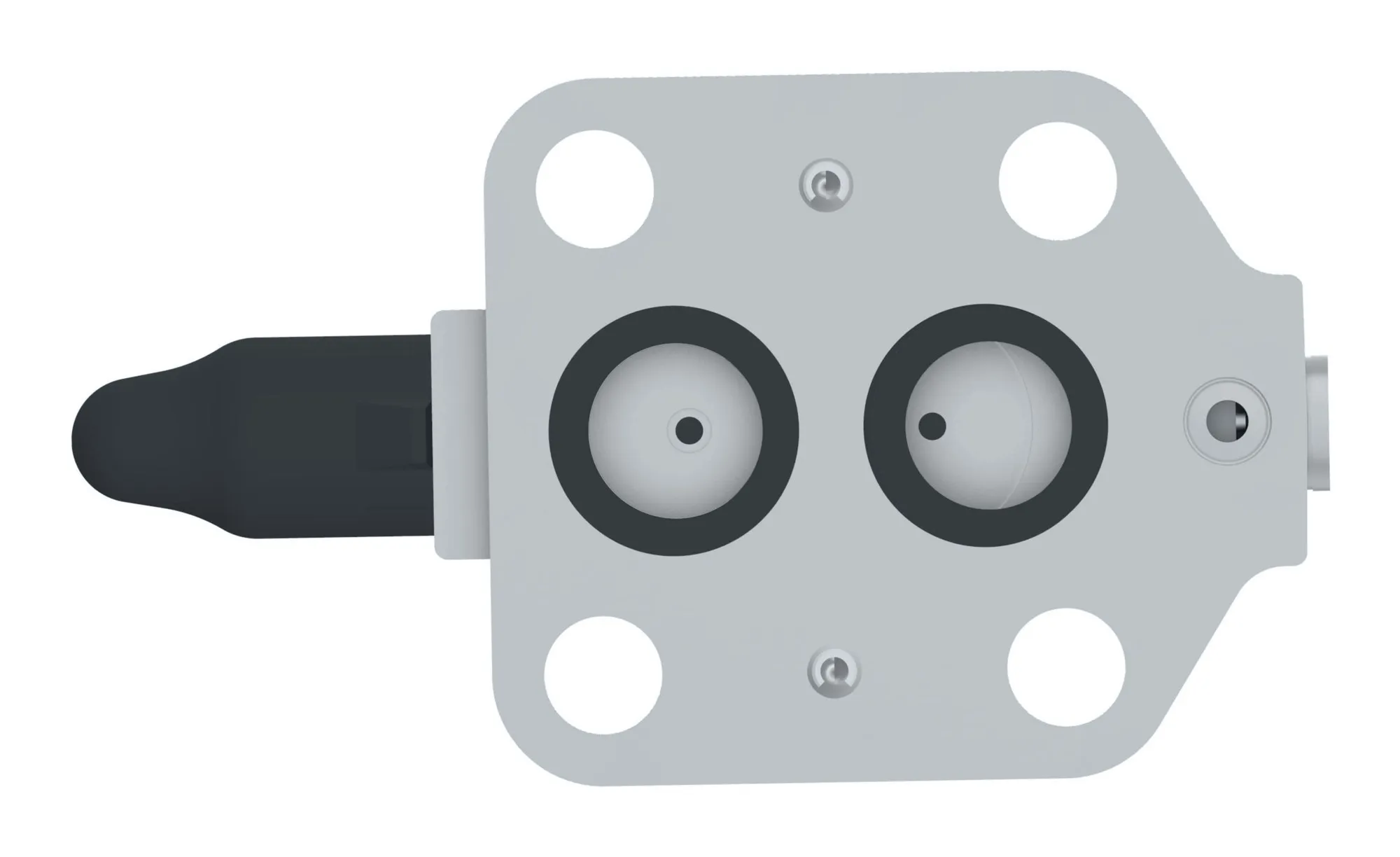

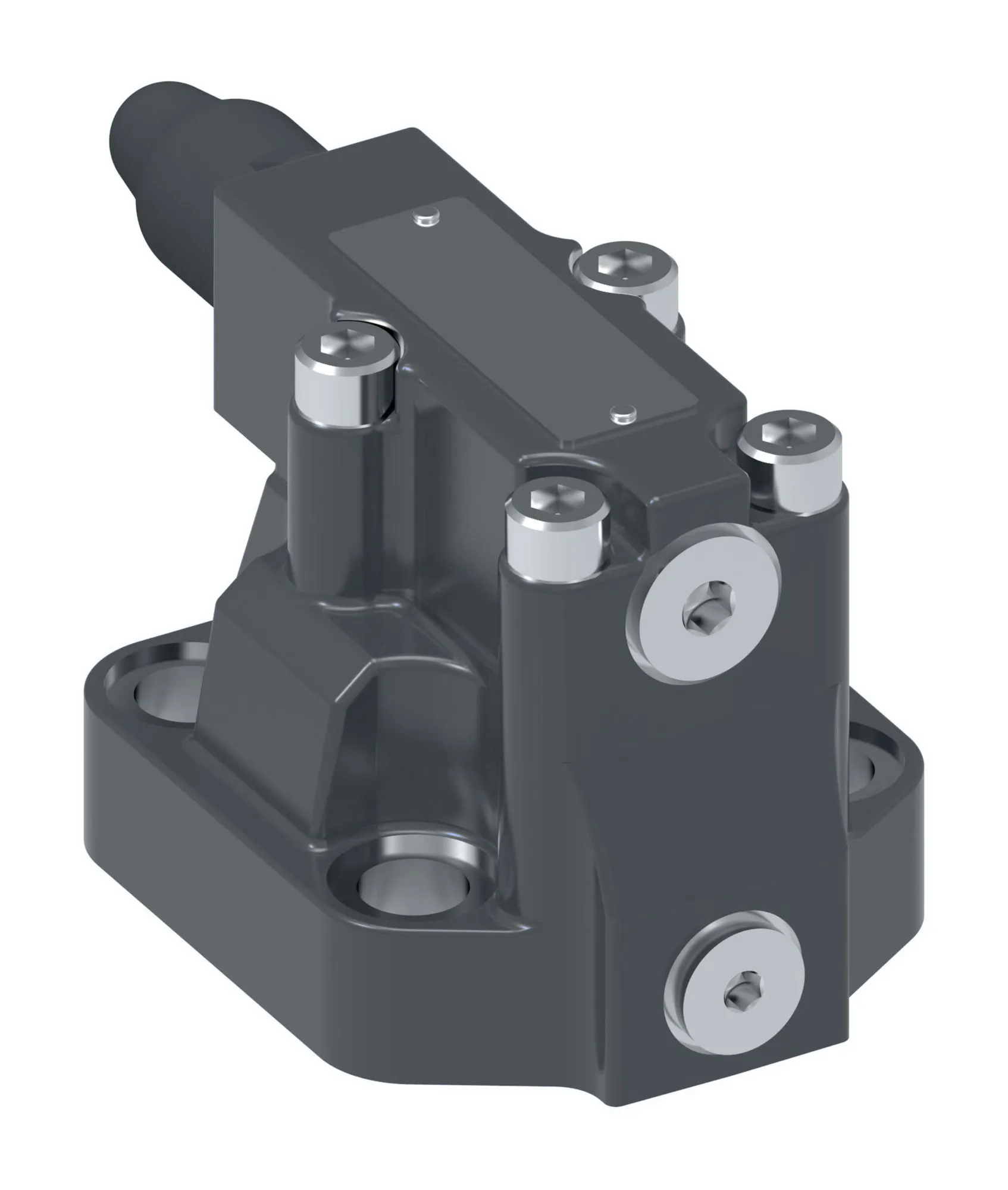

Danfoss (Drives) 02-412584
CG2V-10FW-B-Y-10, CG2V10FWBY10 – 02-412584
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
CG2V-10FW-B-Y-10, CG2V10FWBY10 – 02-412584
Specification
| Actuation Type | Manually operated |
|---|---|
| Adjustment Range Bar | 210 |
| Adjustment Range Psi | 3000 |
| Adjustment Type | Screw with locknut |
| Brand | Vickers by Danfoss |
| Design Series | 10 Series |
| Drain | External |
| Electrical Connection | None |
| Flow Rate Lpm | 650.0 |
| Flow Rate Usgpm | 172.0 |
| Fluid Cleanliness | 19/17/14 Micron |
| Fluid Compatibility | Petroleum oils |
| Hi Vent Spring | Yes |
| Interface | ISO6264-10, Cetop 10 |
| Leakage | Standard |
| Manual Override | Plain |
| Maximum Pressure Bar | 350 |
| Maximum Pressure Psi | 5000 |
| Model Code 1 | CG2V10FWBY10 |
| Performance | Standard |
| Product Height In | 4.800 |
| Product Height Mm | 121.920 |
| Product Length In | 6.900 |
| Product Length Mm | 175.260 |
| Product Width In | 3.230 |
| Product Width Mm | 82.042 |
| Seal Material | Nitrile |
| Size | Size 02 |
| Special Feature | None |
| Stage | Two stage |
| Tank Pressure Bar | 315 |
| Tank Pressure Psi | 4500 |
| Valve Mount Type | Subplate mounted |
| Valve Type | Relief valve |
| Working Temperature Max C | 80 |
| Working Temperature Max F | 176 |
| Working Temperature Min C | -30 |
| Working Temperature Min F | -22 |
