Danfoss (Drives) 02-412127
KBFDG5V-7-2C200N-X-M1-PE 7-H1-10 – 02-412127
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

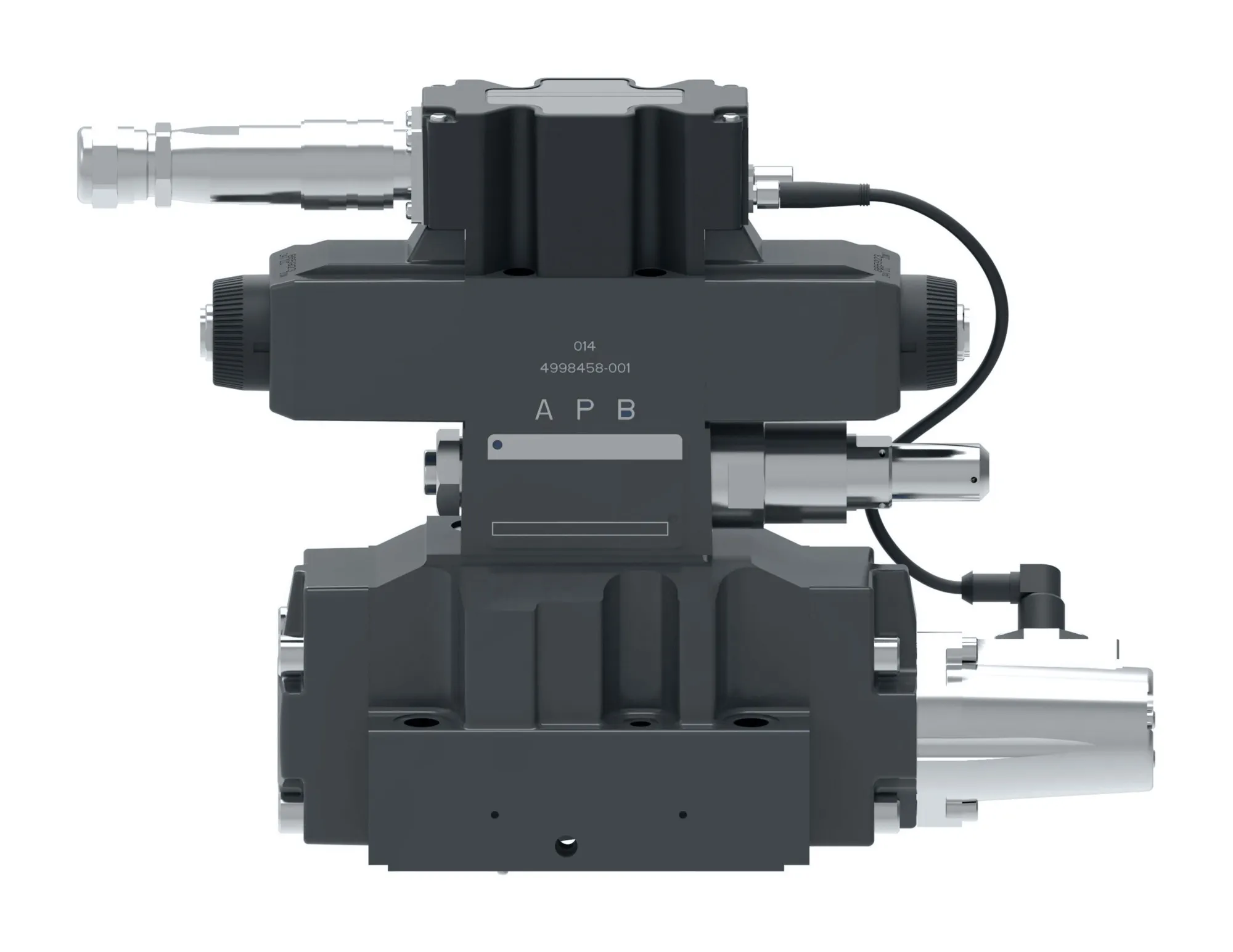

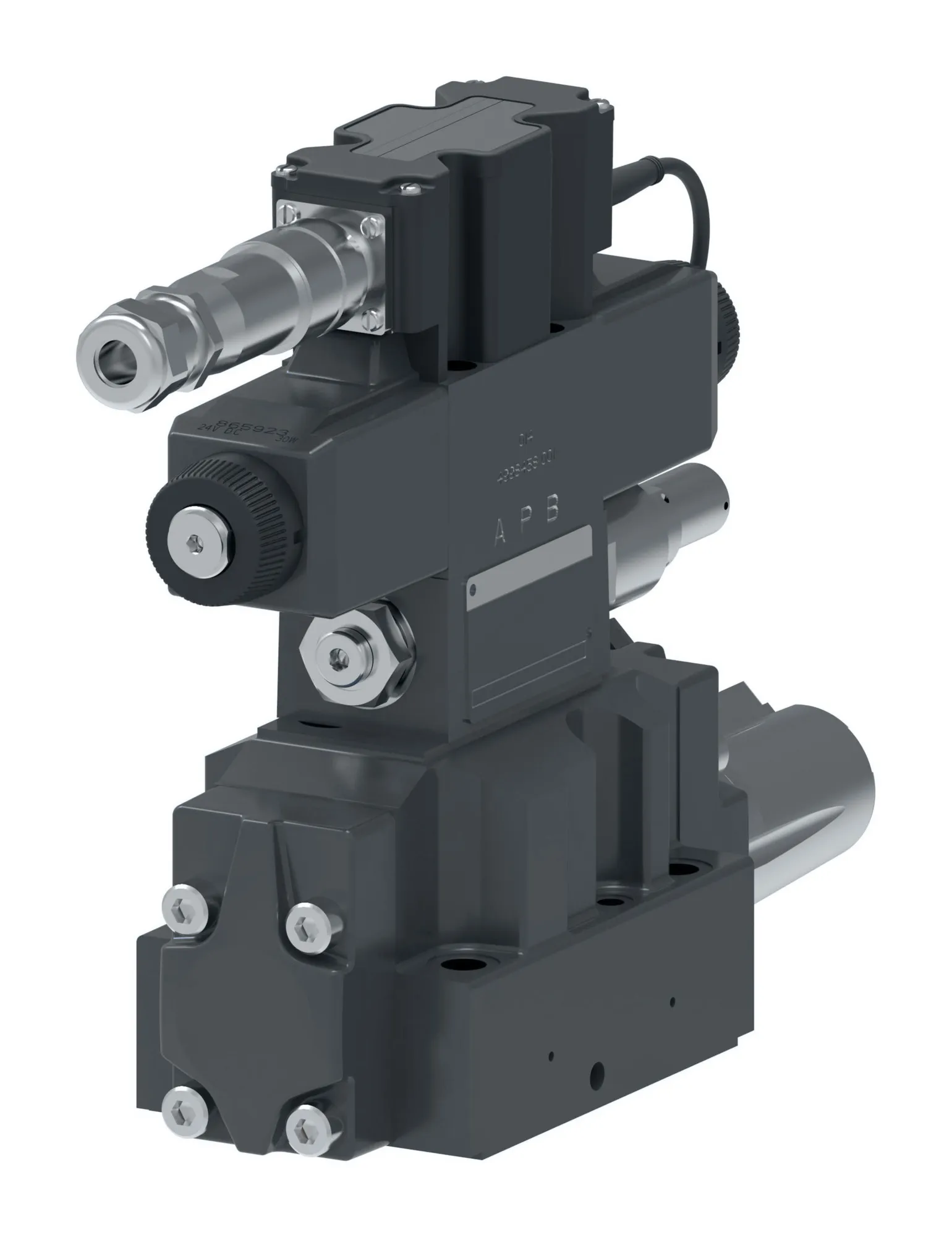

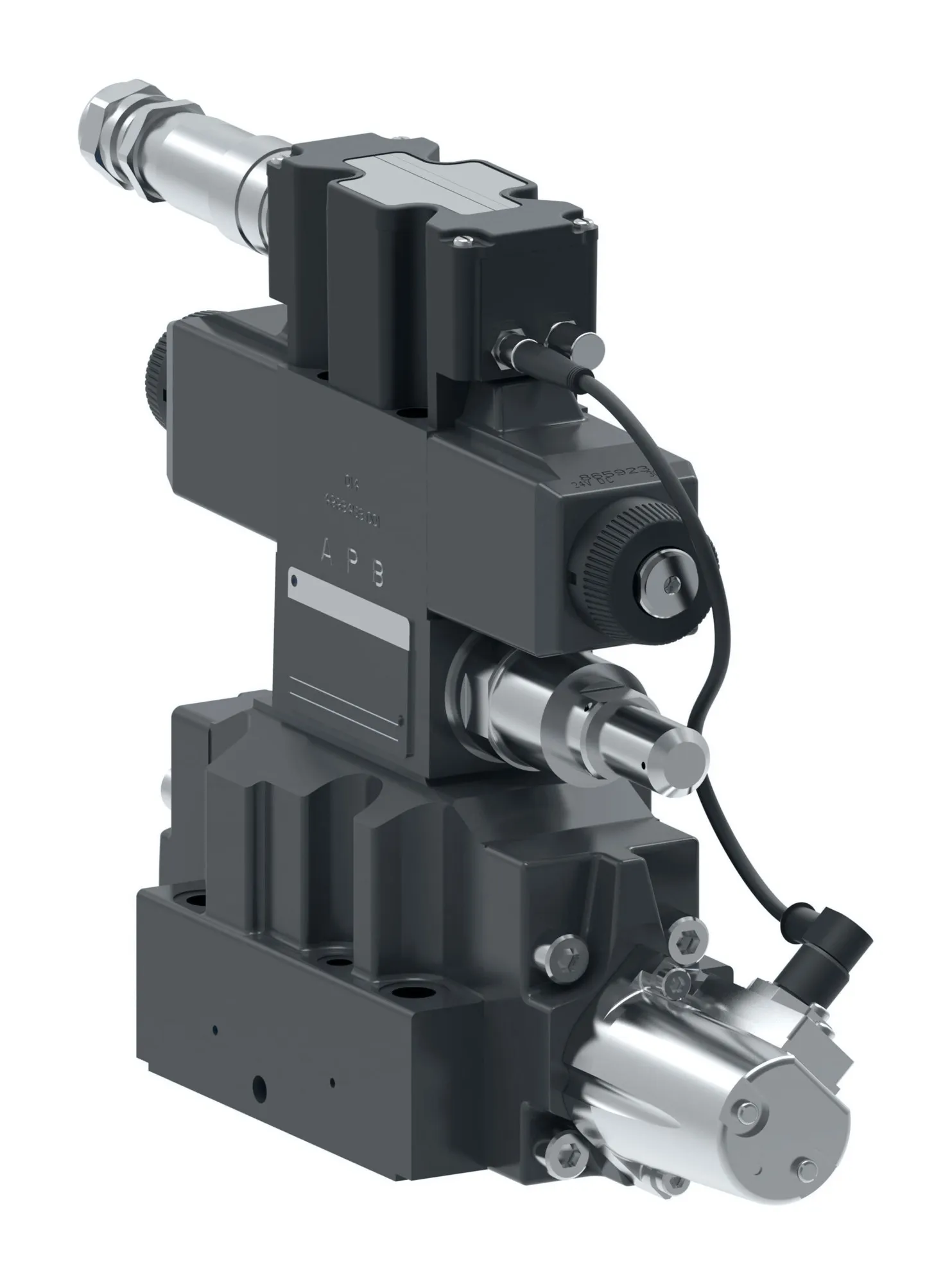

KBFDG5V-7-2C200N-X-M1-PE 7-H1-10 – 02-412127
Specification
| A Port Flow Lpm | 200.00 |
|---|---|
| A Port Flow Usgpm | 52.00 |
| Actuation Type | Solenoid controlled pilot operated |
| B Port Flow Lpm | 200.00 |
| B Port Flow Usgpm | 52.00 |
| Brand | Vickers by Danfoss |
| Build Orientation | Standard as per ANSI B93 9 |
| Build Type | Spring centered |
| Coil Voltage | 24 Volt DC |
| Command Input | +/-10V Command +/-10V feedback |
| Communication Protocol | None |
| Current | 3 amp |
| Design Series | 10 Series |
| Electrical Connection | Electrical (PE7) 7 pin electrical plug with mating half |
| Feedback Sensor | Yes |
| Fluid Cleanliness | 17/15/12 micron |
| Fluid Compatibility | Antiwear hydraulic oils and non alkyl-based Phosphate Esters |

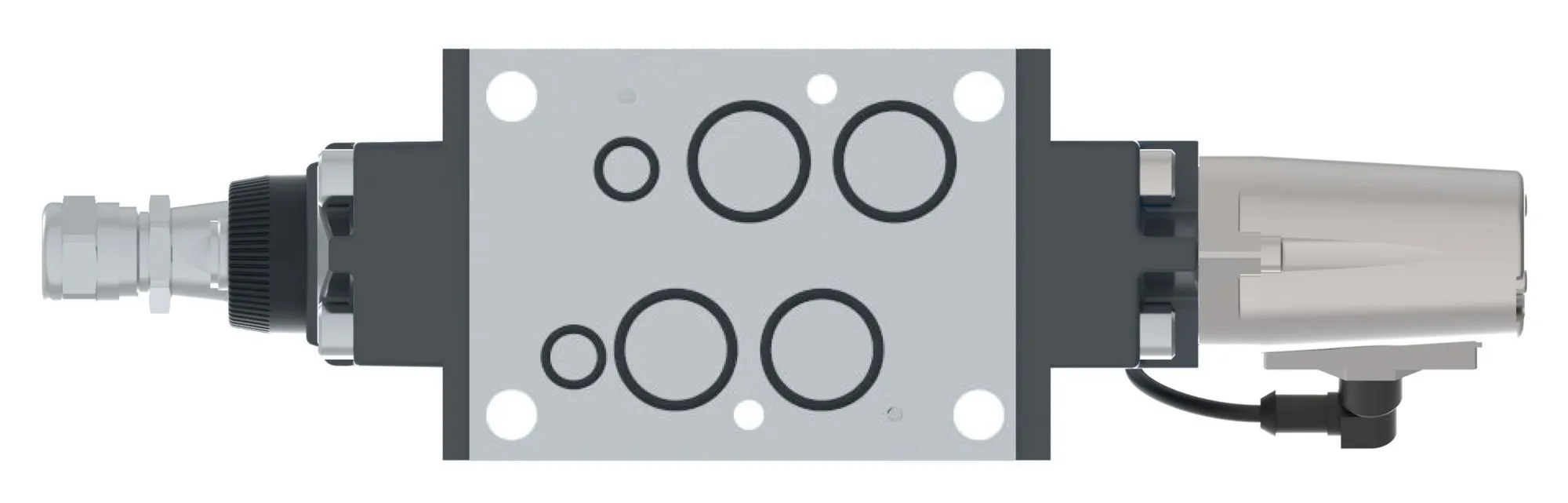

| Interface | ISO4401-07/NFPA D07/CETOP 7/NG16 |
| Manual Override | Plain |
| Maximum Pressure Bar | 350 |
| Maximum Pressure Psi | 5000 |
| Metering | Meter in / meter out |
| On Board Electronics | Yes |
| Performance | High performance |
| Pilot Drain | External |
| Pilot Supply | Internal |
| Pressure Drop Rated Flow Bar | 5 |
| Pressure Drop Rated Flow Psi | 72 |
| Product Height In | 9.280 |
| Product Height Mm | 235.712 |
| Product Length In | 13.010 |
| Product Length Mm | 330.454 |
| Product Width In | 3.620 |
| Product Width Mm | 91.948 |
| Profx Compatible | No |
| Reducer Module | Yes |
| Reverse Flow Check | No |
| Seal Type | Viton |
| Special Features | None |
| Spool Type | ISO4401-10/NFPA D10/CETOP 10/NG32 |
| Stage | Two stage |
| Symmetric Flow | Yes |
| Tank Port Rating Bar | 350 |
| Tank Port Rating Psi | 5000 |
| Valve Mount Type | Subplate |
| Valve Type | Proportional directional |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
